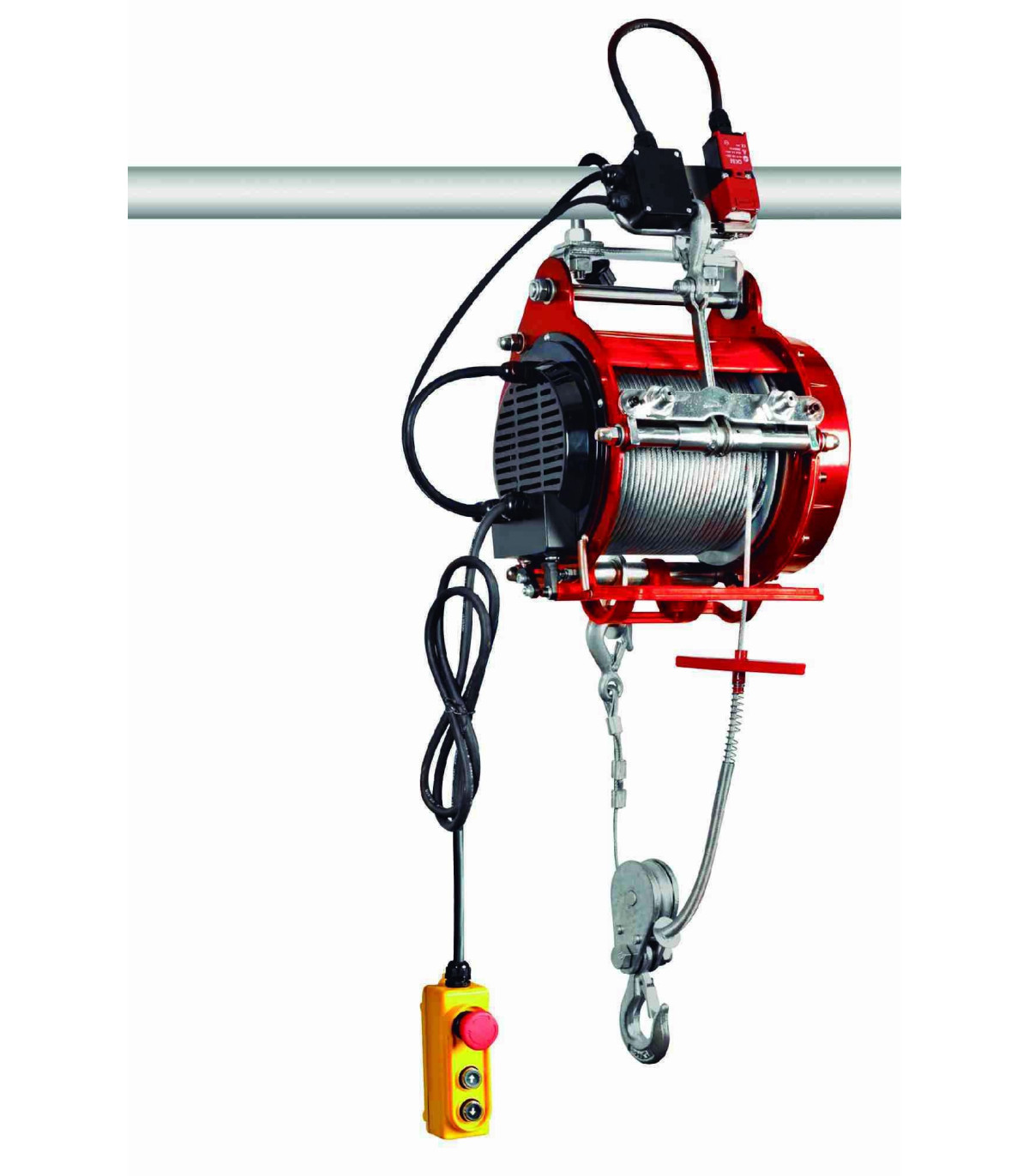

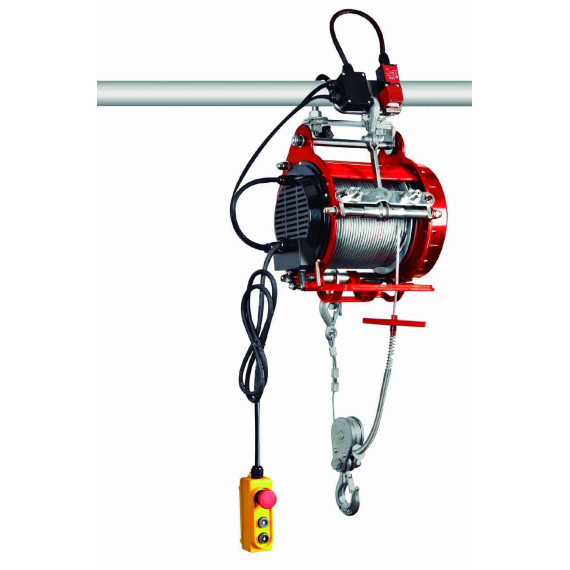

PH-400 Electric Wire Hoist - METALWORKS

PH-400 Electric Wire Hoist - METALWORKS. Unique, automatic cable guide prevents dirt and wear, thus extending the lifespan of the cable, the new bearings also extend the lifespan of the motor.

The PH-400 electric hoist offers a lifting capacity of up to 400 kg in a medium-sized unit. This hoist is the ideal tool for lifting intermediate loads across a wide range of applications, from workshops to construction sites, with a perfect balance of power and portability.

The PH-400 Electric Wire Hoist from METALWORKS is a versatile and powerful tool. With the ability to move up to 400 kg, it is perfect for tasks that require more strength than entry-level models, but without the size of industrial hoists. Its safe design and easy handling make it an essential piece of equipment for any professional needing to move loads efficiently.

FEATURES

• Intermediate lifting capacity for a wide range of jobs.

• Cable control for safe operation.

• Integrated safety system that prevents overload.

• Compact design for versatile installation.

SPECIFICATIONS

• Load lifting capacity with/without pulley 400 / 800 kg
  Voltage / power 1.3 kW / 230 V
  Lifting speed 8 m/min
  Lifting height 15 / 30 m
  Cable diameter 5 mm
  Control cable length 1.5 m
  Dimensions (l x w x h) 510 x 410 x 455 mm
  Net weight 32 kg

APPLICATIONS

• Mechanical workshops: To lift heavy vehicle engines and components.

• Construction sites: Lifting materials and tools.

• Warehouses and logistics: Moving goods between levels.

• Maintenance facilities: Lifting equipment for repairs.
