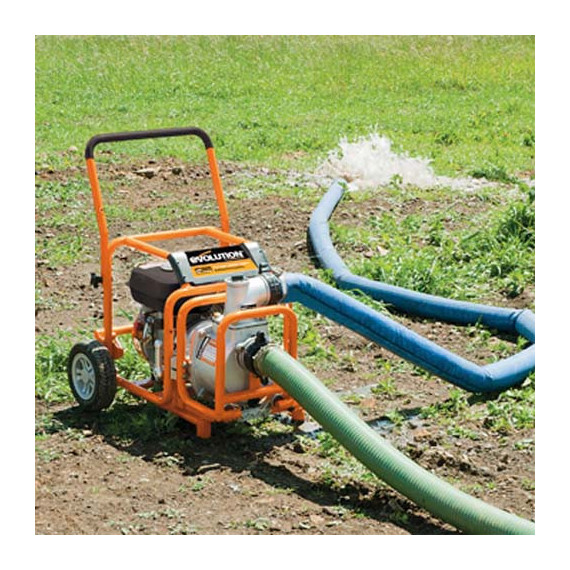

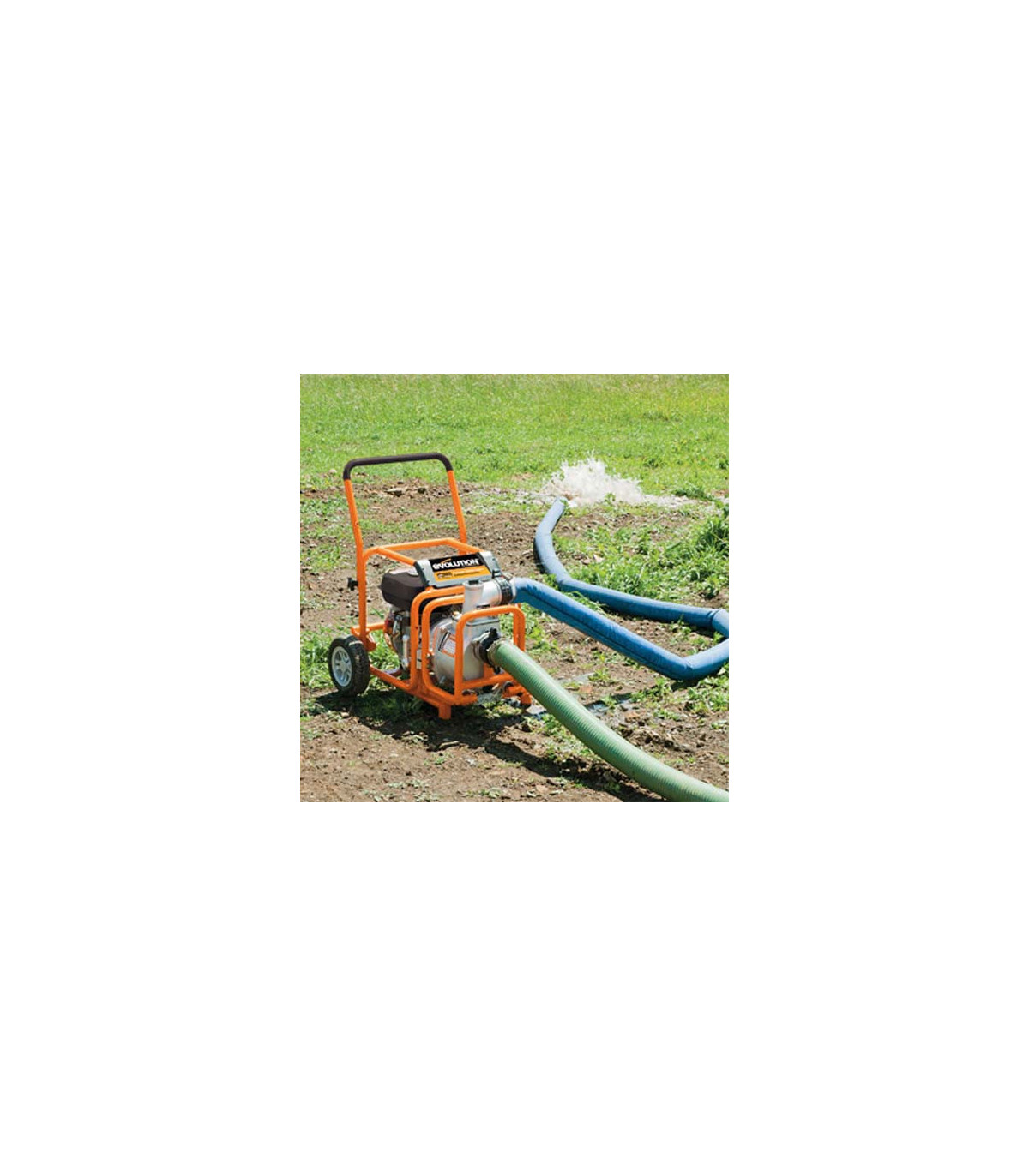

Water pump EVO-SYSTEM DWP1000

Water pump for moving large volumes in drainage, dewatering, and transfers, designed for work where high flow is required with a 3” (75 mm) hose. It is part of the EVO-SYSTEM modular system and works with the compatible motor (sold separately).

FEATURES

• Maximum flow rate of up to 1000 L/min for rapid water evacuation
• 75 mm (3”) inlet and outlet for use with hoses of the same diameter
• Lift height of up to 28 m
• Suction height of up to 8 m
• Solid passage of up to 8 mm (suitable for dirty water with particles)
• Includes inlet filter/screen to reduce the entry of debris
• Steel frame structure for protection and transport on site
• Aluminum casing and cast iron impeller

BENEFITS OF THE EVO-SYSTEM DWP1000 Water Pump

Allows for quick water removal in specific situations or frequent work, with a 3” intake that facilitates transfer at high flow rates. The 8 mm solid passage and inlet filter help to work in environments with dirty water without having to stop continuously for small particles. Being an EVO-SYSTEM module, it can be integrated into a modular system sharing the compatible motor.

USES AND APPLICATIONS: WHAT IT IS SUITABLE FOR

Suitable for dewatering on construction sites, emptying trenches and sumps, draining flooded areas, transferring in tanks, and use in agriculture when there is a need to move water with a large diameter hose. Suitable for dirty water with small particles (up to 8 mm); for work with larger solids, it is advisable to use another type of pump.

TECHNICAL DATA

• Maximum flow rate: 1000 L/min
• Inlet/outlet diameter (with filter): 75 mm (3”)
• Lift height: 28 m
• Suction height: 8 m
• Maximum solid passage: 8 mm
• Weight: 10.7 kg
• Dimensions (height x depth x width): 395 x 345 x 300 mm
