Anti-fall Device Drc Type A Click-On Runner En/Es Avanti For Rail from the AVANTI brand for Height Protection

Avanti Fall Protection System

Maximum safety for work on wind towers

In most countries, regulations require that wind turbine towers have a fall protection system to prevent accidents on the interior stairs.

At Avanti Wind Systems, safety is our priority. That’s why we have developed a reliable and efficient fall protection system, integrated as part of the ladder to ensure the protection of technicians at all times.

How does Avanti's fall protection system work?

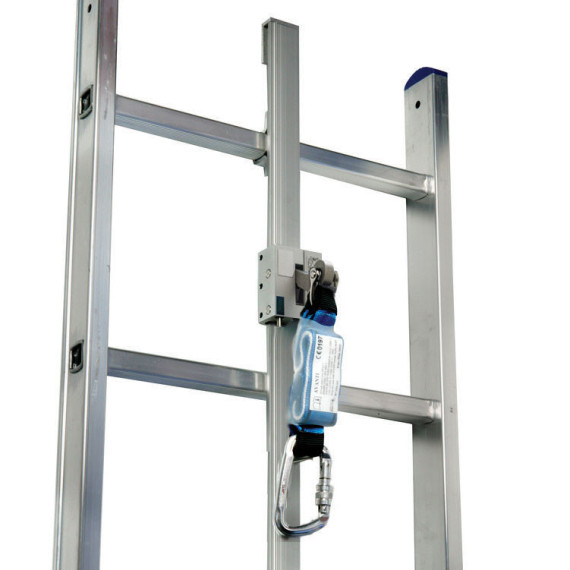

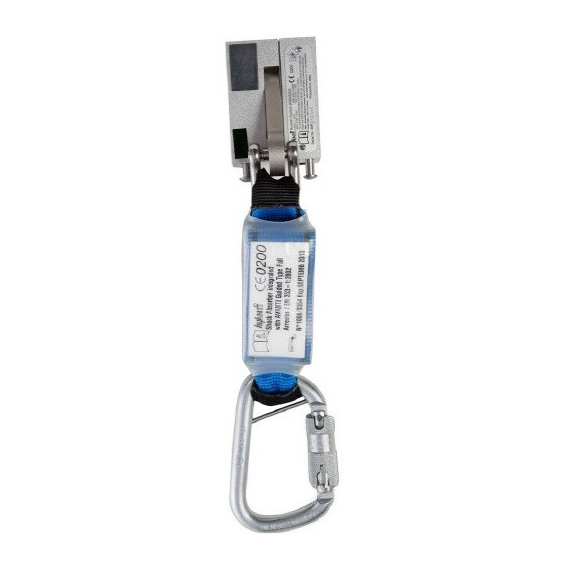

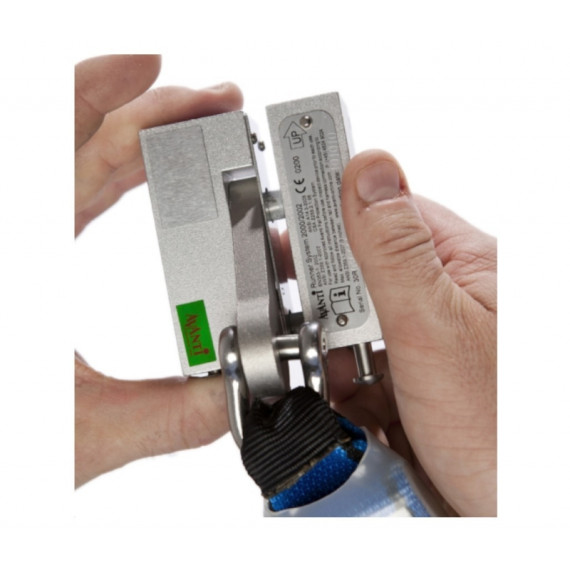

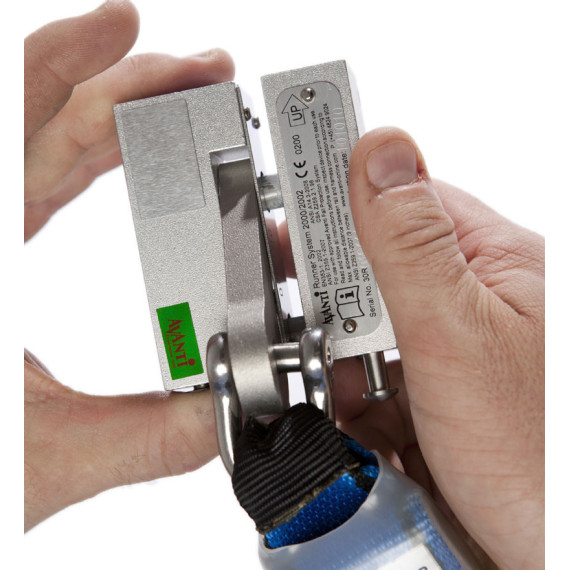

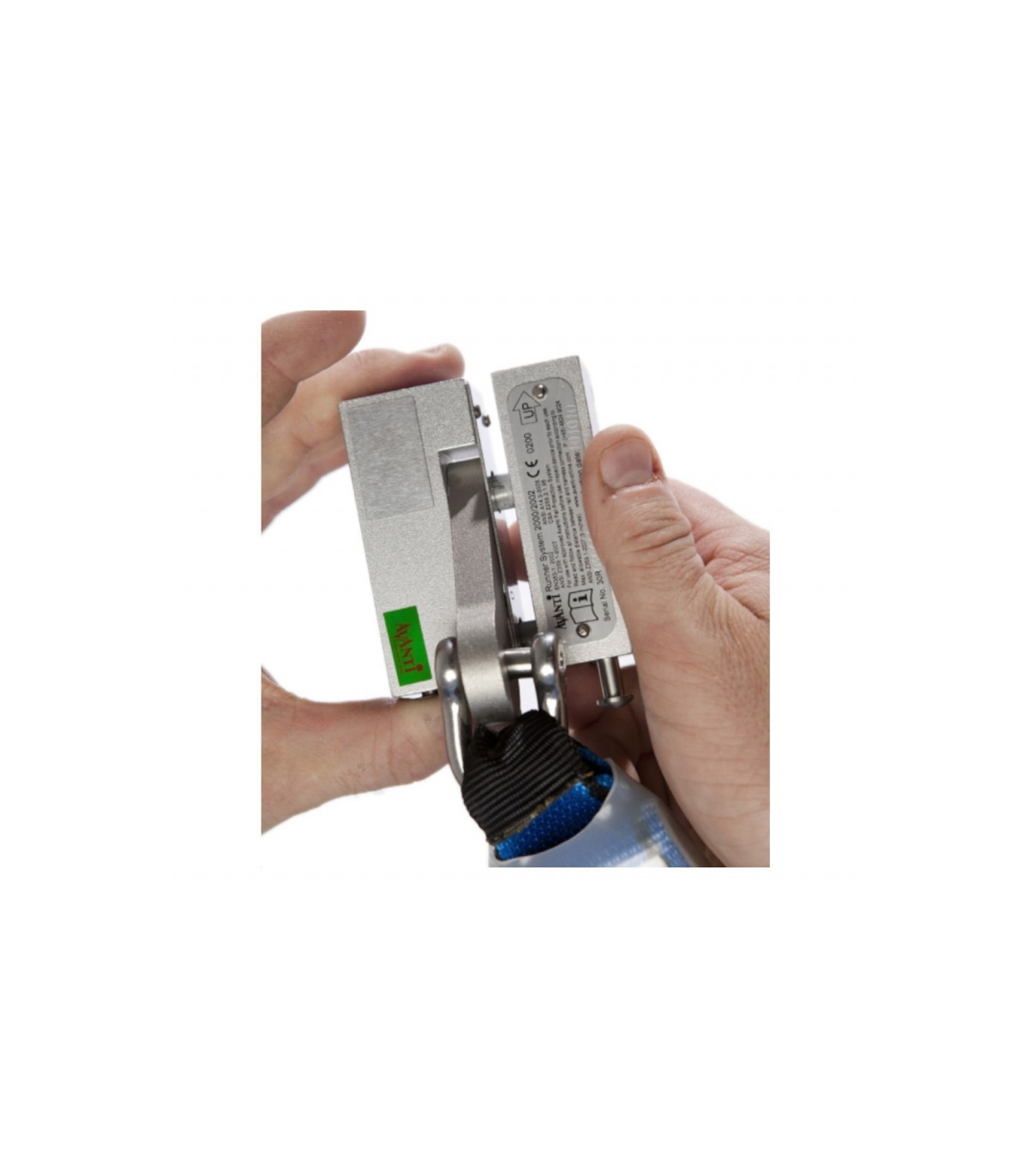

Our system is based on a special click slider, which the technician secures to their harness using a high-security carabiner, similar to those used in climbing.

Main features:

✅ Click slider on the safety rail: It is fixed to the center of the ladder and accompanies the user during ascent and descent.

✅ Automatic locking in case of imbalance or discomfort: If the technician loses balance or feels unwell, the slider immediately locks, stopping their fall.

✅ Allows simultaneous use by multiple technicians: Unlike other cable-based systems, Avanti's system allows multiple users to use the ladder without waiting.

✅ Hook and unhook at any point on the tower: The slider can be connected or disconnected at any section of the ladder, providing maximum flexibility.

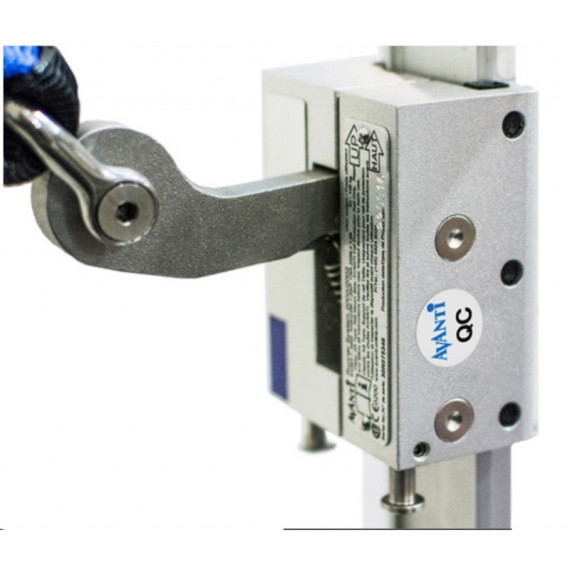

Additionally, for greater safety, Avanti has developed an additional anchor point that allows the technician to secure themselves while working, further reducing the risk of falls.

Materials and certifications

🔹 Ladder made of aluminum, with the safety rail integrated in the center.

🔹 Ergonomic design: The ladder is positioned 70-90 cm from the tower wall, allowing for a comfortable and safe posture during ascent.

🔹 Rest platforms: Installed every 6 to 15 meters, according to the regulations of each country.

🔹 CE certification (Europe) and compliance with regulations in EE.UU.

🔹 Mandatory annual maintenance, carried out by Avanti personnel or authorized companies.

The Avanti Fall Protection System is the safest and most efficient solution for work on wind towers, ensuring the protection of technicians during every ascent and descent.

Maximum safety with Avanti's fall protection system

Simultaneous use by multiple technicians

The Avanti fall protection system is designed to maximize efficiency and safety when working at height. Multiple users can use the system at the same time, as the slider allows them to hook or unhook from the safety rail at any point on the tower.

🔹 No unnecessary waiting: Technicians can ascend or descend without having to wait for their colleagues to complete the ladder section.

Advanced safety system

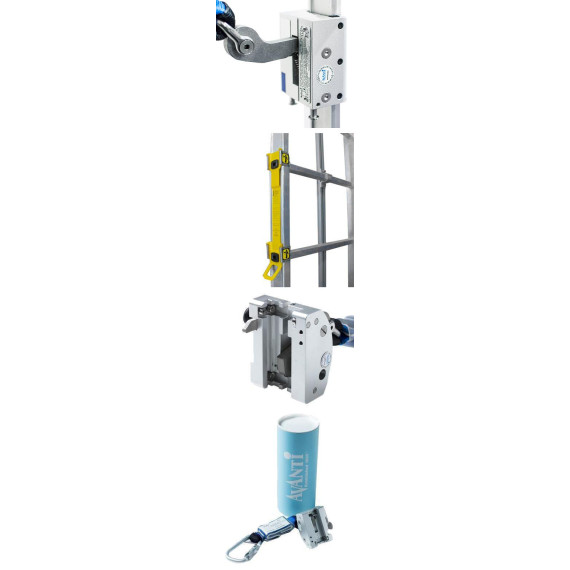

🔹 Double locking on the Eagle DS device: Increases protection in case of a fall.

🔹 Click-On with optimized safety: Allows for a quick and secure connection to the safety rail.

🔹 Additional anchor point: Can be mounted anywhere on the ladder to provide greater stability during work, further reducing the risk of falls.

Compliance with international regulations

Avanti's safety ladder systems meet the most stringent global standards:

🌍 European regulations: EN 131-2, EN-ISO 14122, DIN 18779-1, BS4211:2005, BS5395-3:1985.

🇦🇺 Australian regulation: AS1657.

🇺🇸 Regulations of EE.UU.: ANSI Z359 and OSHA regulations.

Additionally, the system has CE certification (Europe) and has undergone rigorous safety testing.

With Avanti's Fall Protection System, safety and efficiency go hand in hand, providing technicians with the peace of mind and protection they need during every ascent and descent.
