Sanding Machine SM 100 METALLKRAFT

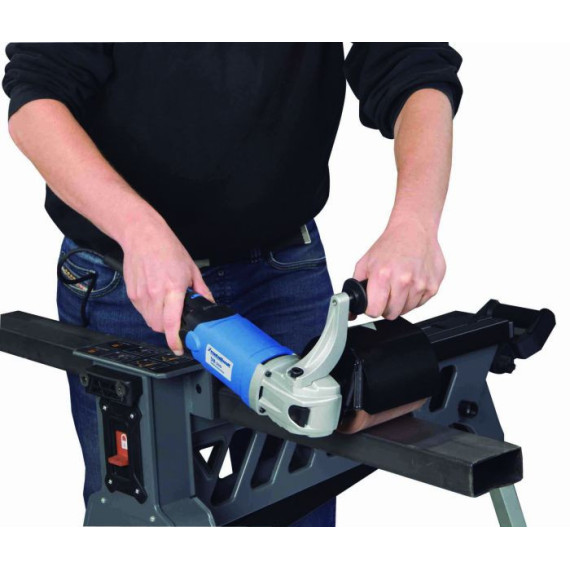

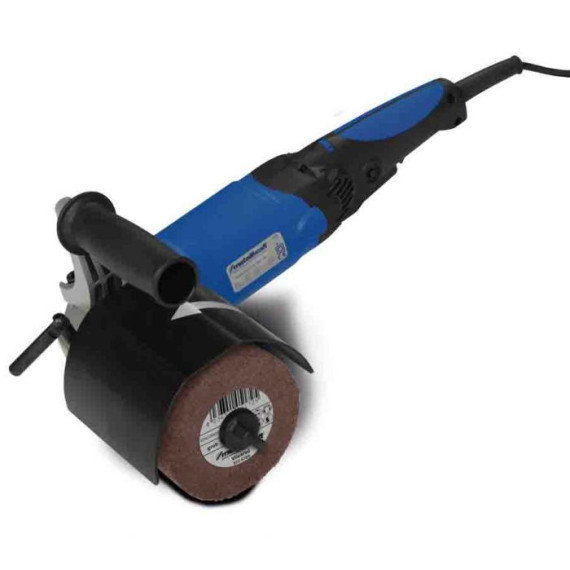

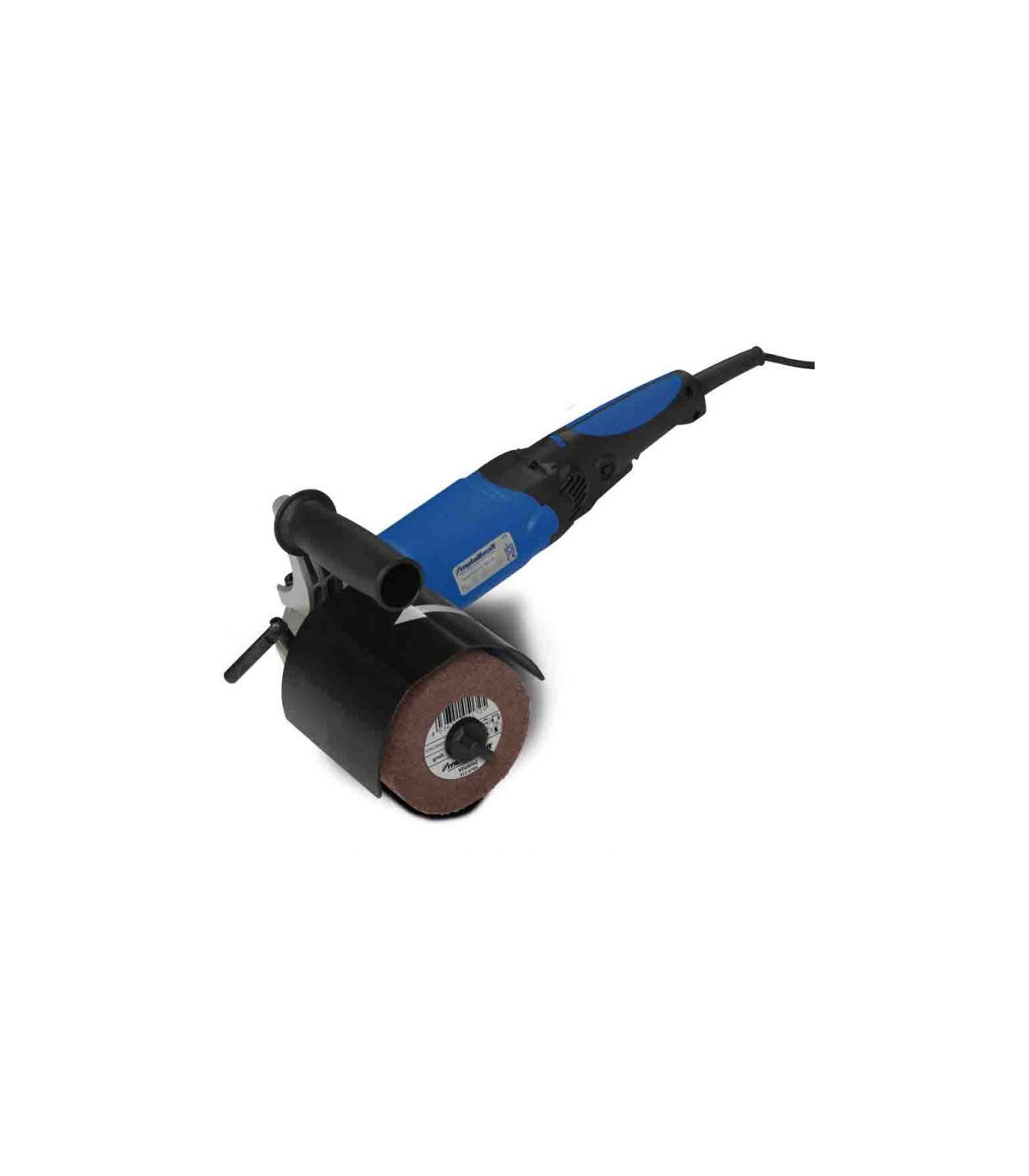

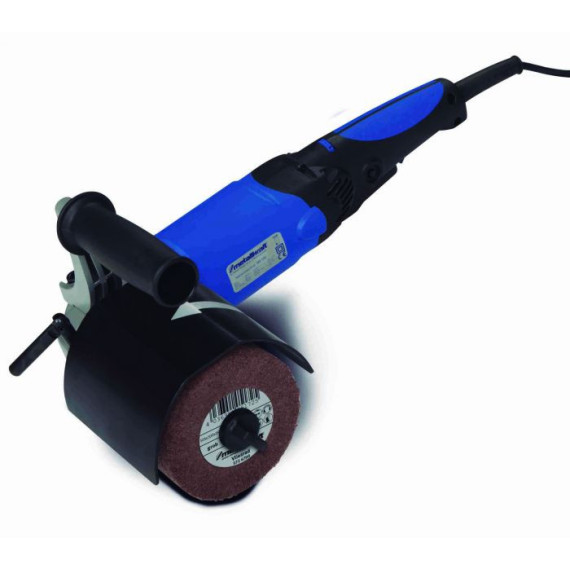

Satin Finishing Sander SM 100 METALLKRAFT. The SM 100 satin finishing sander from METALLKRAFT is ideal for working with stainless steel, aluminum, and plastics. With a heavy-duty motor, soft start, and constant electronics, it ensures uniform speed under load. Its ergonomic design and speed adjustment allow for comfortable handling, while its robust gearbox guarantees durability. With a tool diameter of 105 mm and a weight of 4.8 kg, it is perfect for precise finishes. Additionally, it features Velcro for touching up already mounted stainless steel railings, making it versatile and efficient in any workshop.

FEATURES

• For machining stainless steel, cast iron, aluminum, non-ferrous metals, plastics, etc.
• Heavy-duty motor with soft start and overload protection.
• With constant electronics for a constant speed even under load
• Optimal adaptation to the workpiece through continuous speed adjustment
• Rotational speeds can be comfortably controlled via the thumb wheel on the rubber handle.
• Very robust gearbox

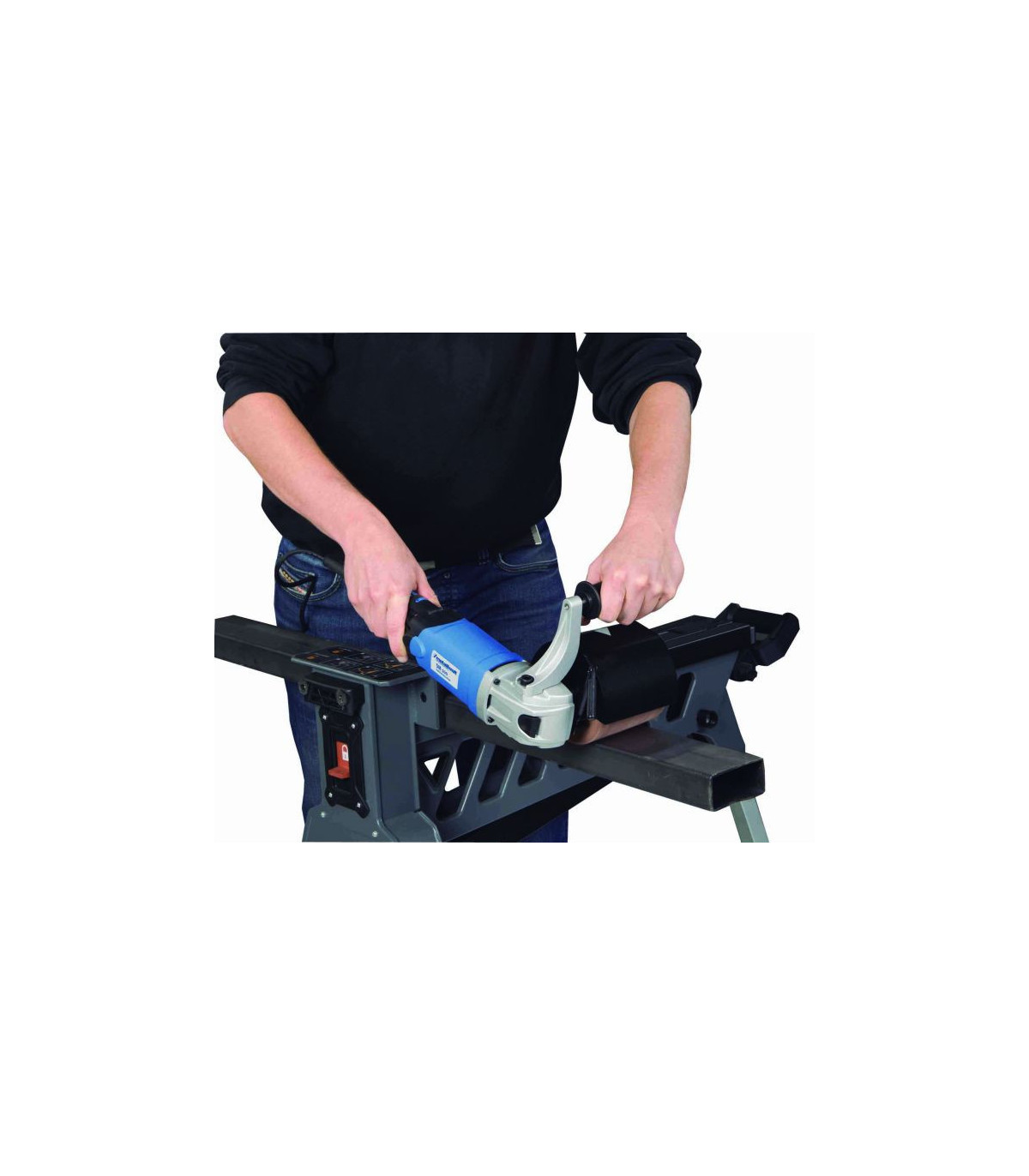

• Fatigue-free work thanks to ergonomic two-handed handling

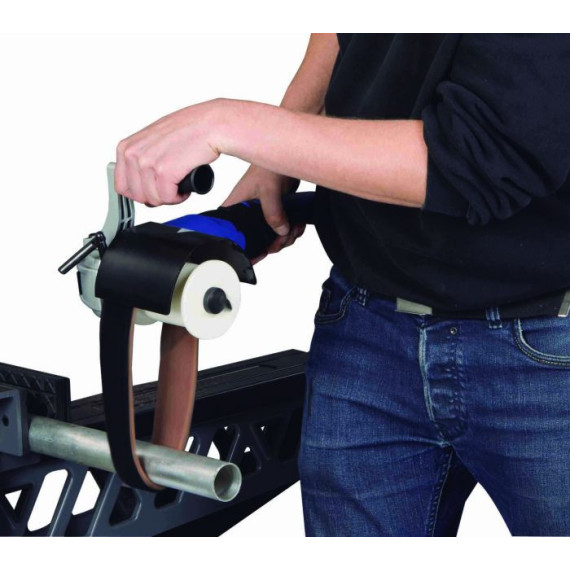

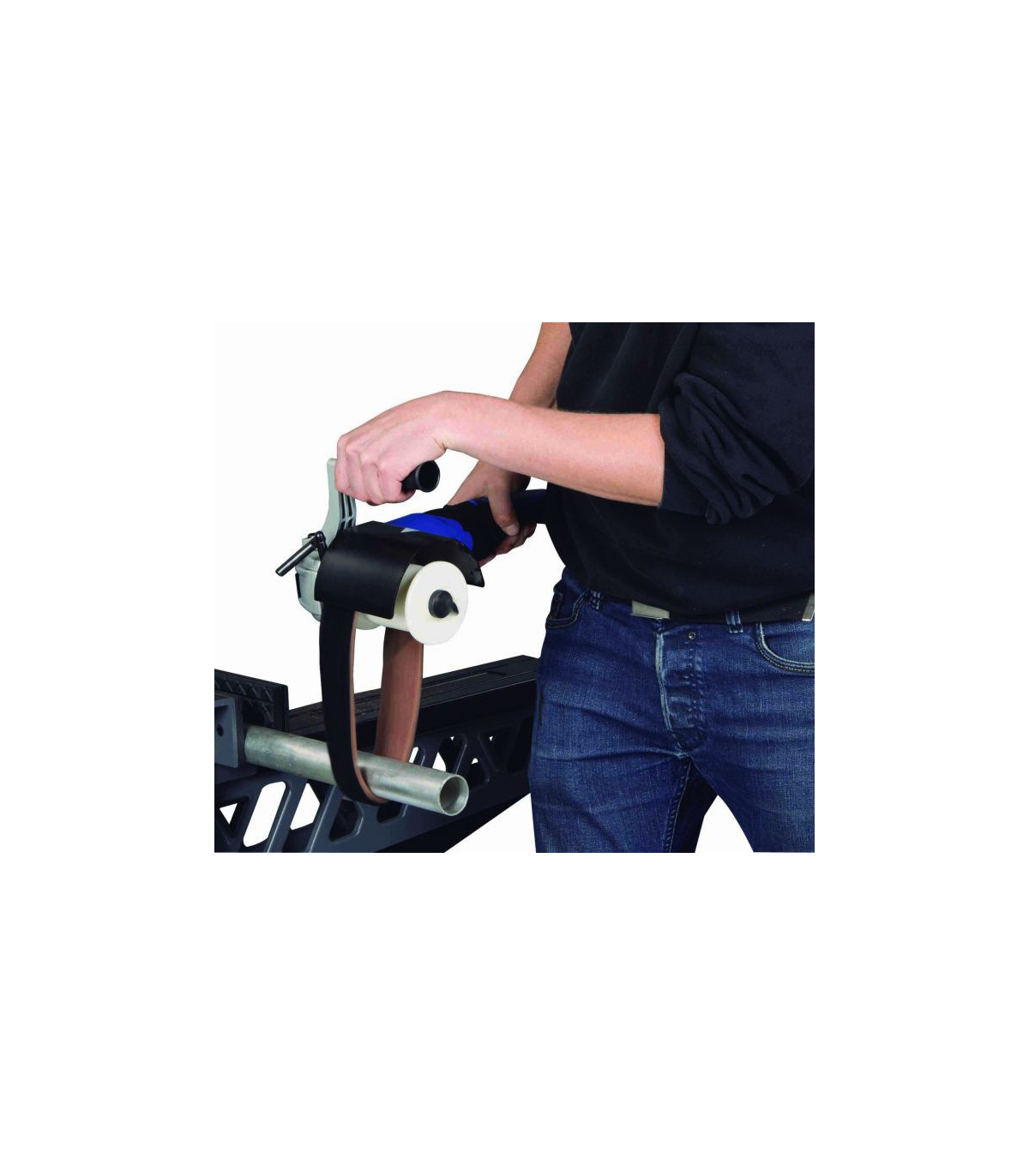

• Standard with Velcro for touching up already mounted stainless steel railings

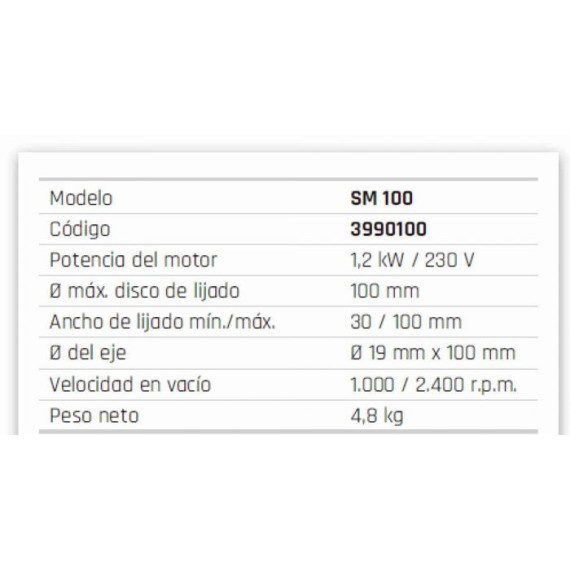

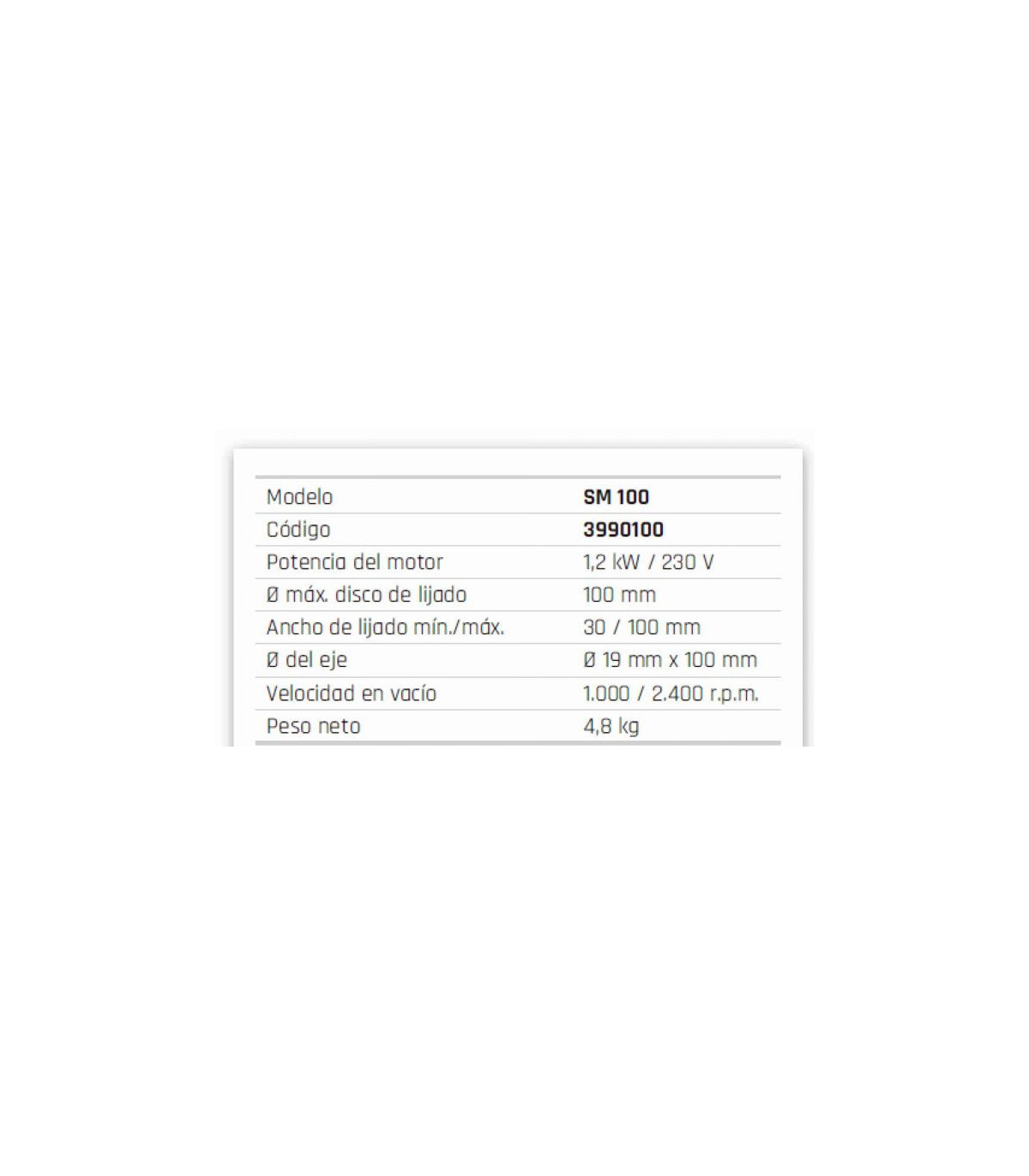

TECHNICAL SPECIFICATIONS

• Maximum tool diameter     105 millimeters
• Minimum tool width    50 millimeters
• Maximum tool width     100 millimeters
• Spindle seat diameter      19 millimeters
• Idle speed 1000 – 2400 min¯¹
• VPE 1

Dimensions and weights

• Approximate weight. 4.8 kilograms

Electrical data

• Drive motor output 1.2 kW
• Motor speed(s) 1000 – 2400 rpm
• Supply voltage 230 V
• Network frequency 50 Hz

Sanding machine

• Maximum sanding width 100 millimeters

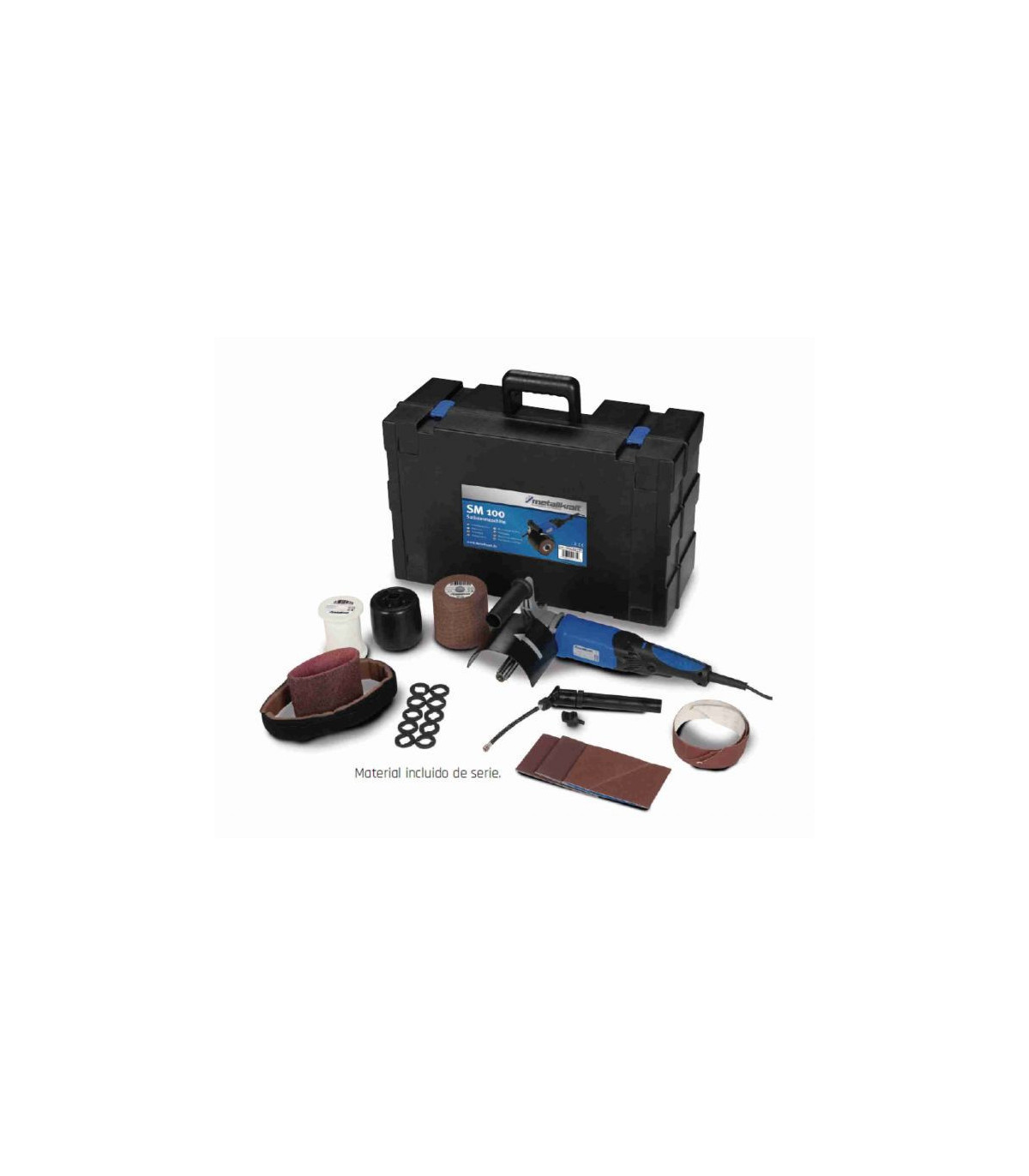

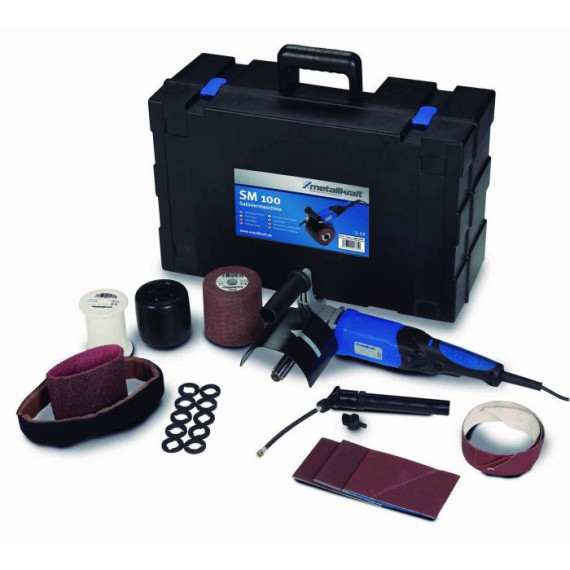

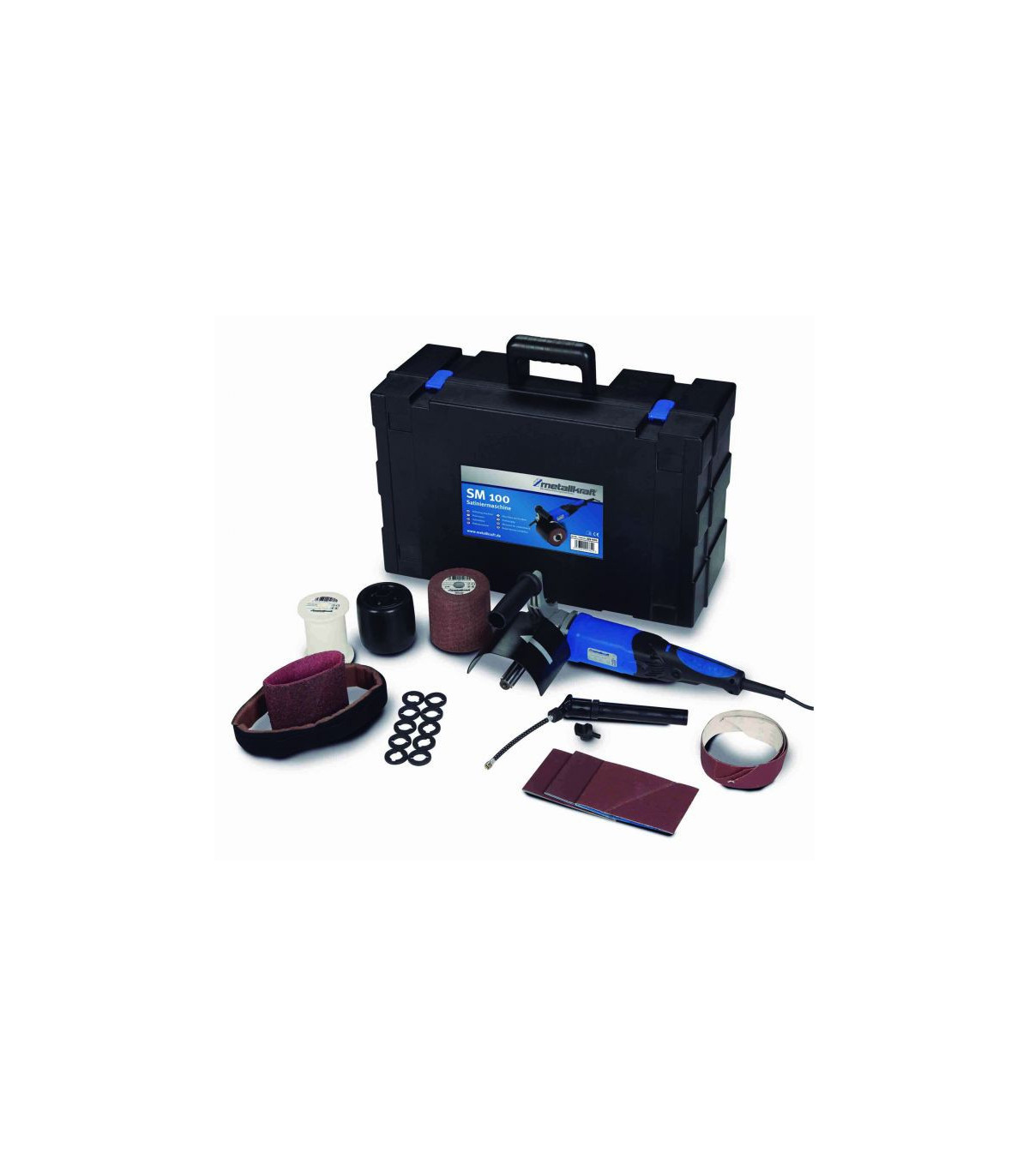

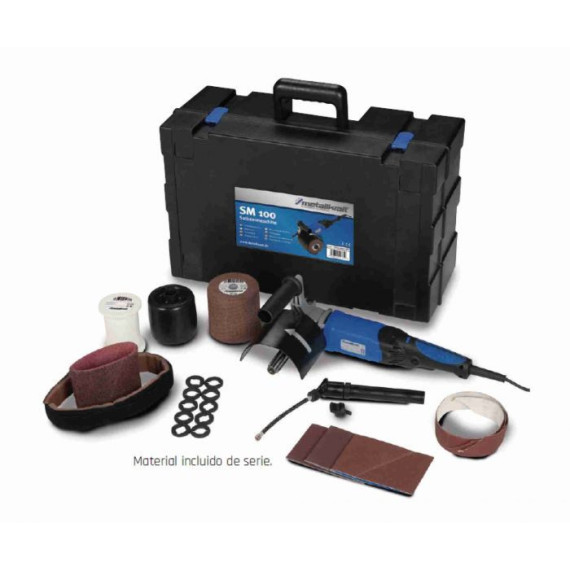

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Plastic case
• Rubber air roller

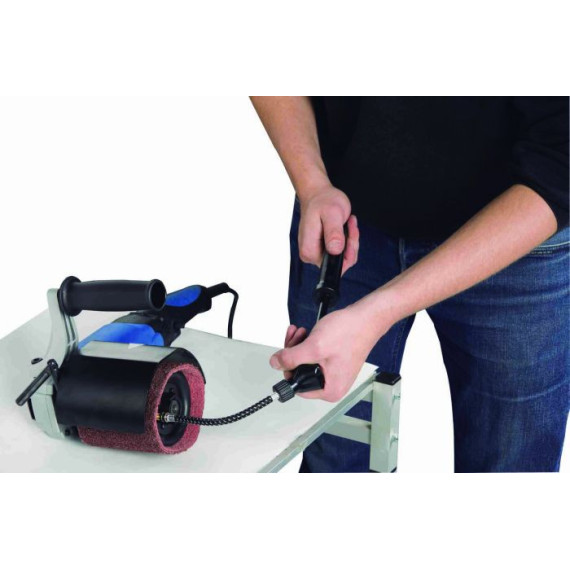

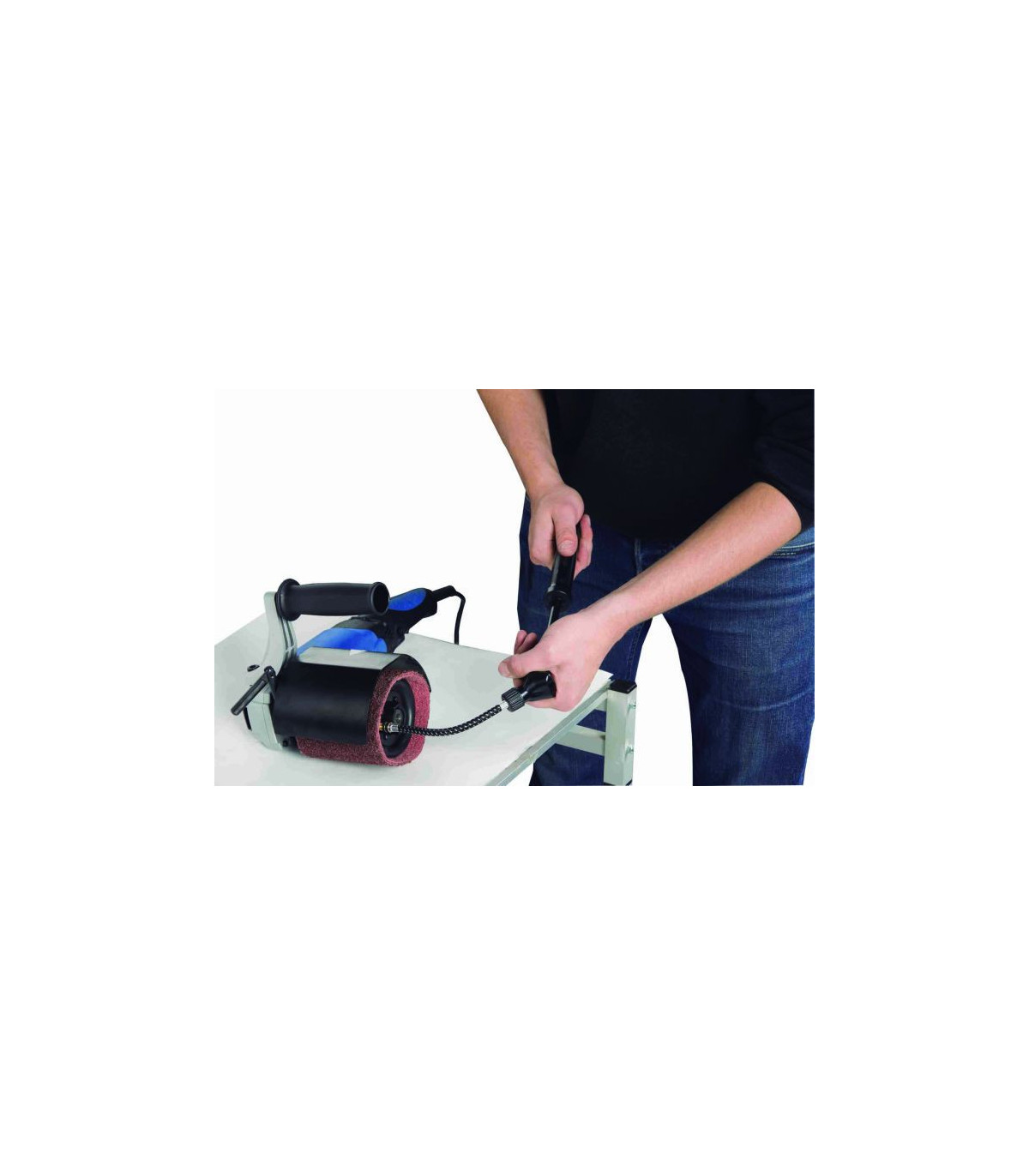

• Air pump for rubber roller
• Coarse fleece sanding sleeve (Ø 90 x 100 mm)
• Sanding sleeve K 60 (100 x 292 mm)
• Sanding sleeve K 100 (100 x 292 mm)
• Sanding sleeve K 180 (100 x 292 mm)
• Drive roller for abrasive belts
• Polar Velcro (40 x 60 mm)
• Velcro sanding belt K 120 (40 x 600 mm)
• Transmission belt with Velcro (30 x 700 mm)
• Non-woven fine roller (105 x 100 x 19 mm)
• Set of spacer rings 10 pieces (40 x 19 x 5 mm)

WHAT TYPE OF WORK IS IT SUITABLE FOR

The SM 100 Satin Finishing Sander METALLKRAFT is suitable for:

• Metallurgical industry
• Work with stainless steel
• Construction
• Metal furniture
