Hydraulic press with fixed cylinder CAT520 | METALWORKS

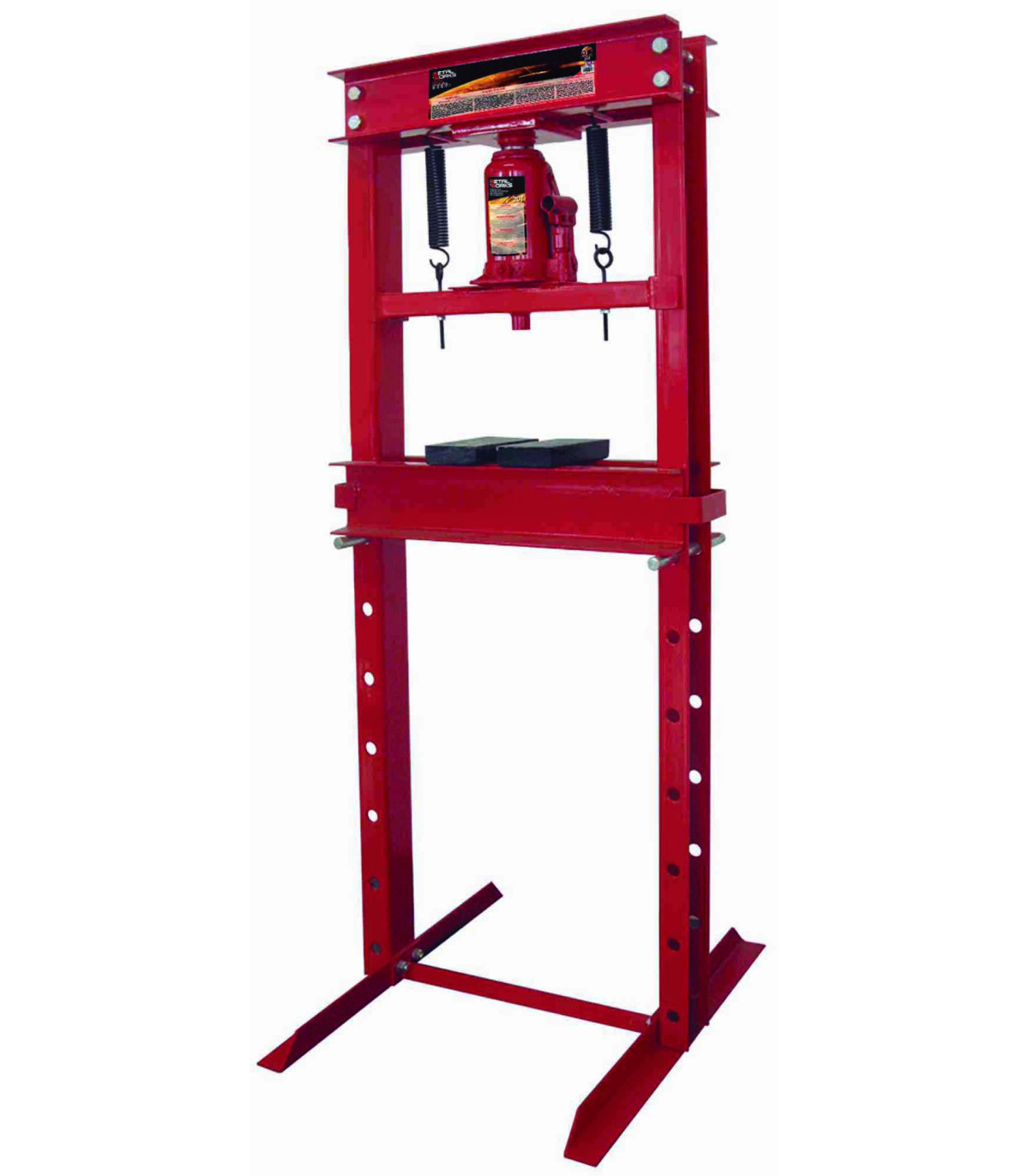

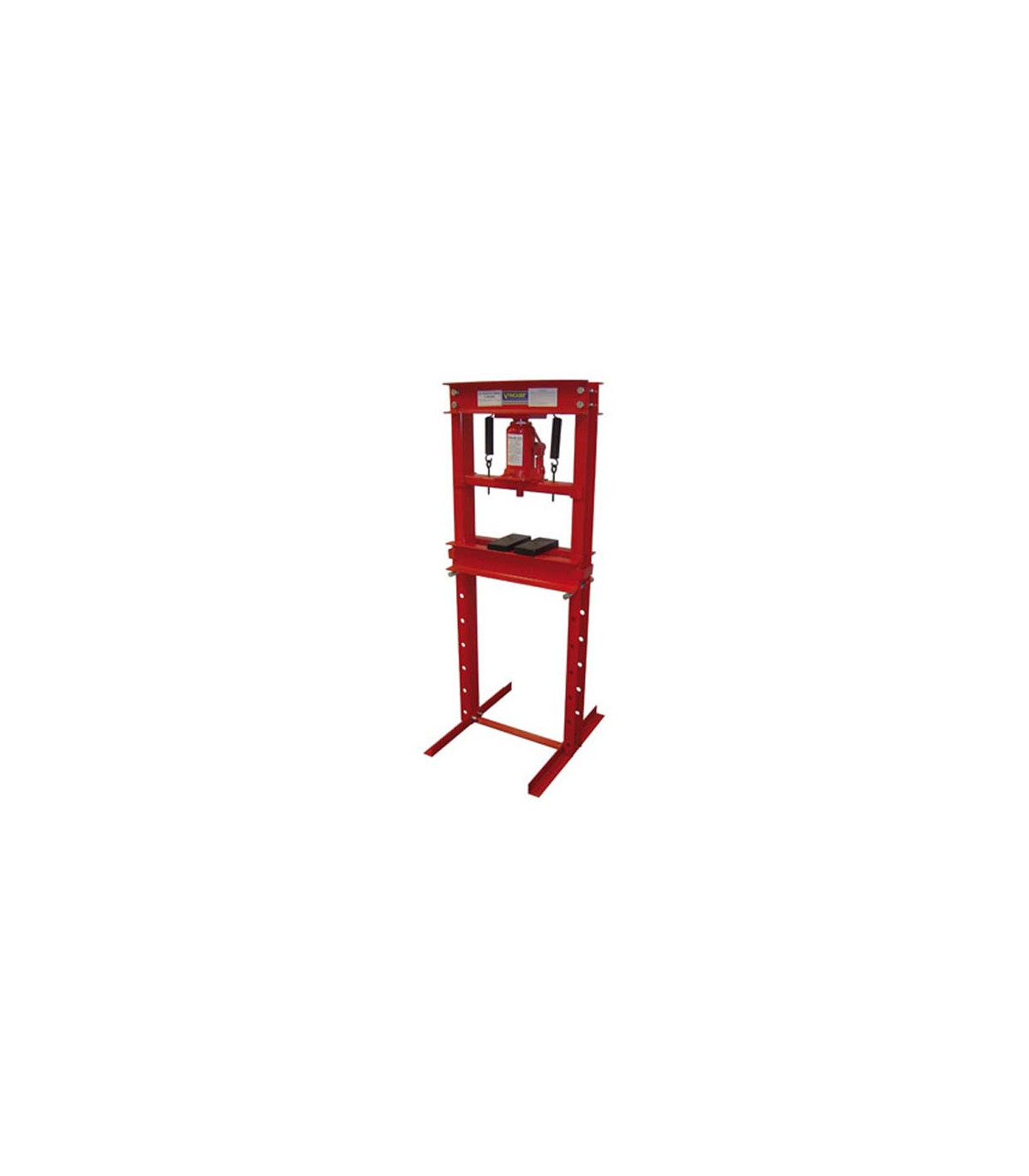

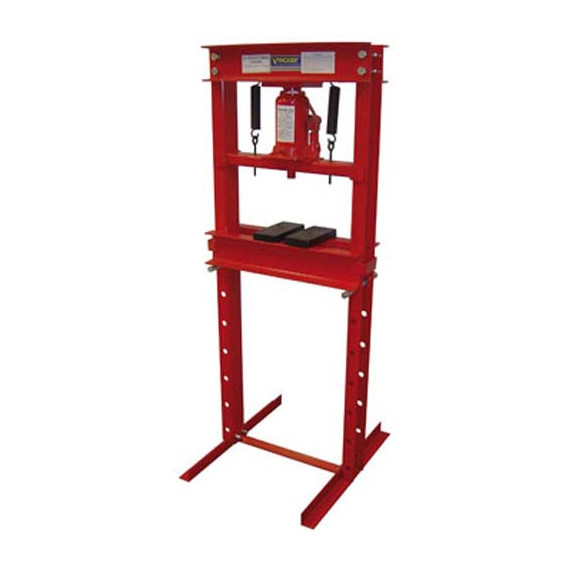

Hydraulic press with fixed cylinder CAT520 METALWORKS. Model on a base. Simple model with bottle jack. It features two return springs for the jack's return. Height-adjustable table. Delivered as standard with a pressure plate for the table. Delivered disassembled.

Hydraulic press CAT520 with fixed cylinder, 20 tons of power, ideal for workshops and industrial applications, METALWORKS. The CAT520 hydraulic press from MetalWorks is a robust and reliable tool, designed for high-power pressing and straightening tasks. With a capacity of 20 tons and a fixed cylinder, it is perfect for repair shops, metallurgy, and industrial applications that require strength and precision. Its high-strength steel construction ensures durability and safety with every use.

Capacity 20 T.
Piston stroke G 150 mm
Minimum piece distance 150 mm

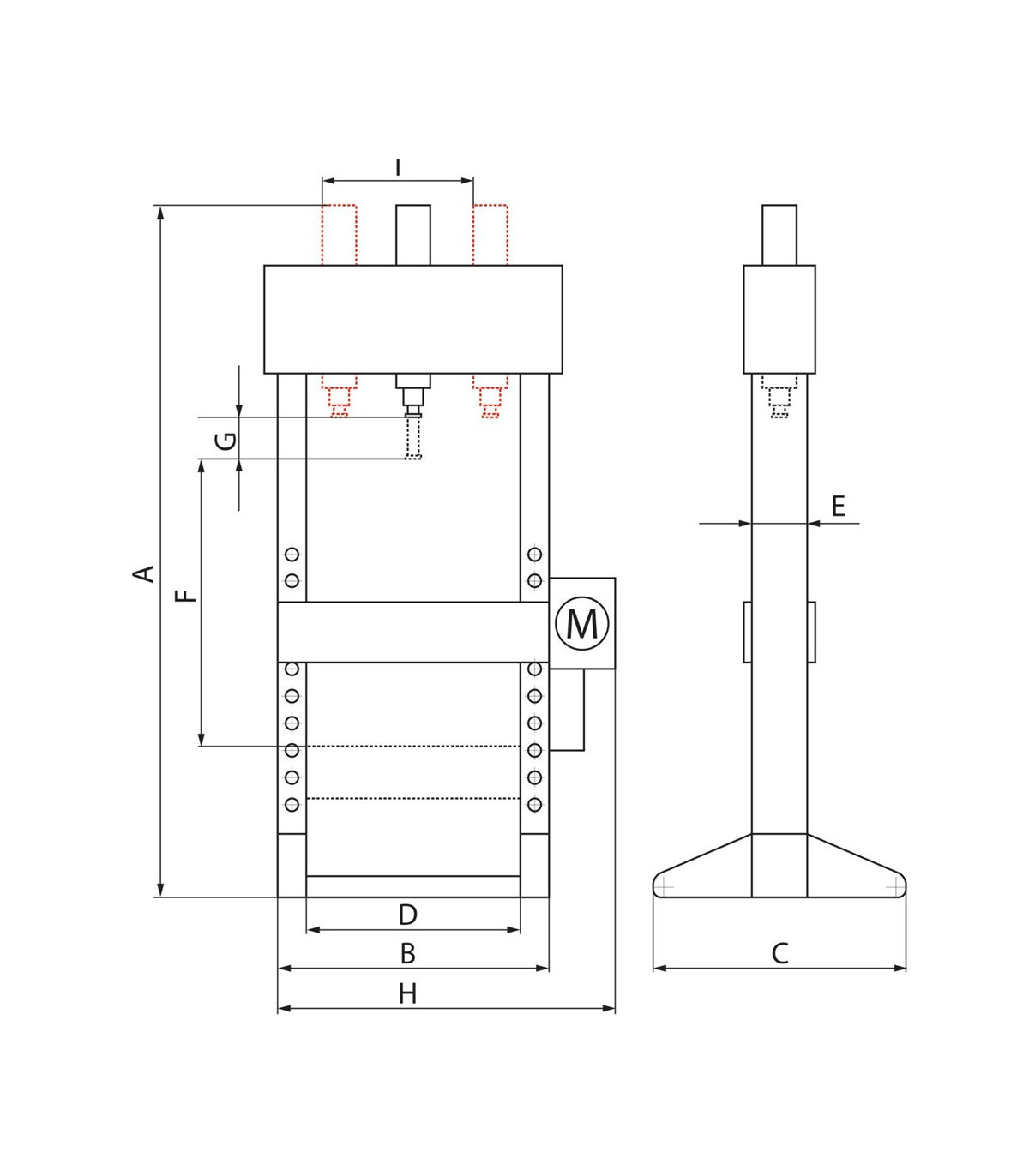

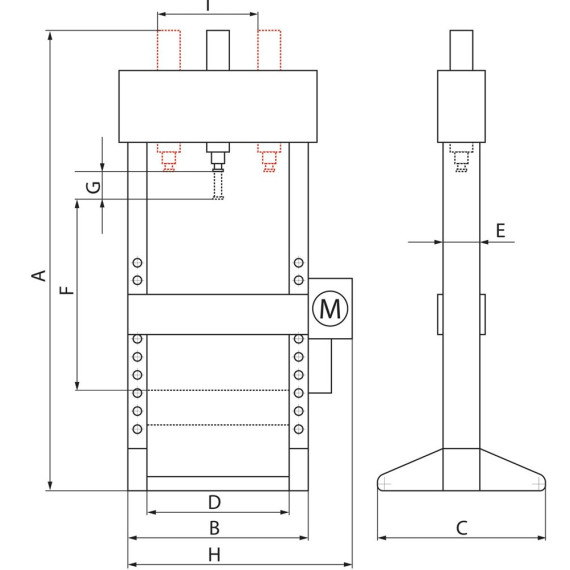

A 1,570 mm
B 610 mm
C 700 mm
D 495 mm
E 90 mm
F 880 mm
G 53 mm
Dimensions (l x w x h) 610 x 700 x 1,570 mm
Net weight 90 kg

FEATURES

• Pressing capacity: 20 tons of force.

• Fixed cylinder: Provides direct and stable force application.

• Reinforced steel structure: Maximum strength and durability.

• Pressure gauge: Allows precise control of the applied force.

• Adjustable work table: Allows height adjustment for different sizes of pieces.

SPECIFICATIONS

• Pressing force: 20,000 kg

• Working width: 500 mm

• Working height: 800 mm

• Weight: 110 kg

APPLICATIONS

• Pressing bearings and bushings in the automotive industry.

• Straightening metal parts in repair shops.

• Extraction and installation of components in heavy machinery.

• Assembly and disassembly work in the manufacturing industry.
