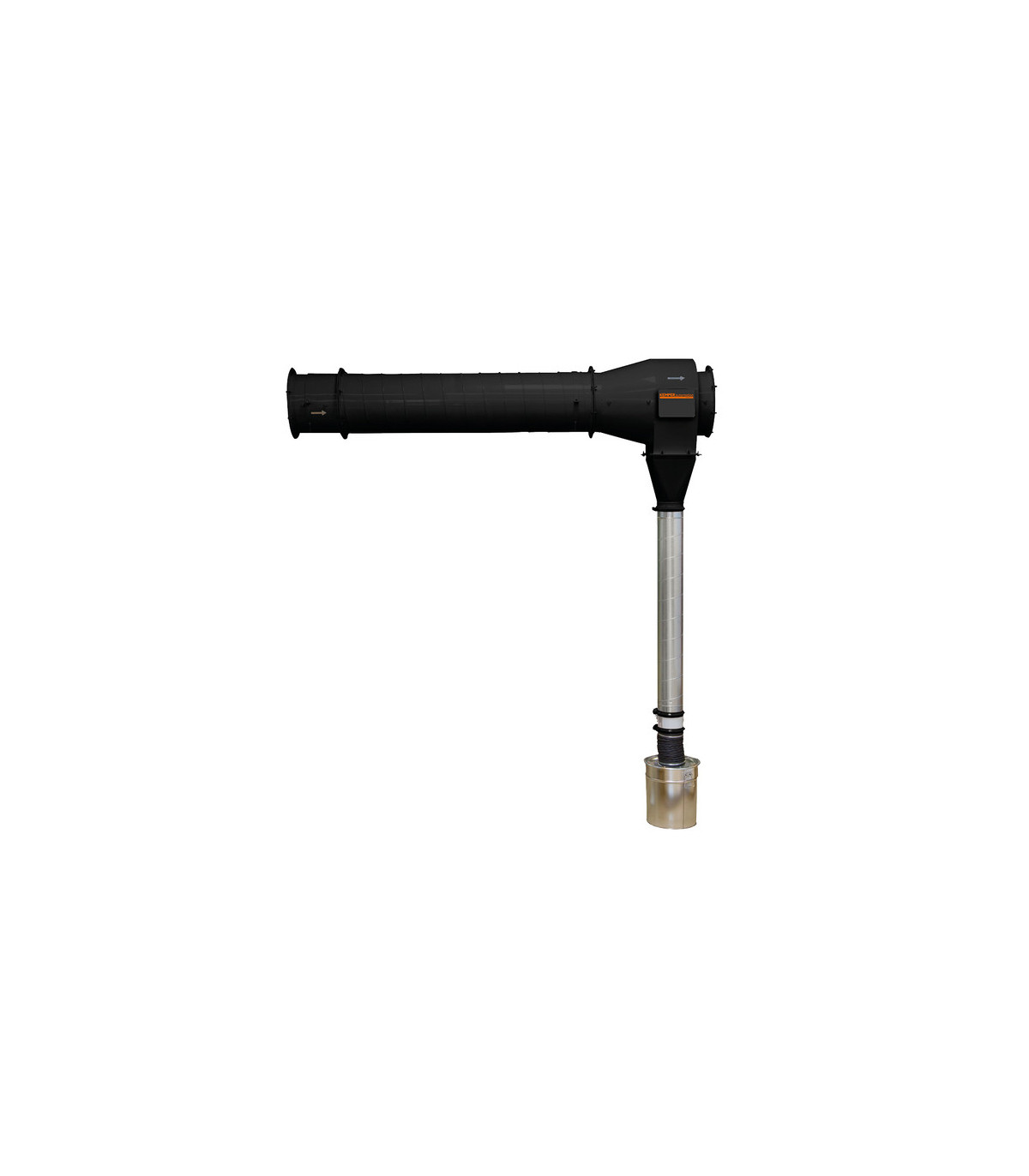

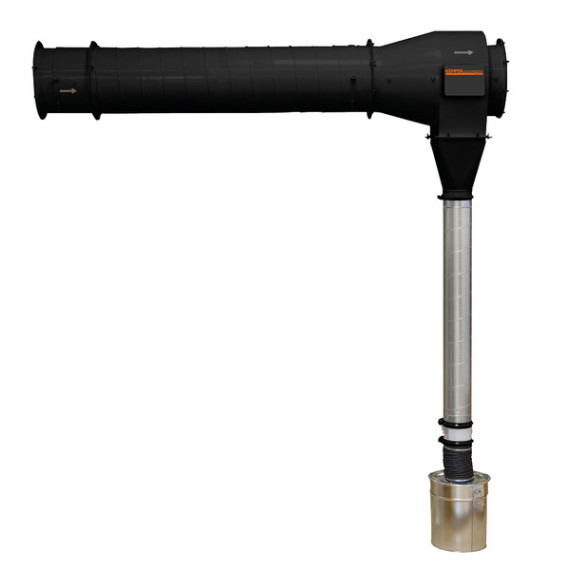

SparkTrap Spark Pre-separator KEMPER

The SparkTrap spark pre-separator safely prevents sparks, coarse particles and cigarette ends from entering the filtration system – with an efficiency of almost 100 percent. In addition, thanks to the pre-separator connection, the filter service life increases by up to 300 percent. Optional spark detection further increases safety, as the filtration system can be switched off automatically when a predetermined limit value is exceeded.

TECHNICAL DATA

• Pressure loss: max. 700 Pa
• Dust collector fill volume: 30 L

FEATURES

• Separation of sparks, glowing particles and cigarette ends
• Turbulence nozzle with annular gap spark trap
• Dust collector and gate valve on the downpipe
• Can be combined with a spark extinguishing system

SUMMARY / APPLICATIONS

• When there is a high fire risk
• When sparks are produced
• During welding, grinding or cutting processes
• Integrated into pipework before suction and filtration systems

ADVANTAGES

• Drastic reduction in secondary costs thanks to prolonged filter service life
• Easy integration into existing systems from all manufacturers thanks to adaptability
• Savings due to reduced air consumption and lower energy costs
• Minimisation of fire risk thanks to pre-separation of sparks, glowing particles and cigarette ends

ADDITIONAL EQUIPMENT

• Bracket set
• Wall mounting set

OPERATION

• The drawn-in air is set in rotation.
• Sparks and coarser particles are pushed out of the rotating air flow.
• These particles separate from the remaining air flow and are separated into a dust collector.
