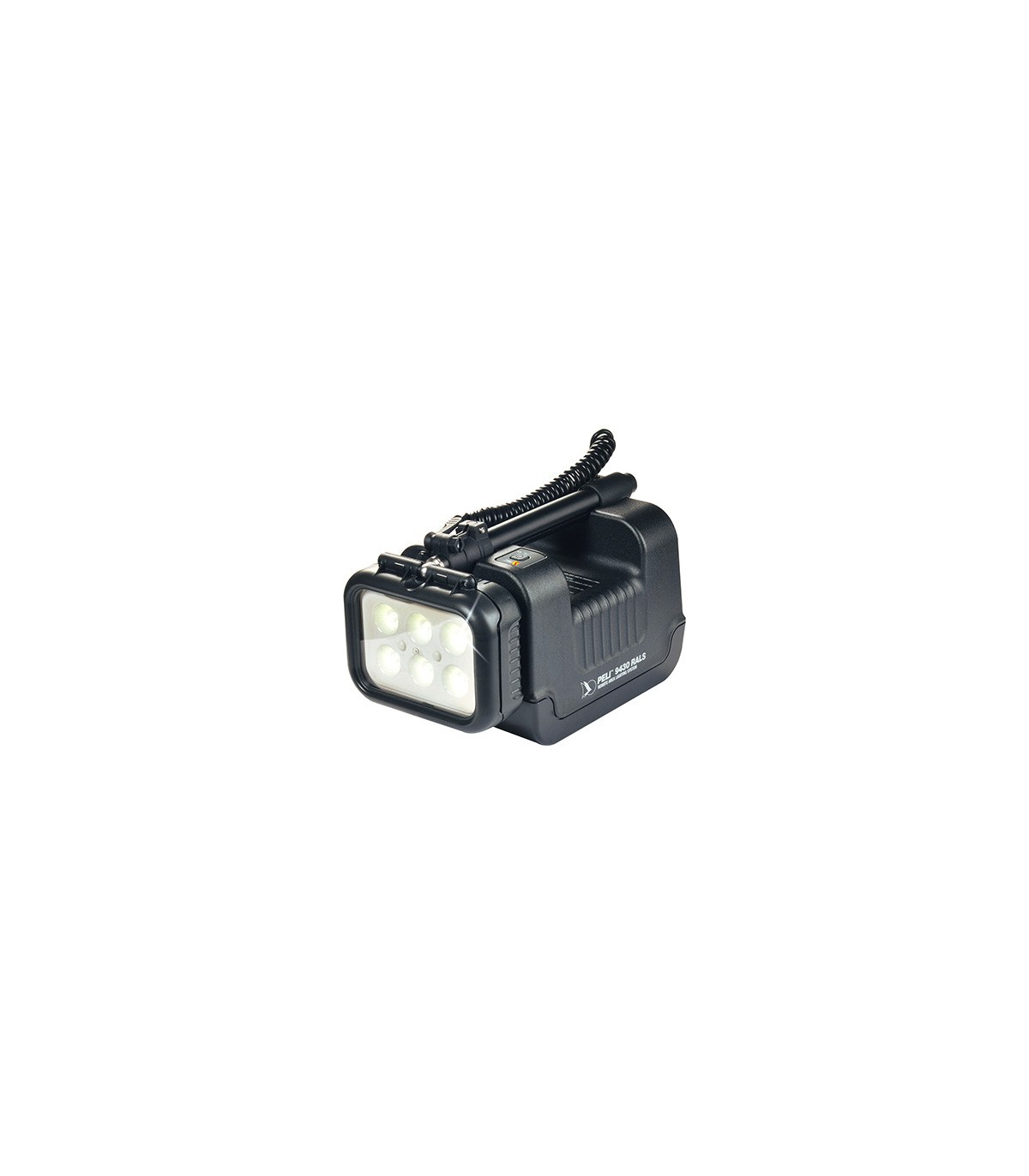

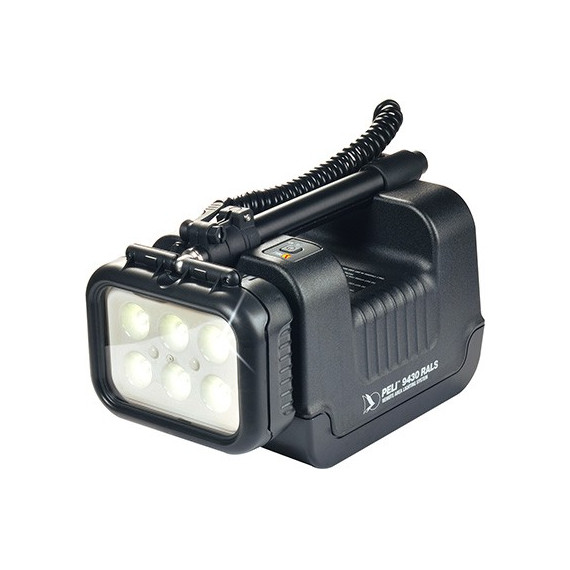

Lighting system for remote areas Rals 9430C extendable mast PELI

The remote area lighting systems (RALS) from Peli are the complete lighting solution for immediate response teams and industrial and aerospace applications. The RALS systems, equipped with different heads, can illuminate the scene of an accident or a soccer field.

FEATURES

New improved version - Generation 3

Up to 15 hours of autonomy

3000 lumens of brightness

Fully extendable mast with a 360-degree rotating head

Water-resistant rubber power switch

Mast extension lock

Low battery level warning

Durability Peli

Includes 110 – 240 Volt (50/60hz) charger and universal adapters

Complies with RoHS and CE

RALS SPECIFICATIONS

Dimensions

Head (L×W×D) 6.50 x 7.87" x 2.56 (16.5 x 20 x 6.5 cm)

Closed (L×W×D) 15.75 x 7.87" x 9.06 (40 x 20 x 23 cm)

Mast length 32.28" (82 cm)

Cable length 13.78" (35 cm)

Materials

Body Polycarbonate (PC) / ABS

Head Polycarbonate (PC) / ABS

Post Glass-Reinforced Plastic

Lens Polycarbonate (PC)

Light Specifications

High lumens 3000

Low lumens 1500

Number of lamp heads 1

Type of lighting system

LED

Number of LEDs 6

Beam distribution 125°

IP rating 54

Power

High autonomy 8.00 hrs

Low autonomy 15.00 hrs

Battery type Sealed Lead Acid (SLA)

Rechargeable yes

Battery life 500 cycles

Charge level indicator

Intermittent Blinking

Main outlets 1

Auxiliary outlets 1

Voltage 12.0v

Weight

Weight 22.65 lbs (10.3 kg)

Time

Type of switch

Silicone Rubber Keypad

FOR WHAT TYPE OF WORK IS IT SUITABLE

Construction and Infrastructure Maintenance: At construction sites far from urban areas, in road maintenance work, bridges, tunnels, or power lines in isolated areas.

Mining and Exploration: In underground or open-pit mines, and in geological or oil exploration sites where electrical infrastructure is limited or non-existent.

Emergency Services: In search and rescue operations in mountainous areas, forests, deserts, or remote coastal areas. Also in field hospitals or temporary command centers established in isolated locations.

Outdoor Events: In concerts, festivals, filming, or any other event taking place in open spaces away from urban infrastructure.

Military Operations and Humanitarian Aid: In remote operation bases, temporary camps, or in areas affected by natural disasters where electrical power has been interrupted.

Telecommunications and Power Maintenance: In communication towers, wind farms, or solar plants located in rural or hard-to-access areas.

Temporary Camps and Settlements: In worker camps on remote projects, scientific research bases, or temporary settlements in rural areas.

Mobile Workshops and Roadside Repairs: To illuminate the work area during repairs of heavy vehicles or machinery on remote roads or paths.

Agriculture and Livestock: For nighttime work in large areas of land or in rural areas without adequate lighting.

Inspections in Isolated Areas: To inspect bridges, dams, pipelines, or gas pipelines that cross remote areas.

ABOUT PELI

Since 1976, Peli has been manufacturing portable coolers, flashlights, and accessories under the highest standards of quality and innovation. Peli provides solutions for businesses by protecting the most valuable items with the mission of driving profitable growth and creating a sustainable and leadership-oriented work environment.
