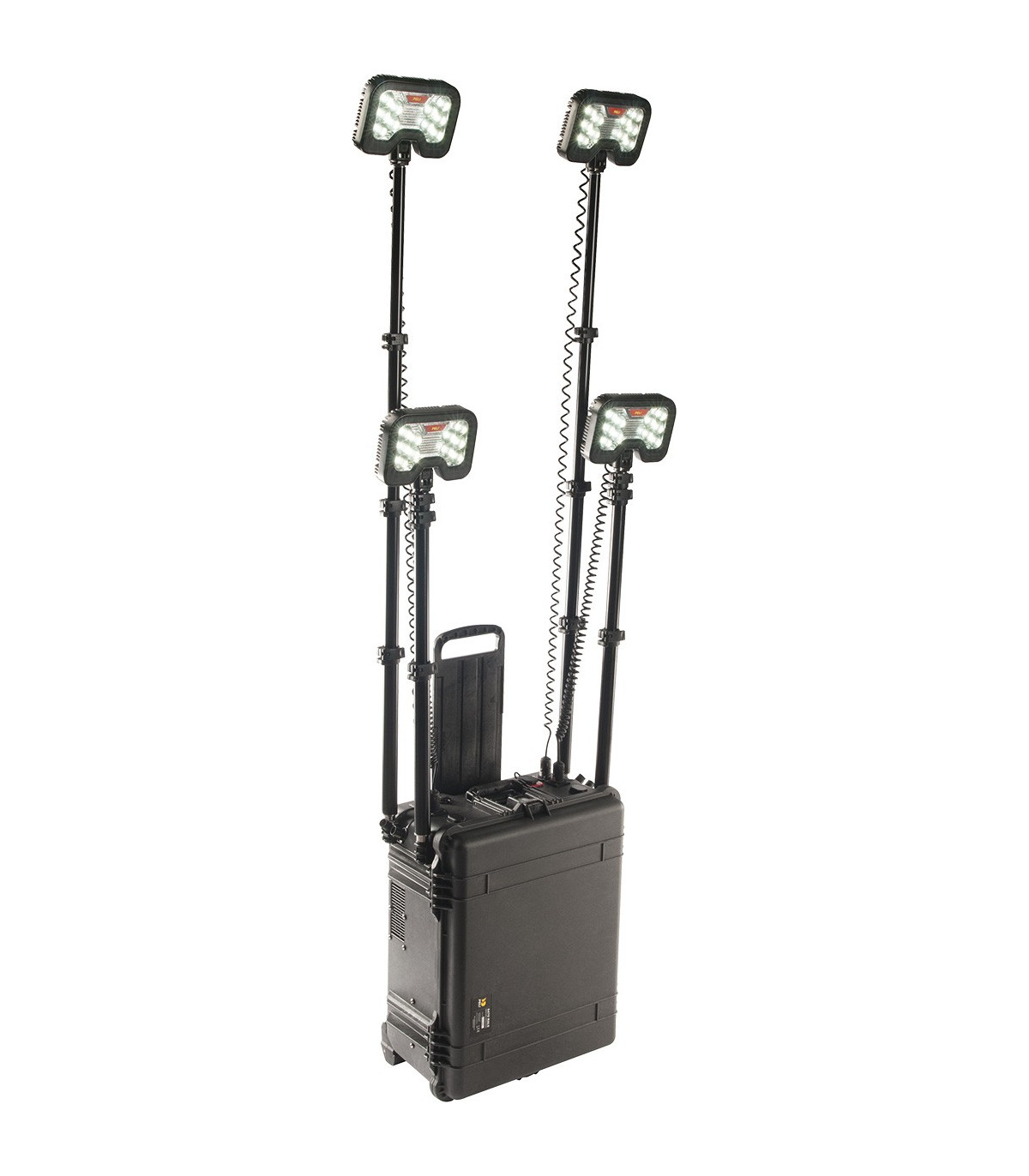

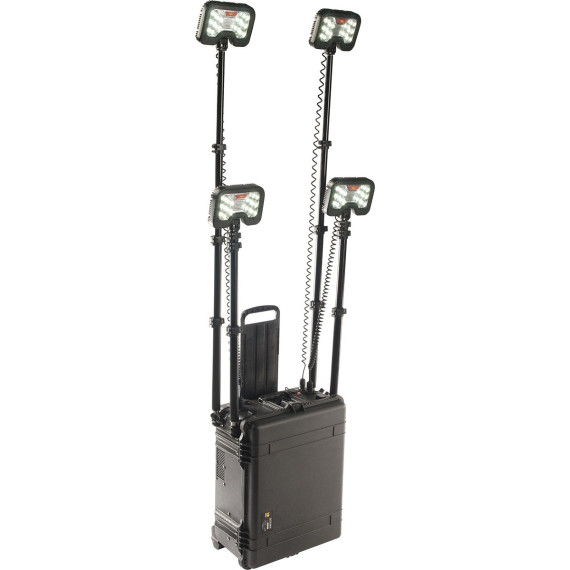

RALS lighting for remote areas 9470 PELI

RALS lighting for remote areas 9470 PELI. The all-new and most powerful remote area lighting system (RALS) 9470 provides convenient and environmentally responsible alternatives to generator-powered lights that waste energy. Designed with an intelligent control system that calculates and displays the current battery level. Additionally, it allows the user to adjust the light intensity, choose the desired duration, or select one of three preset power levels. Built with versatility in mind, the RALS 9470 features four telescoping masts (each extending approximately 6 feet) and four 360° articulated light heads.

The state-of-the-art LEDs in the system combine to emit up to 24,000 lumens (6000 per light head). The system operates on rechargeable batteries and offers remote activation via a Bluetooth app that allows for multiple light outputs from 100% to 0%. For extended applications, the 9470 can operate continuously on wall power. The ability to leave it charging ensures you are always prepared. A 12-volt power port that includes a dual adapter with USB provides power for multiple peripheral devices.

Manufactured independently in an extremely tough Peli case, the 9470 is compact and allows for easy ground transport with a retractable carrying handle and polyurethane wheels with stainless steel bearings. WARNING: The RALS 9460 and 9470 models from Peli Products contain sealed lead-acid batteries that can generate hydrogen gas during charging. It is imperative that these products are charged according to the instructions, with the case lid open to allow gases to escape, as charging them with the lid closed poses a significant hazard. Failure to follow these instructions may result in injury and/or property damage. Please refer to the warnings provided in the unit instructions and on the sticker attached inside the case adjacent to the cavity where the charger unit is located.

FEATURES OF THE RALS 9470 PELI

• Four telescoping LED light heads
• RoHS and CE Compliant
• No emissions
• Low operating temperatures
• Quiet operation
• Stored in a protective Peli case
• Battery level indicator that will start to blink when it is running low
• Dual power adapter with USB
• Bluetooth remote activation

HEAD (L X W X D)

8.25" x 5.75" x 2.25" (21 x 14.6 x 5.7 cm)

CLOSED (L X W X D)

24.75" x 20.00" x 11.75" (62.9 x 50.8 x 29.8 cm)



SPECIFICATIONS

body: Polypropylene

HEAD: Aluminum

MAST: Aluminum

lens: Polycarbonate (PC)

mast length:  82.00" (208.3 cm)

CORD LENGTH:  13.78" (35 cm)

weight:  105.00 lbs (47.6 kg)

high lumens:  24000

lamp heads:  4

type of lighting system:  LED

number of LEDs:  40

lamp life:  50000 hrs

beam distribution:  120 °

IP RATING:  54

high autonomy:  2.75 hrs

low autonomy:  24.00 hrs

battery life:  500 cycles

charging time:  480 mins

BATTERY LEVEL INDICATOR:  iControl

main sockets:  4

volts:  12.0 v

switch type:  iControl Keypad / Bluetooth App

CONFIGURATIONS

9470 - Standard

FOR WHAT TYPE OF WORK IS IT SUITABLE

Construction and Infrastructure Maintenance: At construction sites far from urban areas, in road maintenance work, bridges, tunnels, or power lines in isolated areas.

Mining and Exploration: In underground or open-pit mines, and in geological or oil exploration sites where electrical infrastructure is limited or nonexistent.

Emergency Services: In search and rescue operations in mountainous areas, forests, deserts, or remote coastal areas. Also in field hospitals or temporary command centers established in isolated locations.

Outdoor Events: At concerts, festivals, film shoots, or any other event held in open spaces away from urban infrastructure.

Military Operations and Humanitarian Aid: In remote operation bases, temporary camps, or in areas affected by natural disasters where electrical power has been interrupted.

Telecommunications and Power Maintenance: In communication towers, wind farms, or solar plants located in rural or hard-to-reach areas.

Temporary Camps and Settlements: In worker camps on remote projects, scientific research bases, or temporary settlements in rural areas.

Mobile Workshops and Road Repairs: To illuminate the work area during repairs of heavy vehicles or machinery on remote roads or paths.

Agriculture and Livestock: For nighttime work in large areas of land or in rural areas without adequate lighting.

Inspections in Isolated Areas: To inspect bridges, dams, pipelines, or gas pipelines that cross remote areas.
