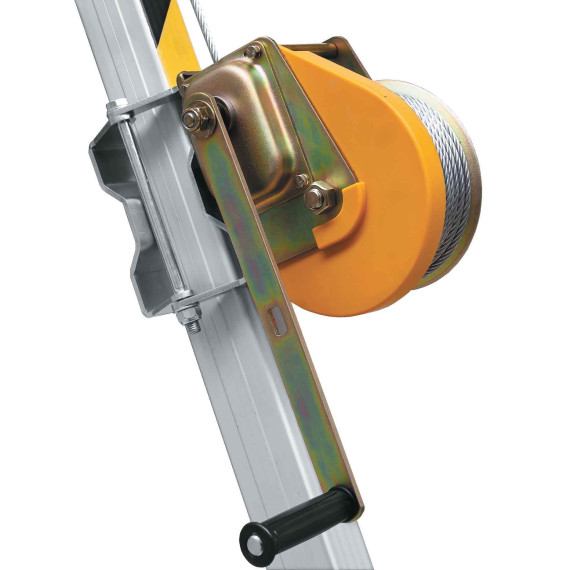

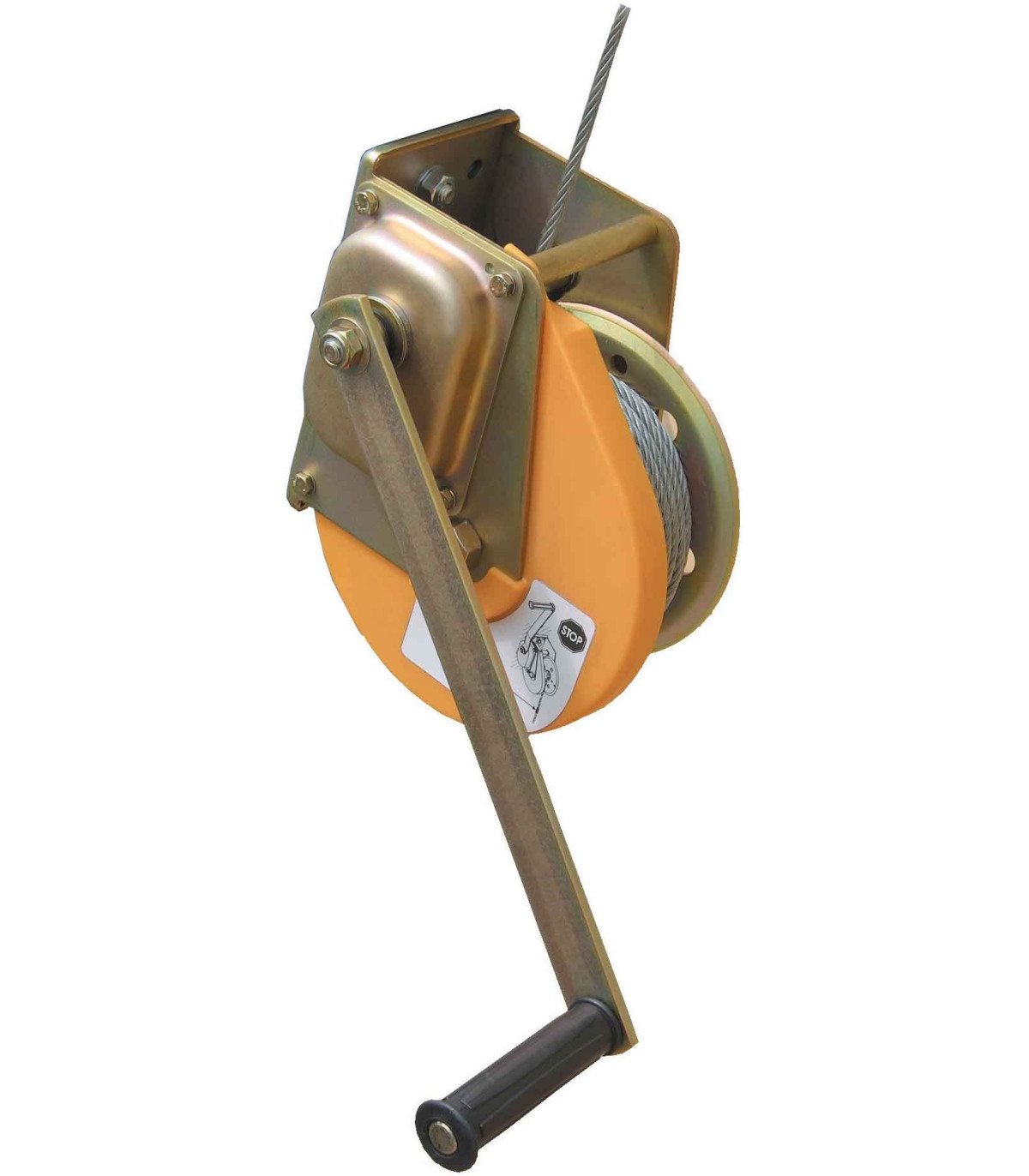

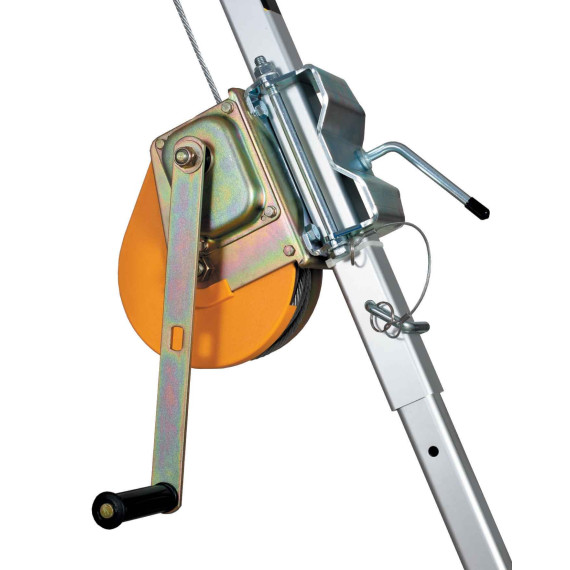

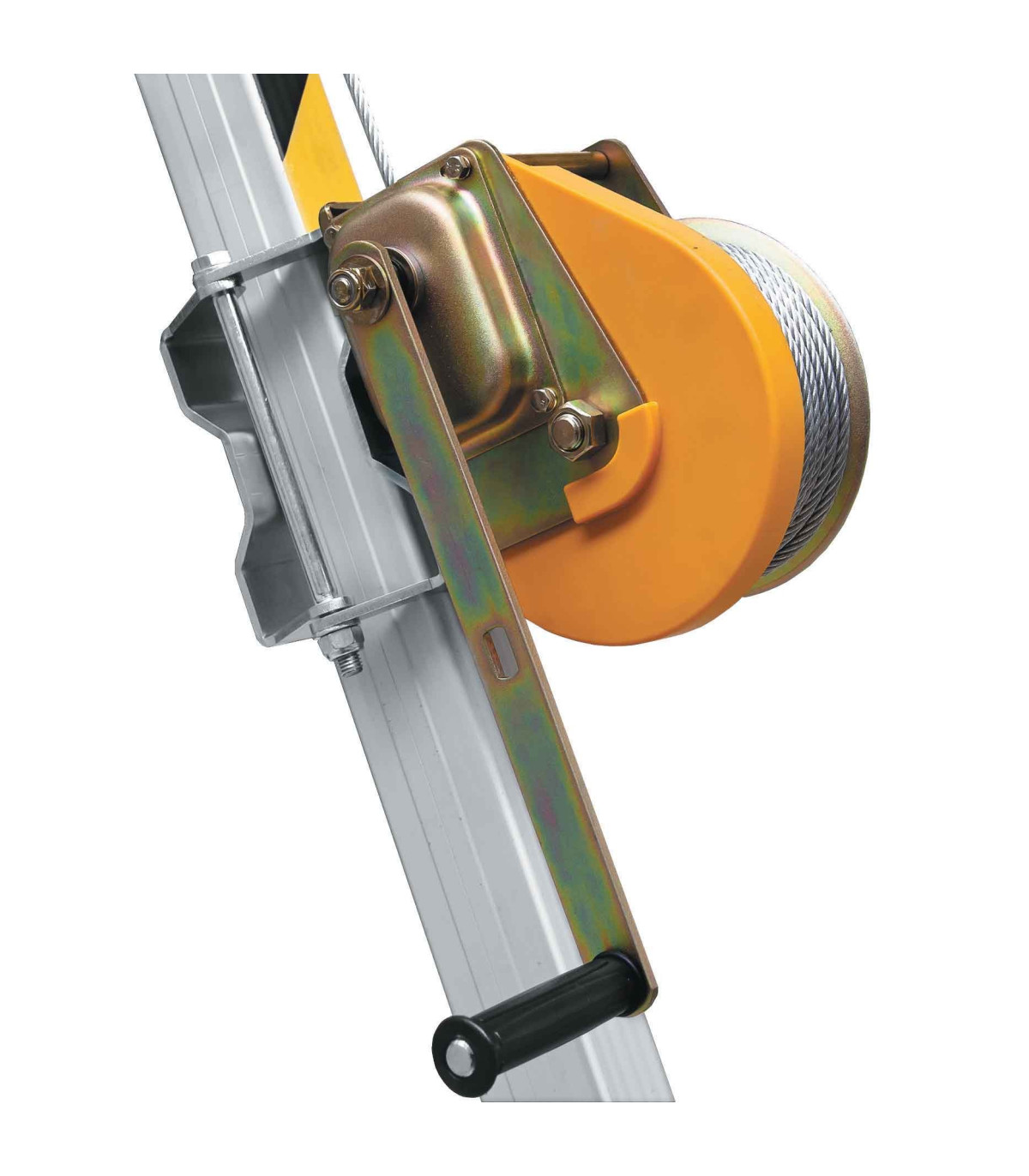

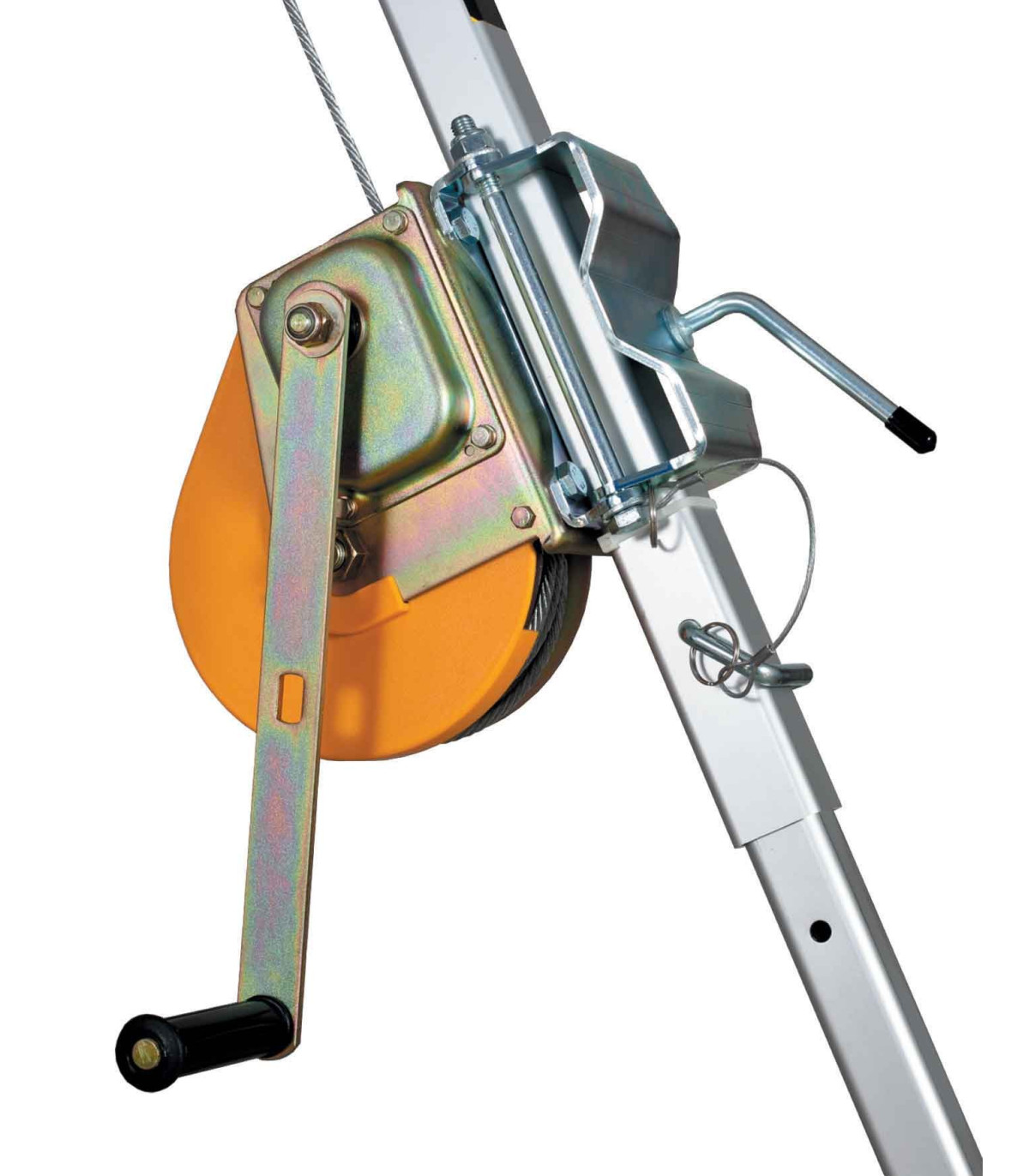

Winch for people 25 m for use with SAFETOP tripods.

Galvanized steel cable reel. Diameter: 6.3 mm. Works as a rescue device

FEATURES

• Personal protective equipment (PPE) of category III
• To be used for raising or lowering personnel in confined spaces
• Equipped with bolts for robust attachment to the TM9 tripod
• Load lifting capacity: 140 Kg
• Cable length: 20 or 25 m
• Complies with EN 14966 Class B standard
• Must be used with a fall protection device (retractable block, rope with a blocker, etc.) when used to raise or lower a person
• Device weight: 9.8 kg.
• Includes PL101 pulley and shock absorber spring
• Approved for use in hazardous areas

PRODUCT MADE TO ORDER, NO CANCELLATION OF ORDER OR RETURNS OF MATERIAL ALLOWED. APPROX. LEAD TIME: 1 WEEK.

TECHNICAL DATA

• Cable length: 25 or 50 m
• Cable diameter: 6.3 mm
• Cable material: Steel
• Crank force: 22 Kg
• Maximum load: 140 kg
• Weight: 9.8 kg

MATERIALS

• Tinned steel cable
• Steel crank

Compatible tripods

TM9

TM9-L

TM9-W

STANDARDS/ REGULATIONS

EN 1496 Type B (Rescue devices)

APPLICATIONS

Reel to be attached to Safetop® tripods 80371, 80374, and 80373 (see below).

The Winch for personnel and TM9 tripod – EN1496 Class B (ref. RUP502) is a device designed for raising or lowering personnel in confined spaces, equipped with bolts for attachment to the TM9 tripod. It has a load lifting capacity of 140 kg, with a cable length of 20 or 25 meters and complies with the EN 14966 Class B standard. Approved for use in hazardous areas, it must be used with a fall protection device when employed to raise or lower a person.

This device can be used in a wide range of fields, having many applications, such as confined spaces, urban rescues, and in nature, thus being more efficient in protecting professionals against the possibility of falling from a different height, which could have serious and grave consequences for the worker in the form of injuries, potentially even leading to death. It is therefore important to have all necessary safety elements to ensure that the worker can perform their tasks without risk to their health and integrity, and, of course, all these elements must be subjected to periodic checks to ensure they function properly, as otherwise it would pose a serious danger to those who use them.
