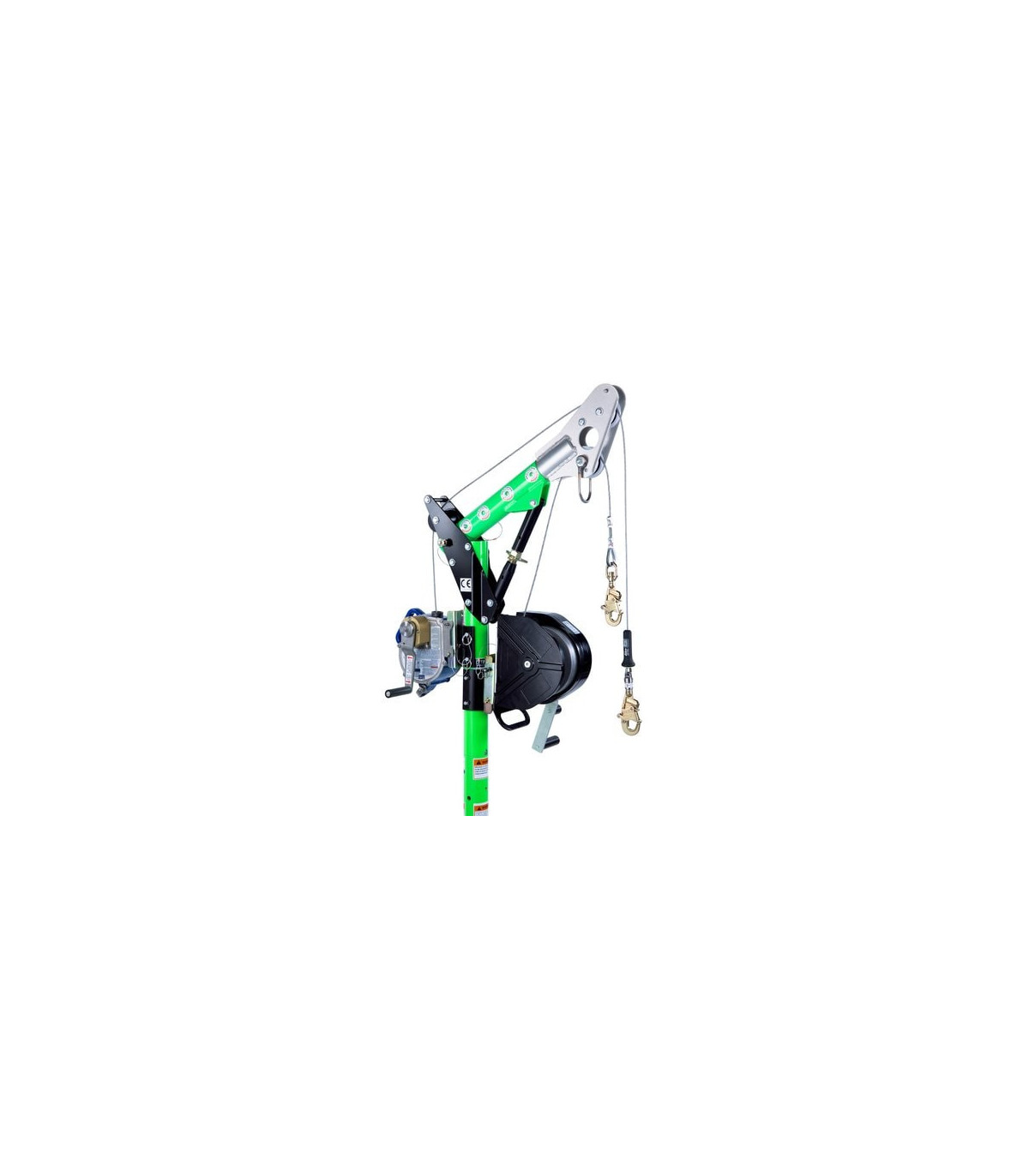

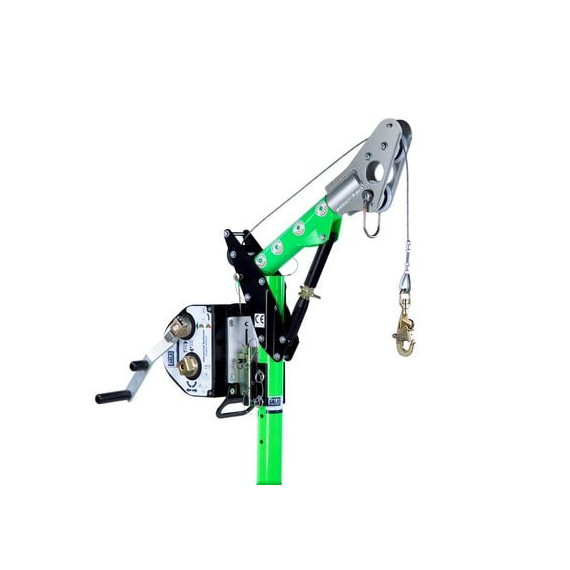

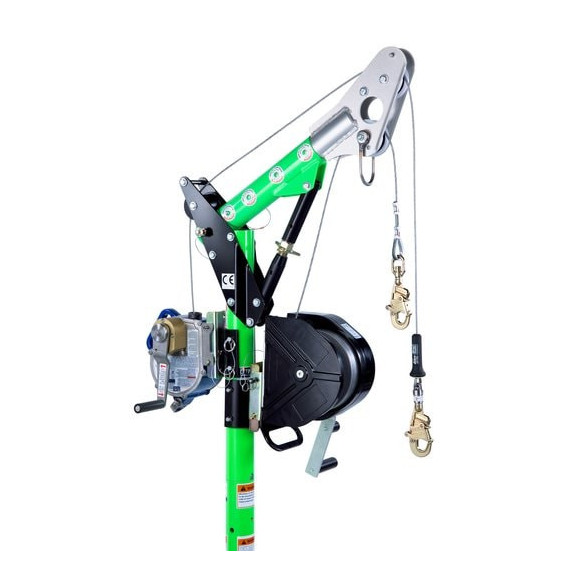

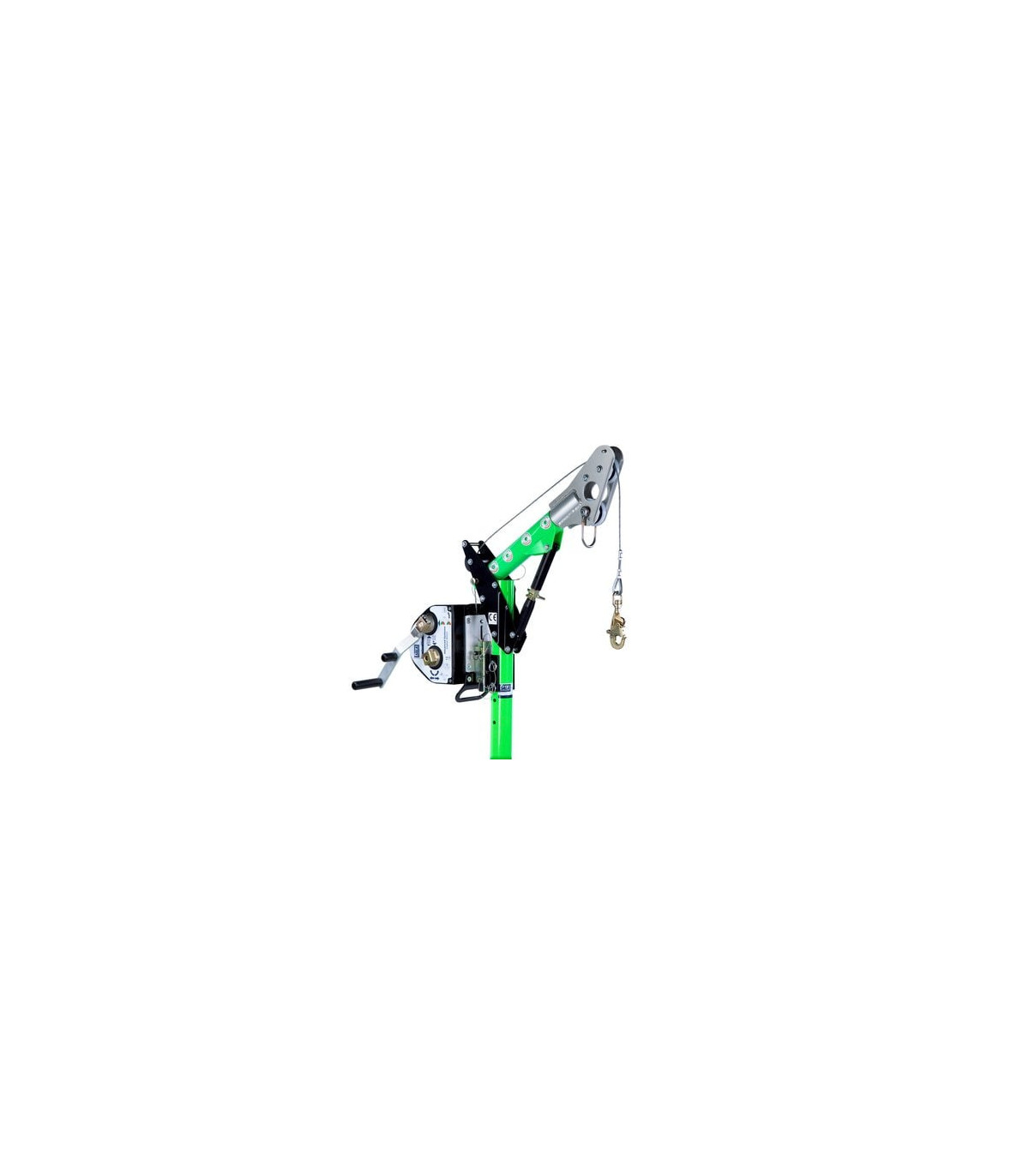

Winch with 18 m of 5 mm stainless steel cable and carabiner, mounting bracket 3M DBI-SALA

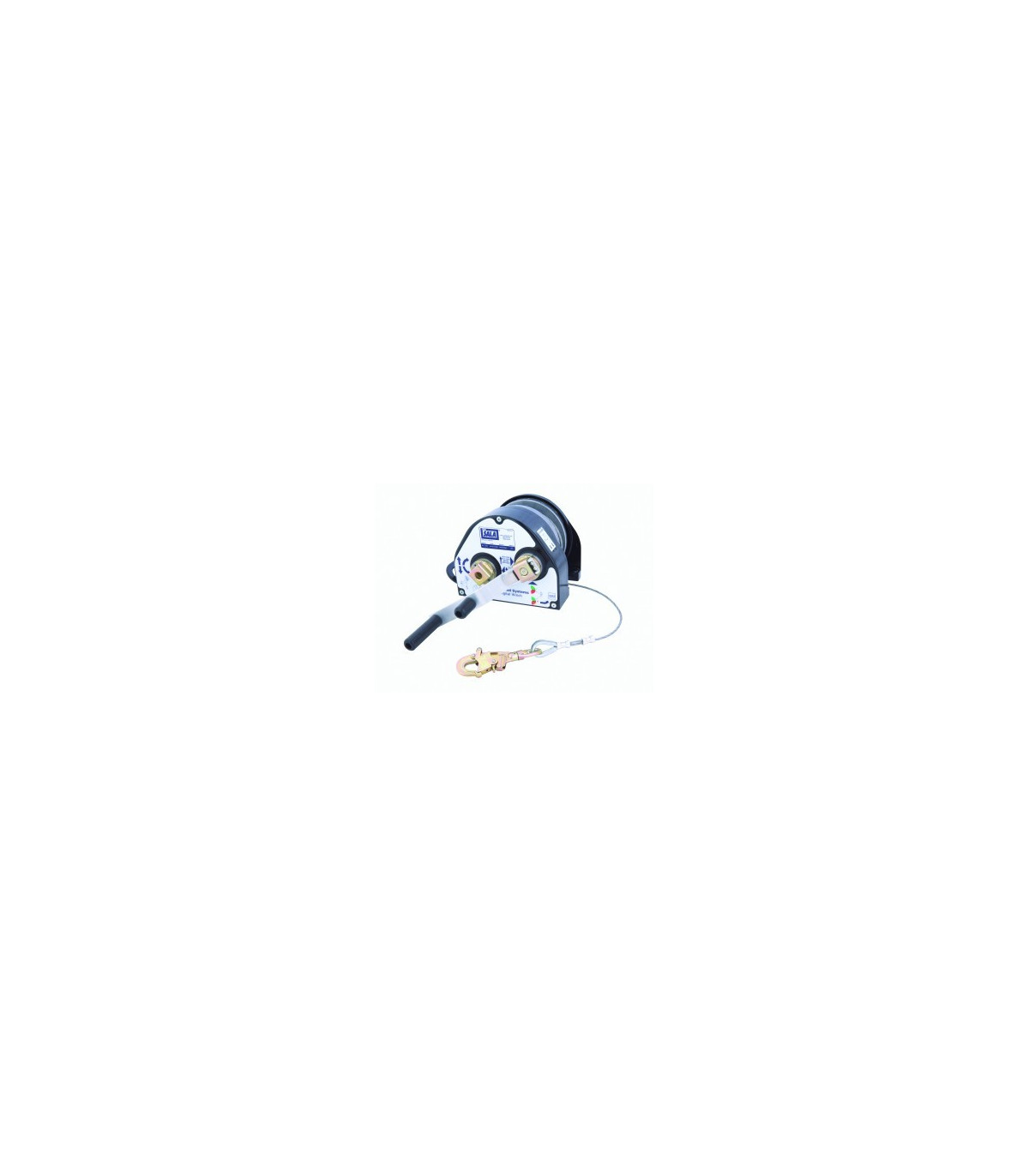

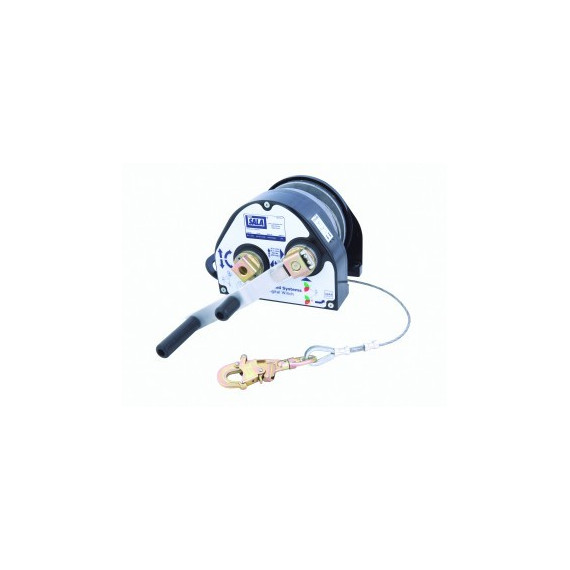

Winch with 18 m of 5 mm stainless steel cable and carabiner, mounting support 3M DBI-SALA. Hand winch 100, 18 m and removable lever.

• Manually operated winch
• 18 m of 5 mm stainless steel cable
• Mechanical advantage with a gear ratio of 9:1 and 4:1
• Quick mounting support

FEATURES

• Manually operated winch
• 18 m of 5 mm stainless steel cable
• Mechanical advantage with a gear ratio of 9:1 and 4:1
• Quick mounting support
• Integrated digital usage indicator
• Triple redundant braking system
• Brake wear indicator
• Corrosion-resistant and durable construction
• Sealed bearings at all contact points
• Integral transport handle Swivel carabiner with impact indicator
• Power unit option available
• Order the tripod or davit rescue system separately

BENEFITS

• Manual handling winch

  It is easily operated by turning the handle to raise or lower personnel or materials.
• 18 m (60 ft) of 5 mm (3/16 in) stainless steel wire rope

  The abrasion-resistant and extremely durable fall protection construction provides greater durability on the ground.
• Mechanical advantage reduction ratio of 9:1 and 4:1

  Offers a winching speed of 4 m/min (13 ft/min) or 9 m/min (30 ft/min) without the need for a power source for quick and efficient rescues.
• Quick mounting support

  The permanently fixed support fits with the supporting structure and offers a simple pin attachment for quick and easy placement.
• Integrated digital usage indicator

  The exclusive system counts the drum revolutions to determine service intervals for greater safety and peace of mind.
• Triple redundant braking system

  Includes 3 independent working ratchets and a secondary centrifugal brake for added safety.
• Brake wear indicator

  The system monitors the condition of the braking mechanism for complete safety.
• Durable and corrosion-resistant construction

  The best materials, including anodized aluminum, stainless steel, and galvanized steel, protect the components of the units for prolonged durability.
• Isolated bearings at all contact points

  Provides smooth and durable operation for quick, safe, and efficient rescues.
• Integral transport handle

  The user can easily transport the device from one location to another.
• Swivel automatic locking carabiner with impact indicator

  Provides a secure connection for loads, prevents the fall protection from twisting, and offers a visual indicator if the device has sustained an impact load.
• Power device option available

  A drive shaft and overload device can be easily connected to the 9:1 transmitter for use with electric or pneumatic drills.

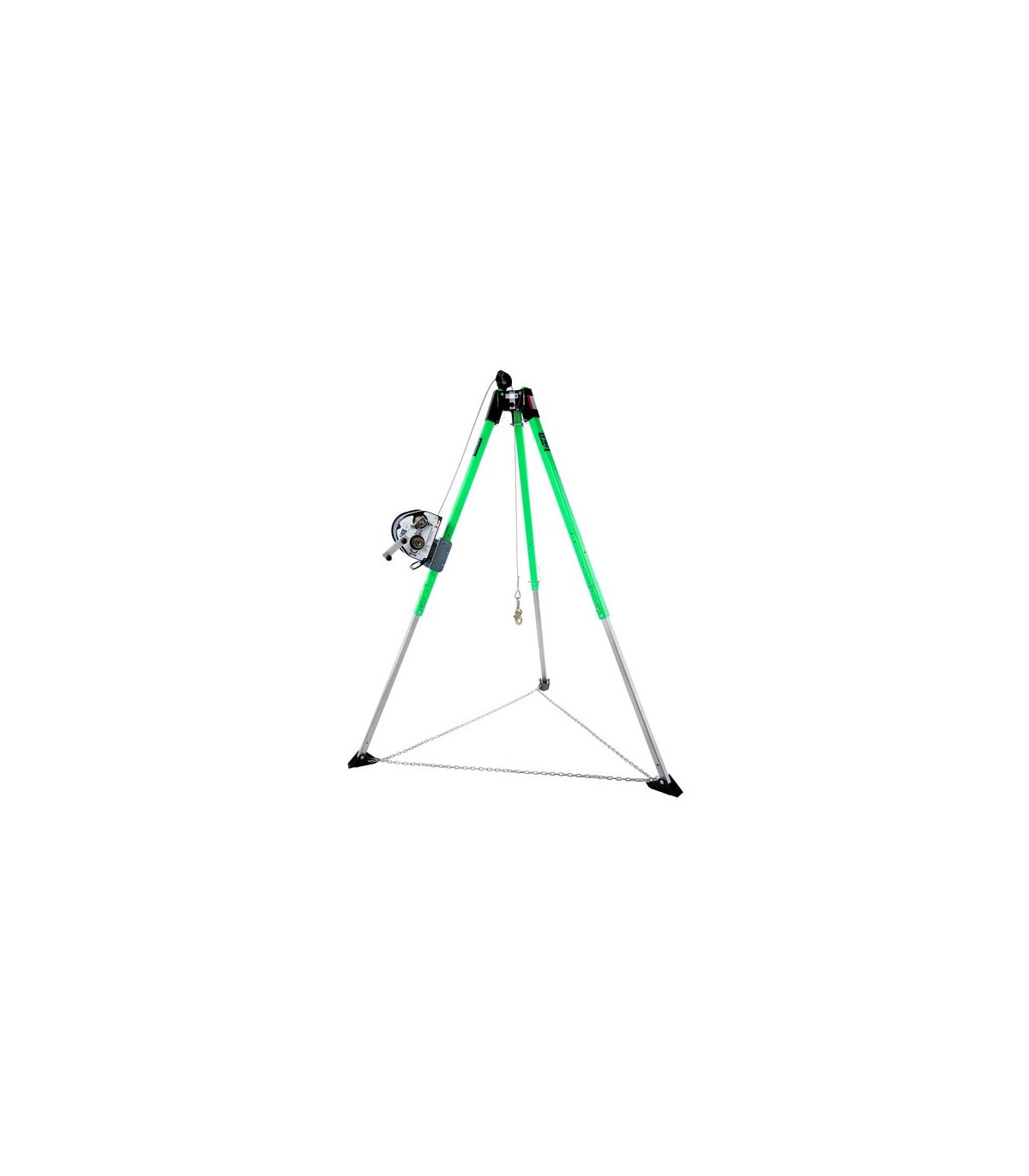

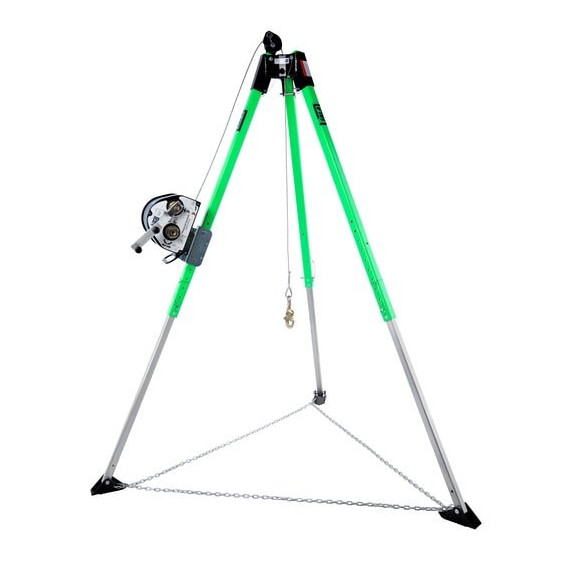

• Order the davit or tripod rescue system separately

  Various styles and configurations of support structures are available to meet most workplace requirements for greater peace of mind.

TECHNICAL DATA

APPLICATIONS

Entry or rescue applications in confined spaces.
