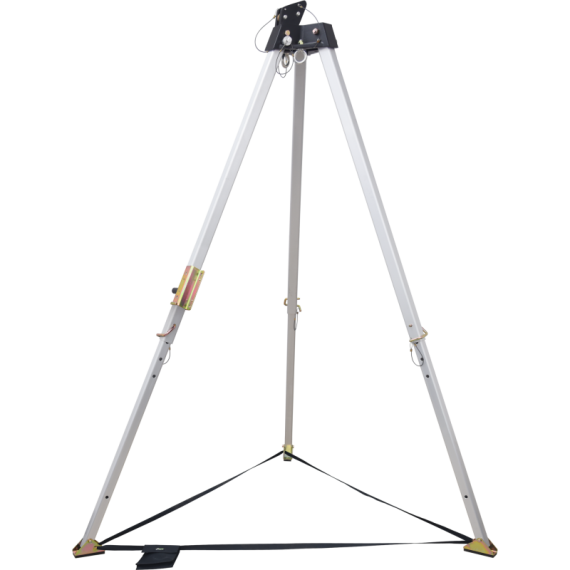

Tripod for access in confined spaces.

Tripod for access in confined spaces.

FEATURES

• Equipped with two pulleys mounted on the head of the tripod extending from the main foot for the passage of the winch cable.
• Equipped with two anchoring rings on the tripod head.
• Tripod head molded in aluminum alloy, aluminum feet.
• Feet equipped with articulated steel soles with rubber pads to increase friction and provide greater stability.
• Resistance of anchoring points > 12 kN

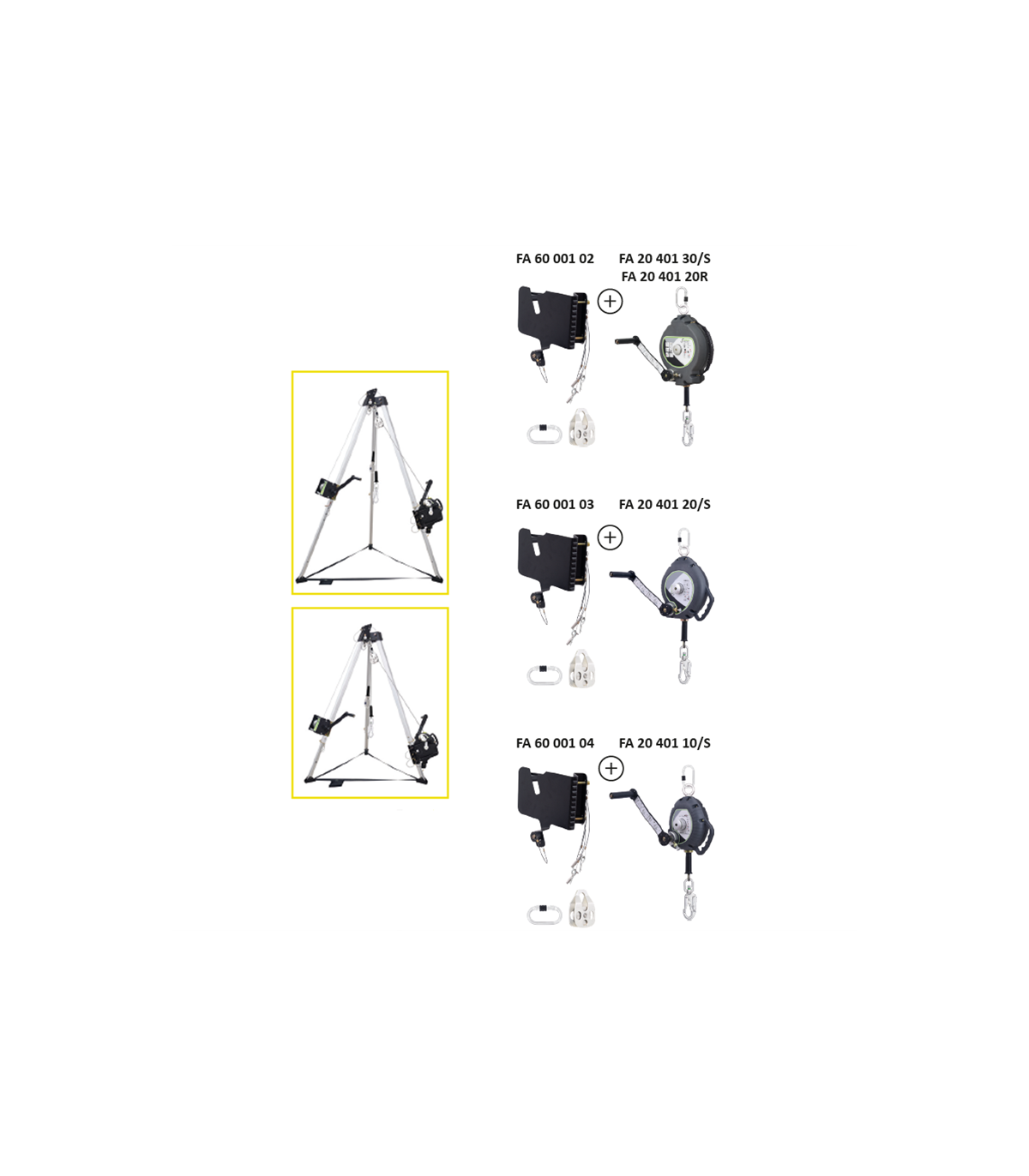

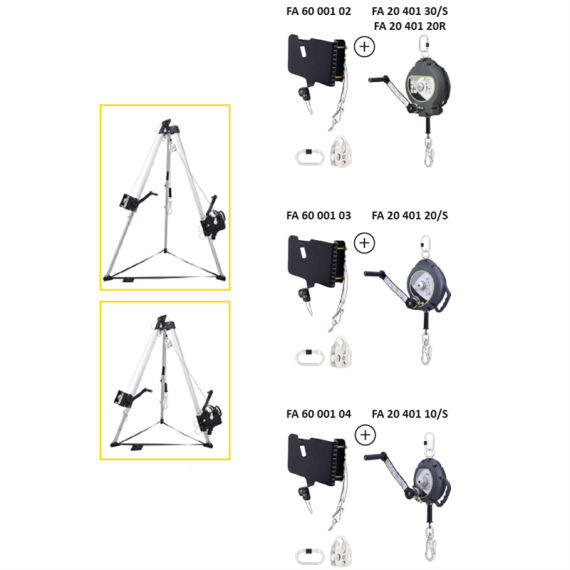

• The tripod is supplied with a plate that allows the installation of the winch FA 60 003 20 / FA 60 003 30 / FA 60 023 20 / FA 60 023 20R.

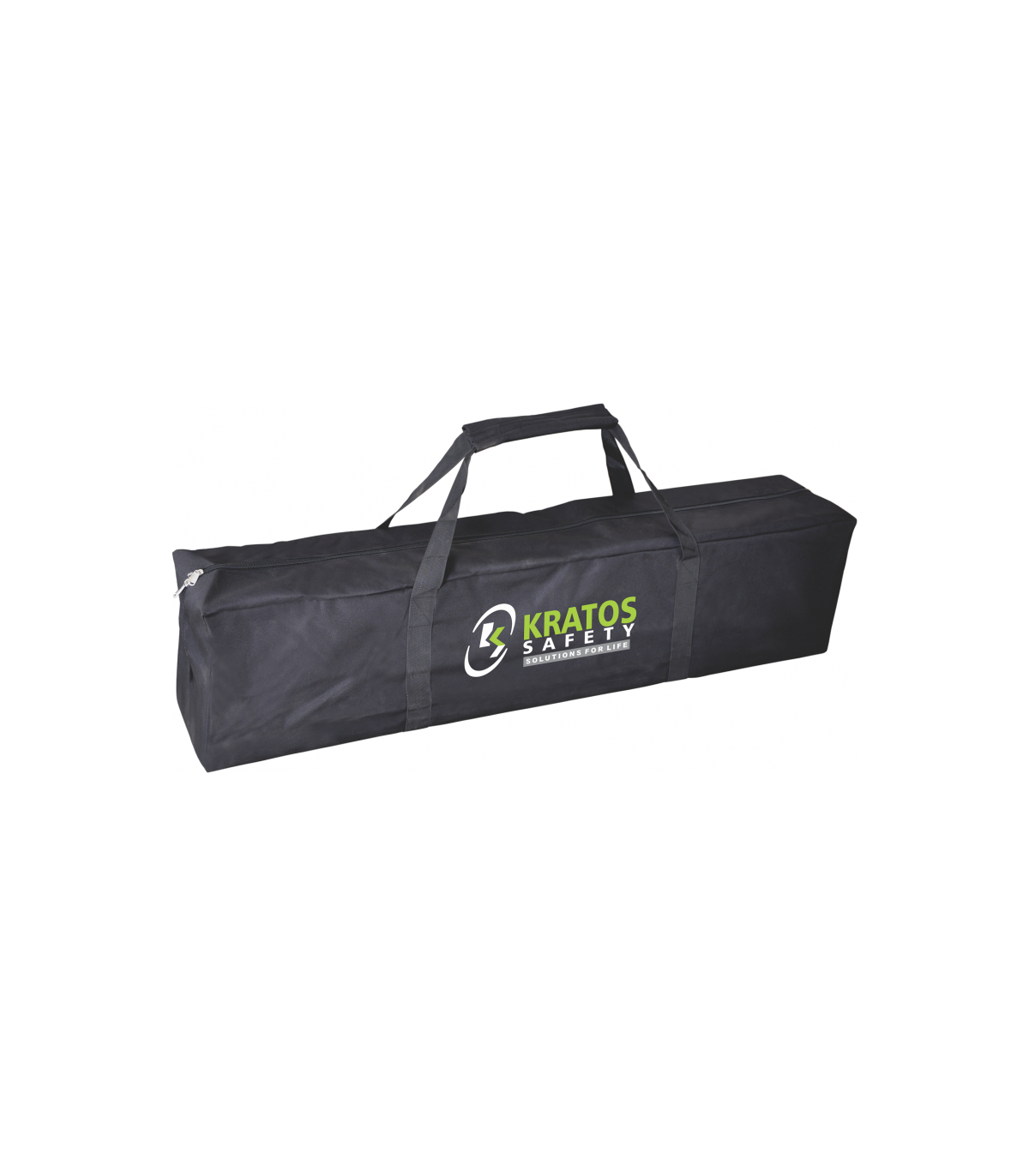

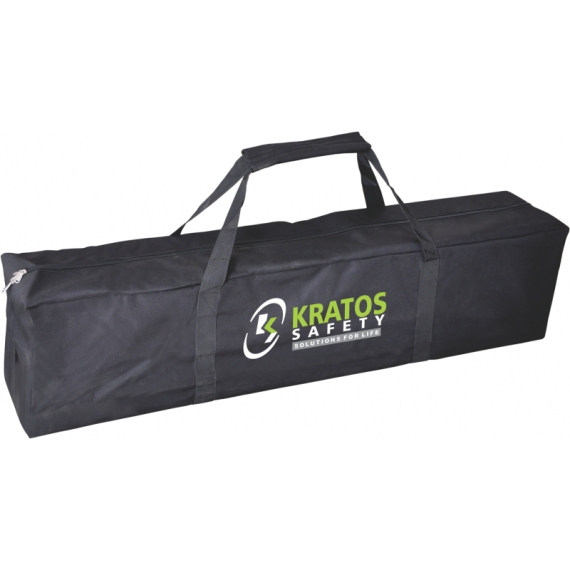

• Each tripod is supplied with a tripod bag.

TECHNICAL DATA

• Standard(s): EN795:2012 Type B
• Material: Head and Foot: Aluminum, Base Plate and Foot Sole: Steel
• PPE / NON-PPE PPE
• Dimensions: Adjustable Height from 1.15m to 2.15m, Base Width from 1.08m to 1.62m
• Attachment Points: Two Anchoring Rings
• Additional Advantages Delivered with Its Carrying Bag
