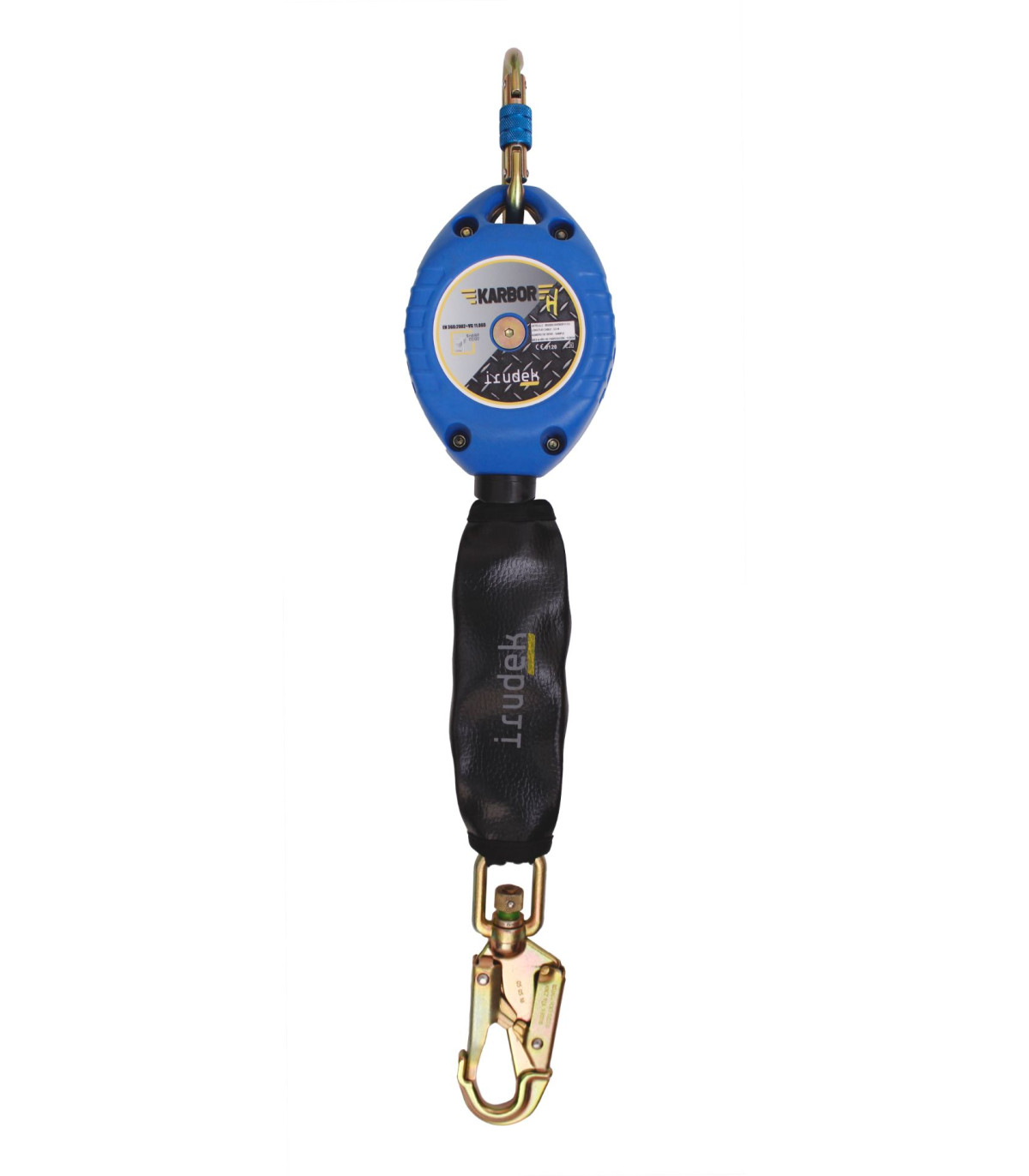

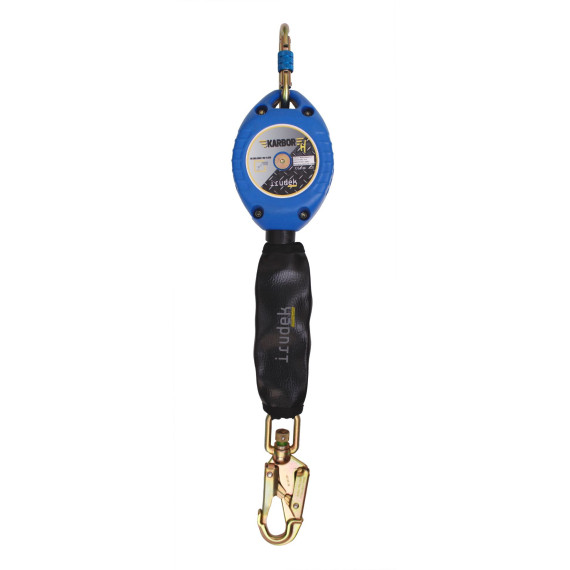

Automatic retractable fall arrester KARBOR 3.5H IRUDEK

Automatic retractable fall arrest device with high-strength synthetic housing for maximum loads of 140 kg. To prevent tangles and improve the operation of the equipment. It offers high resistance and great durability.

FEATURES

• ROBUST: HIGH-STRENGTH SYNTHETIC HOUSING, PROVIDING LONG LASTING DURABILITY
• SAFE: FOR MAXIMUM LOADS OF 140KG REDUCING IMPACT FORCE TO BELOW 6KN WITH 25 MM STRAP
• SWIVEL LOWER CARABINER 976: TO AVOID TANGLES AND IMPROVE THE OPERATION OF THE EQUIPMENT.
• SWIVEL RING: TO AVOID TANGLES AND IMPROVE THE OPERATION OF THE EQUIPMENT
• FALL INDICATOR: IN CASE OF FALL, THE GREEN INDICATOR TURNS RED, INDICATING A FALL AND THAT IT MUST BE CHECKED SWIVEL CARABINER 976(20MM)
• ENERGY ABSORBER WITH PROTECTOR: FOR HORIZONTAL WORK WITH THE POSSIBILITY OF VERTICAL FALL ON SHARP EDGE, IN ACCORDANCE WITH VG 11.060:2014 (KARBOR 3.5H AND KARBOR 6H). IT INCORPORATES AN ENERGY ABSORBER WITH PROTECTOR.

TECHNICAL DATA

• Length (m): 3.5
• Weight (Kg): 1.77
• Stopping distance (m): 125
• Height (mm): 425
• Length (mm): 81
• Width (mm): 115
• Load (Kg): 140
• Static resistance: 15 kN
• Impact force: < 6kN
• Service life (years): 10 years of use + 1 year of storage from the date of manufacture

MATERIALS

Strap: Polyester 25 mm

Housing: Synthetic

APPLICATIONS

• To avoid tangles and improve the operation of the equipment.

KARBOR CONNECTORS

Lower connector 976

• Opening: 20 mm
• Material: Steel
• Resistance: 23 kN
• Closure: Automatic
• Swivel: Yes
• Fall indicator: Yes

Upper connector 981

• Opening: 18 mm
• Material: Steel
• Resistance: 25 kN
• Closure: Threaded
• Swivel: Yes
• Fall indicator: Yes

STANDARDS/REGULATIONS

• EN 360

The EN 360 standard regulates retractable fall arrest devices, equipment designed to stop falls from height using an automatic locking mechanism similar to that of a seatbelt. Its main function is to allow worker mobility while keeping the cable or strap always taut, stopping the fall immediately within a few centimeters and ensuring that the impact force received by the body does not exceed 6 kN to prevent serious injuries.

USAGE LIMITATIONS

The equipment must be assigned individually to a person.

-Personal protective equipment should not be used by individuals whose health status may affect the safety of the user under normal use conditions or in case of emergency.

-Personal protective equipment should only be used by a trained and competent person in its safe use.

SERVICE LIFE

The estimated service life of the equipment is 11 years from the date of manufacture (1 year of storage and 10 years of use).

The following factors may reduce the product's service life: intensive use, contact with chemicals, particularly aggressive environments, exposure to extreme temperatures, exposure to ultraviolet rays, abrasion, cuts, strong impacts, or improper use and maintenance.

The mandatory annual inspection will validate the correct functioning of the equipment.

It is mandatory for the equipment to be examined by the manufacturer or by an authorized person at least once a year. In case of a fall arrest, the equipment must be removed from use.
