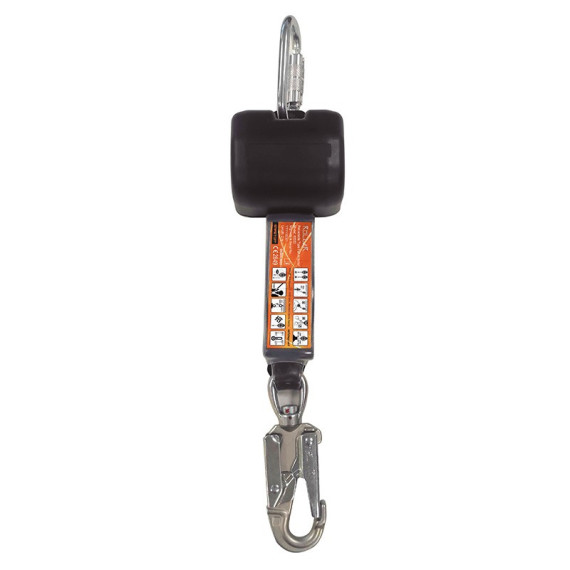

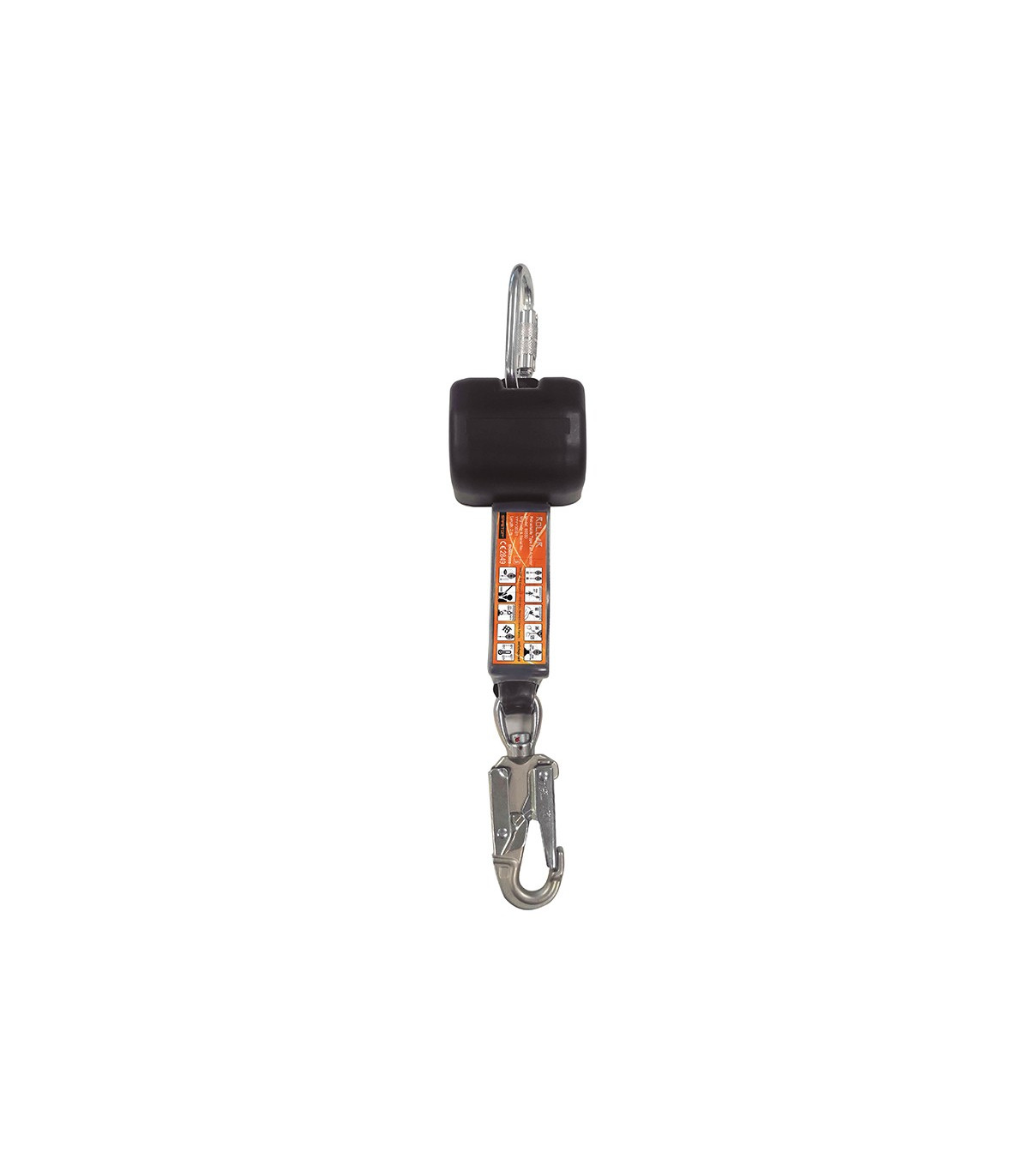

Retractable tape with absorber and carabiners ROLLER SAFETOP

Retractable tape with absorber and ROLLER SAFETOP carabiners. The ROLLER SAFETOP retractable tape is a safety device designed for fall prevention, featuring a 2 m tape retractor with a self-locking system and an integrated energy absorber.

Equipped with a steel carabiner with a screw opening for secure connection to permanent anchor points and a swivel carabiner that prevents tangling, this device ensures efficient and comfortable use. Its ultra-resistant and padded casing ensures high durability, being suitable for use by a single person. It must be anchored to a point that can support at least 12 kN, and its use is exclusive in a vertical position, allowing a maximum working angle of 30º, with a maximum allowable load of 100 kg.

FEATURES

• Category III PPE.
• Retractable tape retractor with self-locking.
• Automatic tension and retraction system towards the anchoring element.
• 2 m tape length.
• Steel carabiner with screw opening for connection to permanent anchor point.
• Swivel connection carabiner for the tape, to prevent the tape from twisting and for quick opening.
• Integrated energy absorber.
• Ultra-resistant and padded casing with high durability.
• Valid for use by a single person.
• Must be anchored to an anchor point that supports at least 12 kN.
• The device can only be used in a vertical position.
• The maximum working angle relative to vertical is 30º.
• Maximum load 100 kg.

BENEFITS

The maximum lifespan is 5 years from the date of first use, unless the equipment is defective or has already been used to stop a fall, in which case it must be discarded immediately.

APPLICATIONS

The retractable tape with absorber and ROLLER SAFETOP carabiners is suitable for:

• Valid for vertical work.
• Designed for tasks that require a large separation from the anchor point.
• Can only be used with carabiners certified under the EN362 standard.

TECHNICAL DATA

Dimensions (without carabiners): 96x98x320 mm
Maximum working length: 2.25 m
Tape width: 47 mm
Static resistance: 15 kN
Maximum user weight: 140 kg
Total weight: approximately 1150 g
Packaging unit: 1 unit

Technical data for upper carabiner:
Material: Steel
Type: EN362
Opening: Class B
Dimensions: 18 mm 110x58 mm
Resistance: 25 kN
Weight: approximately 180 g

Technical data for swivel carabiner:
Material: Steel
Type: EN362
Opening: Class T
Dimensions: 24 mm 187x71 mm
Resistance: 20 kN
Weight: approximately 220 g

Standards: EN360 (Retractable fall arrest devices)

Materials:
Nylon tape and steel carabiners
Absorber with polyethylene film
Ultra-resistant plastic casing

Inspections: the equipment must be inspected every 12 months by an authorized person or by the manufacturer. Inspections must be recorded in the inspection sheet attached to the PPE along with the instruction manual.

NORMS

- EN360: The EN 360 standard establishes safety requirements for fall arrest devices, such as harness systems and lifelines. This standard focuses on ensuring that equipment is effective in preventing falls in height work, ensuring that devices are reliable, easy to use, and provide adequate protection to the user. Additionally, aspects such as load resistance and durability are evaluated, allowing workers to perform their tasks with greater safety in environments where there is a risk of falling.

LIFESPAN

Inspections: the equipment must be inspected every 12 months by an authorized person or by the manufacturer. Inspections must be recorded in the inspection sheet attached to the PPE along with the instruction manual. The maximum lifespan is 5 years from the date of first use, unless the equipment is defective or has already been used to stop a fall, in which case it must be discarded immediately.
