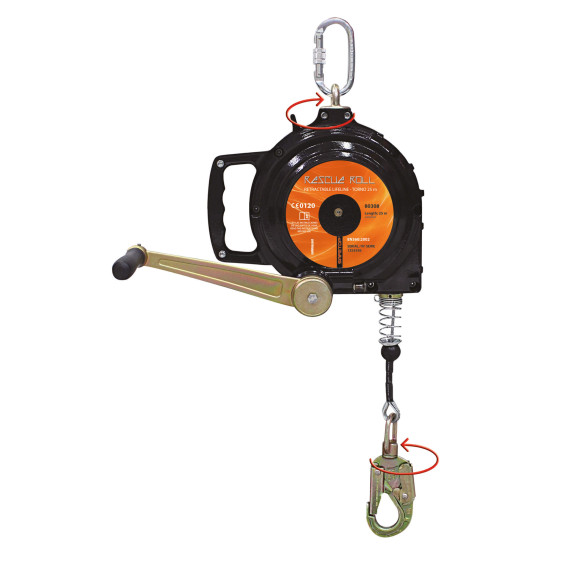

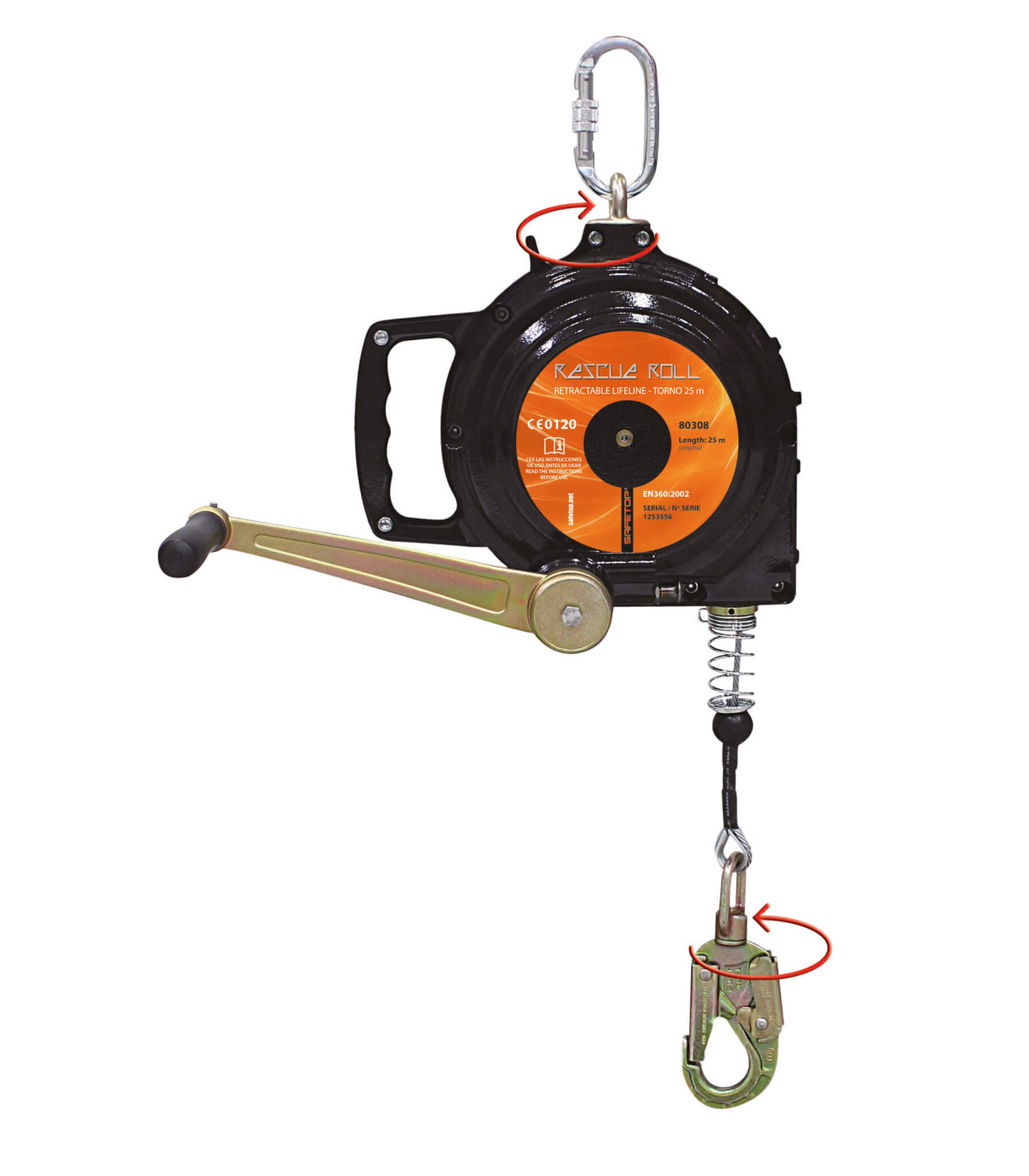

SAFETOP retractable cable with Rescue roll crank

Retractable cable with crank. With rescue lifting device.

• Cable diameter: 4.8 mm

FEATURES

• Personal protective equipment (PPE) of category III
• Retractable cable with crank
• With rescue lifting device
• The equipment serves two functions: - Fall arrest retractable device - And rescue function device
• Galvanized steel cable of 25 m or 35 m
• Cable diameter: 4.8 mm
• Maximum working load: 150 Kg
• Minimum working load: 50 Kg
• With spring system
• Rotating upper ring
• Rotating lower carabiner
• For attachment to tripods

TECHNICAL DATA

• Model 25 m

Maximum load: 150 Kg

Weight 18.2 Kg

• Model 35 m

Maximum load: 150 Kg

Weight: 18.6 Kg

MATERIALS

• Aluminum housing
• Galvanized steel cable

LIFETIME

Inspections: the equipment must be inspected every 12 months by an authorized person or by the manufacturer. Inspections must be recorded in the inspection sheet attached to the PPE along with the instruction manual. Maximum lifetime: please check the user manual for the equipment's lifespan.

APPLICATIONS

Rescue lifting device for attachment to tripods Safetop® (see above for compatible tripods).

STANDARDS/ REGULATIONS

EN1496 Class B (Rescue devices)

EN360 (Retractors)
