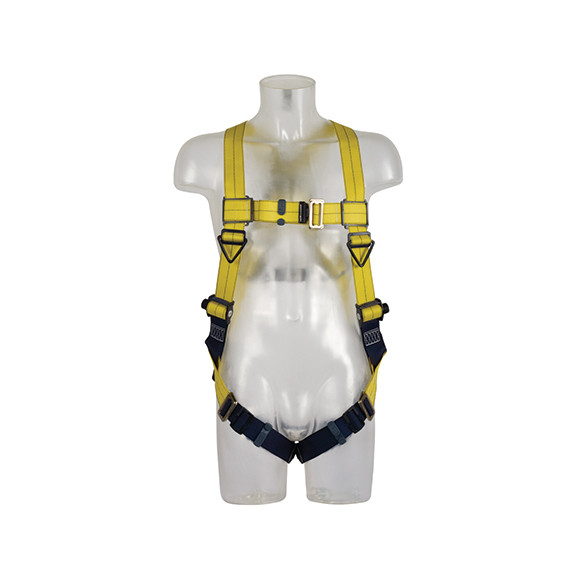

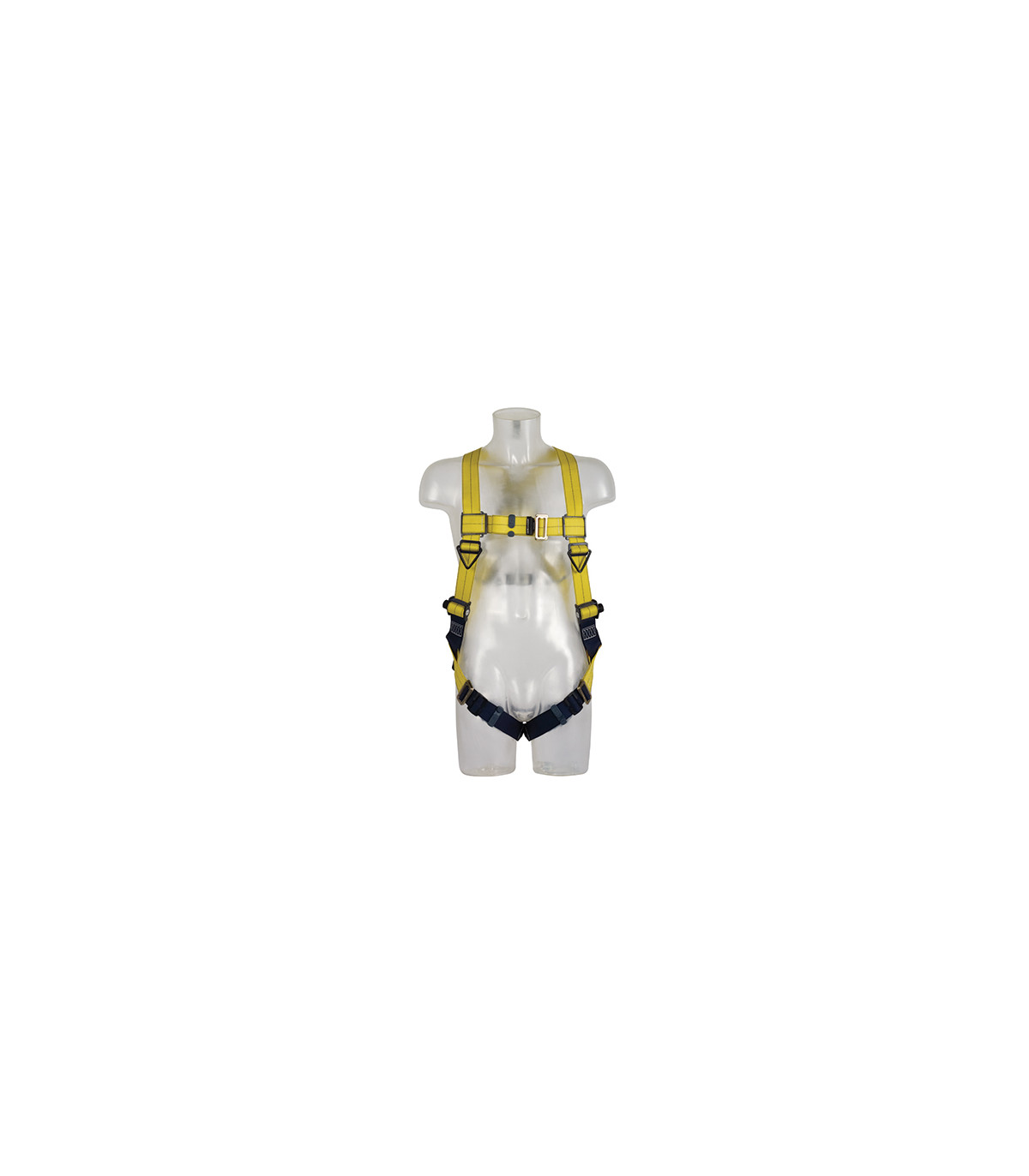

Safety harness with rear attachment point Delta 3M DBI-SALA

Safety harness with rear attachment point Delta 3M DBI-SALA. From the best-selling harness range in the world, the new DBI-SALA Delta full-body harness offers leading industry features, such as better fit and ergonomic feel, lighter buckles, and high-strength straps. Sizes: S, M, L

Please confirm approximate supply date with Sekureco.eu.

FEATURES

Repel technology straps
Water-repellent to reduce mold and dirt attraction, also has up to 5 times more abrasion resistance.

Lanyard Keepers
Eliminates the need to carry lanyards by hand when not in use.

Revolver vertical torso adjusters
Simple and quick adjustments that eliminate loose ends and lock in place, preventing slipping.

No-tangle Surefit design
Surefit ensures the harness fits correctly in the event of a fall while providing additional comfort for daily use.

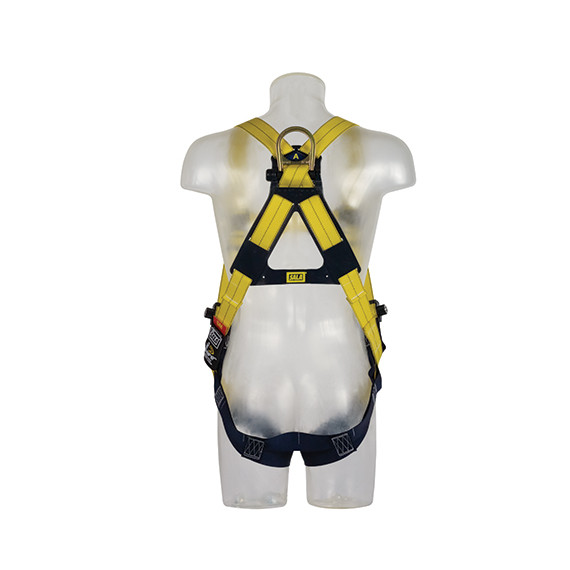

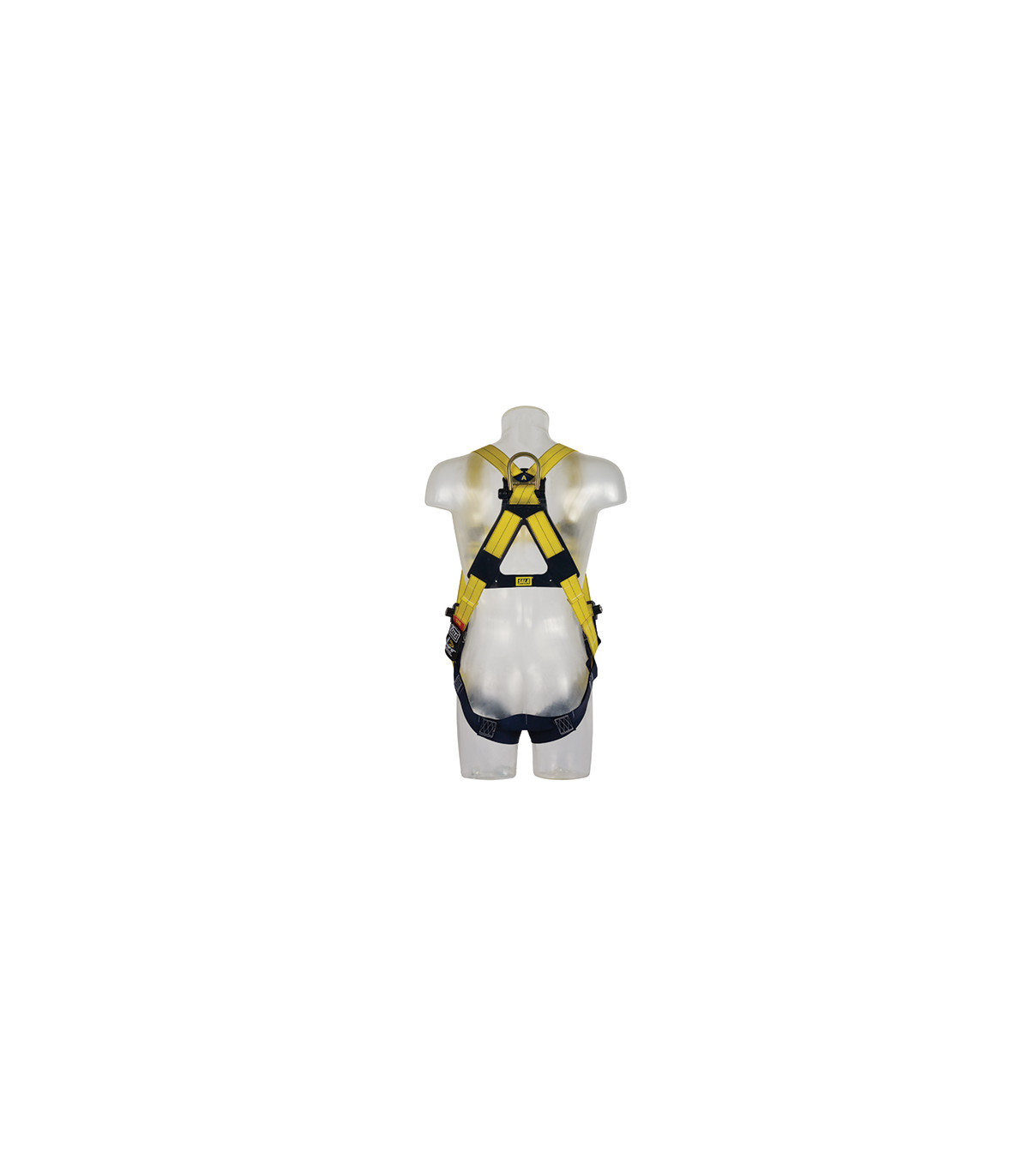

Vertical D-ring back
The patented spring design automatically lifts, ensuring quick, easy, and secure connections to your fall arrest system.

No-tangle design
By defining the name DBI-SALA Delta, the patented triangular design creates a frame that allows the harness to fit in place when worn.

Built-in impact indicators
The torn stitch indicators allow you to inspect the harness at a glance for previous harmful impact loads.

Covered labels and i-Safe
A Velcro cover protects the harness labels and contains the DBI-SALA i-Safe identification label. The i-Safe label provides an efficient way to record and store information during inspections.

BENEFITS

The use of a patented No-Tangle triangular pattern creates a frame that allows the harness to be easily placed in position when worn.

The new DBI-SALA Delta harness features liquid-resistant Repel straps and Revolver Torso adjusters, allowing for quick adjustments and eliminating loose strap ends.

Equipped with i-Safe

TECHNICAL DATA

• Weight (Kgs): 1.40
• Features: anchorage devices, Revolver vertical torso adjuster, no-tangle back pad.
• Size: small, medium, extra large.
• Accreditation: BS EN 361.
• Straps: water-repellent straps.
• Fit: adjustable shoulders, chest, and legs.
• Buckles: Standard.
• Capacity: 140 kg
• D-ring locations: rear attachment point.

Enhanced straps: Abrasion-resistant and water-repellent to reduce mold and dirt generation.

Hook sling accommodations: Prevents having to carry the sling in hand when not in use.

Comfort pads: On the underside of the shoulder, hip, and leg straps. TM® Harness 3M DBI-SALA

Quick-connect buckles: Lightweight aluminum alloy buckles for quick and easy connections. (Models with pass-through buckles are also available).

Vertical D-ring back: The vertical D-ring back ensures quick, easy, and secure connections to your fall arrest system. Rigid belt: Allows carrying 27 kg of tools without breaking. Protected labels: Harness labels protected with hook and loop closure.

USAGE INSTRUCTIONS - ADJUSTING THE FALL ARREST HARNESS

Before starting. Empty your pockets, as during work or, more importantly, in the event of a fall, objects in your pockets can get caught between the harness straps and the user's body causing injuries. Always refer to the usage instructions provided with the specific harness regarding correct installation and adjustment.

Step 1. Start. Hold the harness by the D-ring back, which is often attached through a D-pad, and ensure that the straps are not twisted.

Step 2. Shoulder straps. Slide the harness over your arms and place it on your shoulders. Ensure that no strap is tangled and that they hang freely.

Step 3. Leg straps. Place it between your legs and secure the left leg strap. Bring the strap up between your legs and connect it with the left buckle. Connect the right leg strap using the same procedure.

Step 4. Chest straps. Attach the chest strap buckle to the corresponding opposite side buckle.

Step 5. Waist strap (if equipped). Attach the waist strap buckle to the corresponding opposite side buckle.

Step 6. Adjust the harness to fit snugly. Tighten the shoulder straps until they are snug with the adjusters. The left and right sides of the shoulder straps should be adjusted to the same length, and the chest strap should be centered on the lower chest, about 15 cm below the shoulder. The chest D-ring of the vest-type harness moves up or down by adjusting the shoulder and leg straps. Center the back D-ring between the shoulder blades. Note: In applicable models, the back D-ring can be raised or lowered on the harness strap as needed for a proper fit. Readjust the leg straps to be snug. There should be at least 8 cm of strap beyond the buckle on the leg straps. Adjust the waist strap (if equipped).

You are ready! A properly fitted and adjusted full-body harness will effectively distribute impact forces across the body and provide the proper support during suspension and rescue after a fall.

REGULATIONS

EN 361: 2003 - Personal protective equipment against falls from height. Fall arrest harnesses

EN 365: 2005 - Personal protective equipment against falls from height. General requirements for instructions for use, maintenance, periodic inspection, repair, marking, and packaging.

RECOMMENDATIONS FOR THE USE OF PPE

Do not use this safety equipment unless you have received training from a competent person (this training may be repeated as often as necessary). Contact CAPITAL SAFETY for information on classes or if you have questions about using this equipment. Training should be conducted without exposing the user to a fall hazard and should be repeated periodically. (See the complete guide in the usage instructions).
