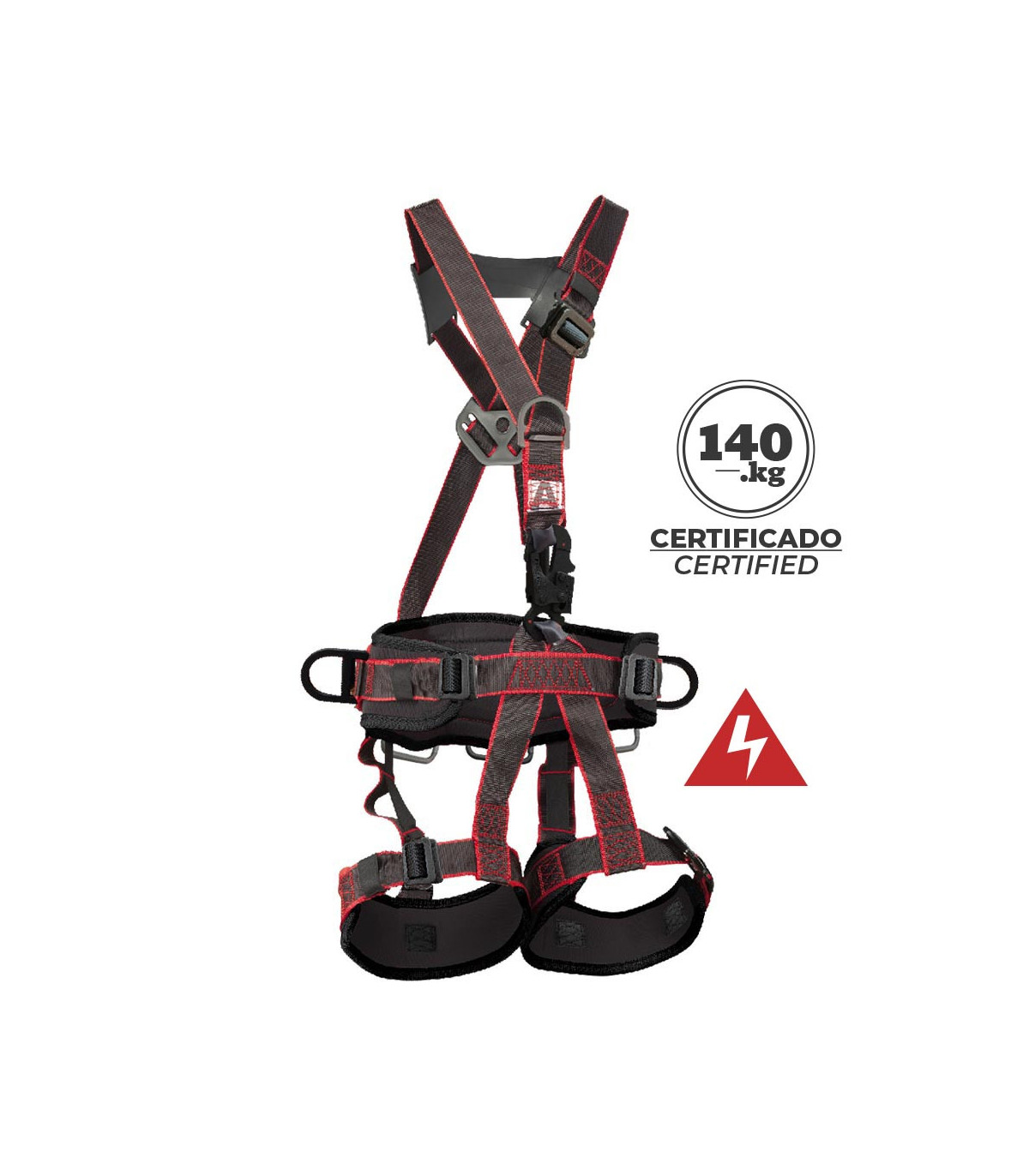

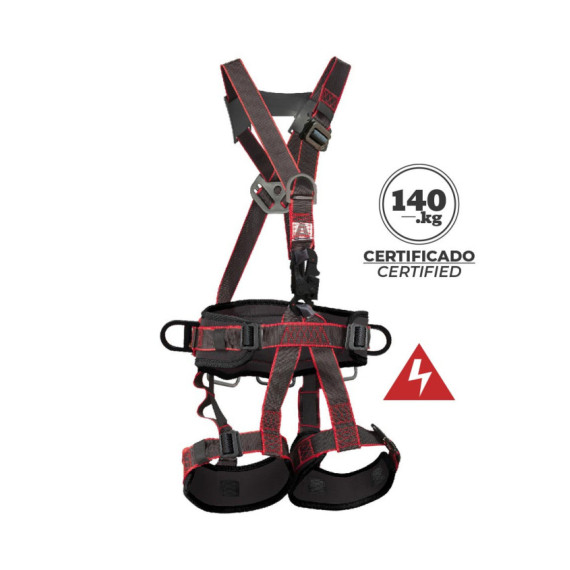

Atlas Dielectric Fall Arrest Harness CLIMAX

The Atlas Dielectric fall arrest harness is personal protective equipment designed for working at height with fall risk and electrical hazard. It incorporates two anchor points, dorsal and sternal, manufactured with 8 mm steel D-rings. It also has lateral positioning points that allow for securing and retention work, plus a ventral ring for suspension work, providing proper load distribution between the belt and leg straps. A versatile and safe harness for applications in environments with specific electrical requirements.

FEATURES

• Dorsal anchor point (A).
• Front attachment point (A) and ventral attachment point.
• Connector mod. 32 Dielectric.
• Safety belt and padded leg straps.
• Material carrying rings.
• Buckles manufactured from steel alloy with polyvinyl chloride resin coating, providing low electrical conductivity and dielectric strength of 4 kV.

TECHNICAL DATA

• Weight: 1,997 kg
• Manufactured in: España
• Load capacity: 140 kg
• Service life: 15 years
• Sizes: 79 ≤ A ≤ 140 cm | 65 ≤ B ≤ 80 cm
• Standard: EN 361:2002 | EN 358:2018 | EN 813:2008

REGULATIONS

Regulation (EU) 2016/425
Standards: EN 361:2002 EN 358:2018 EN 813:2008

Notified body no. 1019
