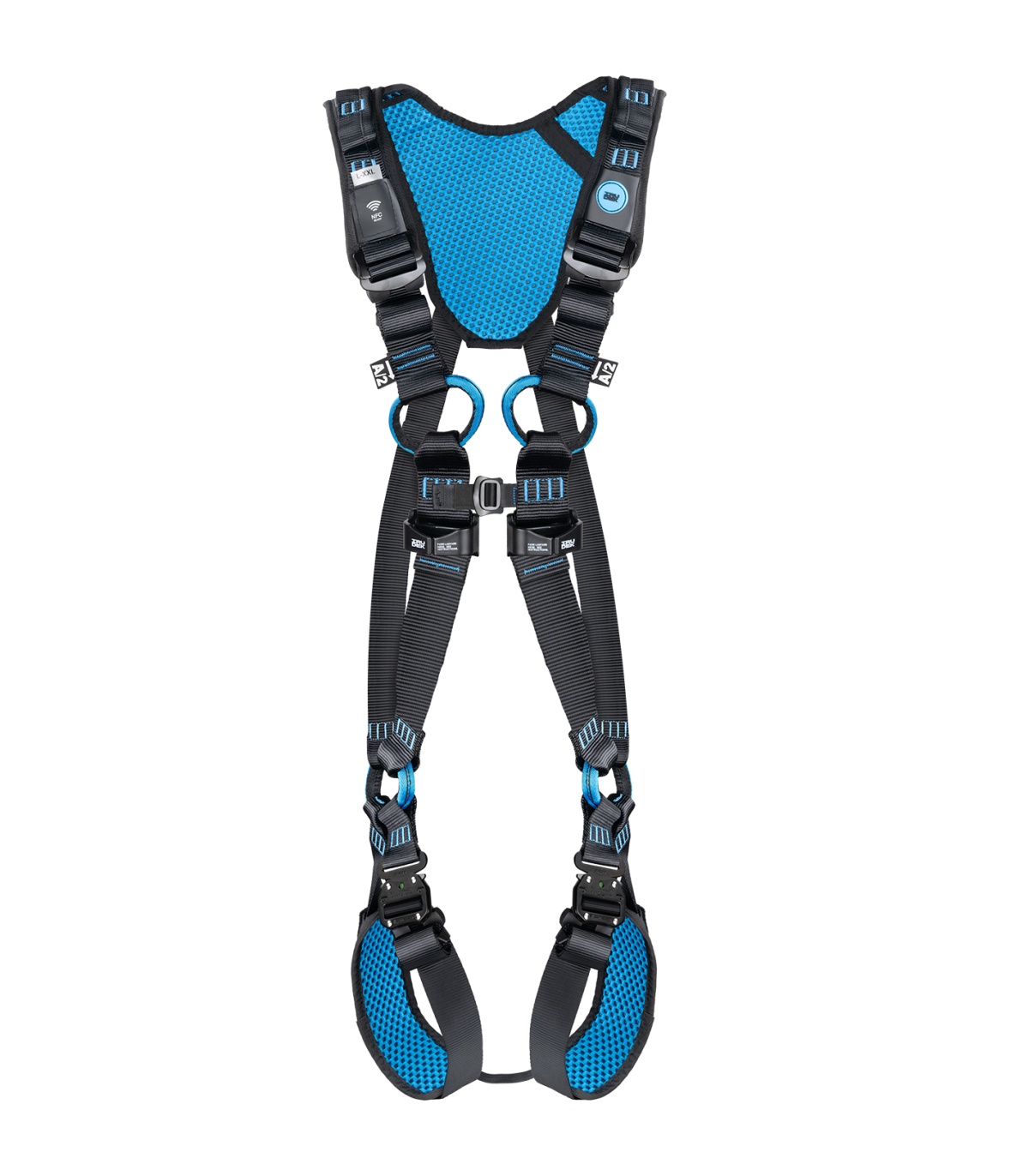

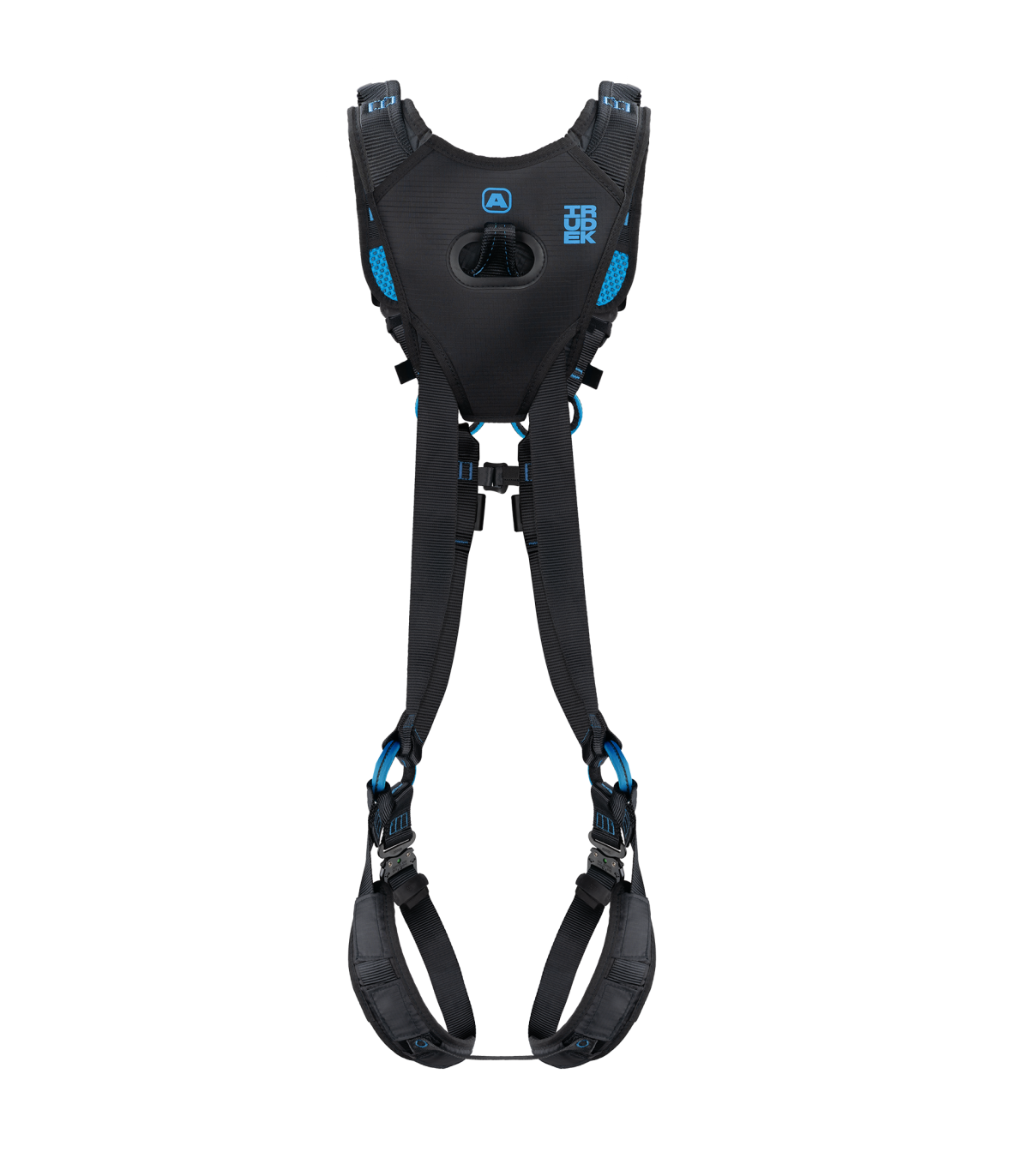

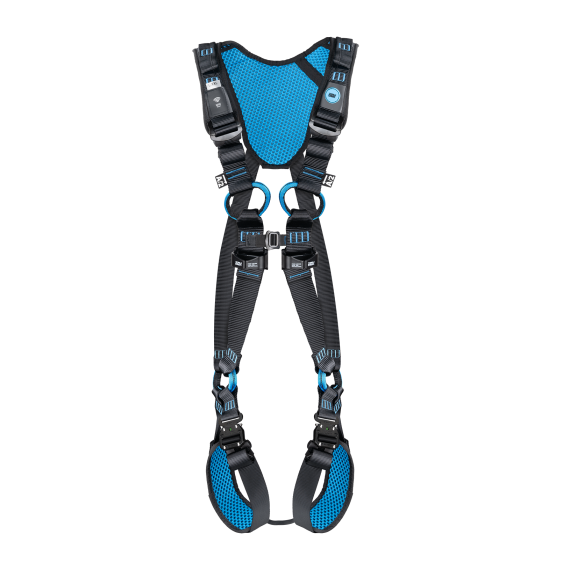

Harness with anchor point and adjustable straps IRUDEK Wind Blue 1

Harness with 1 dorsal anchor point + 1 sternal anchor point. Adjustable straps on shoulders, thighs, and chest. The automatic buckles on the leg straps provide easy adjustment. Metal rings for placing the free end connectors of the bifurcated ropes. It features a specially woven padded polyester mesh that offers better energy absorption and provides maximum comfort to the user. Forged aluminum rings. Supplied with a nylon bag.

Sizes S-M #100409900002

Sizes L-XXL # 100409900001

FEATURES

• Dorsal and frontal fall protection ring
• 3 K-Easy automatic buckles
• Adjustable in height and leg straps
• Identification label protected with textile protector
• Antislip System tape collection included
• Includes Irusak 10L

TECHNICAL DATA

• Weight: 1620 gr
• Harness strength: 15 > kN
• Strap width: 44 mm
• Antislip System: Yes
• Automatic buckles: K-Easy
• Capacity: 140 Kg
• Padding: Irupad with Hotelech technology
• Size: S-M. L-XXL
• Service life: 10 years of use + 1 year of storage

PACKAGING DATA

• Weight: 1620 gr
• Units/box: 5
• Packaging length: 45 cm
• Packaging width: 34 cm
• Packaging height: 14 cm

MATERIALS

• Thread: polyamide
• Manual adjustment buckles: steel
• Strap: polyester
• Rings: aluminum

SIZE GUIDE

*Measurements expressed in centimeters

*Approximate measurements

STANDARDS/REGULATIONS

Meets the requirements of the Regulation/Directive on Personal Protective Equipment (PPE)

- EN 361

APPLICATIONS

Ideal for rope access work

For work at height: can be used with fall protection equipment

Securing and positioning

USAGE LIMITATIONS

The equipment must be assigned individually to a person.

- It is recommended that the anchor point where the fall protection system will be fixed is above the user. The anchor point must have a minimum static strength of 12 kN (metal) or 18 kN (textile) and must comply with the requirements of Standard EN 795:1996 / EN 795:2012.

- Personal protective equipment should not be used by individuals whose health status may affect the safety of the user under normal use conditions or in case of emergency.

- Personal protective equipment should only be used by a trained and competent person in its safe use.

WARNING

- A fall arrest harness is the only acceptable body restraint device that can be used in a fall protection system.

- The fall protection system must only be connected to the connection points of the harness that carry an identification with the uppercase letter “A”. The identification “A/2” indicates that it is necessary to connect two connection points with the same identification at the same time. It is prohibited to connect the protection system to a single connection point identified with “A/2”.

- In harnesses with an integrated belt, the connection to positioning work equipment must only be made to the lateral anchor rings of the belt.

- The connection to the anchor point and to other equipment must be made through carabiners in accordance with EN362:2004.

- For use with fall protection EN 353-1:2014+A1:2017, EN 353-2:2002 it is recommended to connect the equipment to the frontal anchor point of the harness. For use with energy absorbers EN 355 or with fall protection EN 360 it is recommended to connect the equipment to the dorsal anchor point of the harness. - Before each use of the personal protective equipment, it must be carefully inspected to ensure that it is in usable condition and functions correctly.

- During the pre-use check, it is necessary to carefully inspect all elements of the equipment to verify that they do not show signs of deterioration, excessive wear, corrosion, abrasions, UV radiation degradation, cuts, and incorrect use. Pay special attention to the straps, seams, anchor rings, buckles, and adjustment elements.

ABOUT IRUDEK

Irudek Group is an expanding group of companies based in Spain, with operations in Italy, Brazil, and India, and sells its products in over 50 countries. Irudek Group is safety and guarantee, backed by years of experience and by customers who have placed their trust in its products.
