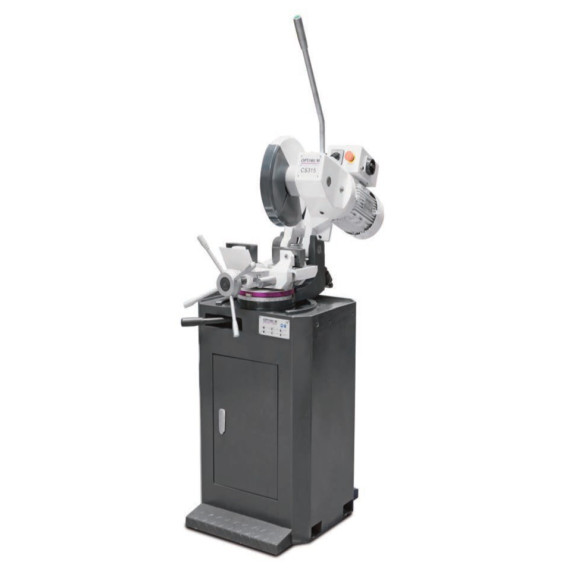

Metal cutting saw CS 275 OPTIMUM

Metal cutting saw CS 275 OPTIMUM. The CS 275 OPTIMUM saw, with a swivel range of ± 45°, offers precise cuts thanks to its easy-to-read angle scale. Its protected spindle and solid base ensure stability and safety. With a long handle and an on/off button, it is easy to use. Capable of cutting round, square, and rectangular materials up to 60 mm, its motor has a power of up to 2.0 kW. Ideal for manufacturing metal parts, construction, and DIY, it is a versatile tool in any workshop.

FEATURES

• Swivel range of ± 45°
• The easy-to-read angle scale allows for precise work
• Quick adjustment of the miter
• Protected bench screw spindle
• Massive machine base on both sides with holes for mounting the MSR material support
• The long handle allows for sawing with minimal effort with an integrated push button (on/off)
• Automatic coolant pump activation when sawing
• Functional protection device, closed construction, mobile
• Quick opening mechanism for optimal safety while cutting.
• Central drive clamp, with quadruple guide and individually adjustable clamping jaws. The cut is always made in the optimal position relative to the piece.
• Massive machine base
• Protected bench screw spindle
• Machine base dimensions:
  • - CS 275 - 460 x 515 x 775 mm and
  • - CS 315 - 546 x 620 x 801 mm
• The saw is delivered without a circular saw blade (blade division of your choice)

TECHNICAL SPECIFICATIONS

• Blade speed 41/82 min¯¹
• Blade diameter 275 millimeters
• Miter angle -90 – +90 °
• Feed Manual
• VPE 1

Cutting capacity

• Solid material at 0° (round) 60 millimeters
• Solid material at 0° (square) 60 millimeters
• Solid material at 0° (rectangle) 60 x 100 millimeters
• Solid material at +45° (round) 60 millimeters
• Solid material at +45° (square) 60 millimeters
• Solid material at +45° (rectangle) 60 x 70 millimeters

Dimensions and weights

• Approximate length 460 millimeters
• Approximate width/depth 830 millimeters
• Approximate height 1700 millimeters
• Approximate weight. 175 kilograms

Electrical data

• Drive motor output 1.4; 2.0 kW
• Power supply voltage 400 volts
• Network frequency 50 Hz

COMPONENTS/PACKAGING

Cooling system, bench, quick-release clamp.

WHAT TYPE OF WORK IS IT SUITABLE FOR

The Metal Cutting Saw CS 275 OPTIMUM is suitable for:

• Manufacturing metal parts.
• Construction (cutting profiles and tubes).
• Automotive industry.
• Industrial repairs.
• DIY projects.
