Manual sheet metal bending machine FSBM 1270-20 HS2 METALLKRAFT

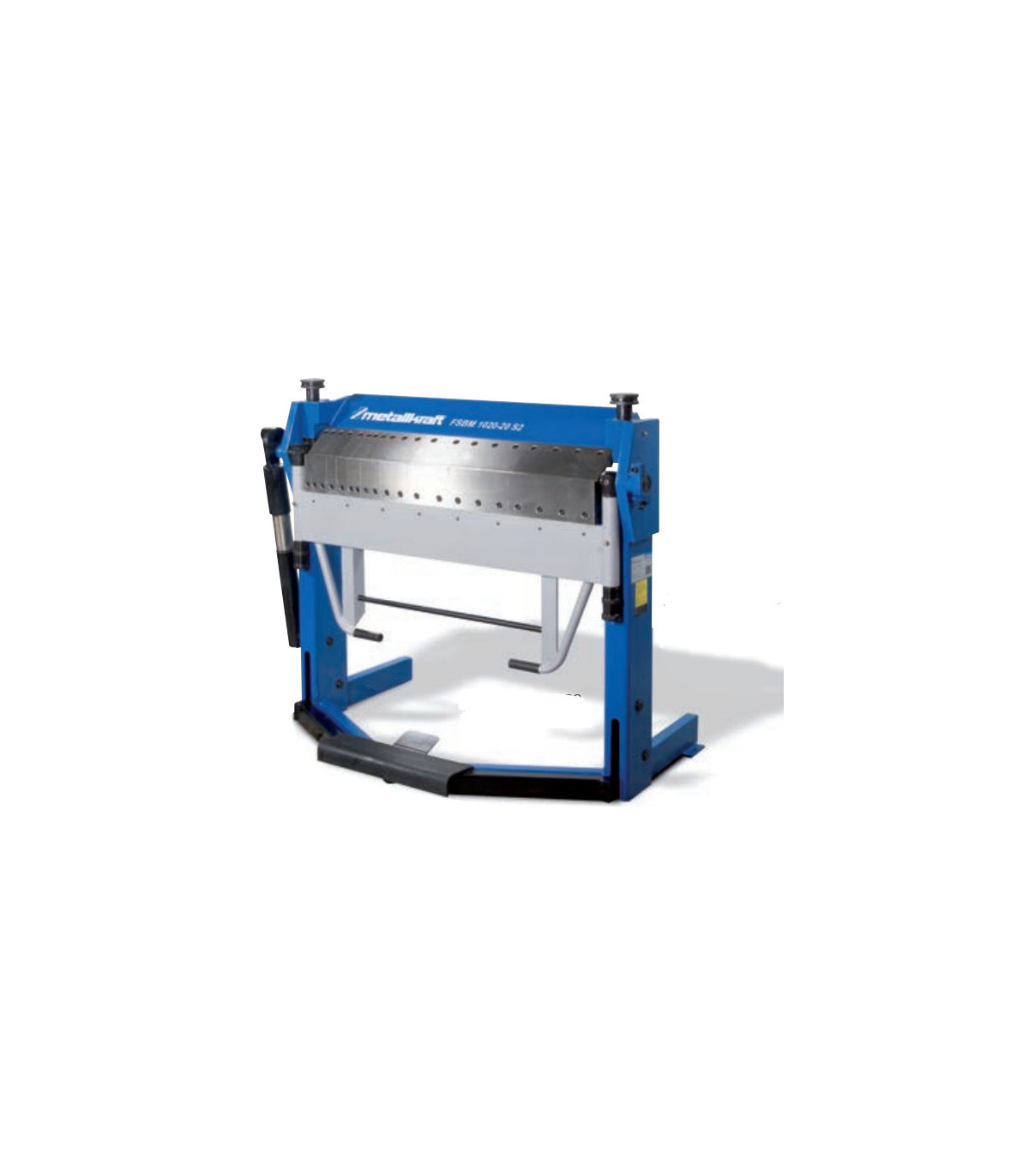

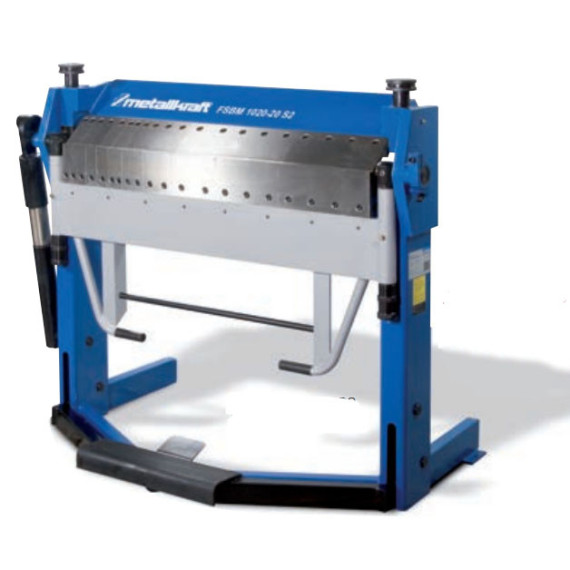

Manual sheet metal bender FSBM 1270-20 HS2 METALLKRAFT. The manual sheet metal bender FSBM 1270-20 HS2 METALLKRAFT stands out for its pedal clamping system, allowing both hands to be free to handle the material. It offers various tools and a powerful auxiliary cylinder that facilitates bending. With a maximum working width of 1270 mm and a bending angle of up to 135°, this machine is ideal for working with different materials, including aluminum and stainless steel. Its robust design includes self-lubricating bearings and adjustable butterfly screws, ensuring precision and efficiency in every task.

FEATURES

• Clamping of the piece via pedal, allowing both hands to be free for material supply.
• Different tool variants available: E, S2, HS2, and HSG
• The powerful auxiliary cylinder facilitates bending.
• Next step between the upper and lower cheeks of up to 25 mm
• Self-lubricating smooth bearings
• Clamping pressure of the upper beam via easily adjustable non-slip butterfly screws
• Material thickness adjustment via knurled screw
• Adjustable stop for curvature angle
• Max. sheet thickness: Performance data based on material with a tensile strength of 400 N/mm²
• Bending capacity for VA: factor 0.75
• Bending capacity for aluminum: factor 1.2
• Tools with hardened upper part are required for bending VA

TECHNICAL SPECIFICATIONS

Maximum working width 1270 millimeters

Maximum bending angle 135°

Segmentation 25-30-35-40-45-50-75-100-150-200-250-270 millimeters

VPE 1

Bending capacity

235 N/mm² 2.0 millimeters

Stainless steel 1.2 millimeters

Explanation of stainless steel Tools with hardened upper part are required for bending VA

Aluminum 2.4 millimeters

Dimensions and weights

Approximate length 1600 millimeters

Approximate width/depth 800 millimeters

Approximate height 1130 millimeters

Approximate weight. 370 kilograms

WHAT TYPE OF WORK IS IT SUITABLE FOR

The manual sheet metal bender FSBM 1270-20 HS2 METALLKRAFT is suitable for:

• Bending metal parts and structures
• Metal repairs
• Construction
• Industrial use
• DIY

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
