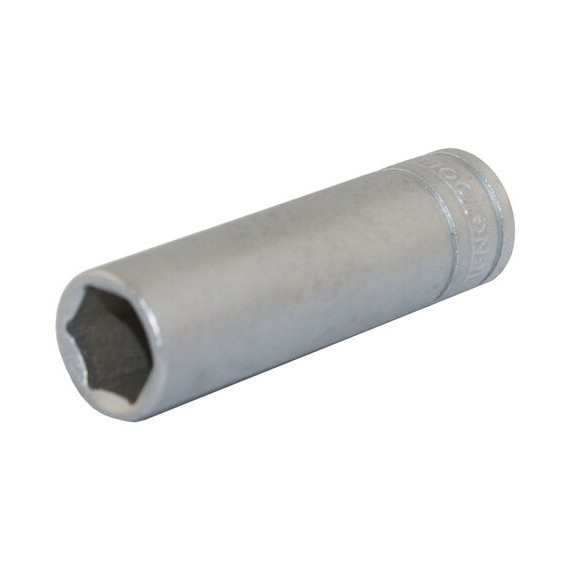

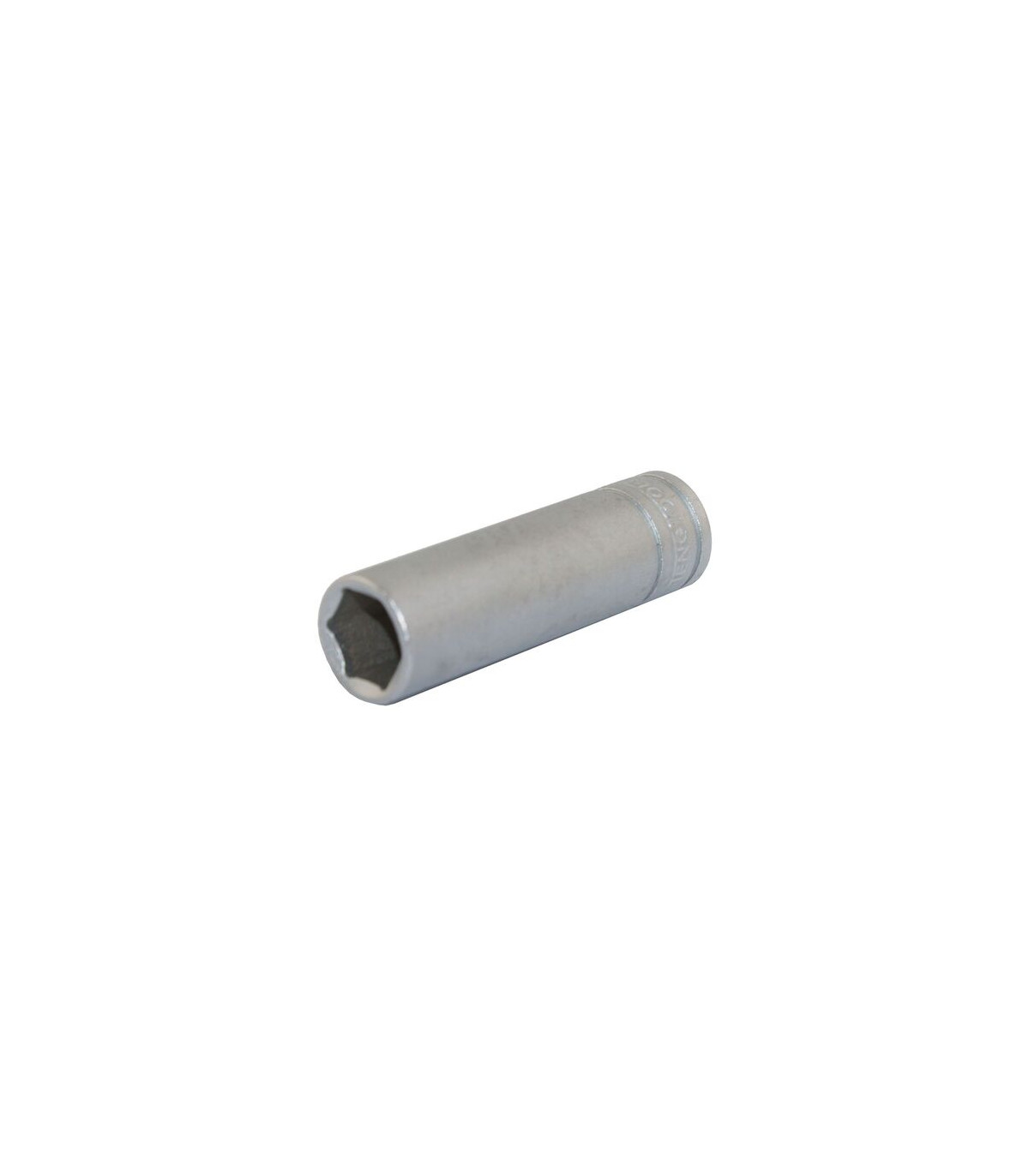

Hexagonal socket 1/4" 6 points M140604-C TENG TOOLS

Hexagonal socket 1/4" 6 points M140604-C TENG TOOLS. This type of sockets is long series and made of chrome vanadium. They are manufactured according to the standards of DIN 3124/ISO 2725.

FEATURES

Hexagonal socket

Long power takes for greater reach

Chrome vanadium

Satin finish

Retention groove for the ball retainer that secures the connection of the socket to the drive end.

Designed and manufactured according to DIN3120/3124 and ISO2725 standards

Supplied with a metal clip for use with a socket rail.

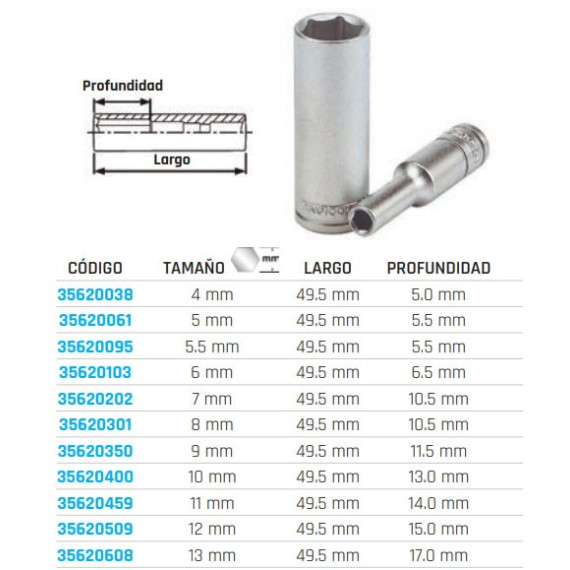

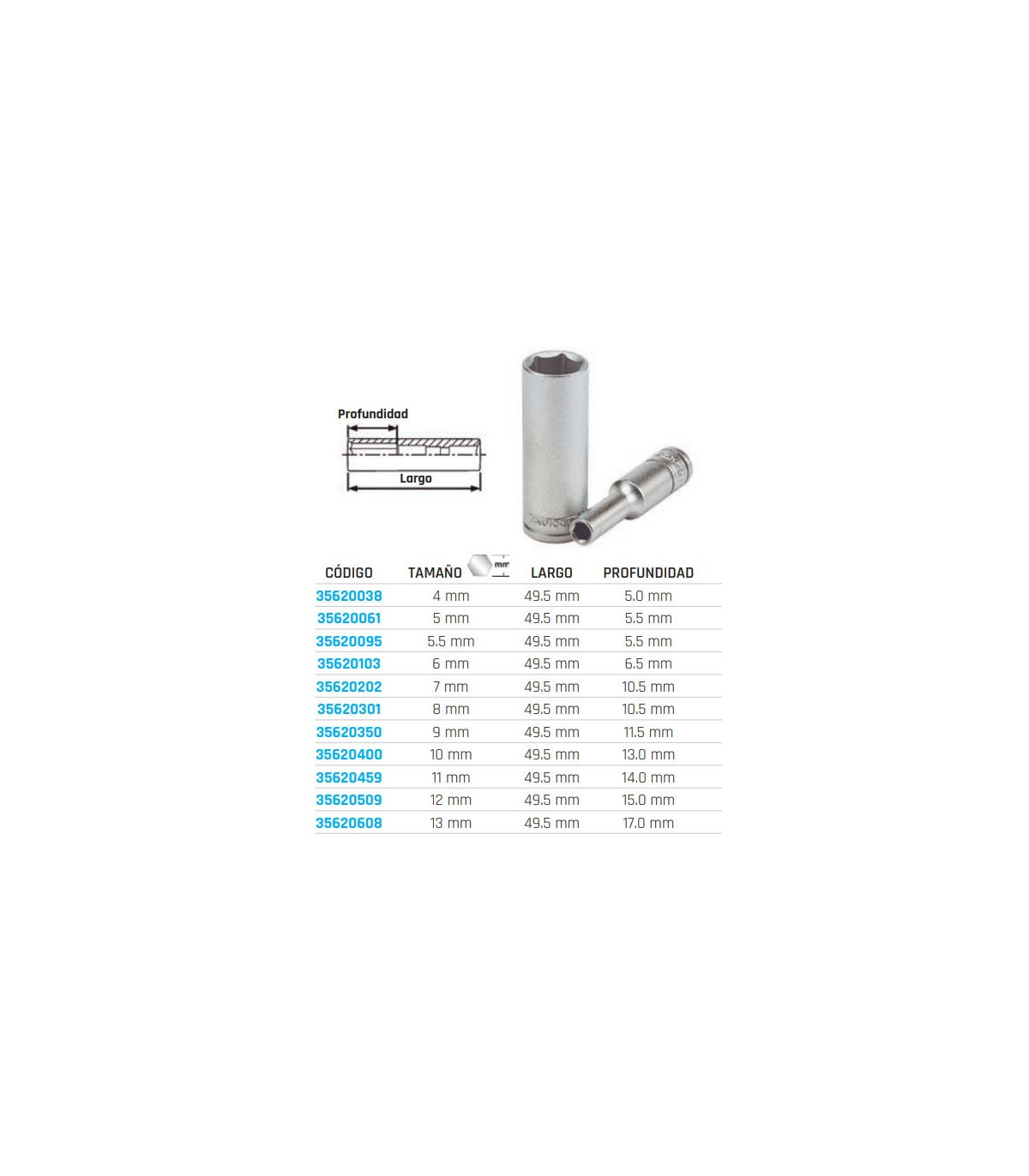

TECHNICAL DATA

NORMATIVE

The DIN 3120 and DIN 3124 standards are German technical standards that, along with the international standard ISO 2725, define the dimensions and tolerances for socket tools and their couplings. Specifically, DIN 3120 focuses on the drive square, that is, the connection (male and female) that joins the wrench, ratchet, or handle with the socket, standardizing measurements such as 1/4", 3/8", 1/2", etc. Meanwhile, DIN 3124 and ISO 2725 establish the specifications for the mouth of the socket: the hexagonal (6 points) or bi-hexagonal (12 points) profile that fits into the head of the screw or nut.

These standards mean that the products guarantee universal interchangeability and compatibility between tools from different manufacturers, allowing a socket from one brand to work perfectly with a ratchet from another. Additionally, this standardization is key for safety and performance, as it ensures a precise fit.

APPLICATIONS

For ratchet wrenches or torque handles:

Mechanical and assembly work

Tightening and loosening screws in deep or hard-to-reach holes
