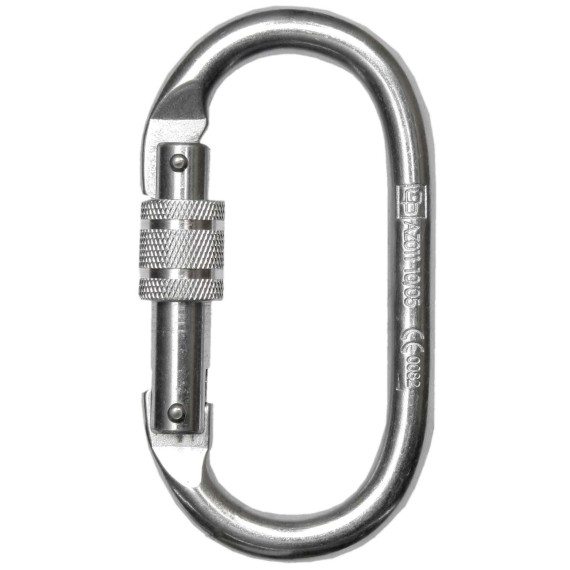

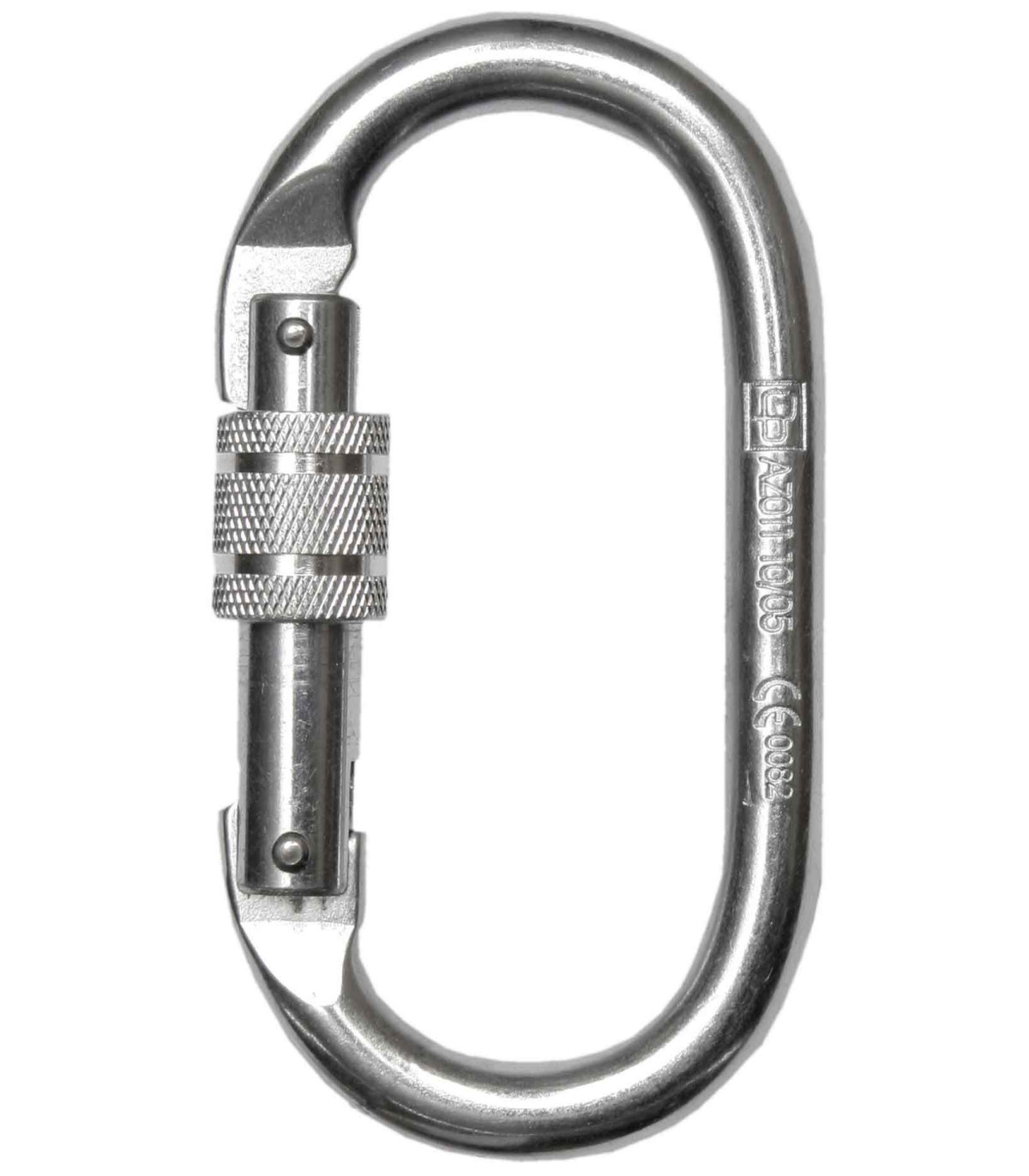

Steel screw carabiner with 19 mm opening SAFETOP

Steel screw carabiner with 19 mm opening SAFETOP. The SAFETOP steel screw carabiner is a personal protective equipment (PPE) of category III, designed to provide a secure connection in high-risk environments. With a manual screw locking mechanism, this carabiner has a 19 mm opening and a maximum strength of 25 kN in the longitudinal direction when the gate is closed and locked. Its dimensions are 108 x 60 mm and it has an approximate weight of 170 g, making it a lightweight yet robust accessory, ideal for ensuring user safety in height work or similar situations.

FEATURES

• PPE category III.
• Steel carabiner with locking mechanism
• manual screw.
• 19 mm opening.
• Maximum strength: 25 kN (longitudinal, when the
• gate is closed and locked).
• Dimensions: 108 x 60 mm
• Weight: approx. 170 g
• Type B

APPLICATIONS

The SAFETOP steel screw carabiner with 19 mm opening is suitable for:

• Connector used as a component
• Industry
• Construction
• Maintenance

TECHNICAL DATA

• Opening: 18 mm
• Material: Galvanized steel
• Weight: 170 g
• Dimensions: 110 x 60 mm
• Minimum static strength: 25 kN
• Compliant with: EN 362

STANDARDS

- EN362 Class B: The EN362 Class B standard establishes the safety and performance requirements for connection systems used in personal protective equipment (PPE) against falls, specifically carabiners. This class focuses on the strength and functionality of carabiners, ensuring they are suitable for use in vertical activities.

INSPECTIONS AND LIFETIME

Inspections: the equipment must be inspected every 12 months by an authorized person or by the manufacturer. Inspections must be recorded in the inspection sheet attached to the PPE along with the instruction manual.

See the instruction manual to identify the maximum lifetime of the equipment.

Cleaning: clean with water and soap not exceeding 30ºC. Do not dry with heat. Lubricate the hinges and opening levers occasionally after washing.
