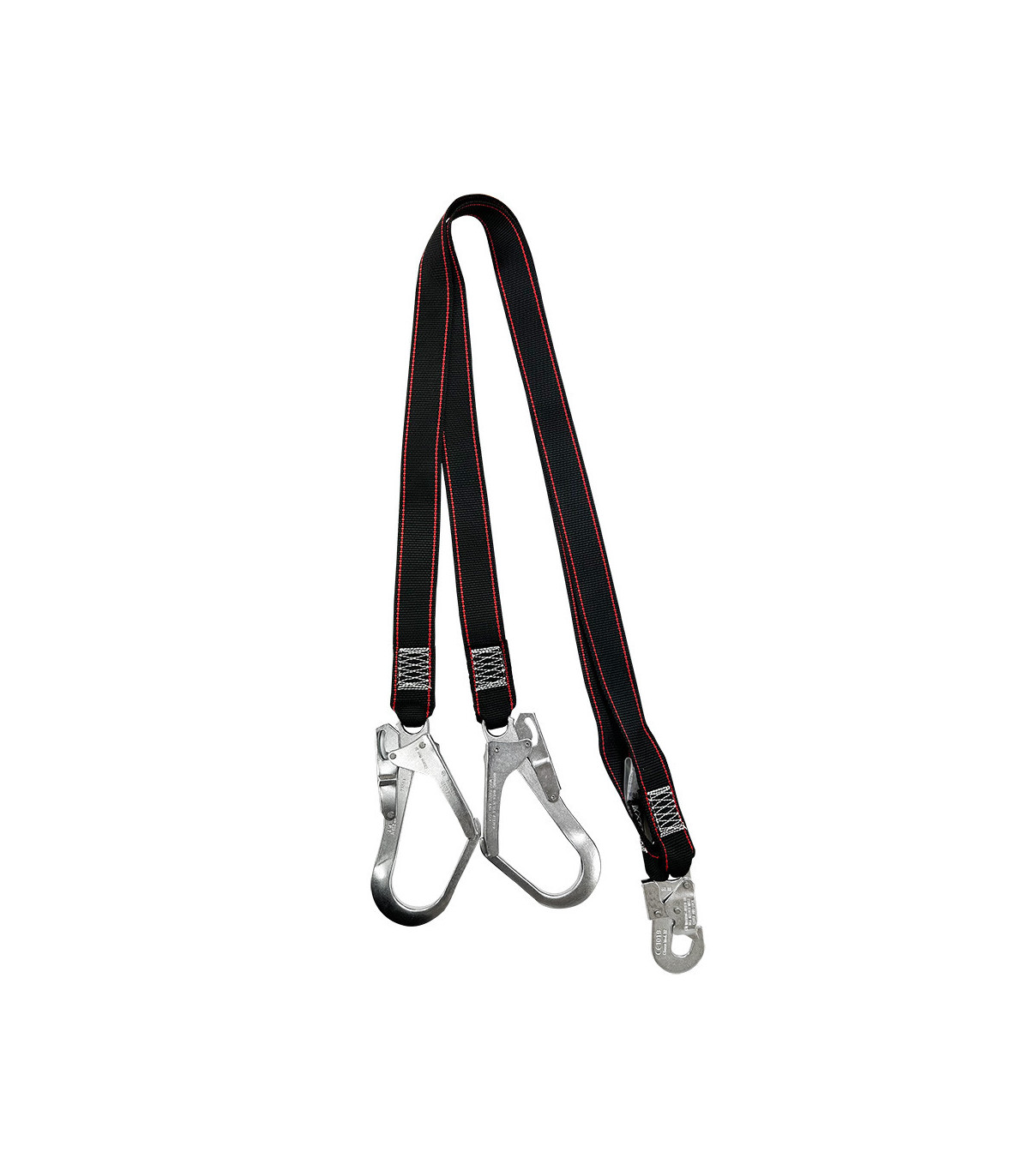

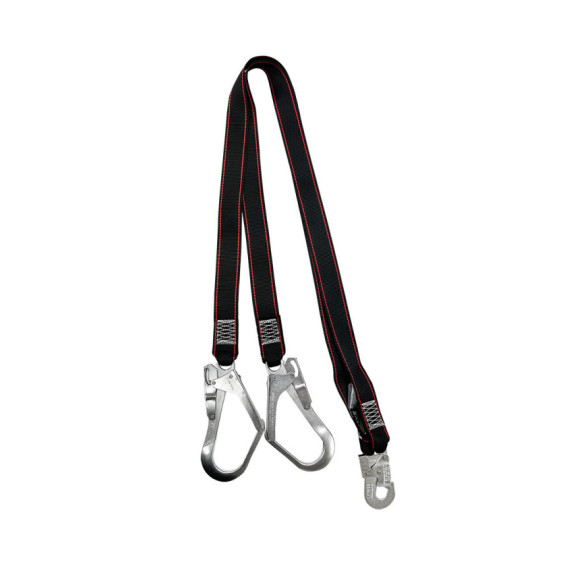

Anchor element set Nº 44 32/31 CLIMAX

Set 44 is a Y-shaped anchor element designed to form part of a safe fall protection system, compatible with safety harnesses according to EN 361:2002. It is manufactured with two polyester straps of 45 mm and incorporates a mod. 32 connector and two mod. 31 steel connectors with automatic locking, providing a secure connection to different structures. Available in lengths of 1 m, 1.5 m and 2 m.

FEATURES

• Element formed by two polyester straps of 45 mm
• 1 directional steel connector mod. 32. Opening diameter of 18 mm
• 2 directional steel connectors mod. 31. Opening diameter of 54 mm
• Lengths: 1 m, 1.5 m, 2 m
• Breaking load: 22 kN

TECHNICAL DATA

• Weight: 1.448 kg
• Minimum breaking load: 22 kN
• Manufacture: españa
• Standard: EN 354:2010

STANDARD

Health and safety requirements of R. D.1407/1992

Standard: EN 354:2010
