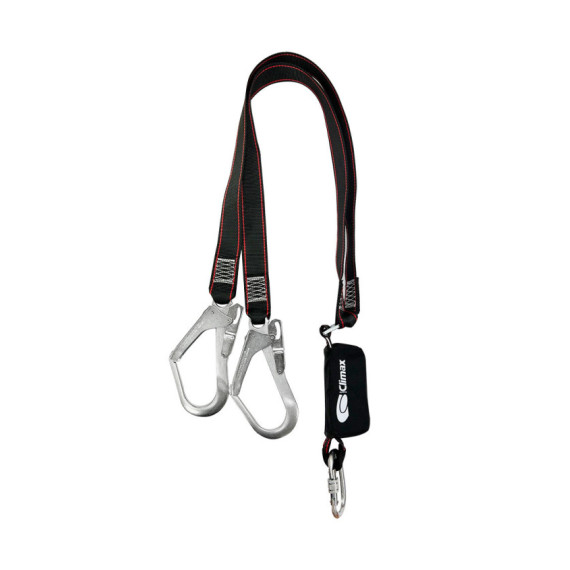

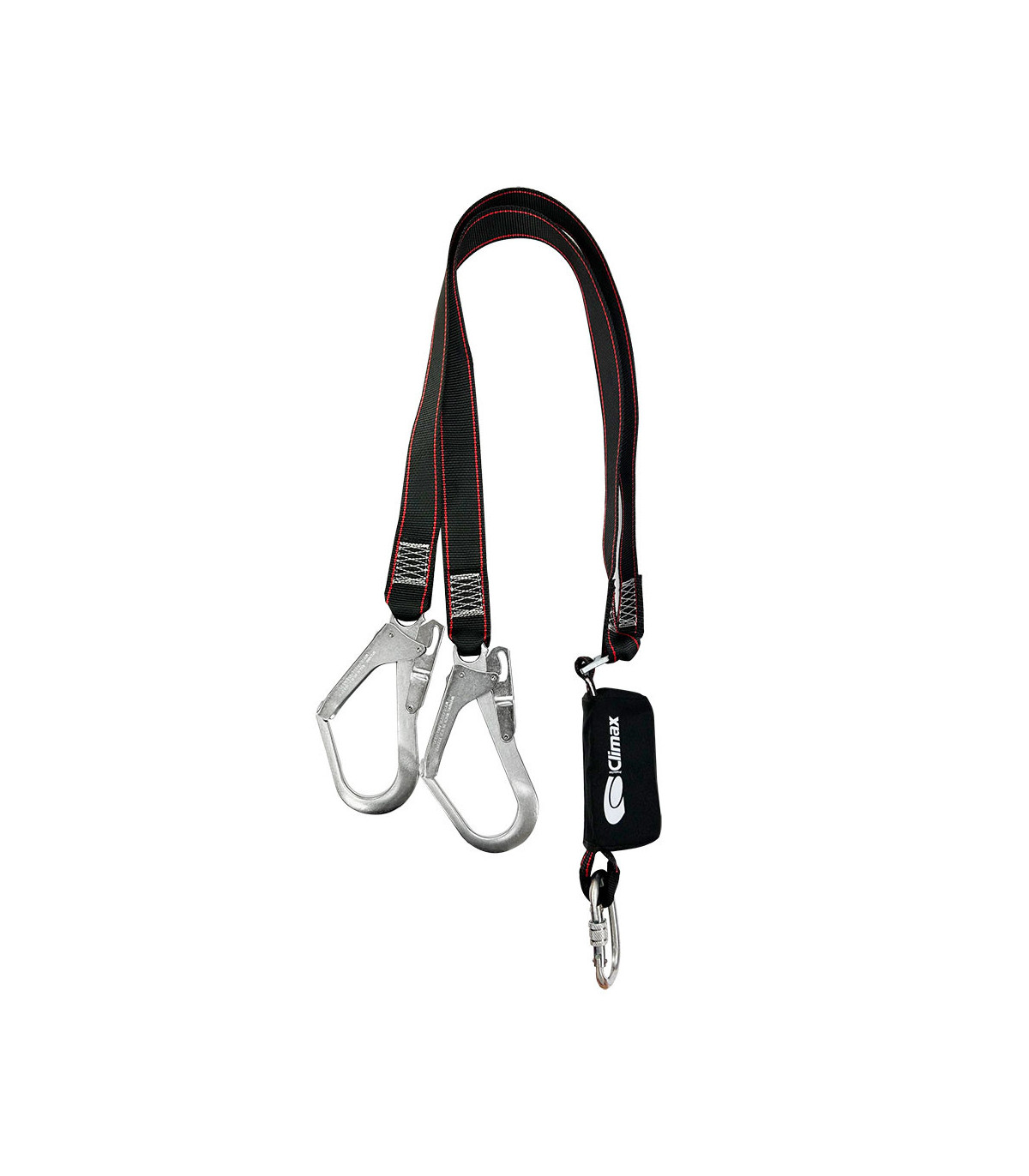

Energy absorber model 34-A 30/31 CLIMAX

The energy absorber 34-A is designed to form part of a fall protection system. It incorporates a Y-shaped anchorage element with two polyester webbing straps of 45 mm that facilitate progression between anchor points whilst maintaining protection against falls. Its textile energy absorber reduces impact force and features high-strength steel connectors with manual or automatic locking.

FEATURES

• Y-shaped anchorage element with two polyester webbing straps of 45 mm.
• Energy absorber.
• 1 Mod. 30 steel connector with manual locking via threaded lock. Minimum strength: 23 kN. Opening of 16 mm.
• 2 Mod. 31 steel connectors with automatic locking. Minimum strength: 23 kN. Opening of 51 mm.
• The theoretical service life of the equipment is 15 years from the manufacturing date for all equipment with textile or plastic components.

TECHNICAL DATA

• Weight: 1.55 kg
• Manufacture: Spain
• Length: 1.55 m
• Service life: 15 years
• Standard: EN 355:2003

STANDARD

Regulation (EU) 2016/425

Standard EN 355:2003

Notified Body No. 1019
