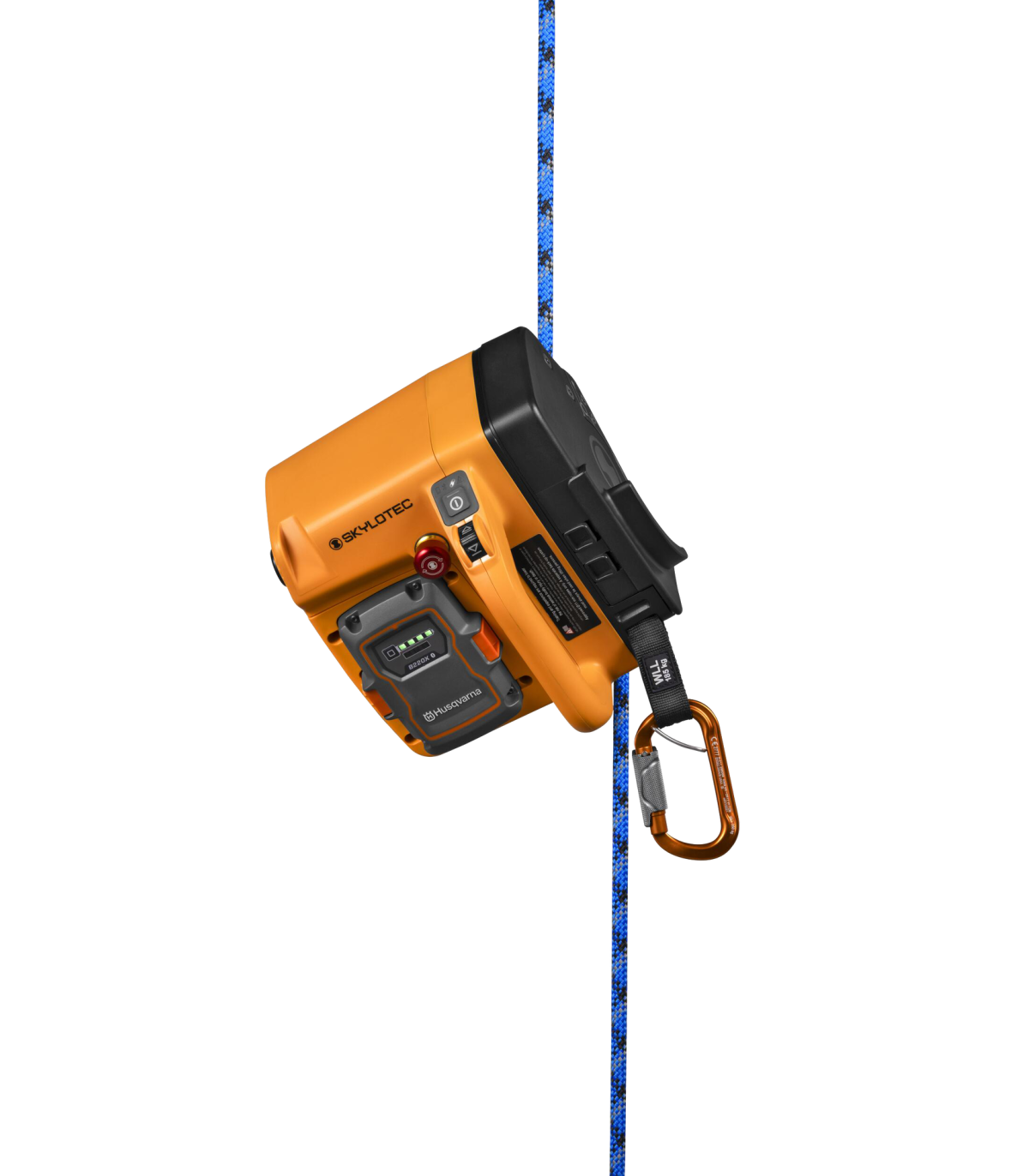

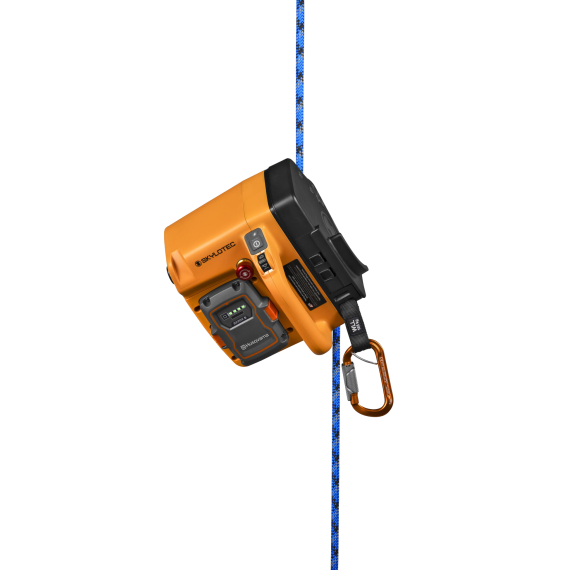

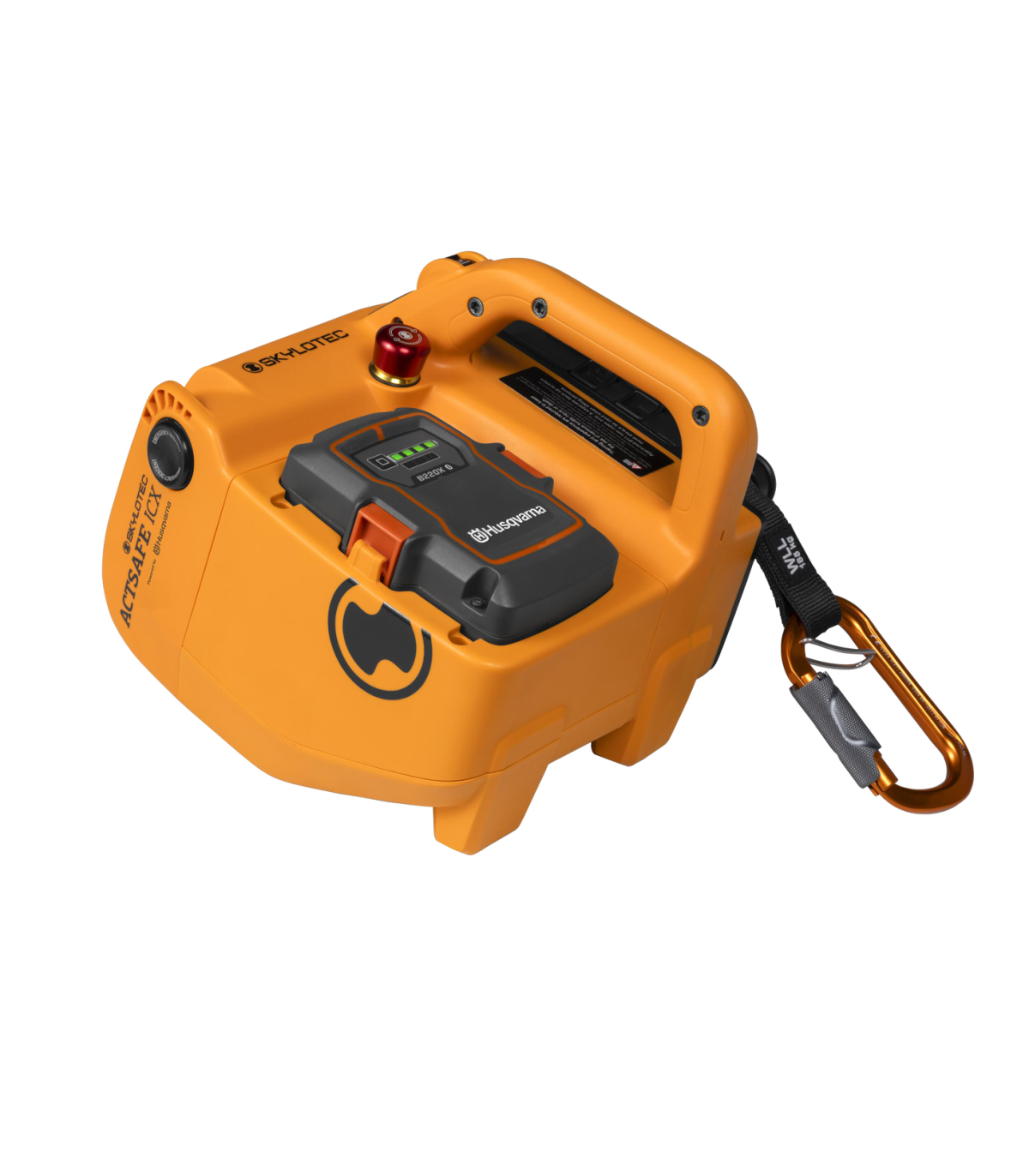

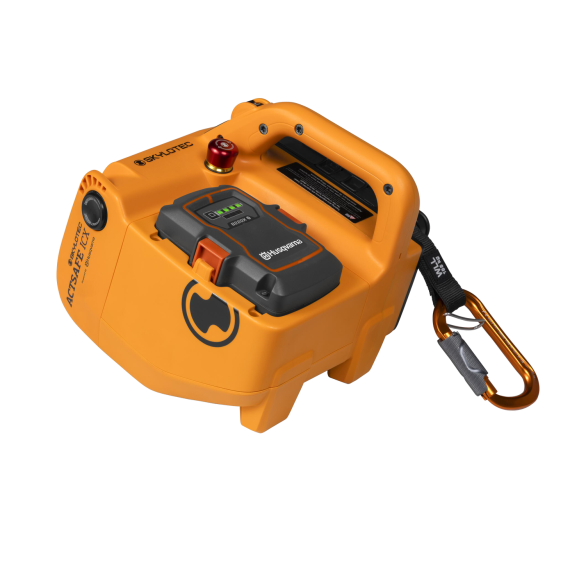

ACTSAFE ICX SKYLOTEC Electric Ascender

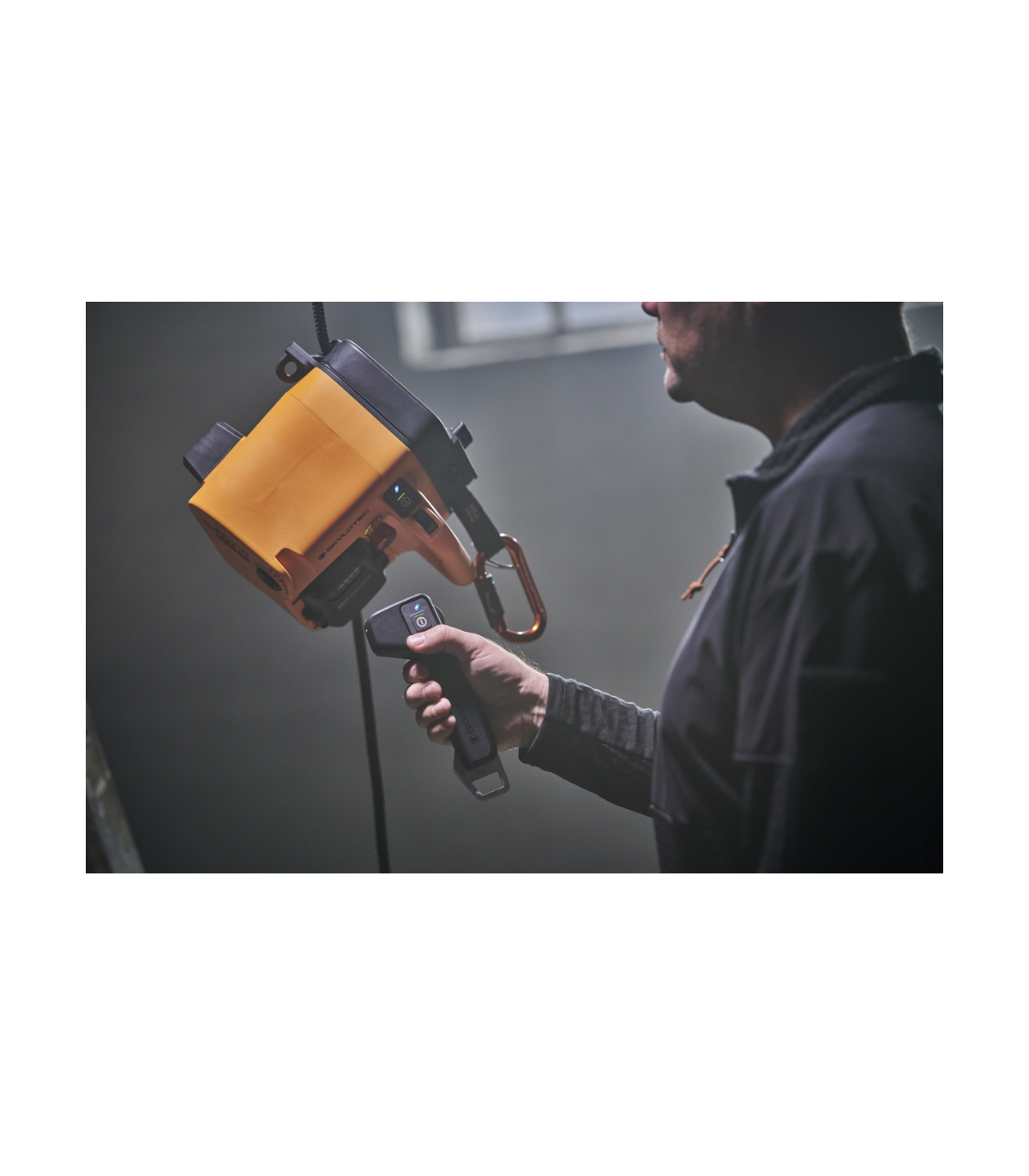

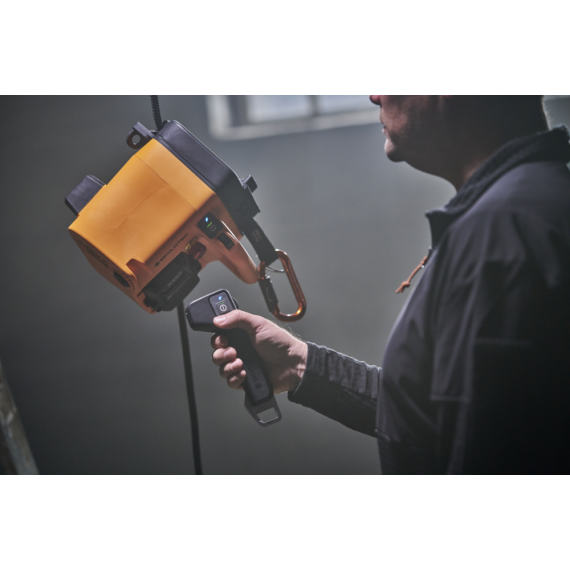

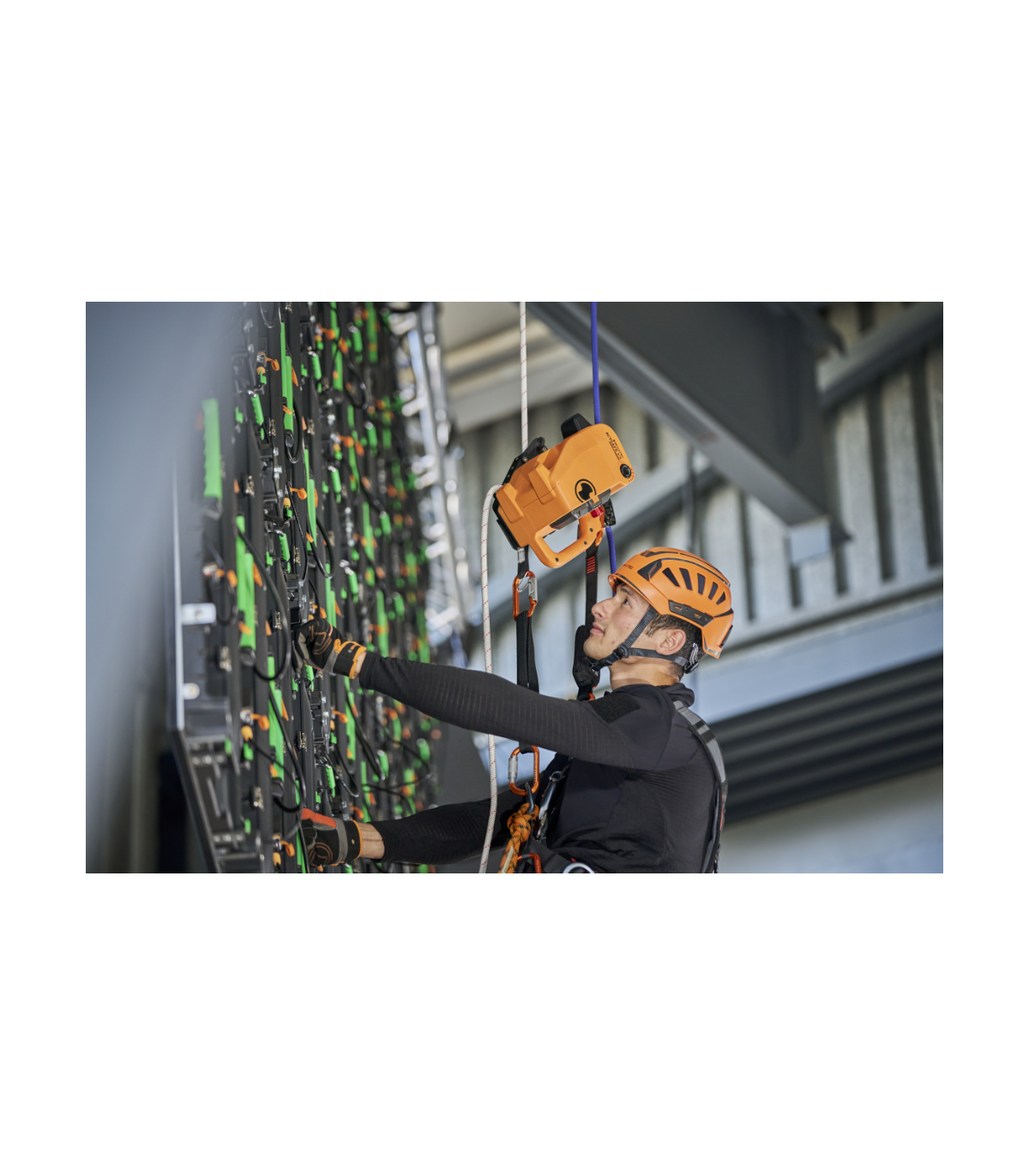

The ultralight and compact electric ascent equipment ActSafe ICX has been developed for the safe and efficient transport of people in difficult-to-reach areas. Combined with a rope, the ActSafe ICX constitutes an incredibly flexible system for simple and cost-effective cleaning and maintenance of complex structures. Its intuitive operation is managed effortlessly with a selector wheel, allowing precise work. Equipped with a high-performance Husqvarna 40-B220X battery, the hoist achieves an ascent speed of 24 m/min. The maximum battery range is 230 m with a 100 kg load and at a temperature of 20°C. Thanks to its IP55 rating, the ActSafe ICX can be used in any weather condition. Rope loading is straightforward, which speeds up the workflow and saves valuable time. Furthermore, control of the ActSafe ICX can be assumed by a second person on the ground via a remote control. This allows automatic ascent or descent of the person operating the device, should they be unable to do so themselves. Operation and use of the ActSafe ICX are learned quickly and easily through user training.

FEATURES

• Ultralight and compact personal winch

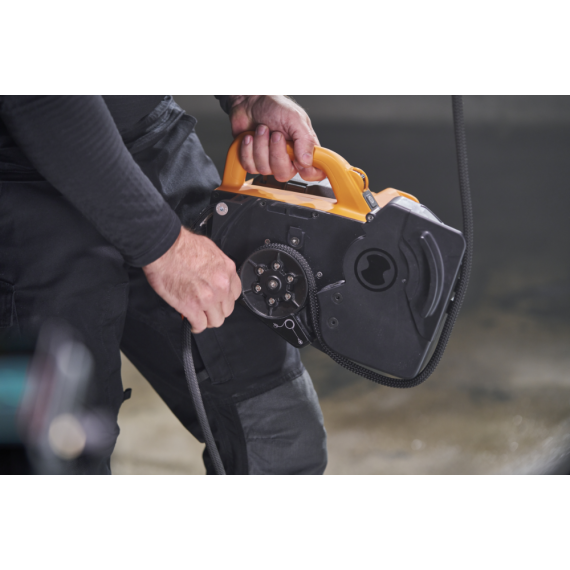

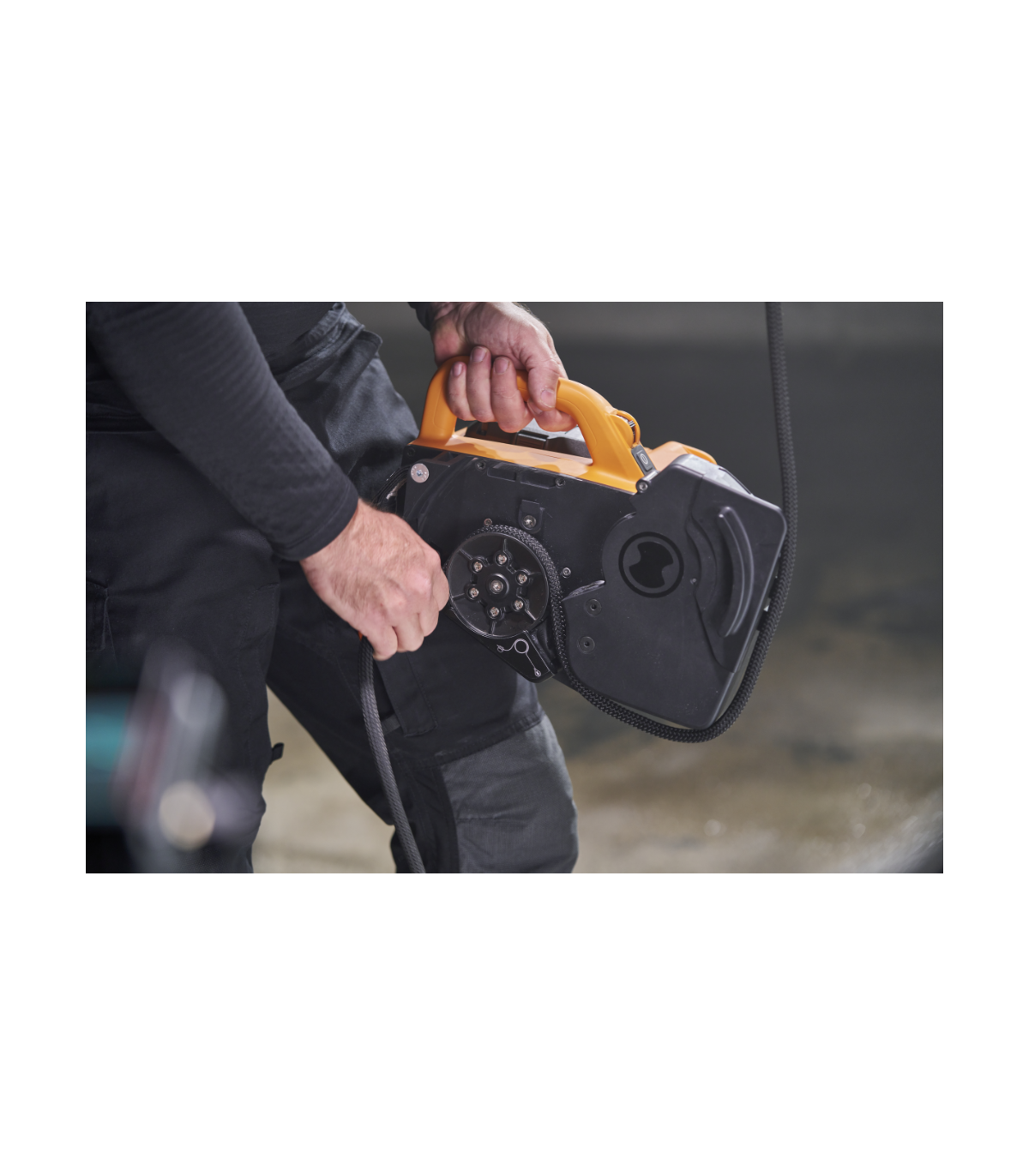

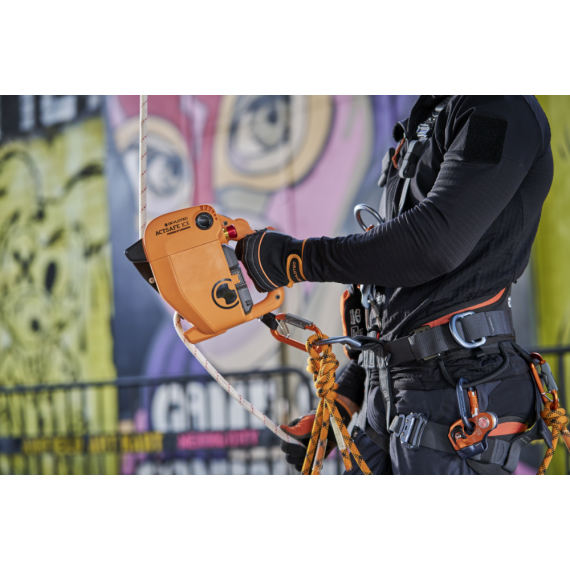

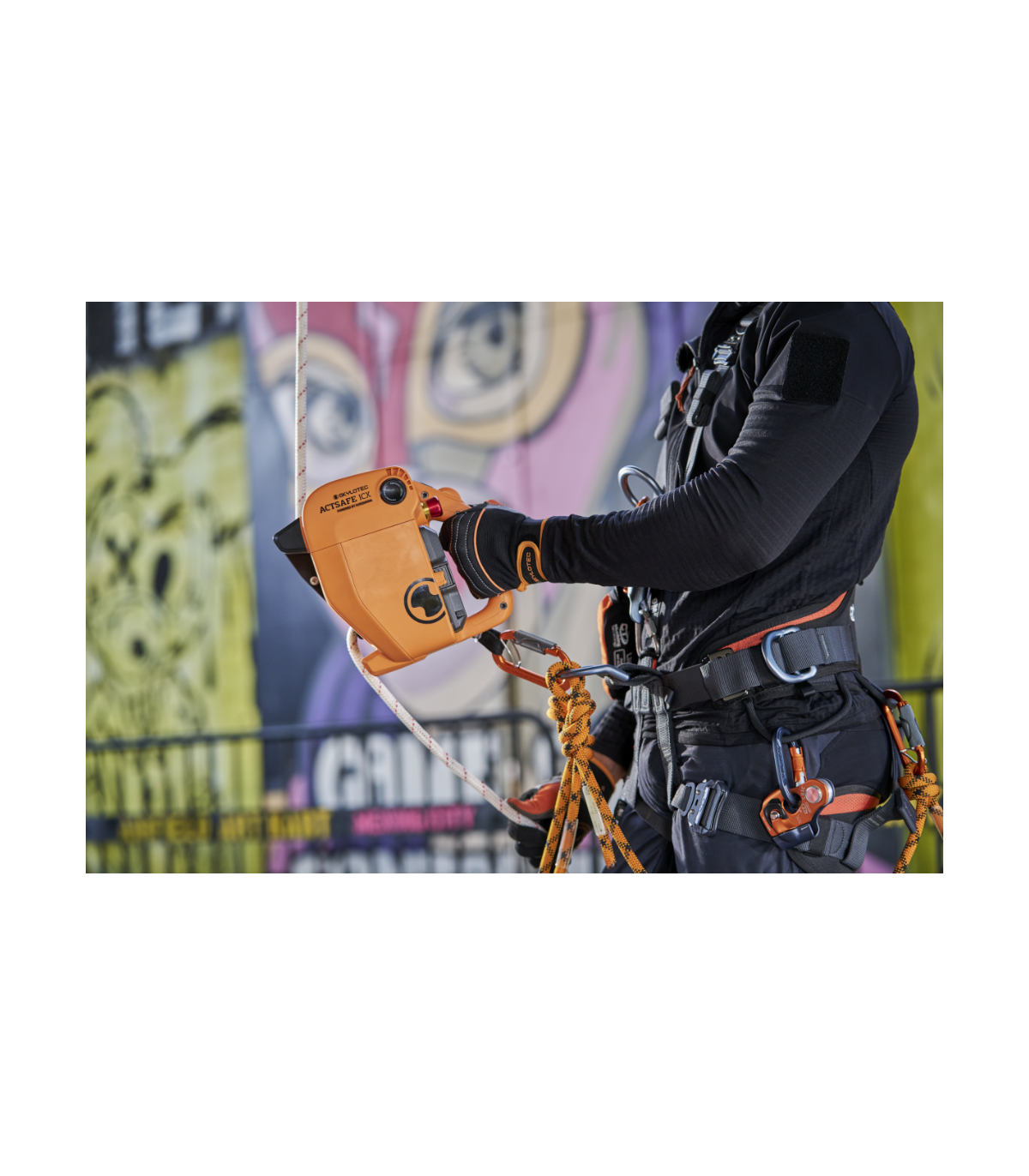

• Quick and secure rope insertion

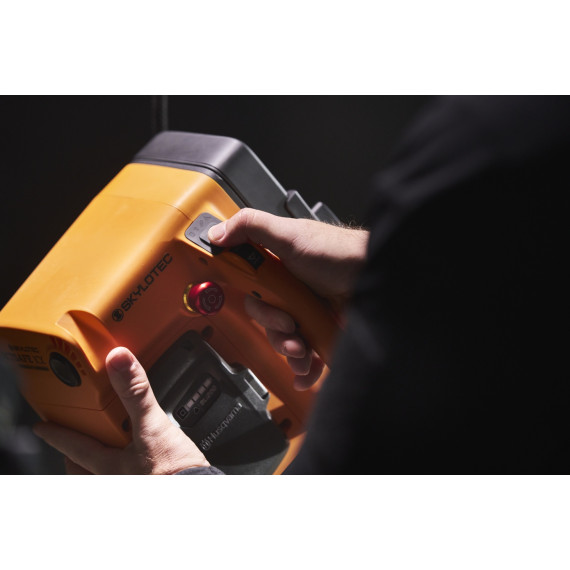

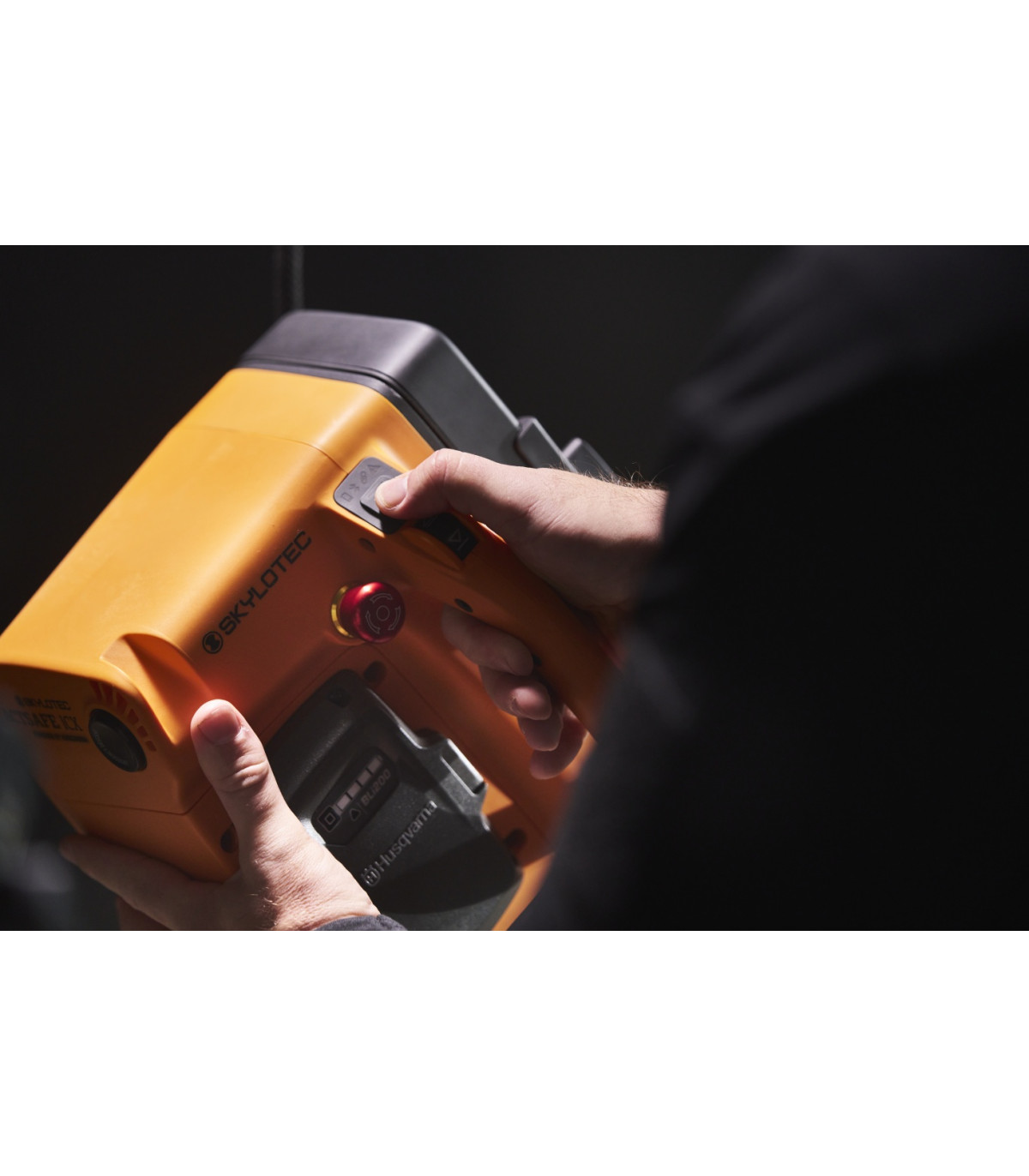

• Easy control with intuitive button

SPECIFICATIONS

• Remote control range: 50 m
• Suitable for underwater use: No
• Power source: Removable battery
• Emergency descent function: Yes
• Emergency stop function: Yes
• Battery range: 230 m
• Working load limit: 185 kg
• Water and dust protection: IP 55
• Charging time: 50 minutes

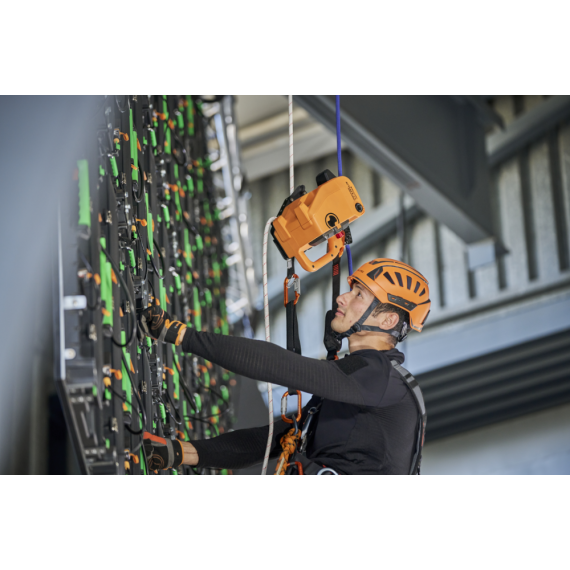

• Areas of application: Roof and façade work, Tree climbing, Sailing & Yachting, Rope access technique
• Minimum temperature: -10 °C
• Maximum temperature: 40 °C
• Minimum compatible rope diameter: 11.00 mm
• Maximum compatible rope diameter: 11.00 mm
• Minimum descent speed: 1 m/min
• Maximum descent speed: 24 m/min
• Minimum ascent speed: 1 m/min
• Maximum ascent speed: 24 m/min
• Material: Steel, Aluminium, Nylon
• Regional charger: EU
• Number of rechargeable batteries: 1
• Customs number: 84253100
• Product length: 49.60 cm
• Product width: 29.60 cm
• Product height: 28.00 cm
• Colours: Orange
• Net weight: 12.00 kg
• Gross weight: 12.00 kg

VIDEOS

APPLICATIONS

Singing, Façade cleaning, Rescue personnel, Tree climbing, Rope access technique / Equipment
