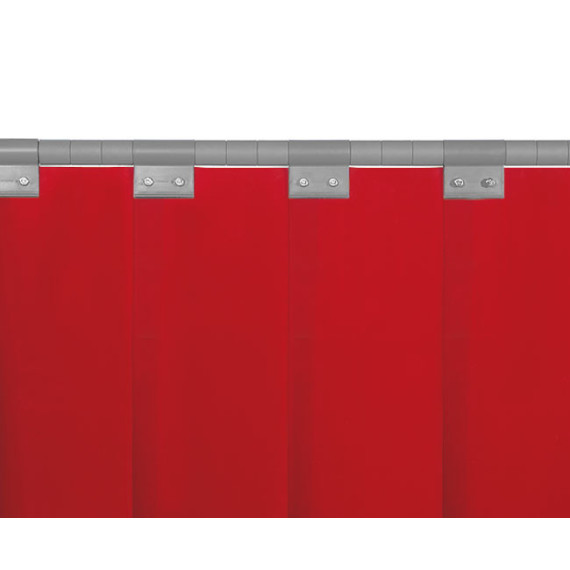

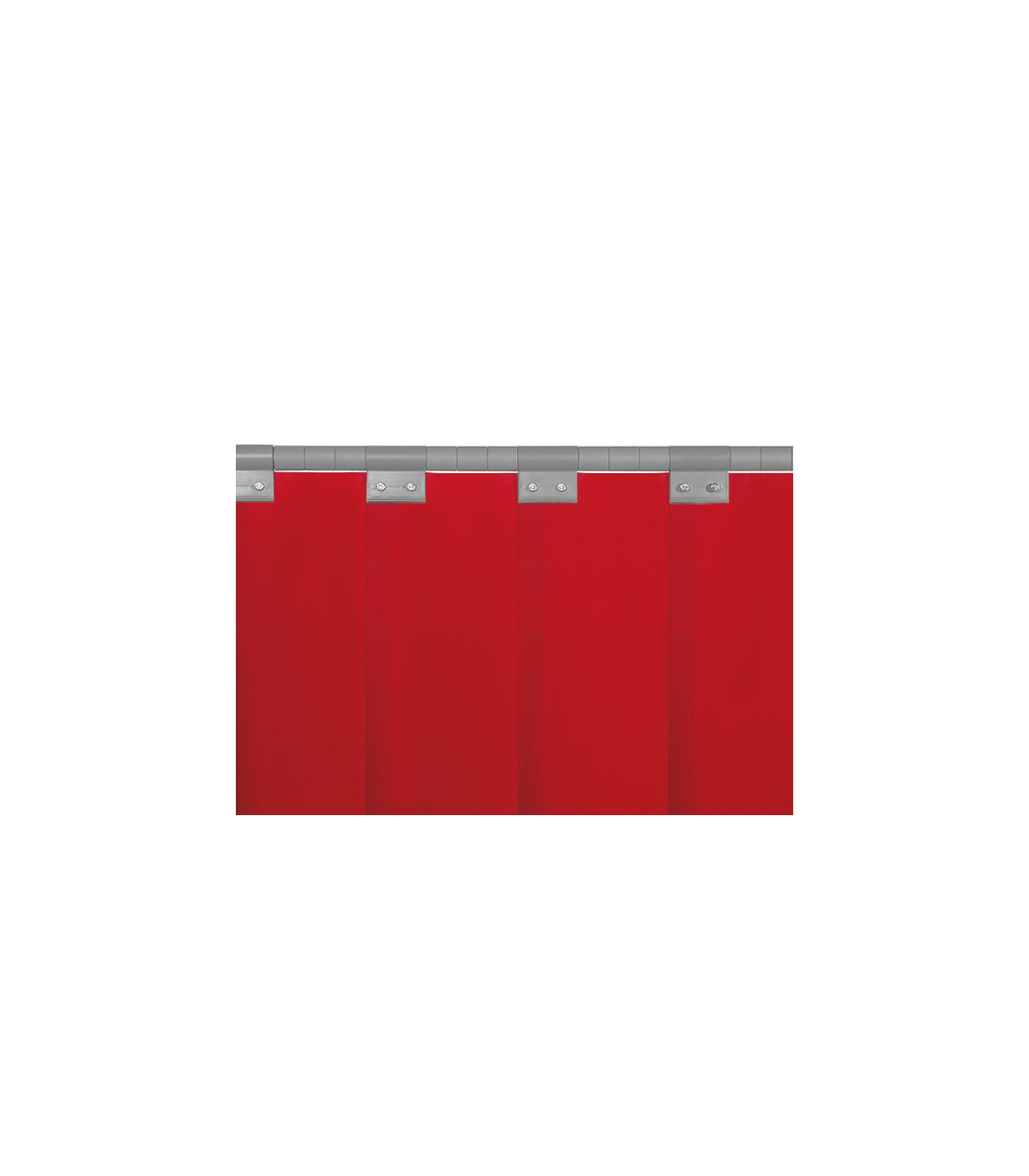

Red welding and grinding protection sheets KEMPER

KEMPER welding protection sheets guarantee the best protection against radiation, splashes and electric arcs. They comply with DIN EN ISO 25980 and in accordance with DIN 53 438 T2 are low flammability. The sheets are cut and drilled to the required overlap dimension and are easily mounted with the KEMPER foldable suspension straps.

TECHNICAL DATA

• Width : 300 mm
• Thickness : 2 mm
• Weight : 0.80 kg/m kg
• Colour : red
• Standards : DIN EN ISO 25980

FEATURES

• Tested to DIN EN ISO 25980
• Suspension via suspension straps or swinging clamps to tube or C-profile
• Sheet overlap of 33 % or 66 %
• Fixed mounting or with lateral displacement possible

SUMMARY / APPLICATIONS

• To separate work areas and parts of a workshop
• Protection against dangerous radiation from welding arcs and splashes
• Visual protection
• Darkening

ADVANTAGES

• Individual protection device through the ability to select the degree of overlap
• Laterally displaceable model thanks to attachment to C-profile
• Passage at multiple points of the separation, as in combination with the C-profile the various elements can be displaced on both sides
• Ease of installation and time saving when attaching the KEMPER foldable suspension straps
