Connectable welding screen WELDAS 137x180cm with suspension rings

Connectable welding screen WELDAS 137x180cm with suspension rings

Designed to protect the environment from UV rays and welding arc reflections

FEATURES

• Dimensions: 1.37 x 1.8 m

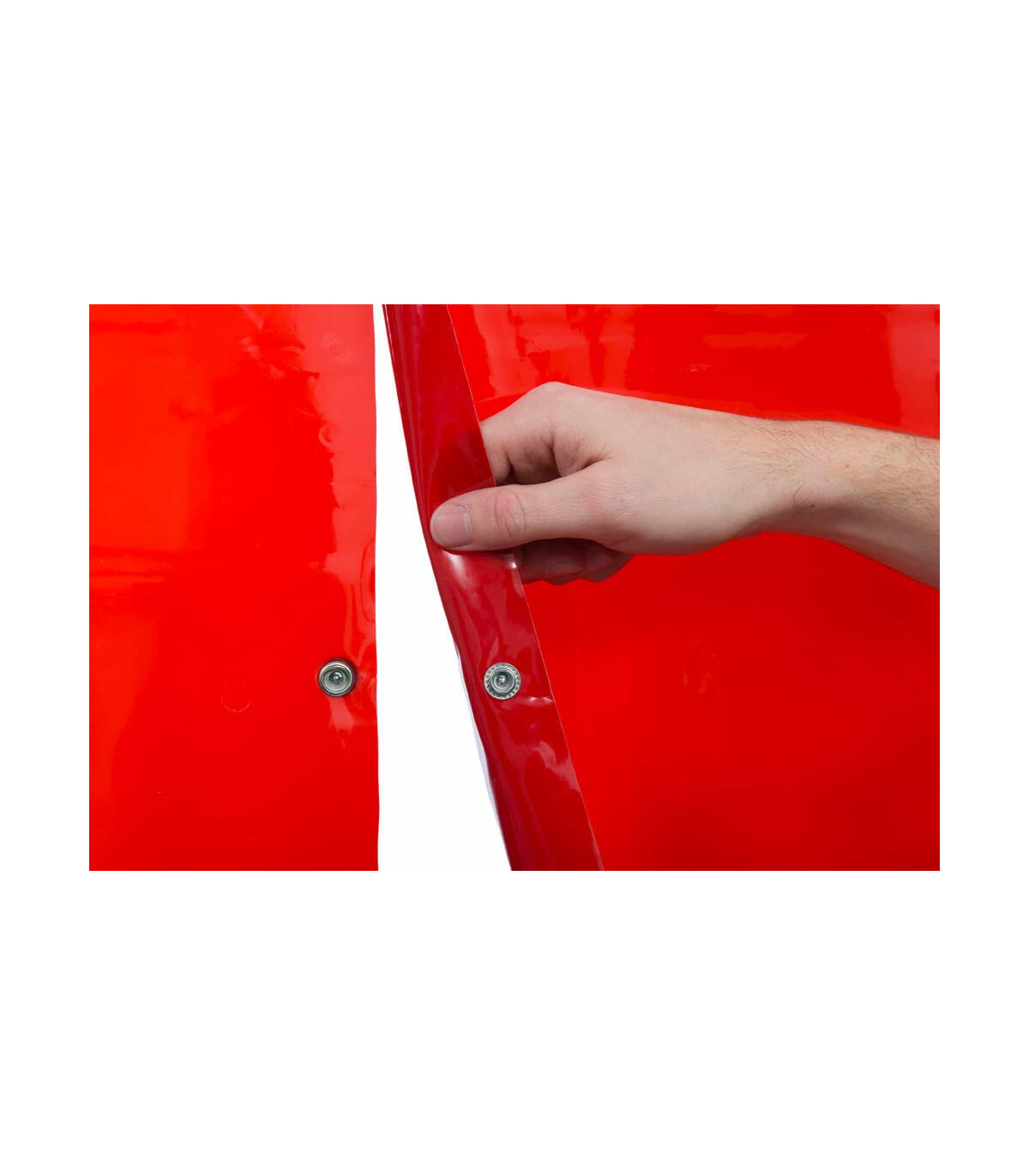

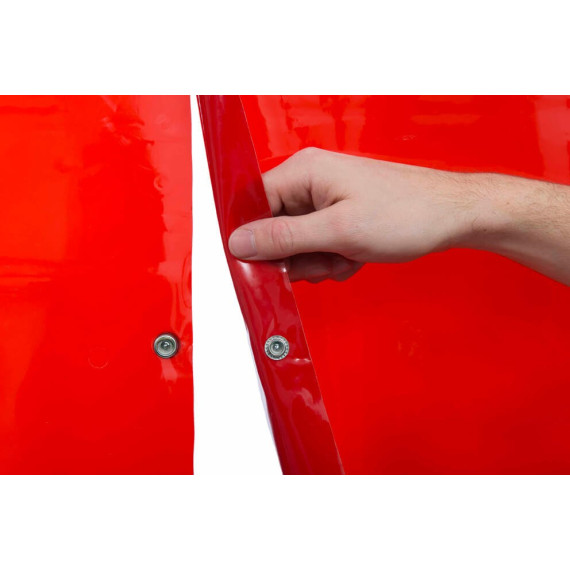

• Connectable welding screen
• Heat-sealed seams
• Also supplied with 9 rings of Ø 50 mm
• LAVAshield® screen

DIMENSIONS

Height: 180 cm

Width: max. 137 cm

*Measurements expressed in cm

MATERIALS

The curtain is made of PVC (Polyvinyl chloride)

APPLICATIONS

This product is designed to protect the environment from UV rays and welding arc reflections. Welding and grinding should be performed more than 1 m away from the curtain.

Heat-sealed seams and washers. Nylon ties are provided for attachment to WELDAS modular frames (frame/screen not included).

TECHNICAL DATA

The Weldas curtains have been tested and certified at DIN CERTCO Gesellschaft für Konformitätsbewertung mbH, Alboinstraße 56, 12103 Berlin, Germany, Notified Body: 0196

STANDARDS/ REGULATIONS

DIN EN ISO 25980:2015-01 13821-PZA-17

PACKAGING

1 unit
