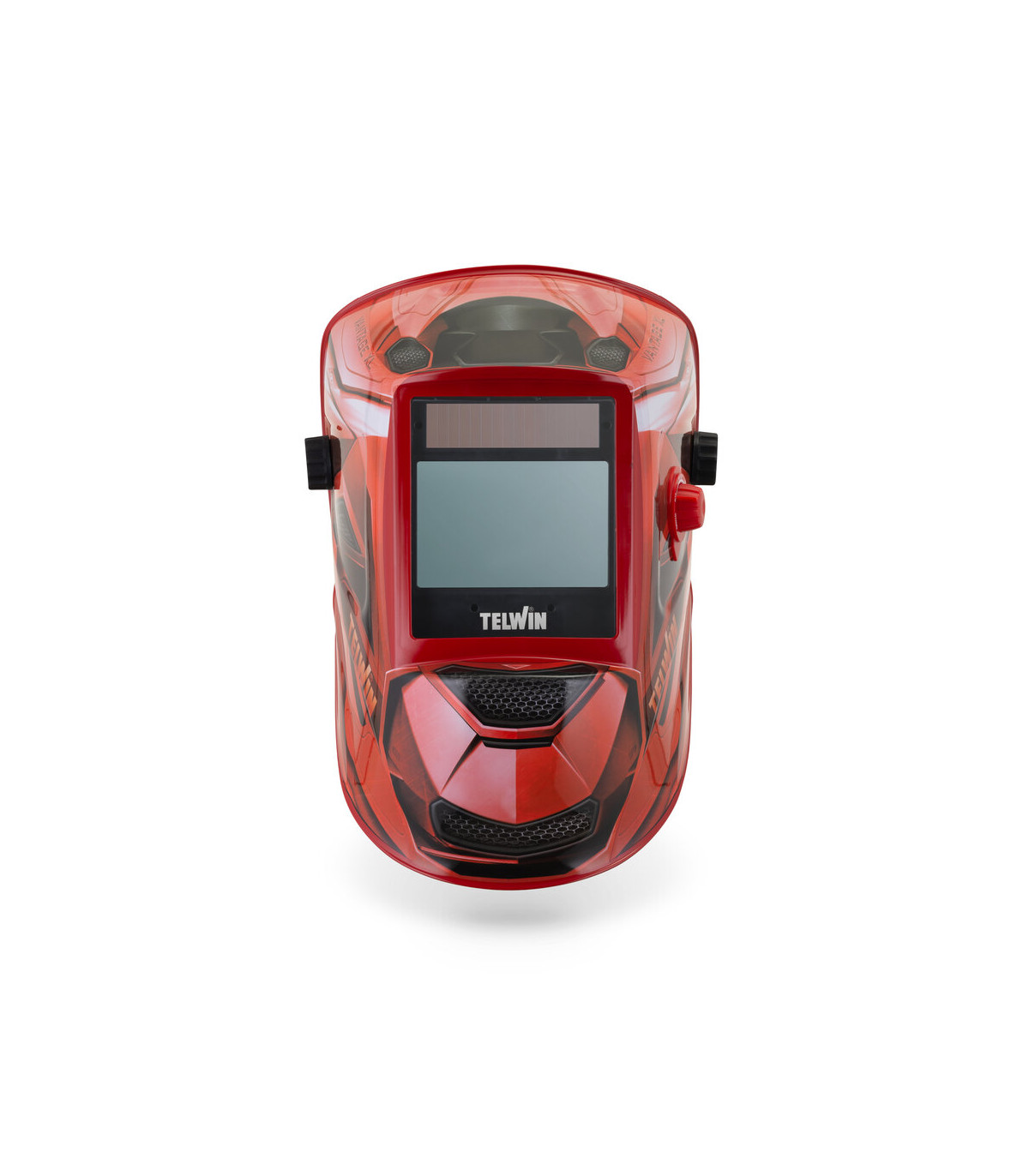

Vantage RED XL TELWIN welding screen

Vantage RED XL TELWIN welding helmet. Automatic face shield suitable for MMA, MIG-MAG, and TIG welding with adjustable shading (DIN 4/5 ÷ 9/9÷13).

The LCD liquid crystal filter automatically darkens when the welding arc is struck and quickly returns to a transparent state when it is turned off, eliminating the need to raise and lower the helmet during each work pause and allowing for hands-free operation.

True Color technology makes color perception realistic even during welding operations.

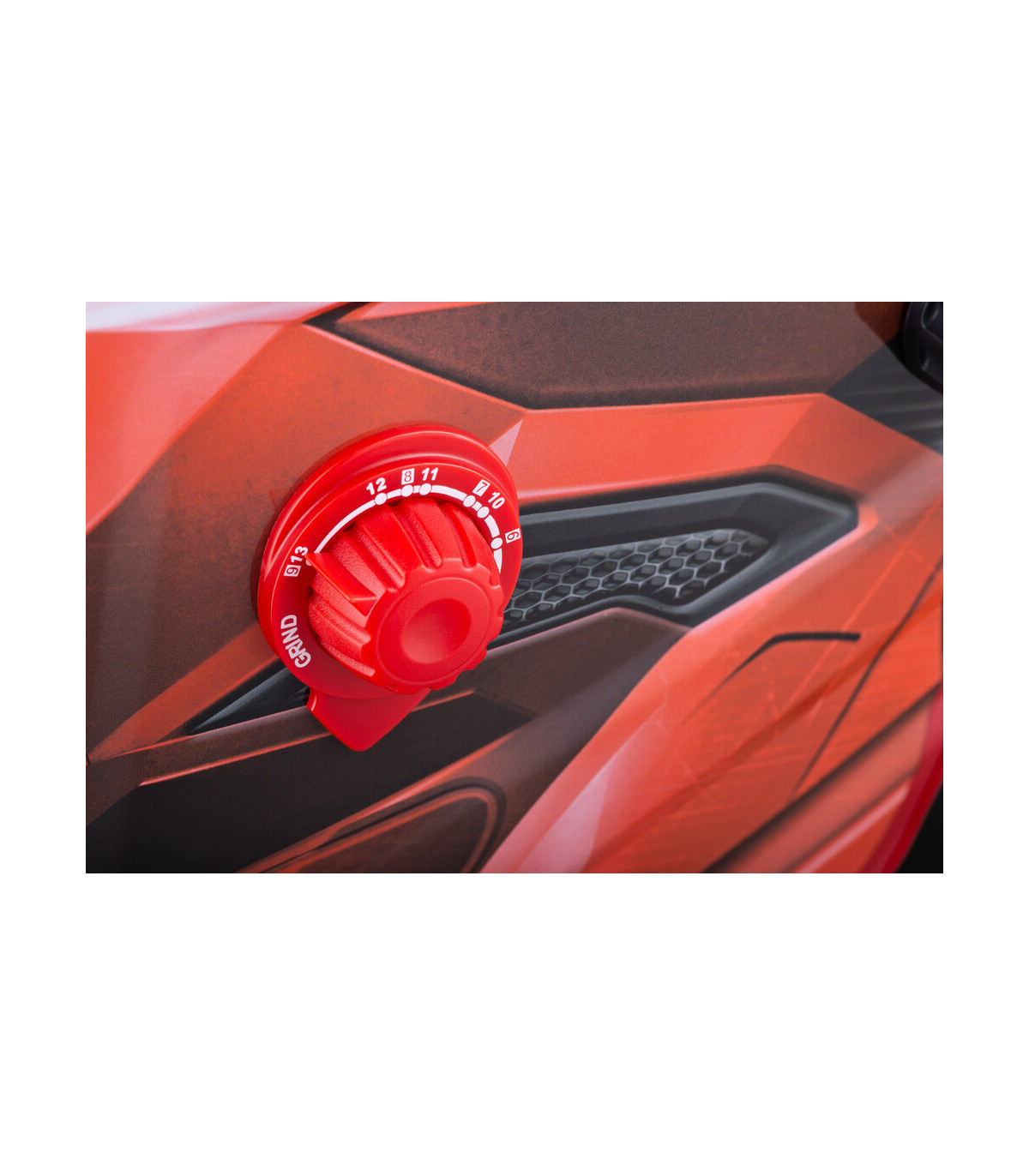

In addition to the sensitivity adjustment of the filter based on the welding process, there is an external adjustment for the delay time for transitioning from dark to clear state after the arc interruption, depending on the brightness of the workpiece.

FEATURES

• Automatic helmet for industrial use: Telwin Vantage Red XL, suitable for all types of MMA, TIG (>2A), and MIG-MAG welding. Optical class 1/1/1/2. Operates with solar cell.
• Protection and enhanced vision: shading adjustment (DIN 4/4 ÷ 8/9÷13). XL viewing area (100x67mm), dual shading adjustment scale. In addition to the sensitivity adjustment of the filter based on the welding process, there is a delay adjustment for transitioning from dark to clear state after the arc interruption, depending on the brightness of the workpiece. 4 sensors for maximum reaction speed.
• Vision quality for safe and uninterrupted work: the LCD liquid crystal filter automatically darkens when the welding arc is struck and quickly returns to a transparent state when it is turned off, eliminating the need to raise and lower the helmet during each work pause and allowing for hands-free operation.
• Intense colors: True Color technology allows for a more realistic color vision, with sharper contrasts and greater image definition for more precise welding and less eye strain.
• “GRIND” mode (grinding): locks the darkening of the helmet glass to perform grinding operations safely and securely.
• Comfort of use: lightweight and comfortable, equipped with an adjustment system for the harness for perfect fit and protection.

TECHNICAL DATA

Helmet for TIG > 2A

Light state 4 DIN

Variable state 5-9 / 9-13 DIN

Switching time dark-light 0.1 ms

Delay from dark to clear state 0.1 - 1 s

Optical class 1/1/1/2

Operating temperature (min-max) -5 /+55 °C

Sensors 4

Viewing area 100x67 mm

Dimensions 300x240x240 mm

Weight 0.520 kg

NORMS

CE: The product complies with the standards and regulations of the Eurasian Economic Union (EAEU)

FOR WHAT TYPE OF WORK IS IT SUITABLE

The Vantage RED XL TELWIN welding helmet is suitable for:

MMA, MIG-MAG, and TIG welding
