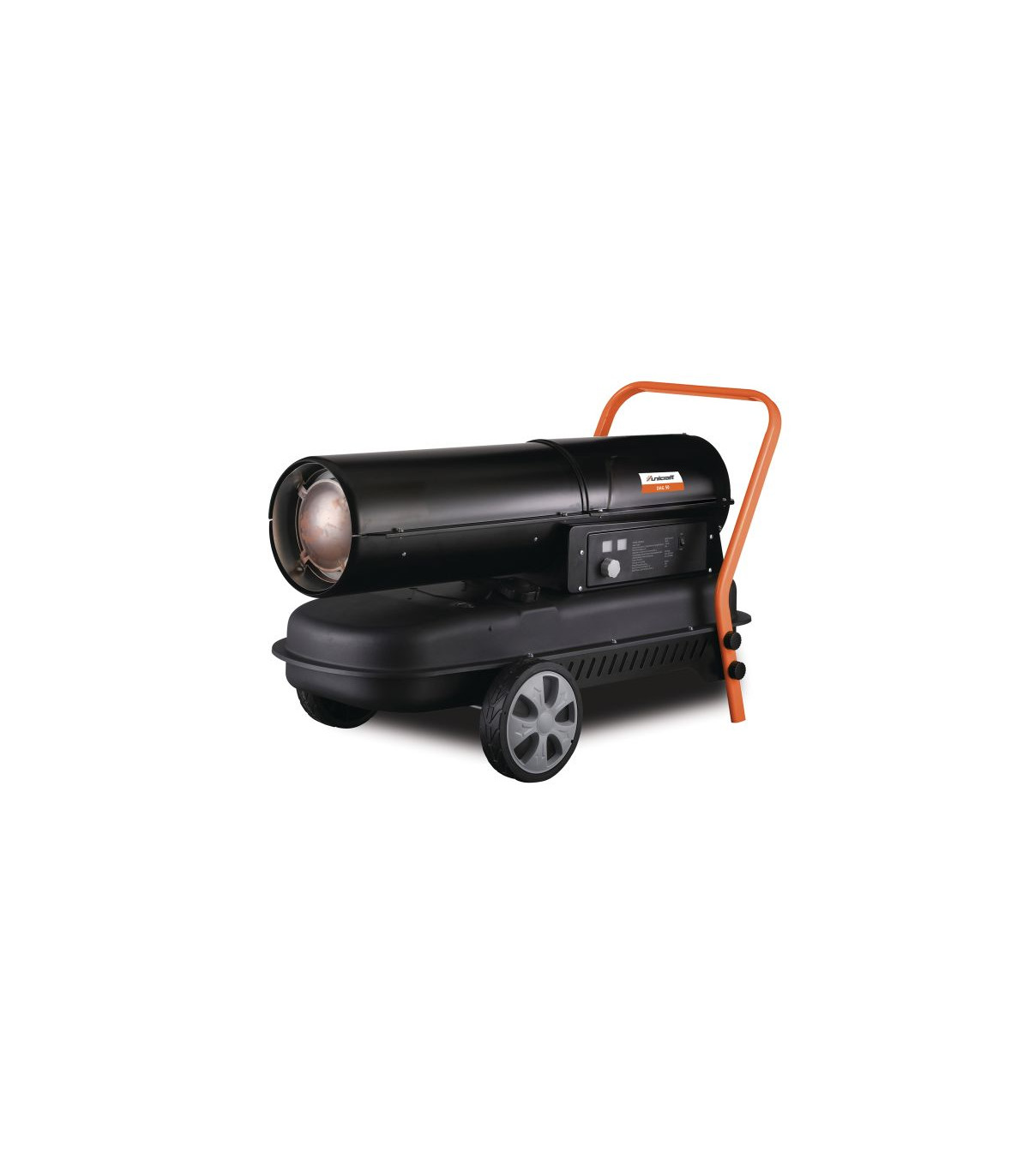

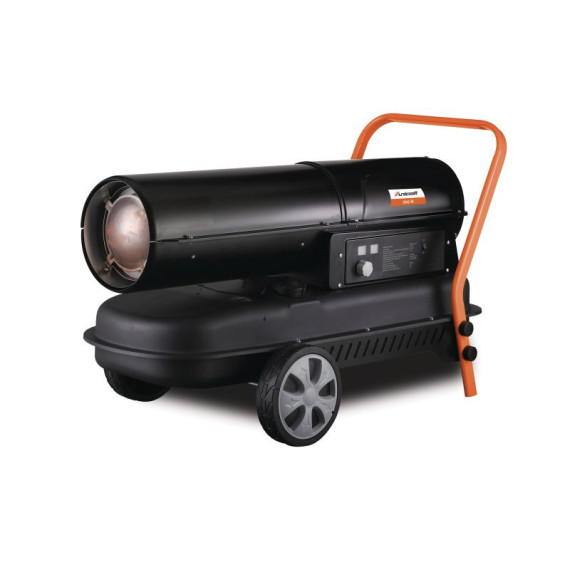

Diesel heater DHG 50 kW ventilated spaces UNICRAFT

The DHG 50 diesel heater Unicraft, is the ideal heating equipment for heating and drying of ventilated spaces. It has thermostat and a digital display for temperature control. Its design makes it easy to transport thanks to its practical transport handle and the two wheels that, in addition, combined with the two support points, allow for stable operation. Its robust construction ensures a long service life.

CHARACTERISTICS

Additional features Diesel heater DHG 50:

• Fuel indicator tank
• IPX4 protection
• High quality stainless steel burner
• Integrated with digital display to keep temperature constant
• Easy handling thanks to automatic electronic ignition
• Integrated fuel tank with fuel level indicator.

If you are looking for an industrial heater with thermostat, which is portable, includes handles and transport wheels, whether it is of weight content and has a simple operation, then Calefactor DHG 50 is your best choice.

TECHNICAL DATA

Heating power 50 kW

Fan power 1100 m3/h

Heating levels 1

Fuel consumption 4 l/h

Deposit capacity 50 l

VPE 1

Dimensions and weights

Length approx. schwedenplatz

Width/depth approx. 555 mm

Height approx. 610 mm

Weight approx. 24.4 kg

Electrical data

Type of protection IPX4

Electric power 340 W

Connection voltage 230 V

Network frequency 50 Hz

Noise emission

Acoustic pressure level 76 dB(A)

FOR WHAT WORKING TIME IS ADOPTED

The diesel heater is mainly used in working spaces that require heating in conditions where central or electrical heating is not available. Some of the spaces where you can use include:

• Construction: Heat works in cold climates, allowing workers to perform their work in a more comfortable environment.
• Storage: Maintain adequate temperature in storage areas, especially for low temperature sensitive products.
• Workshops: Provide heat in workplaces where repairs or fabrications are made.
• Outdoor Events: Heat tents or outdoor areas at events such as fairs, weddings and concerts.
• Agriculture: Used in greenhouses or to protect sensitive crops during the winter.

This type of heater is valued for its portability and ability to heat large areas efficiently.

EQUIPMENT

Type of fuel pump Air

Termostato de ambiente ✔

Off the fan when temperature is reached After 90 s

Connection cable ✔

Connection plug EEC 7/4

CERTIFICATION

Stürmer Group Quality Management System certified according to ISO 9001:2015

ISO 9001 is a globally recognized quality management standard. It helps organizations of all sizes and sectors to improve their performance, meet customer expectations and demonstrate their commitment to quality.

Its evaluation base includes:

Guidance towards customer requirements

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development and innovation

Risk management
