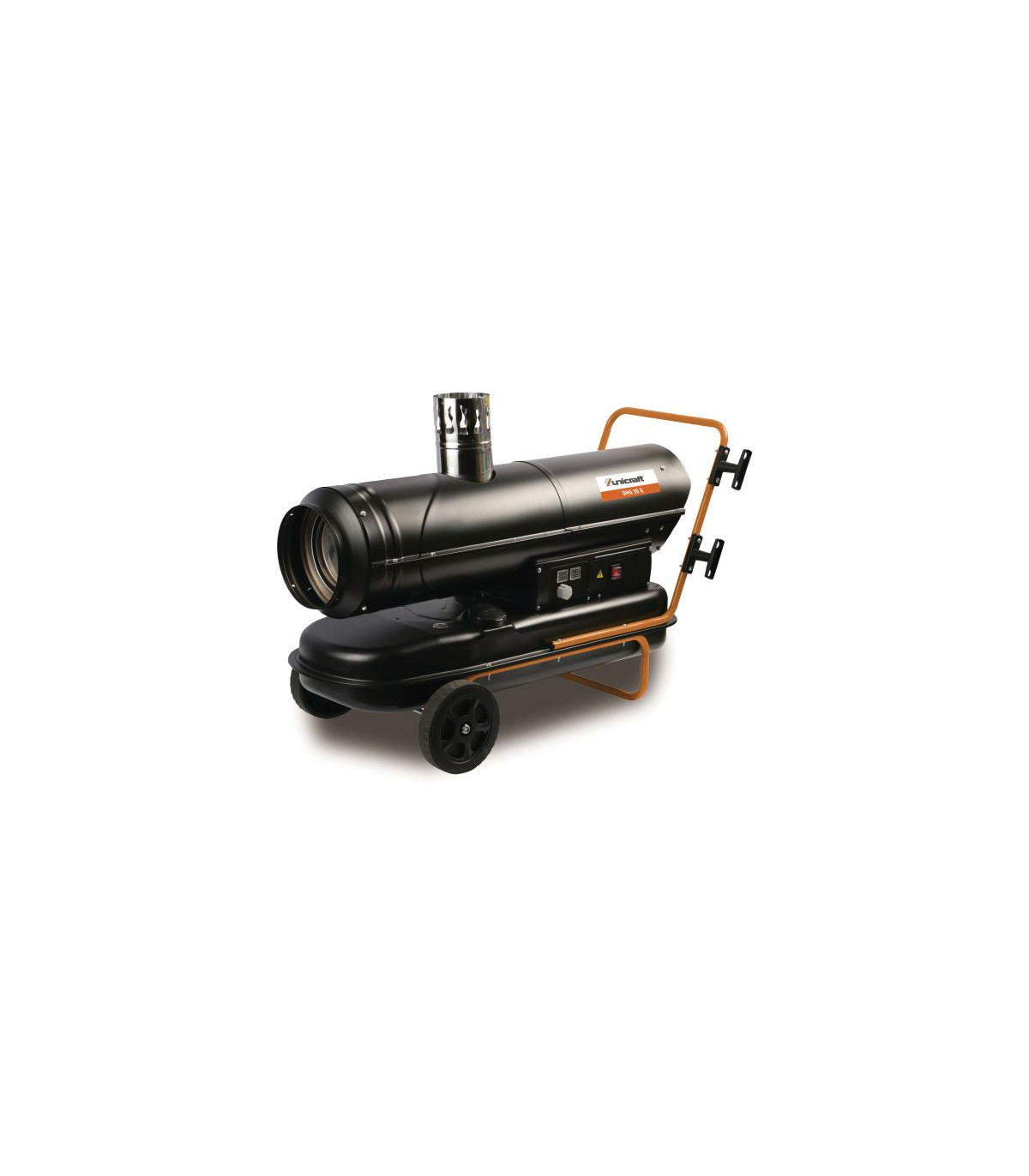

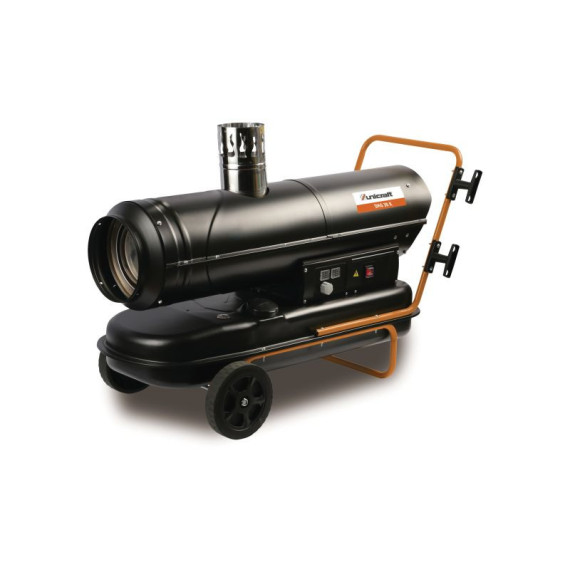

Diesel Heater DHG 30 kW with exhaust chimney UNICRAFT

The diesel heater DHG 30 K from Unicraft is the ideal heating equipment for warming and drying ventilated spaces. It features a thermostat and a digital display for temperature control. Its design makes it easy to transport, thanks to its chassis that includes a handle and wheels for comfortable transport and stable operation.

Exhaust gases are expelled separately from the heating air through the chimney. This way, by using a heating hose, which can be purchased as an accessory, it is possible to heat indoor spaces with clean air.

FEATURES

Additional features of the diesel heater DHG 30 K:

• Tank with fuel indicator
• Simple ignition with just the push of a button
• IPX4 protection
• Integrated thermostat with digital display to maintain a constant temperature
• Easy handling thanks to automatic electronic ignition
• High-quality stainless steel burner
• Integrated fuel tank with fuel level indicator
• Its robust construction ensures a long service life
• Ø of the exhaust pipe 118 mm.

If you are looking for an industrial heater with a thermostat that is easy to transport, includes a handle and transport wheels, and has simple operation, then the DHG 30 K heater is your best choice.

TECHNICAL SPECIFICATIONS

Heating power 30 kW

Fan power 750 m³/h

Heating levels 1

Fuel consumption 2.4 l/h

Tank capacity 50 l

Outer diameter of exhaust pipe 118 mm

Exhaust pipe inlet 120 mm

VPE 1

Dimensions and weights

Approximate length 1110 mm

Approximate width/depth 490 mm

Approximate height 750 mm

Approximate weight 33 kg

Electrical data

Type of protection IPX4

Electrical power 340 W

Connection voltage 230 V

Network frequency 50 Hz

Noise emission

Sound pressure level 80 dB(A)

EQUIPMENT

Type of fuel pump Air

Room thermostat ✔

Fan shutdown when temperature is reached After 90 s

Connection cable ✔

Connection plug CEE 7/4

VIDEO

FOR WHAT TYPE OF WORK IS IT SUITABLE

The diesel heater is mainly used in workspaces that require heating in conditions where central or electric heating is not available. Some of the spaces where it can be used include:

• Construction: Heating works in cold climates, allowing workers to perform their tasks in a more comfortable environment.
• Warehouses: Maintaining the appropriate temperature in storage areas, especially for products sensitive to low temperatures.
• Workshops: Providing heat in workplaces where repairs or manufacturing take place.
• Outdoor events: Heating tents or outdoor areas at events such as fairs, weddings, and concerts.
• Agriculture: Used in greenhouses or to protect sensitive crops during winter.

This type of heater is valued for its portability and ability to efficiently heat large areas.
