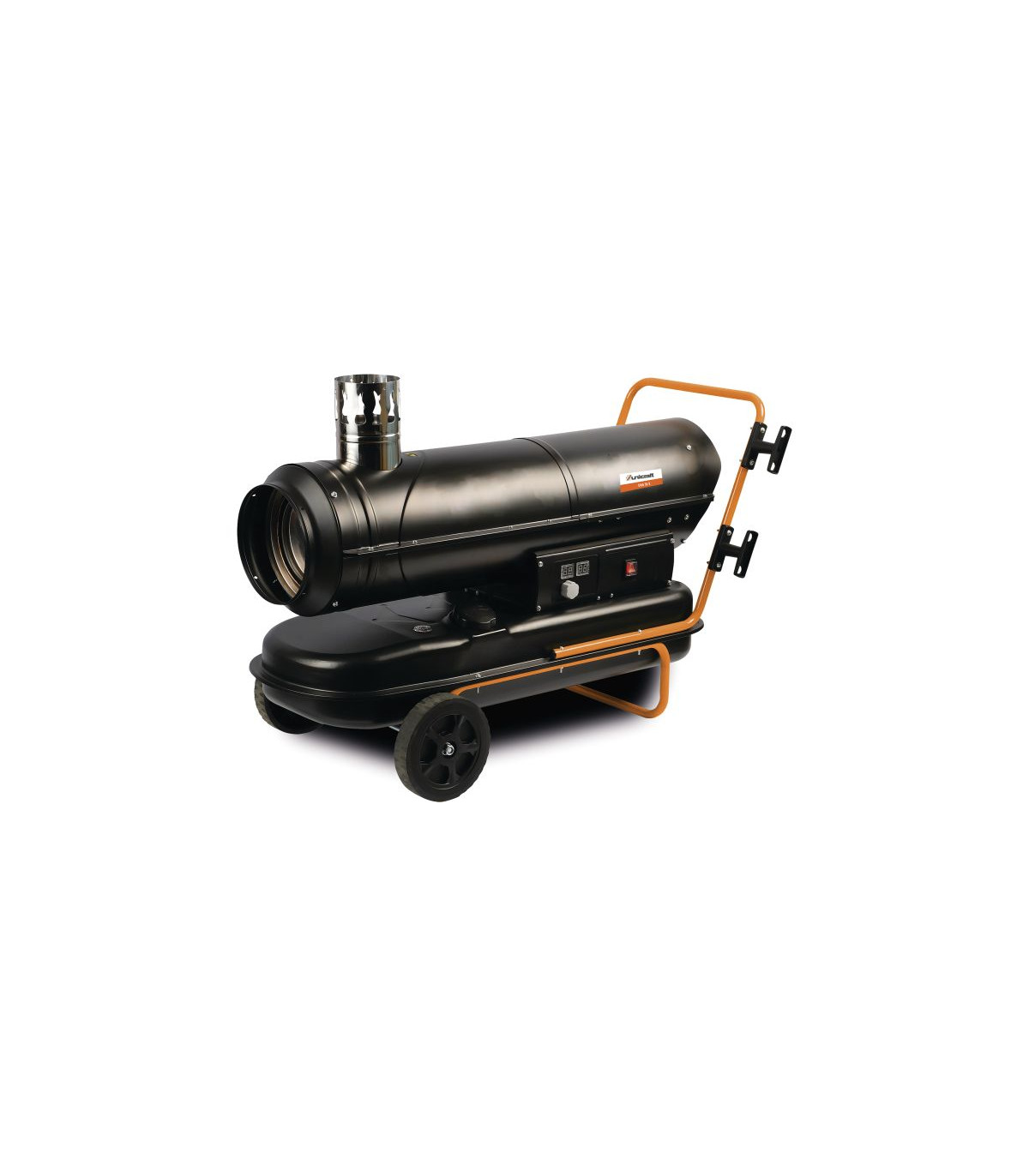

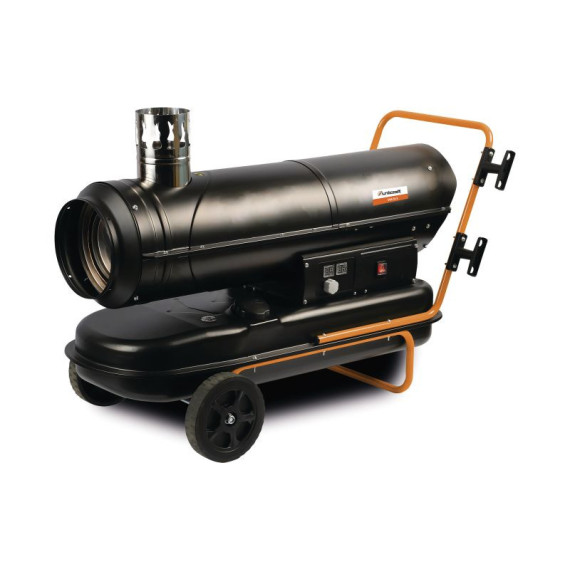

Diesel Heater DHG 50 kW with gas drainage UNICRAFT

Diesel Heater DHG 50 kW with gas drainage UNICRAFT. The heater features an integrated thermostat with a digital display for automatic temperature control, with a large chassis for comfortable transport. Its ignition is simple with just the push of a button. The exhaust gases are drained separately from the heating air through the chimney. Therefore, it is possible to heat interiors with clean air using a heating hose (available in accessories) DHG 50 K with high-quality Danfoss pump.

FEATURES

Additional features of the Diesel Heater DHG 50 K:

• Tank with fuel indicator
• Simple ignition with just the push of a button
• Integrated thermostat with digital display to maintain a constant temperature
• Easy handling thanks to automatic electronic ignition
• High-quality stainless steel burner
• IPX4 protection
• Integrated fuel tank with fuel level indicator
• Its robust construction ensures a long service life
• High-quality Danfoss pump
• Ø of exhaust pipe 148 mm.

TECHNICAL DATA

Heating power 50 kW

Fan power 2000 m³/h

Heating levels 1

Fuel consumption 3.8 l/h

Tank capacity 69 l

Outer diameter of exhaust pipe 148 mm

Exhaust pipe connection 150 mm

VPE 1

Dimensions and weights

Approximate length 1370 mm

Approximate width/depth 560 mm

Approximate height 995 mm

Approximate weight 59 kg

Electrical data

Protection type IPX4

Electrical power 900 W

Connection voltage 230 V

Network frequency 50 Hz

Noise emission

Sound pressure level 79 dB(A)

EQUIPMENT

Type of fuel pump Gear pump

Room thermostat ✔

Fan shutdown when temperature is reached After 90 s

Connection cable ✔

Connection plug CEE 7/4

VIDEO

FOR WHAT TYPE OF WORK IS IT SUITABLE

The diesel heater is primarily used in workspaces that require heating in conditions where central or electric heating is not available. Some of the spaces where it can be used include:

• Construction: Heating works in cold climates, allowing workers to perform their tasks in a more comfortable environment.
• Warehouses: Maintaining the appropriate temperature in storage areas, especially for products sensitive to low temperatures.
• Workshops: Providing heat in workplaces where repairs or manufacturing take place.
• Outdoor events: Heating tents or outdoor areas at events such as fairs, weddings, and concerts.
• Agriculture: Used in greenhouses or to protect sensitive crops during winter.

This type of heater is valued for its portability and ability to efficiently heat large areas.
