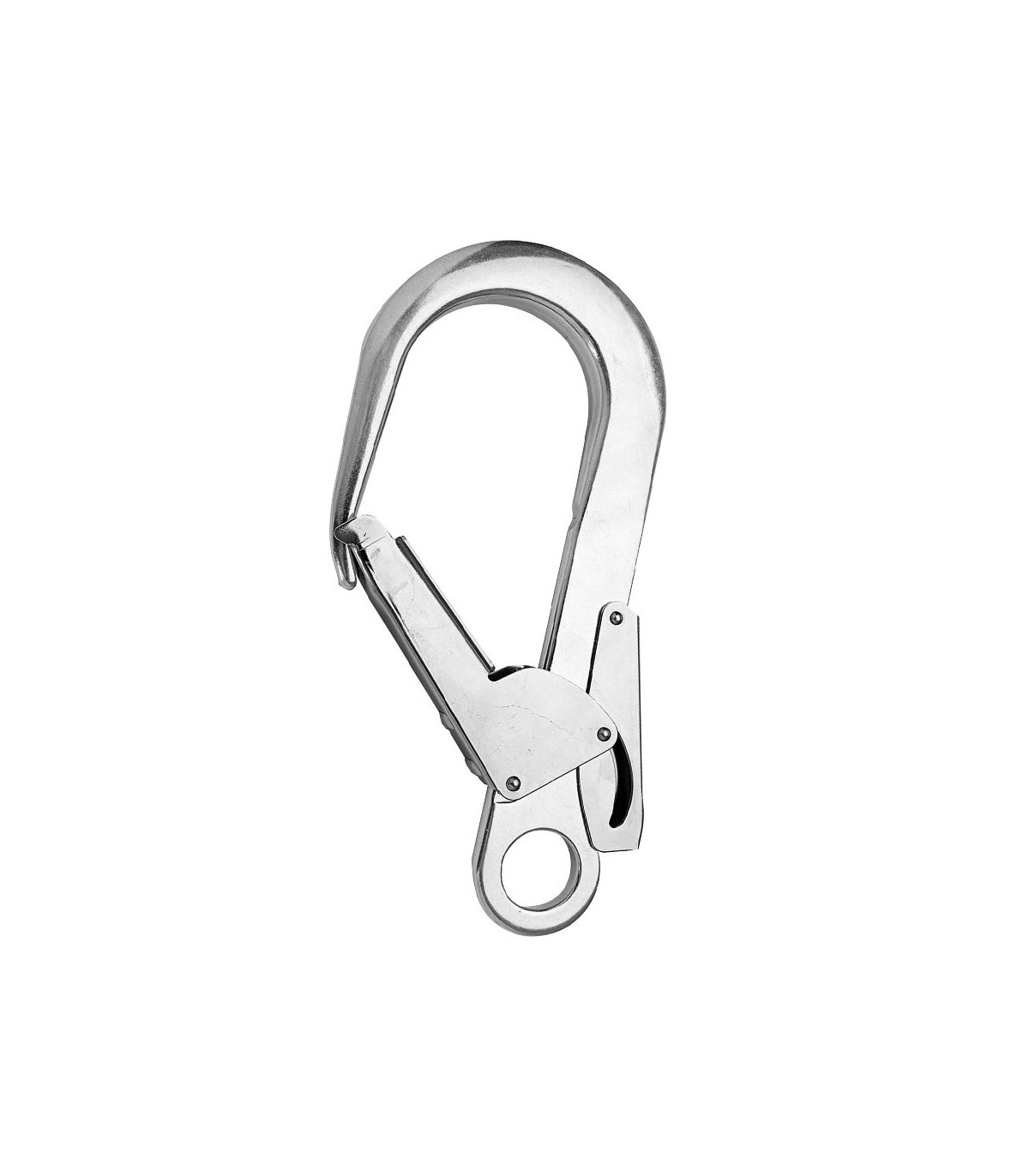

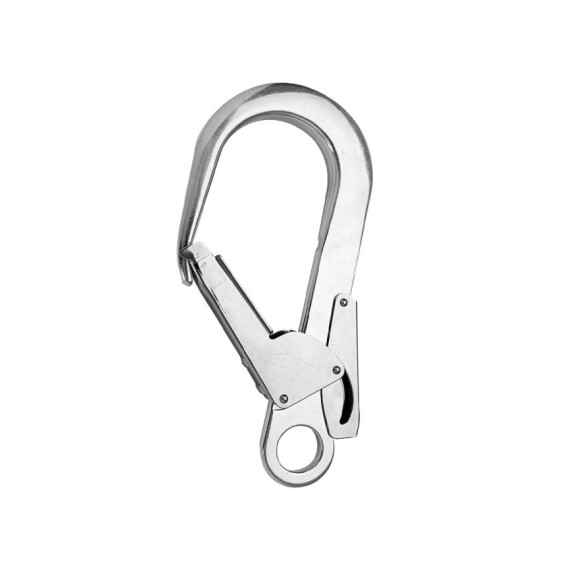

Carabiner No. 49 CLIMAX

The Climax 49 connector is a component for fall arrest systems designed to safely connect the various system elements and the anchor point of the work structure. It is an anchor connector (class A) manufactured in aluminium, with automatic closure and automatic locking that prevents accidental openings by requiring two consecutive manual actions for release.

FEATURES

• Automatic closure through the action of the internal spring mechanism
• Prevents involuntary or accidental unlocking of the connector
• Two voluntary and consecutive operations are required for disengagement
• Minimum breaking load: 22 kN

TECHNICAL DATA

• Material: Aluminium
• Opening diameter: 60 mm
• Weight: 475 g
• Standard: EN 362:2004

STANDARD

Regulation (EU) 2016/425

Standard: EN 362:2004

Notified body No. 1019
