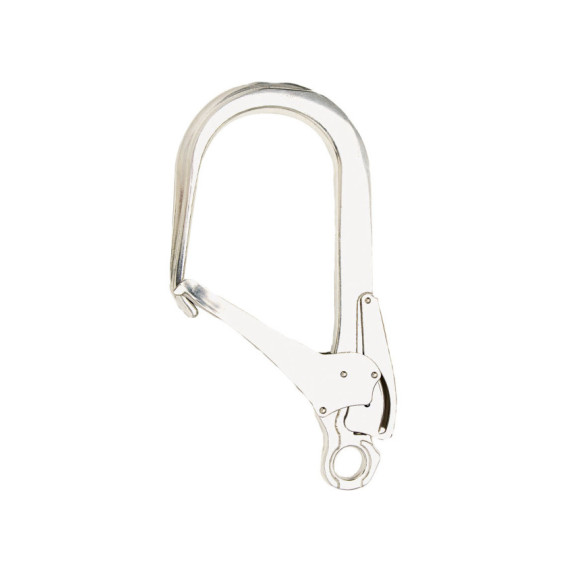

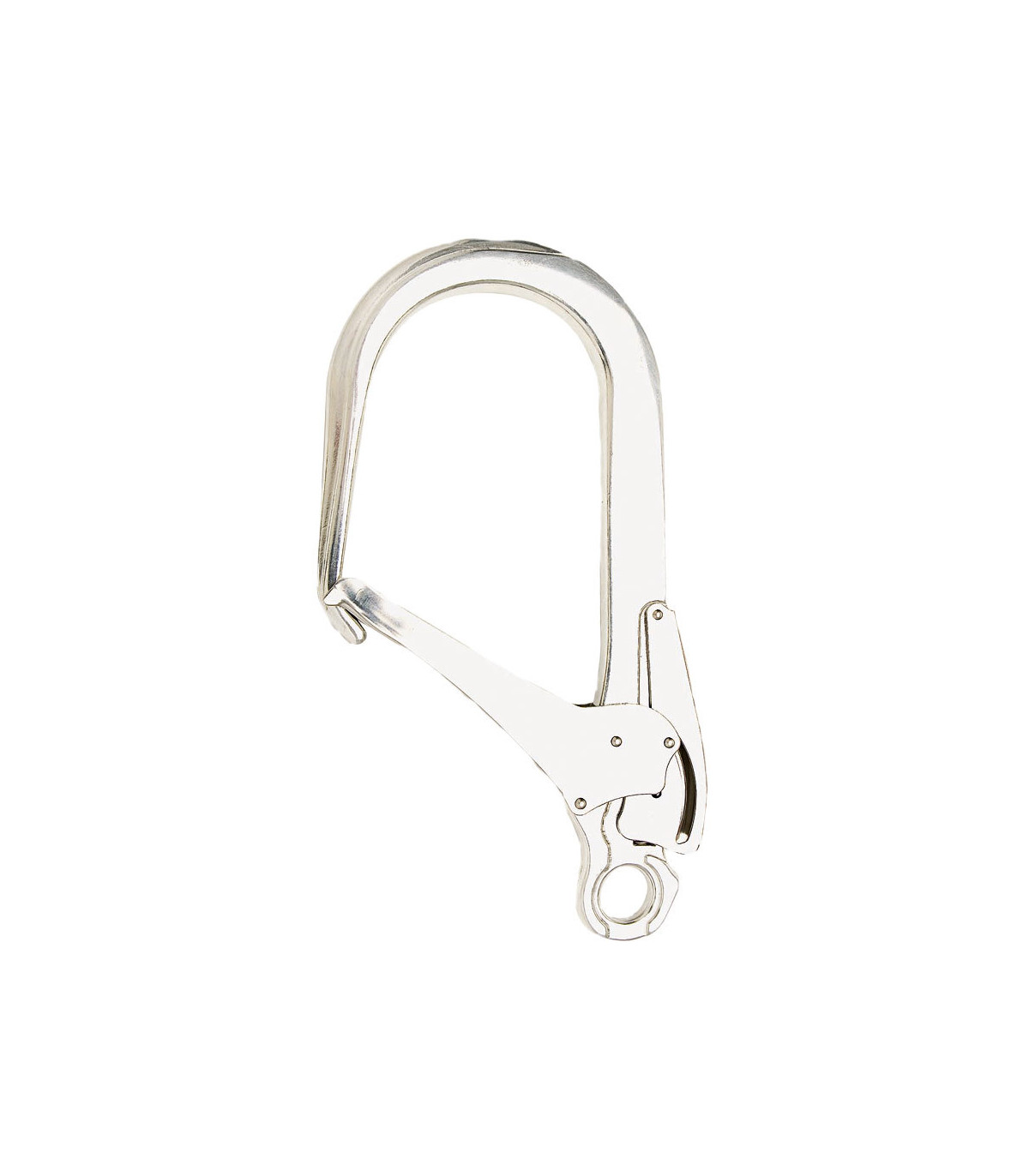

Maxi Karabiner CLIMAX

The Maxi connector is a large-opening connector made of aluminium, designed to connect directly to specific anchor points and compatible with various fall arrest systems. Suitable for use with lashing elements, pulleys, rope anchors and retractable devices. It incorporates automatic closure and locking that prevents accidental openings by requiring two consecutive manual actions for release, ensuring a secure and reliable connection in work at height.

FEATURES

• Class A connector with automatic closure by means of internal spring mechanism
• Suitable for use in potentially explosive atmospheres (ATEX)
• Two voluntary and consecutive manual operations required for release
• Minimum breaking load: 23 kN

TECHNICAL DATA

• Material: Aluminium
• Opening diameter: 110 mm
• Weight: 924 g
• Standard: EN 362:2004

STANDARD

Regulation (EU) 2016/425

Standard: EN 362:2004

Notified Body No. 1019
