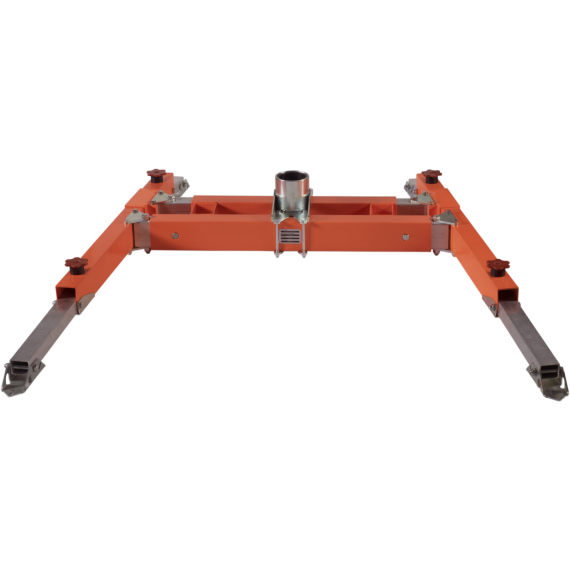

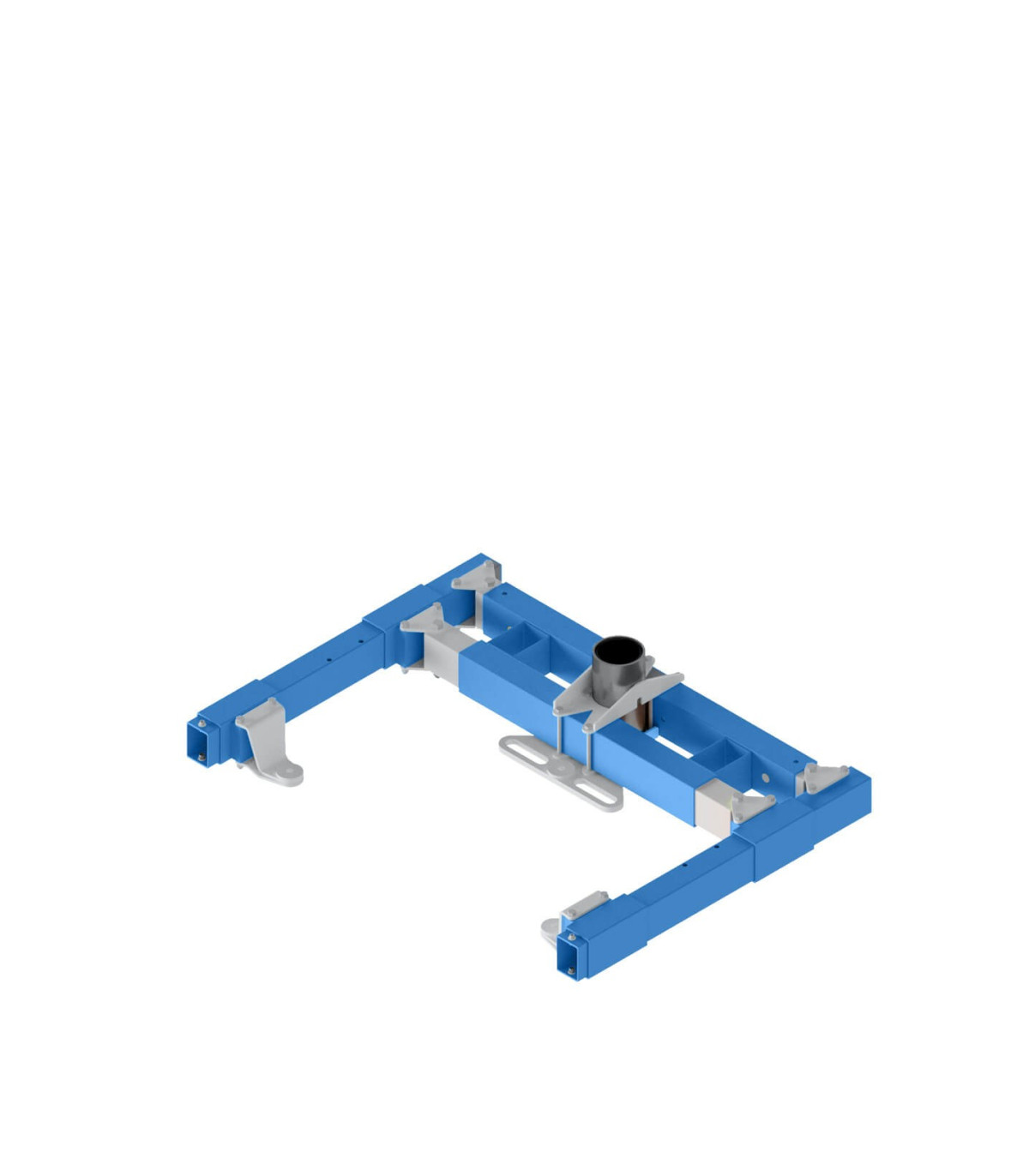

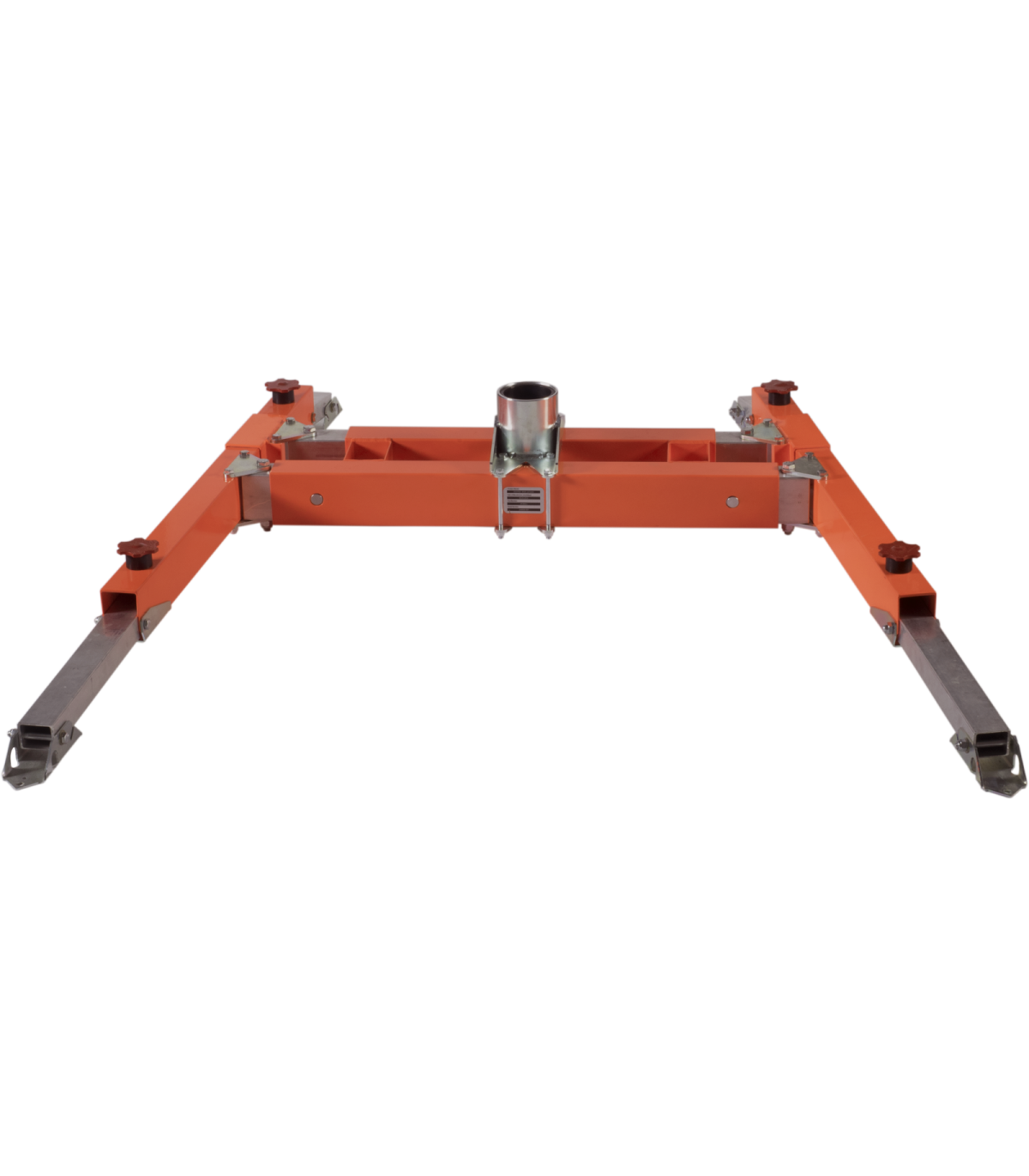

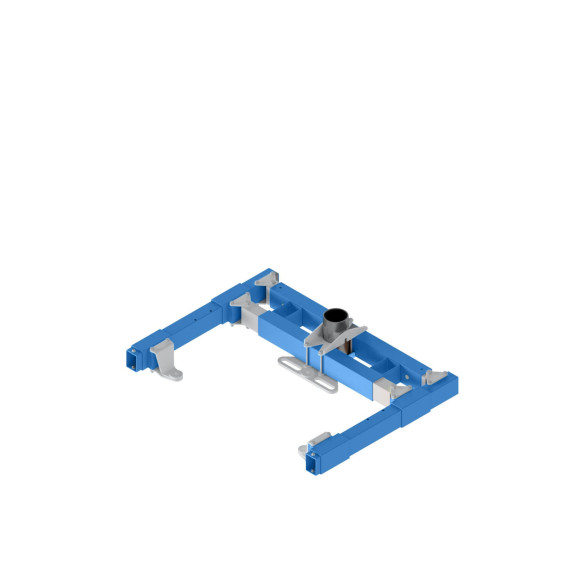

Mobile base H for anchoring systems EN 795 IRUDEK

Base for a davit-type anchoring system, designed for work at height and access to confined spaces. It is part of a modular system and is assembled using joints without tools, allowing for quicker setup during interventions and maintenance.

This base is designed to support the nominal working load of all standard DAVITs from Irudek when installed according to the manufacturer's instructions.

FEATURES

• Base for modular anchoring system
• Assembly using joints
• Installation without tools
• Vertical use for 1 operator (up to 280 kg)
• Application in confined spaces between 1 m and 1.7 m
• EN 795 type B standard
• Declared strength: 13 kN
• Weight of the DAVIT assembly: 11.70 kg

BENEFITS OF THE Davit Base

Allows for the configuration of an anchoring point within a modular system, facilitating adaptation to different installation needs. Tool-free assembly reduces preparation times and location changes, and its use aimed at confined spaces helps organize access maneuvers and vertical work with compatible fall protection equipment.

USES AND APPLICATIONS: WHAT IT IS SUITABLE FOR

Access and maintenance work with a risk of falling, especially in confined space environments (for example, wells, pits, and access points) within an approximate height range of 1 m to 1.7 m. It is also suitable for specific operations where a modular anchoring system with tool-free assembly is required.

TECHNICAL DATA

• Standard: EN 795 type B
• Strength: 13 kN
• Usage capacity (vertical): 1 operator (up to 280 kg)
• Indicated application range: confined spaces between 1 m and 1.7 m
• Indicated weight for the DAVIT system: 11.70 kg

REGULATIONS

EN 795 type B

The EN 795 Type B standard regulates provisional and transportable anchoring devices designed to be removed from the structure after use without leaving a permanent trace. Unlike fixed anchors (Type A), these devices include versatile solutions such as rescue tripods, textile anchoring tapes, pressure beams, or temporary tape lifelines, which must ensure a minimum strength of 12 kN for metal structures (or 18 kN if they are textile).
