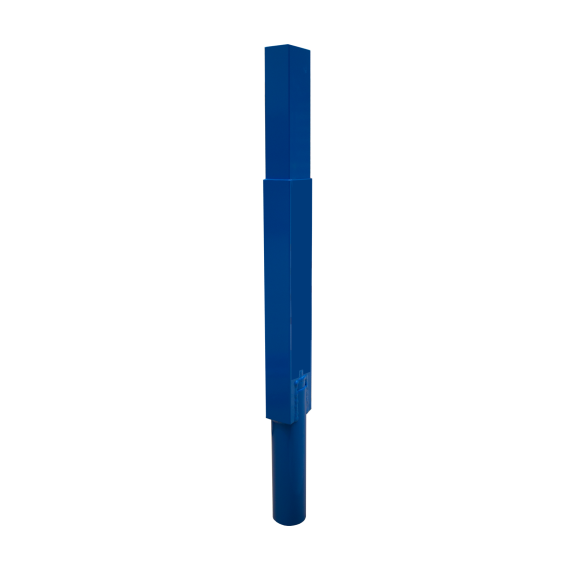

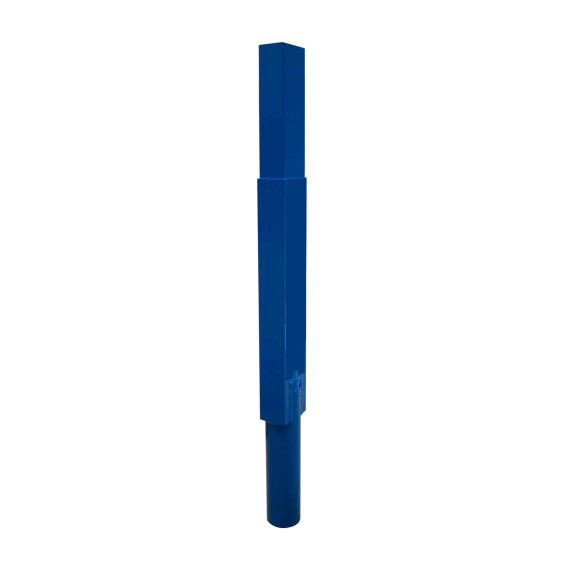

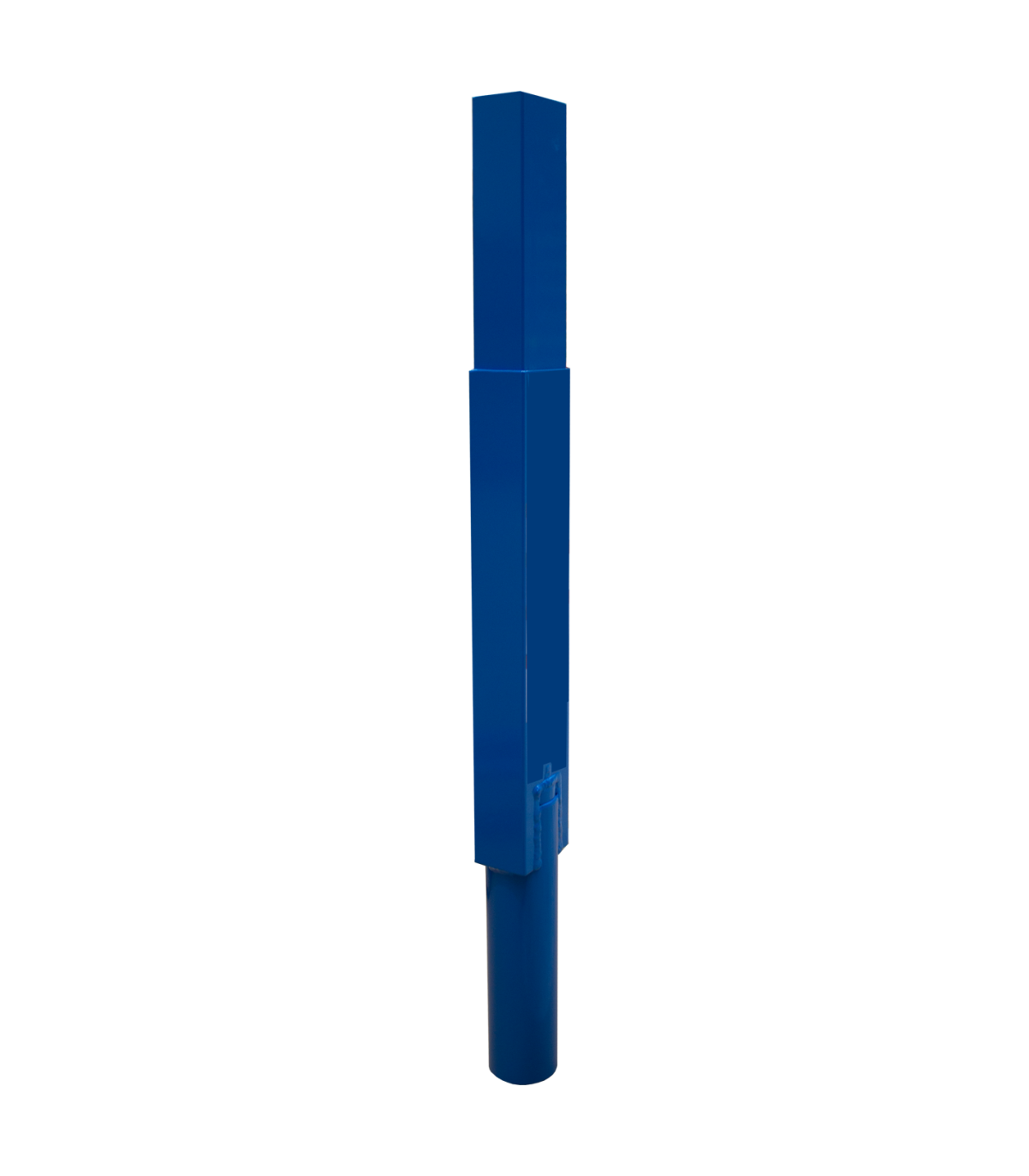

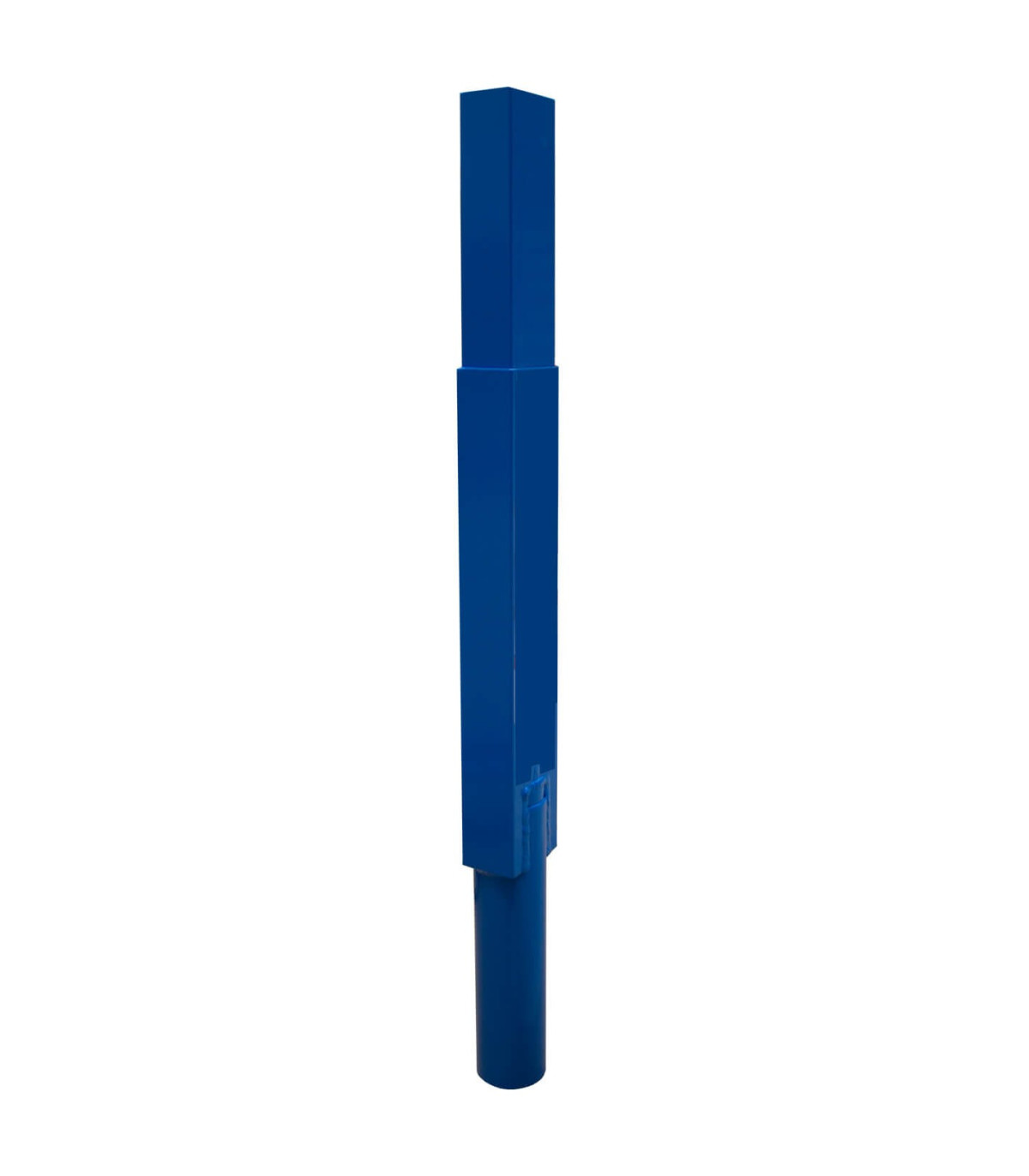

Davit anchor system Pt (post), confined spaces EN 795B IRUDEK

Modular anchoring system with post for work at height and access to confined spaces. Designed for assembly by joints without tools and vertical use. Suitable for operators who need a temporary anchoring point and quick assembly during interventions.

FEATURES

• Post for modular anchoring system oriented to confined spaces
• Assembly through joints, without tools
• Vertical use intended for 2 operators simultaneously (up to 280 kg)
• Compatible with different bases of the system depending on the type of installation
• Post height options: 100 cm and 130 cm
• Working range indicated for spaces between 1 m and 1.7 m
• Designed to integrate with the arm and base of the Davit system

BENEFITS OF THE Davit Pt Anchoring System

Provides a temporary anchoring point when vertical access is required for maintenance or inspection interventions, allowing the setup to be configured according to the work location (post and base). Tool-free assembly reduces preparation time and facilitates use by personnel not specialized in structure assembly.

USES AND APPLICATIONS: WHAT IT IS SUITABLE FOR

Work in confined spaces (pits, manholes, tanks, and technical chambers) and tasks at height requiring vertical anchoring. Applicable in industrial maintenance, sewage networks, municipal services, water installations, and environments where a transportable modular system is required.

TECHNICAL DATA

• Standard: EN 795B
• Weight: 11.70 kg
• Resistance: 13 kN
• Indicated usage capacity: 2 operators simultaneously (up to 280 kg) in vertical
• Available post heights: 100 cm and 130 cm
• Indicated usage environment: confined spaces between 1 m and 1.7 m

REGULATIONS

The EN 795 Type B standard regulates provisional and transportable anchoring devices designed to be removed from the structure after use without leaving a permanent trace. Unlike fixed anchors (Type A), these devices include versatile solutions such as rescue tripods, textile anchoring tapes, pressure beams, or temporary tape lifelines, which must guarantee a minimum resistance of 12 kN for metal structures (or 18 kN if they are textile).
