Flush floor base for soft cement FLUSH FLOOR BASE IRUDEK

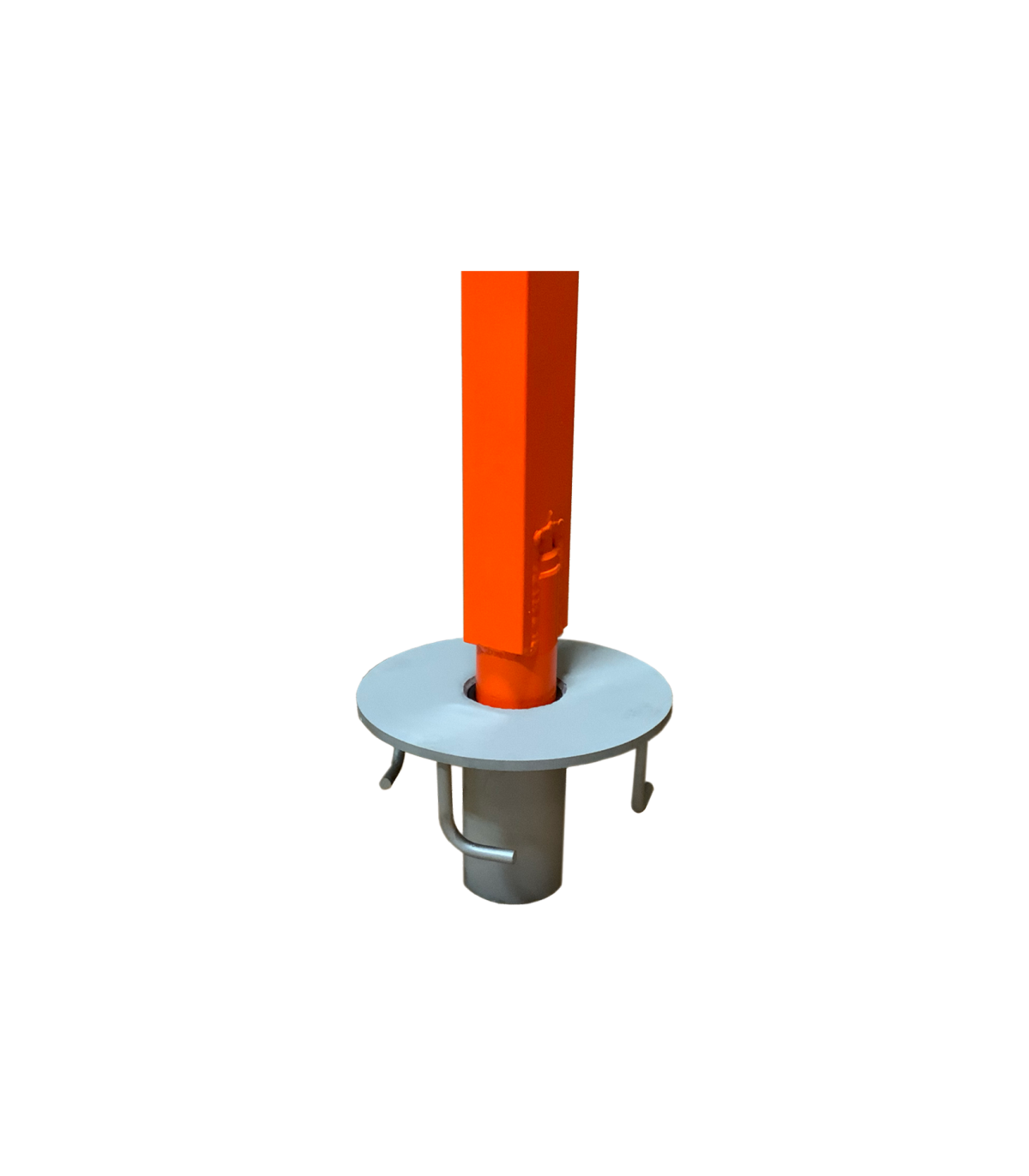

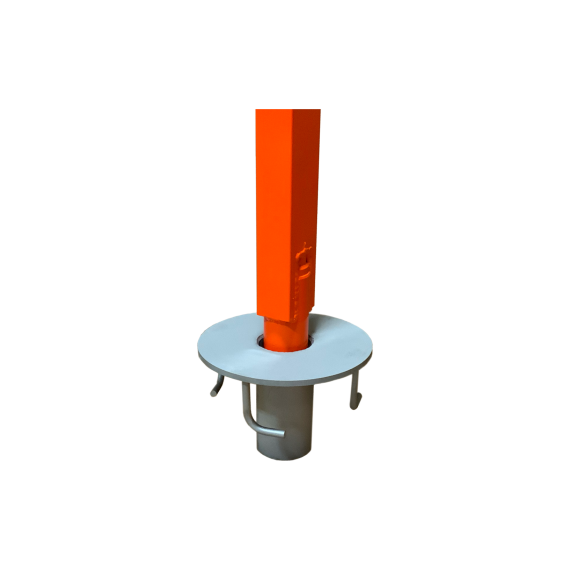

The embedded mounting base of the PRO series for fresh concrete is designed to be placed Weight Base 9.1 KG directly on concrete structures as part of new construction or renovation activities and to provide permanent support for the installation of a davit arm. The base is flush with the surrounding surface to eliminate any tripping hazard and can be covered with a sleeve cap when not in use to prevent contamination.

FEATURES

The selected structures for the installation of this sleeve must be able to support a minimum of 10,000 N.m and a vertical load of 22.2 kN.

The screws used to mount this base must be the "sleeve with threaded bushing HIS-N" model from the HILTI brand, M12x125mm.

APPLICATIONS

The embedded mounting base of the PRO series for fresh concrete is designed to be placed directly on concrete structures as part of new construction or renovation activities and to provide permanent support for the installation of a davit arm.

The base is flush with the surrounding surface to eliminate any tripping hazard and can be covered with a sleeve cap when not in use to prevent contamination.

TECHNICAL DATA

Base weight: 9.1 Kg

Materials
Body: Steel
Structure: Steel

Capacity:
This base is designed to support the nominal working load of all standard Davits from Irudek when installed according to the manufacturer's instructions.
