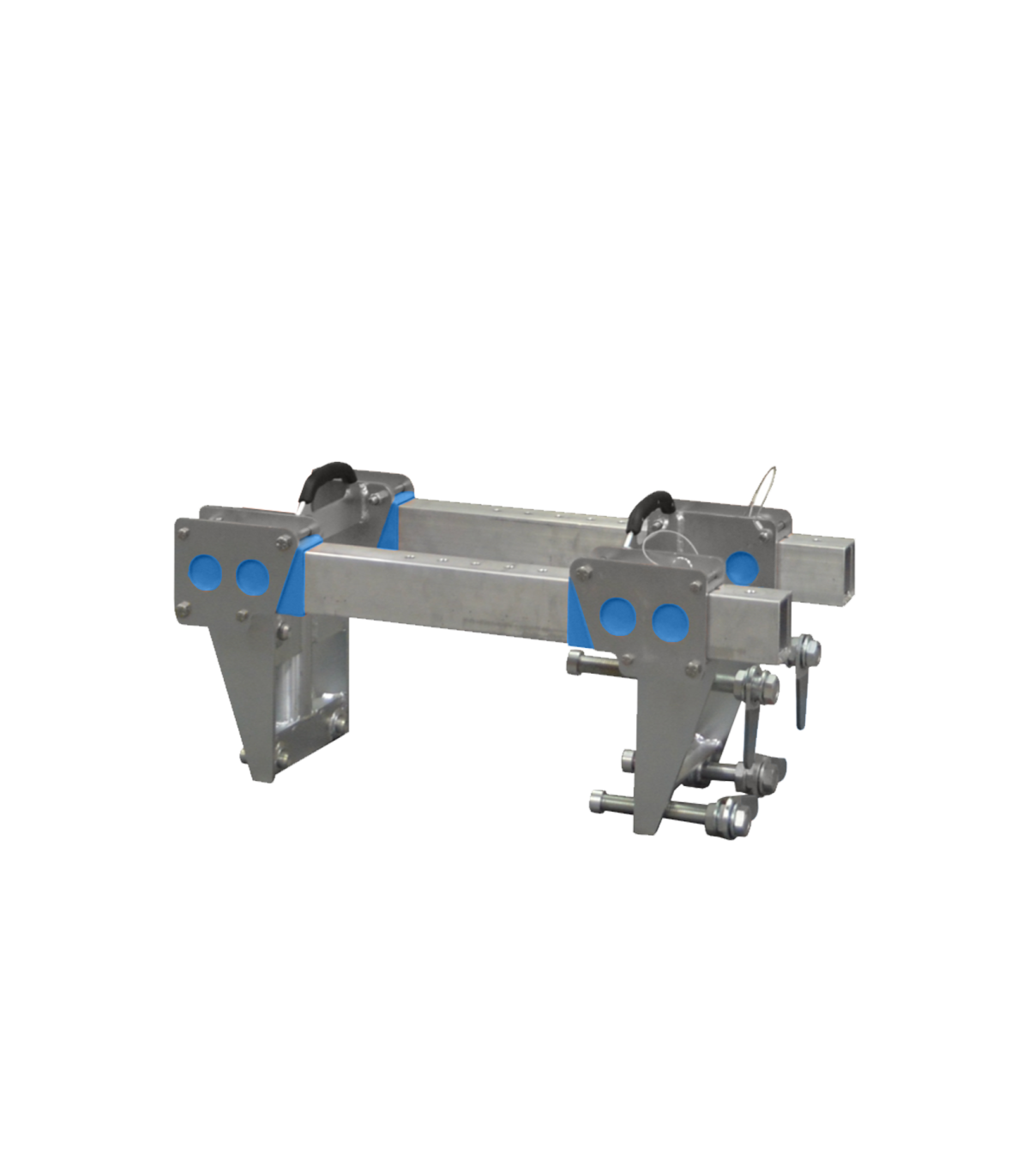

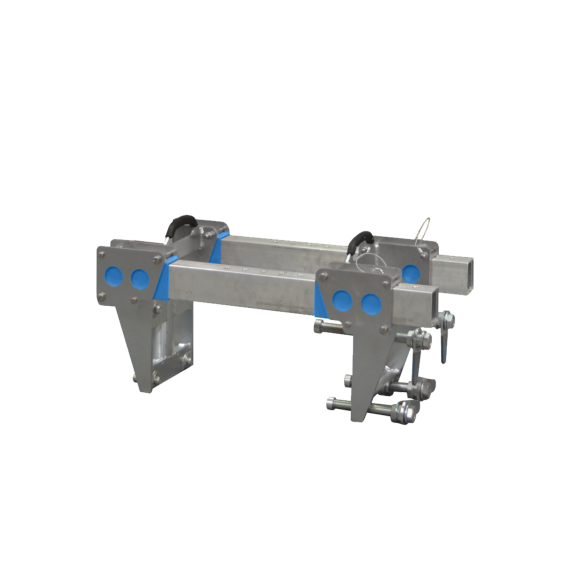

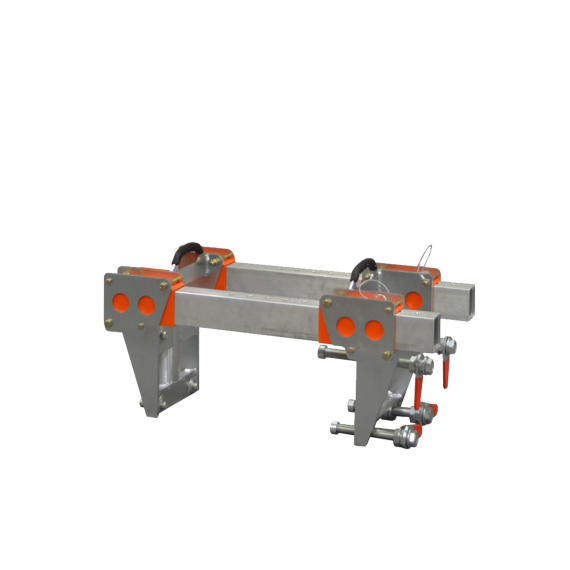

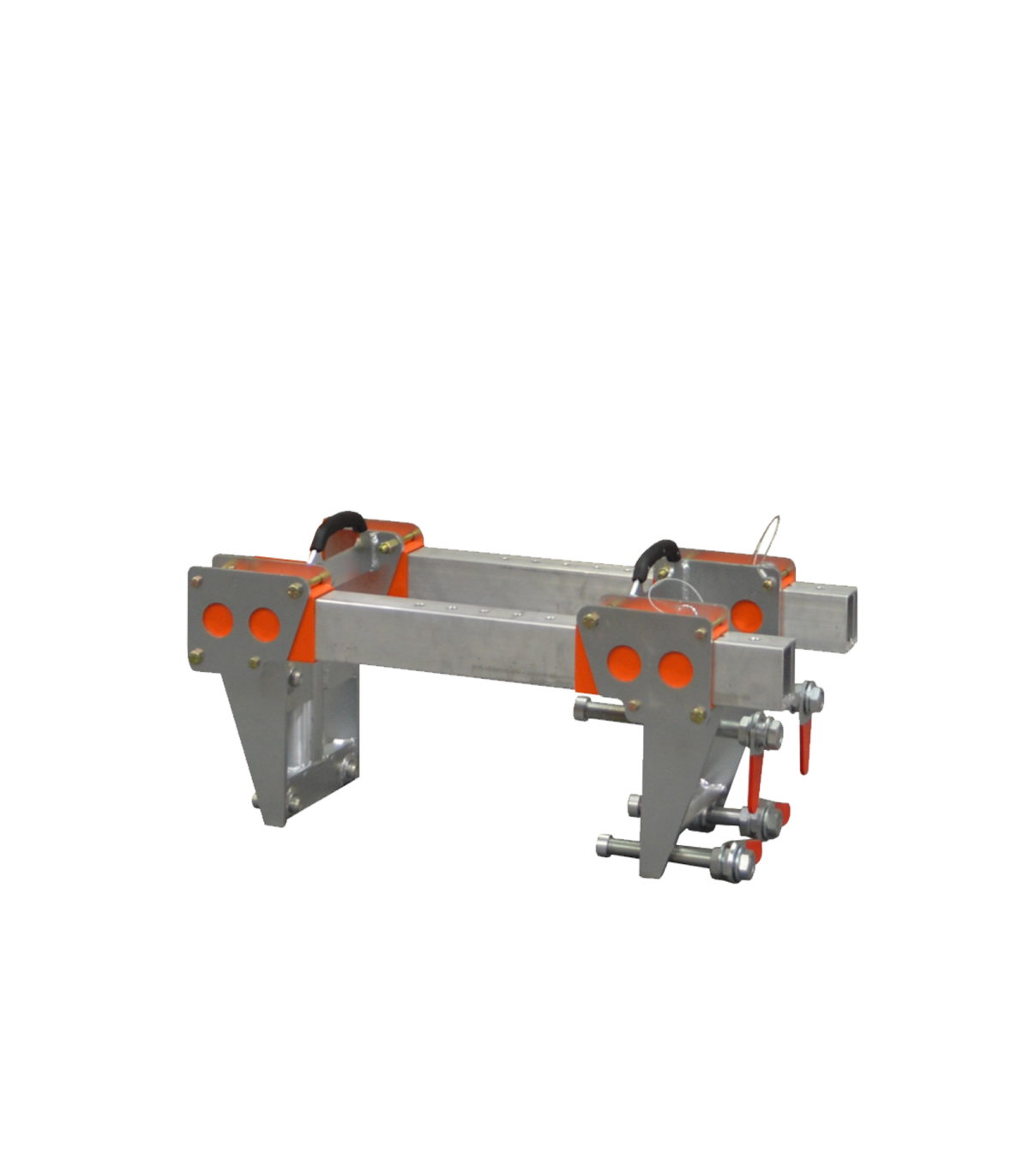

Adjustable base of 63.50 cm BARREL for reliable support IRUDEK

Adjustable base of 63.50cm for davits is used in installation on existing vertical structures, compatible with standard Irudek davits.

The base has integrated keys for tightening screws, with a steel structure and aluminum body. Its design is adjustable for different thicknesses.

FEATURES

The selected structures for the installation of this base must be capable of supporting a minimum moment of 10,000 N.m and a vertical load of 22.2 kN.

BENEFITS

This base comes with built-in keys to tighten the clamp screws to eliminate the need for tools and prevent over-tightening.

FOR WHAT WORKS IS THE ADJUSTABLE BARREL BASE SUITABLE

The adjustable barrel mounting base of the PRO series is designed to be installed on an existing vertical structure, such as shoring walls, tank edges, parapets, or similar applications. Once installed, the barrel mounting base is designed to support the nominal loads of all standard Irudek davits in a wide variety of height safety applications.

TECHNICAL DATA

Base weight: 44 Kg

Materials
Body: Aluminum
Structure: Steel

Capacity:
This base is designed to support the nominal working load of all standard Irudek Davits when installed according to the manufacturer's instructions.
