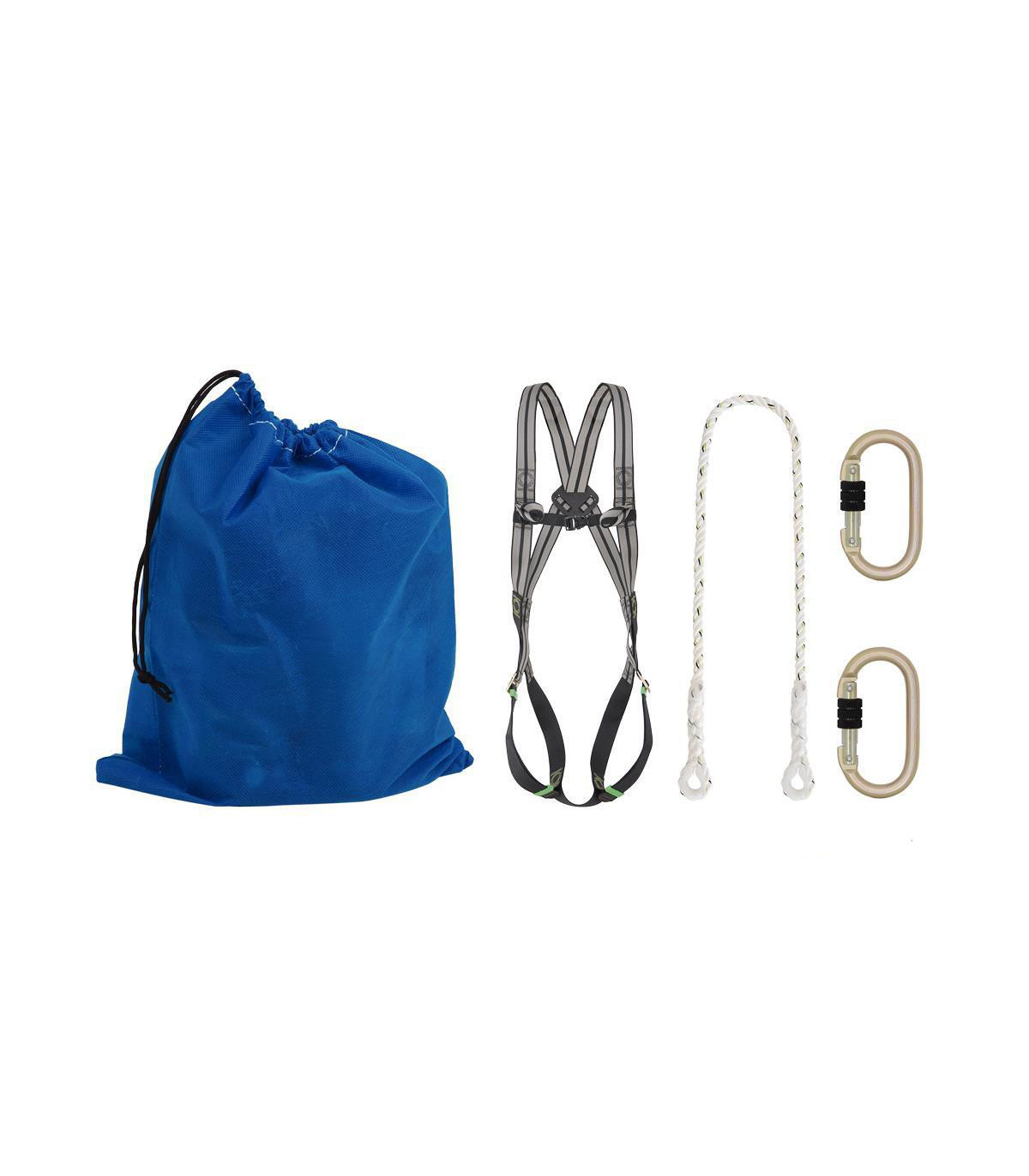

Complete harness set with 2 anchor points, safety rope, and 2 carabiners EN 361/EN 354/EN 362 COFAN 11000036.

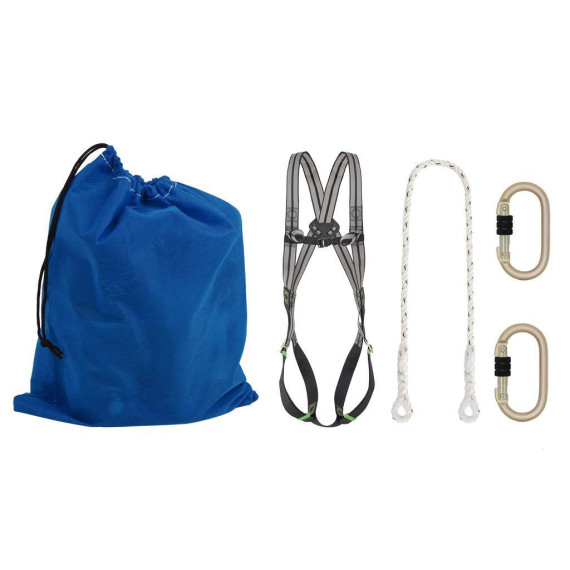

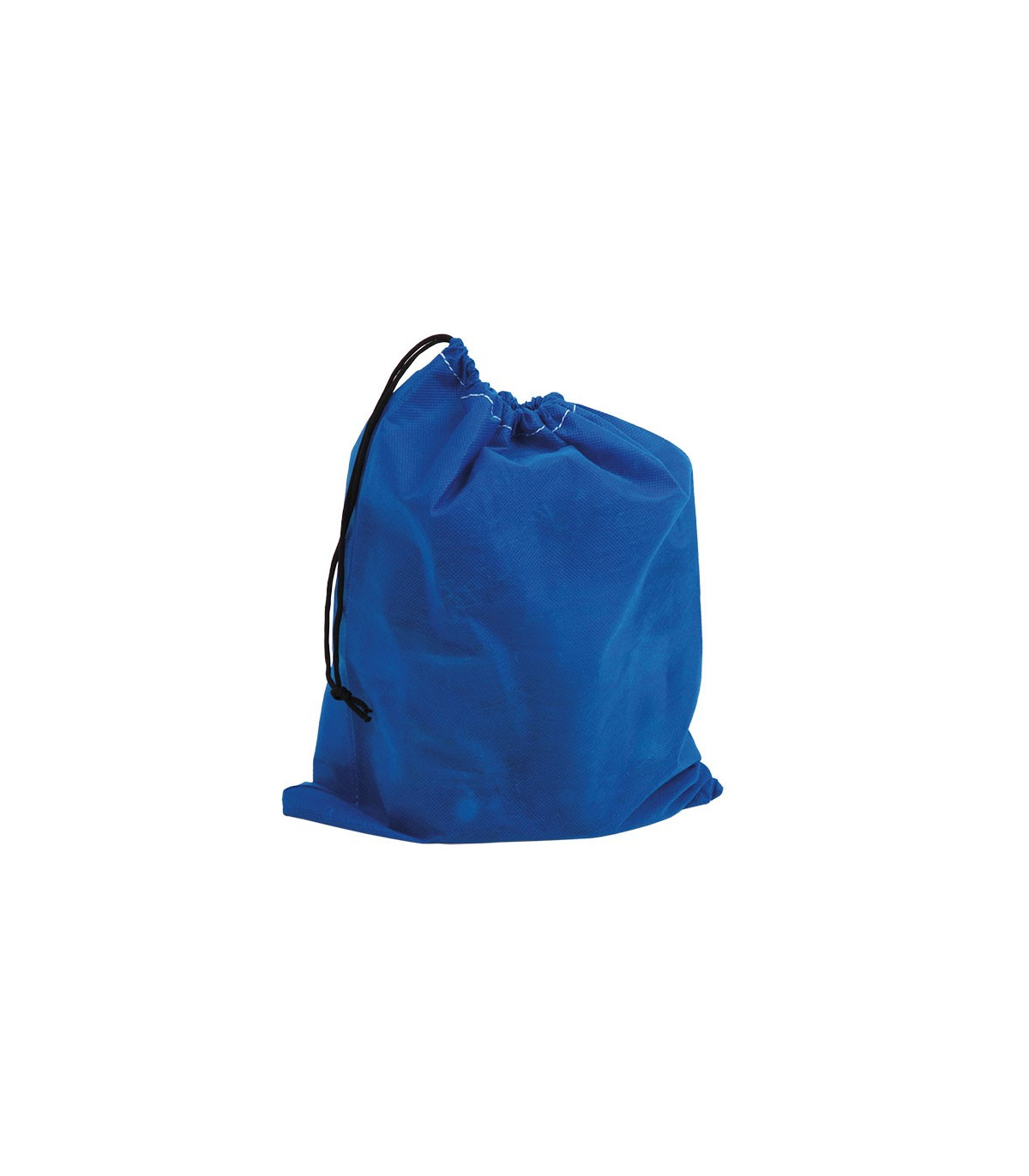

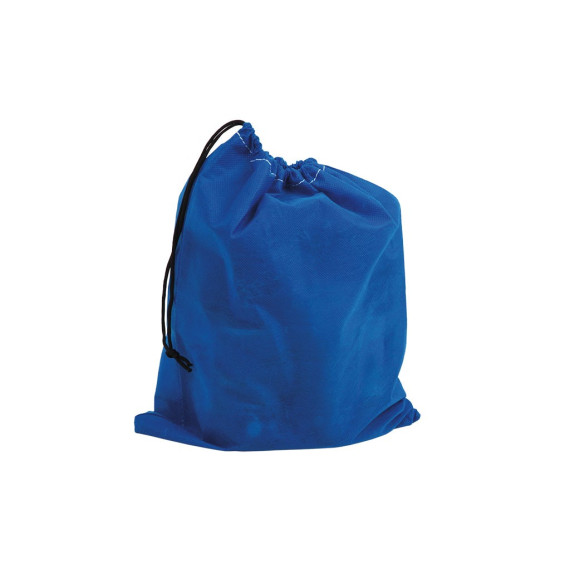

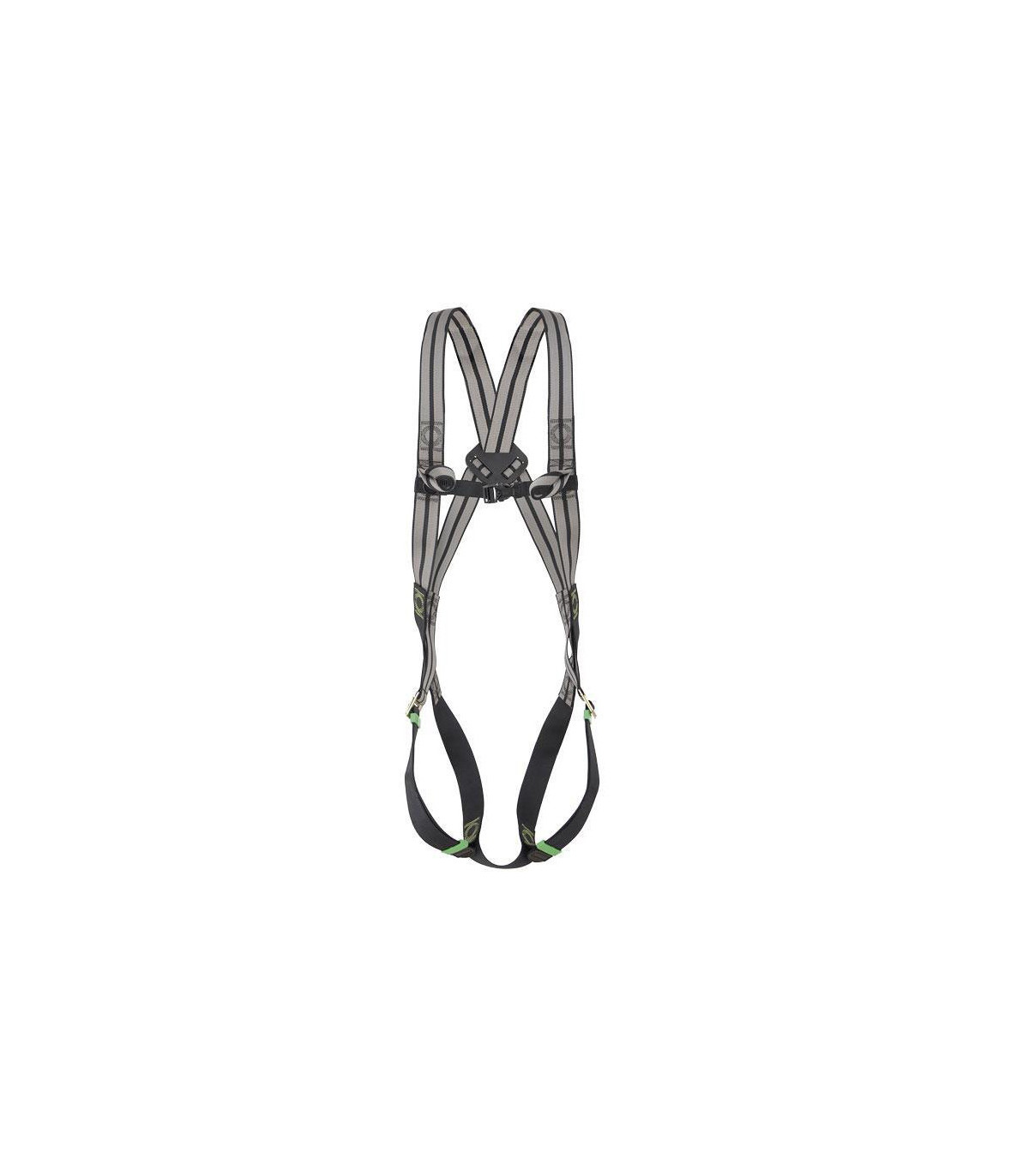

Complete fall protection harness set, the backpack includes: two external/dorsal anchor points, a safety rope, and two carabiners. The harness is differentiated in two colors, gray and black; the gray part refers to the shoulders and the black part to the thighs.

It is adjustable at the thighs and has a seat strap suitable for greater comfort and ergonomics. It weighs 1.32 kg. Adjustable size from L to XXL. Maximum weight capacity of 140 kilos. Ideal for vertical work, for example, on steep roofs and ladders.

DESCRIPTION

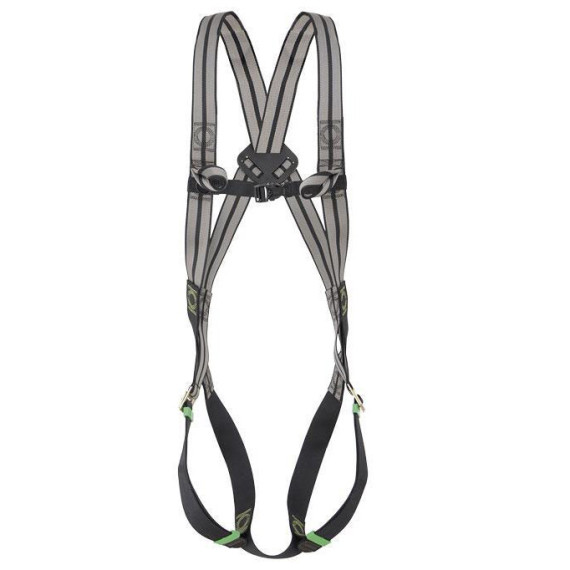

Fall protection harness intended to be incorporated into a fall arrest system. This harness is made with 45mm straps and consists of: dorsal and external attachments, sub-gluteal strap, quick buckles at the thigh level, buckles at the shoulder level, and one carabiner. Bicolor, medium size.

MATERIALS

• Straps: polyester
• Buckles: anti-corrosion treatment
• Weight: 1.200 kg

USAGE INSTRUCTIONS

Harness recommended for all types of interventions at height (structure, roofs, glass facades, scaffolding, mobile bridges, cranes...). A harness should be fastened with straps as close to the body as possible, without excess, to allow the user’s movements to remain free.

The dorsal attachment points should be used in pairs to maintain longitudinal forces in case of a fall and to avoid, as much as possible, asymmetric lateral forces.

USAGE LIMITS

Do not use outside the defined usage instructions in the corresponding section. Replace the safety harness if there is any doubt about its strength. After a fall, return the harness for inspection to the manufacturer or to a competent person authorized by the manufacturer. Every 12 months, the harness must be inspected by the manufacturer or by a competent person authorized by them. A fall protection harness and a rope do not constitute a fall arrest system.

STORAGE INSTRUCTIONS

The harness should be suspended in a moderately dry and ventilated location, protected from sunlight and rodents.

CLEANING / MAINTENANCE INSTRUCTIONS

Clean with water and soap using a brush. The belt should then be dried with a dry cloth and suspended in a ventilated area. The metal parts should then be cleaned with a cloth soaked in vaseline oil.

Bleach and detergents are strictly prohibited. The equipment must always be examined before use.

Ensure in particular that there are no:

- straps: no signs of cutting, burning, rust stains, or abnormal shrinkage.

- stitching: no visible damage.

- metal elements: no signs of oxidation or deformation. Also ensure that the operation of the carabiners is correct.

TECHNICAL QUALITIES

In accordance with the requirements of European Directive 89/686, particularly in terms of design, manufacturing, and testing methods, and to standard EN361.

NORMATIVE

The EN361 standard refers to full body harnesses used as personal protective equipment against falls from height. It establishes the design, manufacturing, performance, and marking requirements for these harnesses to ensure the safety of the workers who use them.

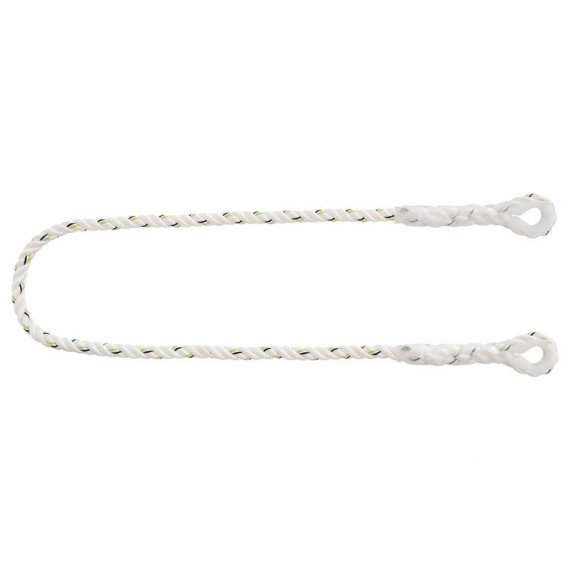

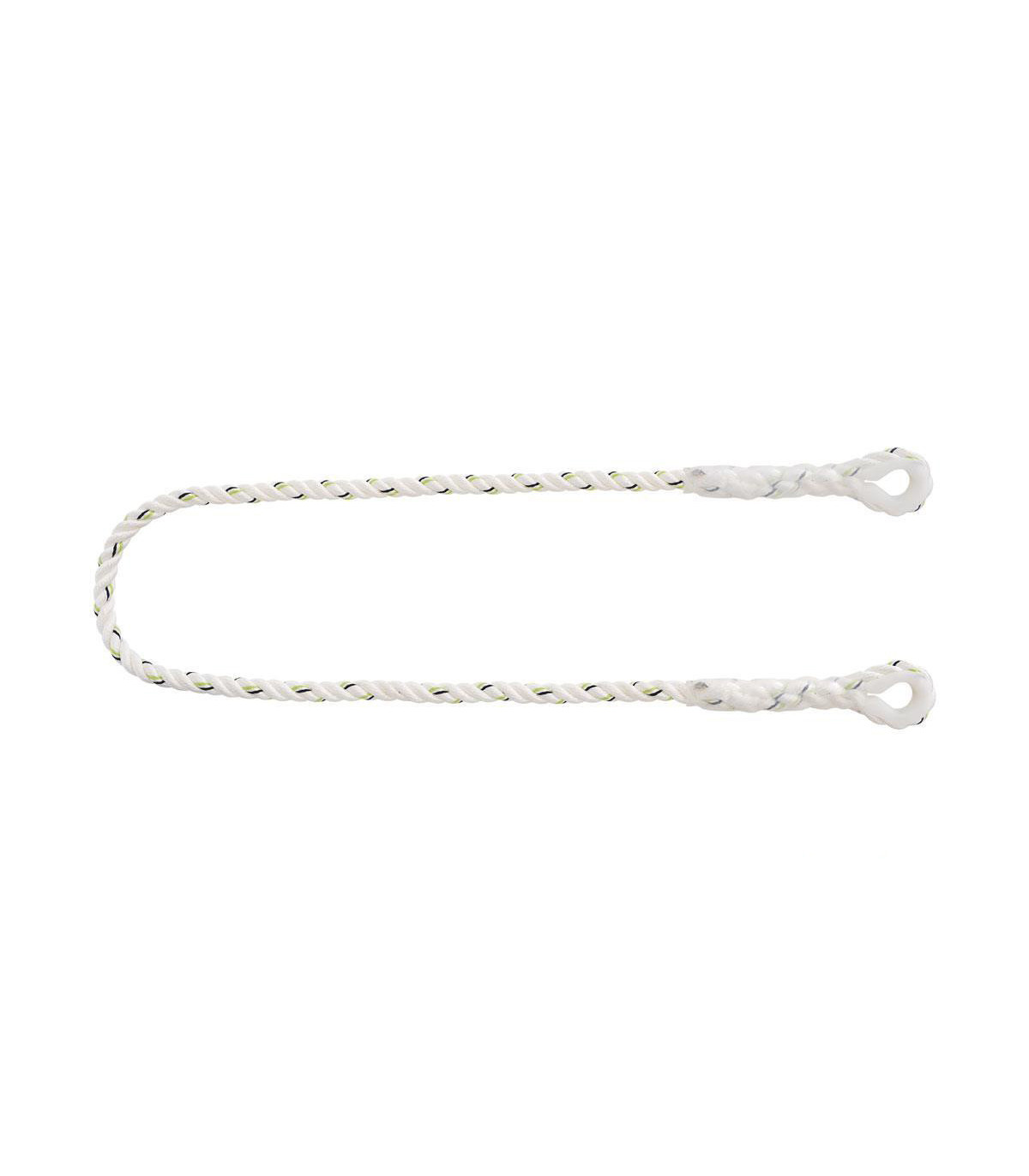

The EN 354 standard refers to personal protective equipment against falls. Specifically, it establishes the requirements and testing methods for safety ropes.

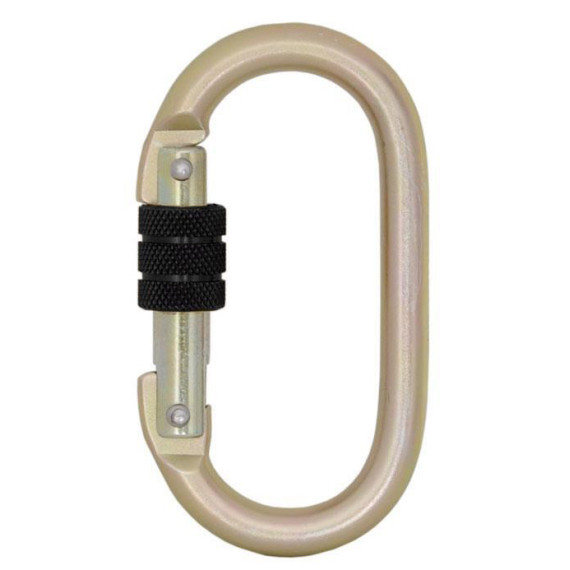

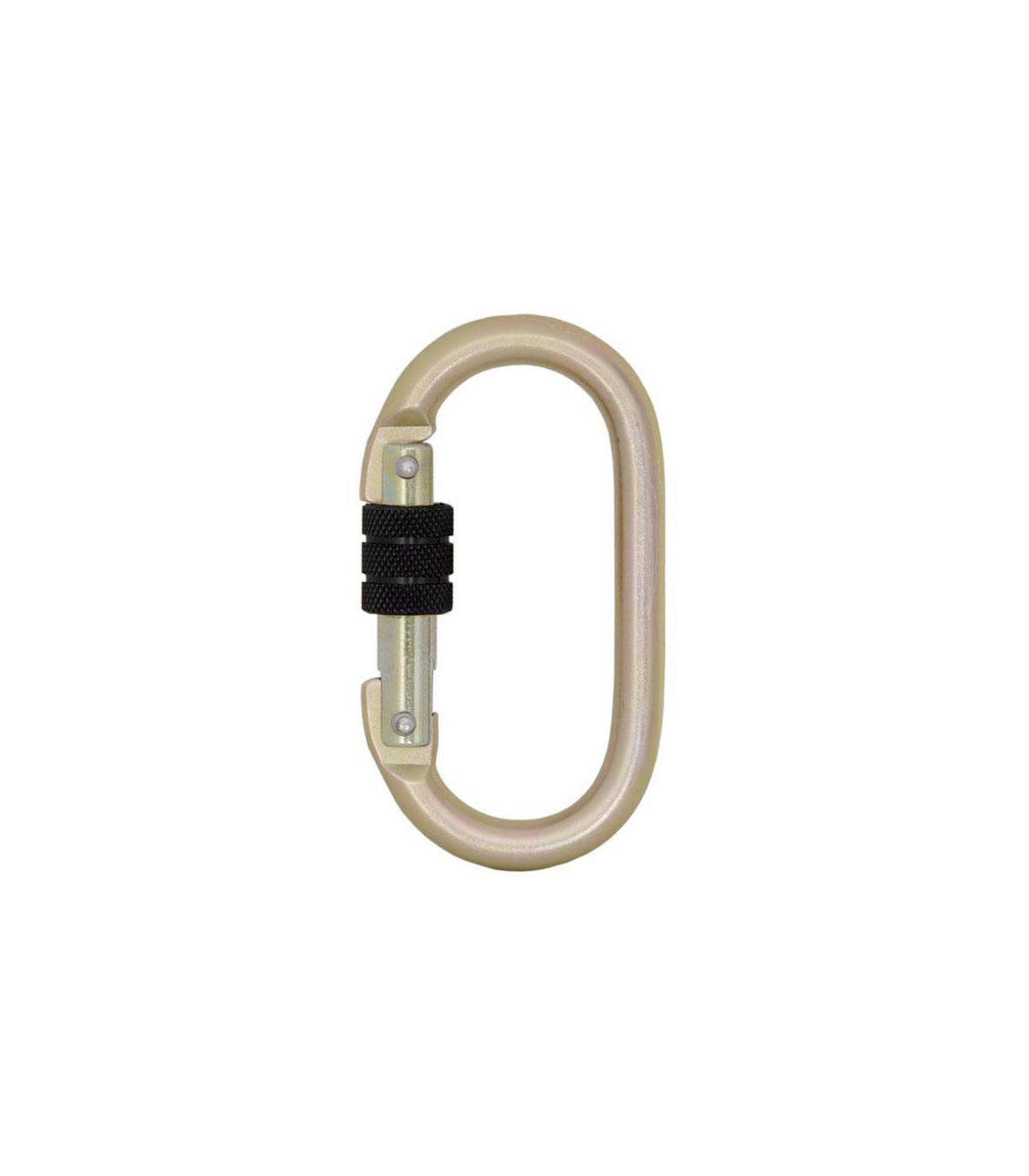

The EN 362 standard refers to connectors used in personal protective equipment against falls from height, such as carabiners and connecting elements. It establishes the design, materials, strength, and marking requirements for these connectors to ensure their effectiveness and safety in work at heights.

EU DECLARATION OF CONFORMITY

The company COFAN LA MANCHA, S.A., located at Avda. de la Industria, S/N, 13610 CAMPO DE CRIPTANA (Ciudad Real) SPAIN, with N.I.F. A-13342621 declares under its sole responsibility that the personal protective equipment described below is based on internal production control and complies with harmonized standards.

HARNESS SET WITH 2 ANCHOR POINTS + ROPE + 2 CARABINERS, CAT.III,

is in compliance with the applicable EU harmonization legislation: European Regulation EU 2016/425, is identical to the PPE subject to the EU type certificate issued by SATRA TECHNOLOGY EUROPE LIMITED, located in Bracetown Business Park, Clonee D15YN2P, Republic of Ireland. Notified body No. 2777, and has undergone the established evaluation procedure and meets the requirements for the regulation in Regulation (EU) 2016/425.

CE CONFORMITY CERTIFICATE

COFAN LA MANCHA, S.A. declares the personal protective equipment described below:

Designation: 1100 0036 – FALL PROTECTION HARNESS SET 2 ANCHOR POINTS + ROPE + CARABINER

Sizes: Adjustable

Colors: Red / Gray

Description: Fall protection harness intended to be incorporated into a fall arrest system.

This harness is made with 45mm straps and consists of: dorsal and external attachments, sub-gluteal strap, quick buckles at the thigh level, buckles at the shoulder level, and one carabiner. Bicolor, medium size.

In accordance with the requirements of European Directive 89/686, particularly in terms of design, manufacturing, and testing methods, and to standard EN361.

It is identical to the personal protective equipment that has been subject to the CE type certification: No. 0082/058/160/05/94/0039 ext. 04/11/05, issued by the laboratory APAVE SUDEUROPE SAS (0082), BP 193 - 13322 MARSEILLE CEDEX 16 - France.

The production of this item is subject to the CE quality assurance system of production with surveillance (Article 11B of Directive 89/686/EEC) under the control of the authorized body No. 0082 - APAVE SUDEUROPE SAS - BP 193 - 13322 MARSEILLE CEDEX 16 – France.
