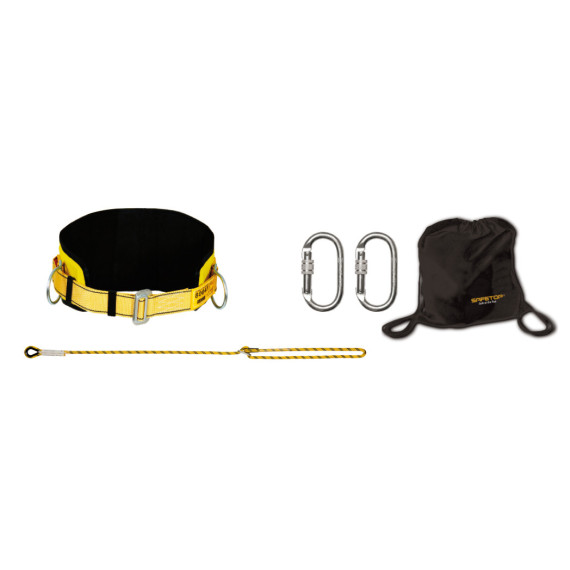

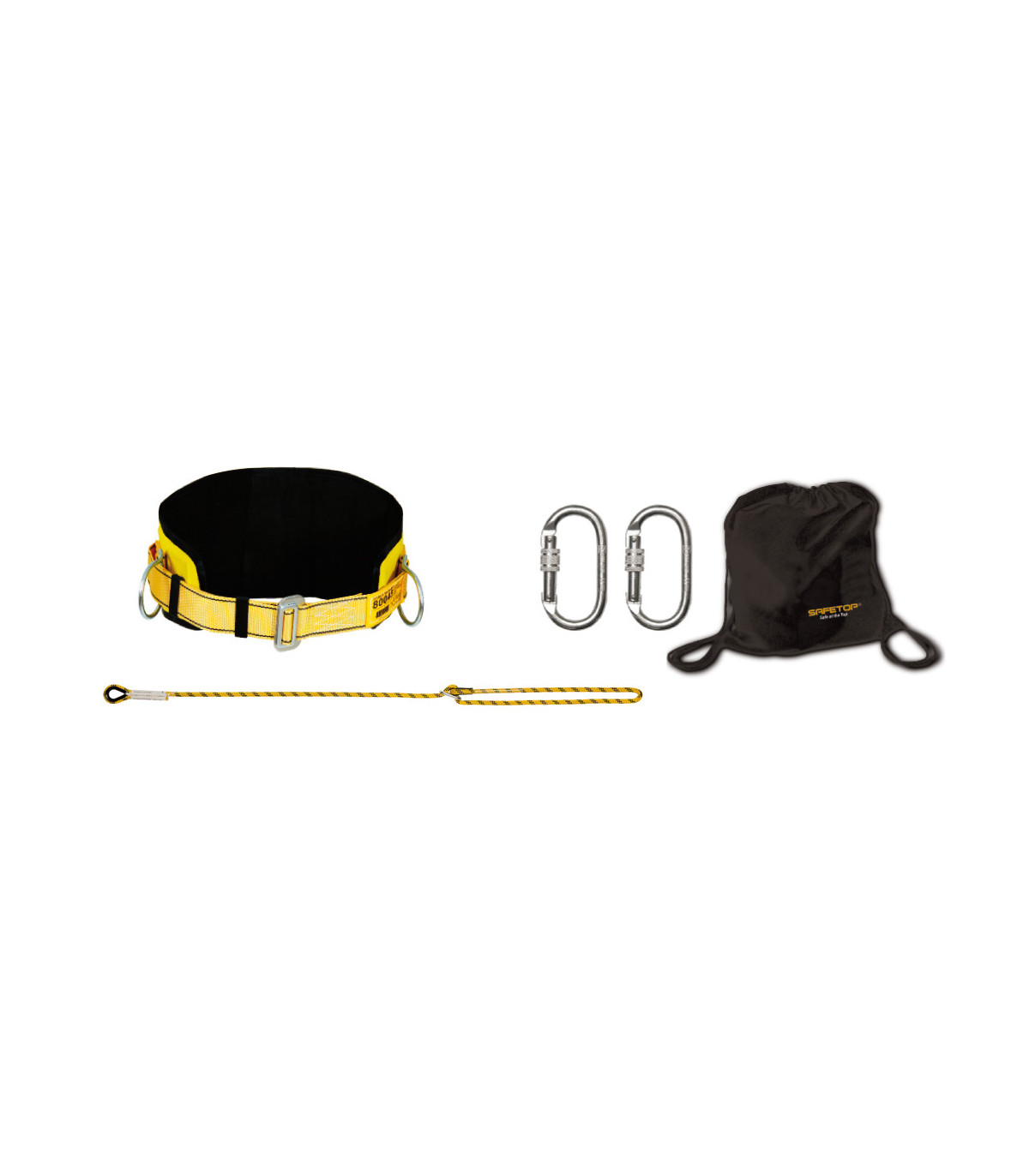

SAFETOP positioning kit with belt and rope

Positioning kit with belt 80048, rope of 1 or 1.7 m, 2 steel carabiners 80112, and equipment carrying backpack 80124.

CHARACTERISTICS OF POSITIONING BELT

• PPE category III
• Positioning belt for work in fastening
• Two fixation points with metal rings, located at the ends of the belt.
• Padded comfort belt of great comfort
• Adjustable on front wall
• Once adjusted with metal pins, it is very easy and quick to connect.
• Sewn loops at both ends of the front part of the belt to secure the adjustment strap.
• Dimensions: 61 cm (length) x 18 cm (height, at the highest point)
• Maximum length of the adjustment strap: 120 cm
• Materials:100% polyester - Zinc buckles covered with steel

CHARACTERISTICS OF CONNECTOR CORD

• PPE category III
• Made of braided yellow-black polyester for easy visibility.
• Anchor or fastening element in a working position.
• Total length (from end cap to end cap): 1 m.
• Diameter: 12 mm.
• Ends manufactured with thermally sealed and reinforced loops on the inside for connecting carabiners. The carabiners must be certified according to the EN362 standard.
• The safety rope can be used in connection with an energy absorber as a safety lanyard, according to standard EN354.
• Materials: polyester

Lifespan

• Lifespan Reviews: the equipment must be inspected every 12 months by an authorized person or by the manufacturer. Inspections must be recorded in the review sheet attached to the PPE along with the instruction manual.
• The maximum lifespan is up to 10 years from the date of manufacture for plastics and textile products. It is indefinite for metal products.
• Cleaning: Clean with water and soap that does not exceed 30ºC. Do not dry with heat.

Applications:Valid for use with energy absorbers as a safety lanyard (EN354).

FEATURES: STEEL CARABINERS

• PPE category III
• Made of steel with a manual locking mechanism by thread.
• 19 mm aperture
• Maximum resistance: 25 kN (longitudinal, when the door is closed and locked)
• Dimensions: 108 x 60 mm
• Weight: approximately 170 g
• Type: B

Reviews and lifespan

Inspections: the equipment must be inspected every 12 months by an authorized person or by the manufacturer. The inspections must be recorded in the inspection sheet attached to the PPE along with the instruction manual.

See the instruction manual to identify the maximum lifespan of the equipment.

Cleaning: Clean with water and soap that does not exceed 30ºC. Do not dry with heat. Lubricate the hinges and levers occasionally after washing.

FEATURES OF THE EQUIPMENT CARRYING BAG

• Polyester bag, designed to store fall protection equipment.
• In black
• High-strength fabric
• Waterproof
• Color: black
• Measurements: 37x32 cm.

APPLICATIONS

Surface suspension, installation of collective protections, attachment to horizontal lifelines, among others.

STANDARDS/ REGULATIONS

EN361(full leather harness and positioning)

EN354(tie-down equipment)

EN362(class B carabiner)
