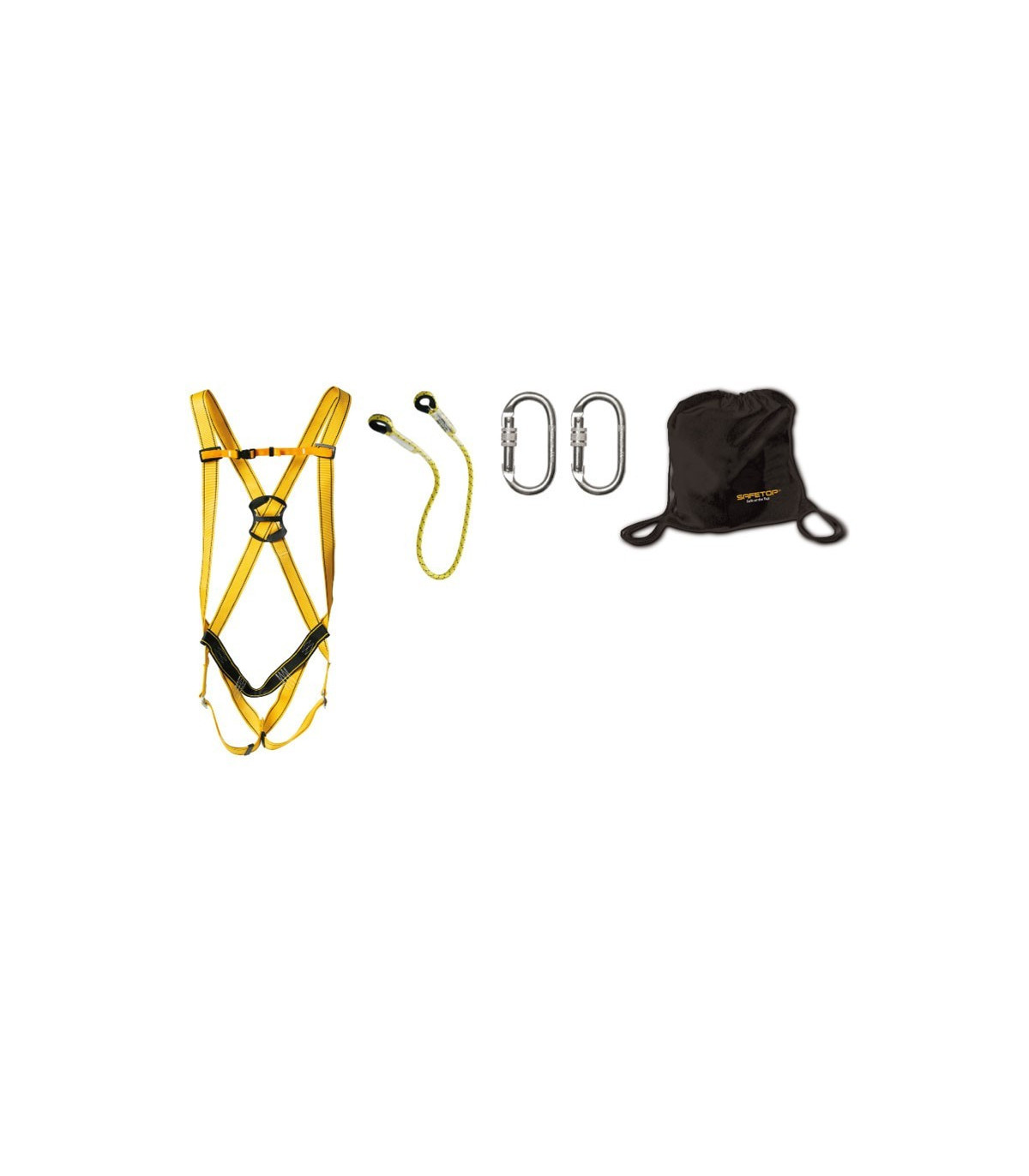

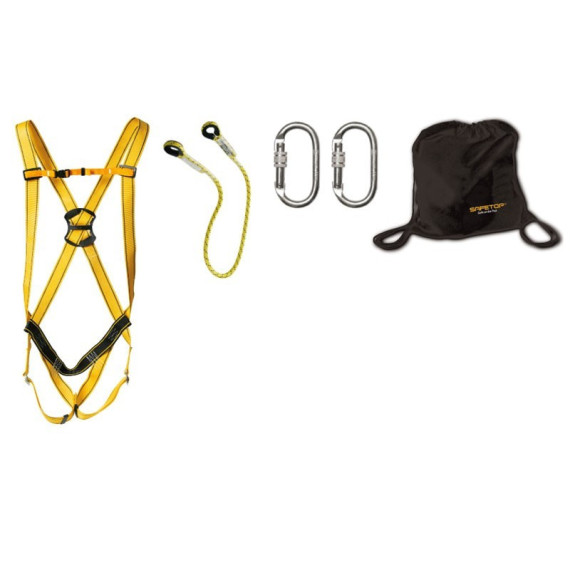

Fall protection equipment with two carabiners and SAFETOP rope.

Fall protection equipment consisting of Ancares Harness, a 1 m rope; 2 carabiners, and a bag.

FEATURES OF THE ANCARES HARNESS

• Basic fall protection harness with yellow polyamide straps combined with black
• Straps 45 mm wide
• 1 dorsal attachment point
• With dorsal attachment ring to connect the shock-absorbing subsystem
• Dorsal attachment ring to connect the shock-absorbing subsystem
• Adjustment and closure buckles that allow adjusting the length of the straps to the user's body. Closure and adjustment buckle for the chest that connects and adjusts the two main shoulder straps
• Sub-gluteal strap that connects the two thigh straps
• Model available in two sizes: standard and 2XL

FEATURES OF THE CONNECTING ROPE

• Total length (from end to end): 1 m.
• Diameter: 10.5 mm. Made of polyamide/polyester
• Ends manufactured with thermoset loops and reinforced on the inside for carabiner connection.
• The carabiners must be certified according to standard EN362
• The safety rope can be used as:

* In connection with an energy absorber as a safety lanyard, according to standard EN354.

* As a positioning lanyard, according to standard EN358. 1 m braided rope in yellow-black color, with a diameter of 10.5 mm, made of polyester

• Ends manufactured with thermoset loops and reinforced on the inside.

FEATURES OF THE STEEL CARABINER

• Includes two carabiners 80112, with a strength of 25 kN
• Opening of 17 mm
• Made of steel, with a manual locking mechanism by screw
• Dimensions: 108x60 mm
• Weight: approximately 170 g

FEATURES OF THE EQUIPMENT BAG

• Equipment bag Ref. 80124, made of polyester
• In high resistance and waterproof fabric
• Dimensions: 40x37 cm

FOR WHAT TYPES OF WORK IT IS SUITABLE

Suspension on surfaces, installation of collective protections, attachment to horizontal lifelines, among others.

CERTIFICATION

EN361 (full body harness)

EN354 (anchorage equipment)

EN362 (carabiner)

LIFETIME

Lifetime: see instruction manual

Inspections: inspections must be carried out annually by a person authorized by the manufacturer or by the manufacturer.

Usage record: the usage record of the equipment must be filled out according to the instructions attached to the harness. Never lose the usage record. It may be requested during an inspection and it is mandatory that it is correctly filled out.
