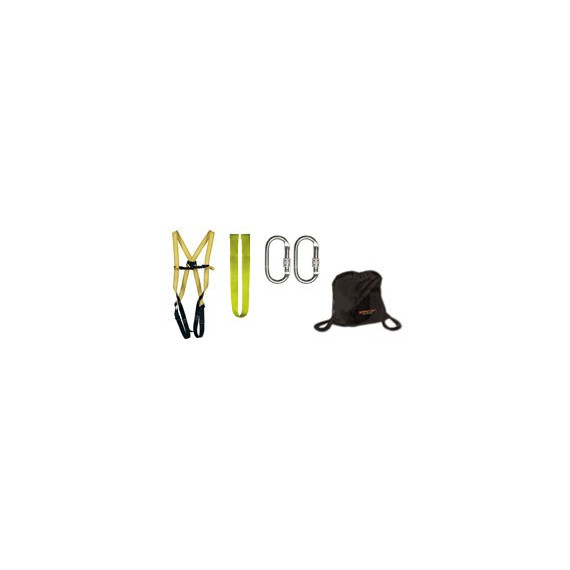

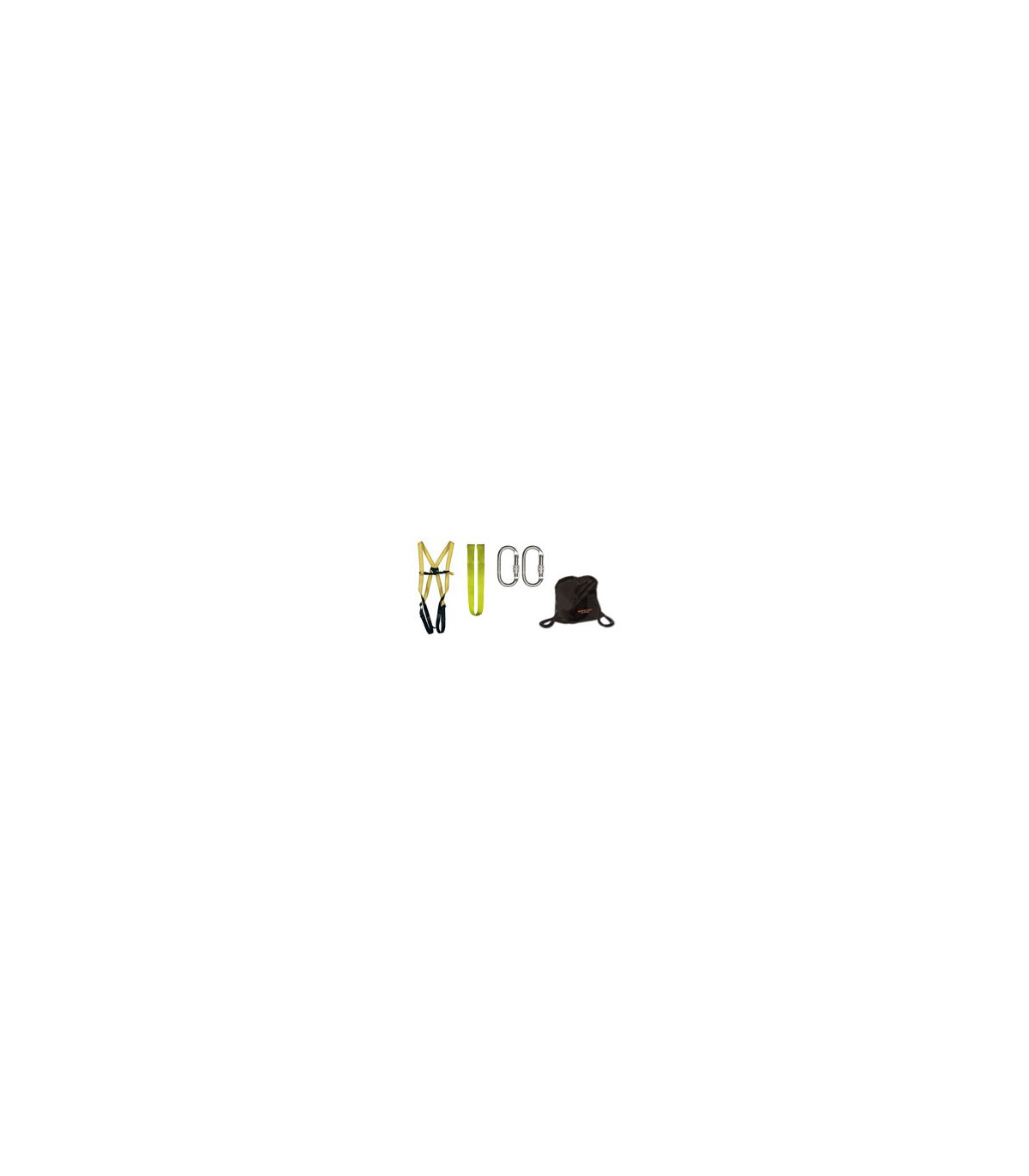

SAFETOP anti-fall kit with harness, ropes, and Elbrus 71B carabiners.

Fall protection equipment consisting of Trevinca Harness Ref. 80071B with front and back attachment. Lanyard Ref. 80275. 2 steel carabiners and a practical transport bag Ref. 80124.

CHARACTERISTICS OF THE TREVINCA HARNESS

• Trevinca Harness Ref. 80071B: basic fall protection harness with yellow polyamide straps combined with black.
• 45 mm wide tapes
• 1 dorsal fixation point and two frontal loops
• Adjustable leg straps
• In yellow for easy visibility for easy identification and black.
• Dorsal attachment using a metal ring and frontal attachment using two loops that must be connected simultaneously to a connector.
• Secondary chest fixation strap: width 24 mm
• Adjustable leg straps with metal fasteners
• Width of the tapes: 44 mm
• Valid for use by a single person.

Lifespan

Reviews: the reviews must be conducted annually by a person authorized by the manufacturer or by the manufacturer.

Usage sheet: the equipment usage sheet must be filled out according to the instructions attached to the harness. Never lose the usage sheet. It may be requested during an inspection, and it is mandatory that it is correctly completed.

CHARACTERISTICS OF CONNECTING CORD

• PPE category III
• 1 m polyester rope manufactured with end caps to connect carabiners.
• Braided in yellow-black for easy visibility.
• Anchor or fastening element in a working position.
• Total length (from end cap to end cap): 1 m. Diameter: 10.5 mm
• Made of polyamide/polyester
• Ends manufactured with thermally sealed and reinforced loops on the inside for connecting carabiners.
• The carabiners must be certified according to the EN362 standard.
• The safety rope can be used as:

* In connection with an energy absorber as a safety lanyard, according to standard EN354.

* As a positioning lanyard, according to the EN358 standard.

Lifespan

Lifespan Reviews: the equipment must be inspected every 12 months by an authorized person or by the manufacturer. Inspections must be recorded in the review sheet attached to the PPE along with the instruction manual. The maximum lifespan is 5 years from the date of first use, unless the equipment is defective or has already been used to stop a fall, in which case it must be discarded immediately. Cleaning: clean with water and soap that does not exceed 30ºC. Do not dry with heat.

CHARACTERISTICS OF STEEL CARABINERS

• Includes two carabiners 80112, with a strength of 25 kN and an opening of 17 mm.
• made of steel, with a manual locking mechanism by thread
• Dimensions: 108x60 mm
• Weight: approximately 170 g

FEATURES OF EQUIPMENT CARRYING BAG

• Equipment bag Ref. 80124, made of polyester.
• Made from high-strength, waterproof fabric.
• Dimensions: 40x37 cm.

APPLICATIONS OF THE ANTI-FALL KIT

For surface suspension, installation of collective protections, attachment to horizontal lifelines, among others.

USAGE REVIEWS

Lifespan: see instruction manual.

Reviews: the reviews must be carried out annually by a person authorized by the manufacturer or by the manufacturer.

Usage sheet: the equipment usage sheet must be filled out according to the instructions attached to the harness. Never lose the usage sheet. It may be requested during an inspection, and it is mandatory that it is correctly completed.

CERTIFICATION

EN361 (full body harness)

EN354 (lashing equipment)

EN362 (carabiner)
