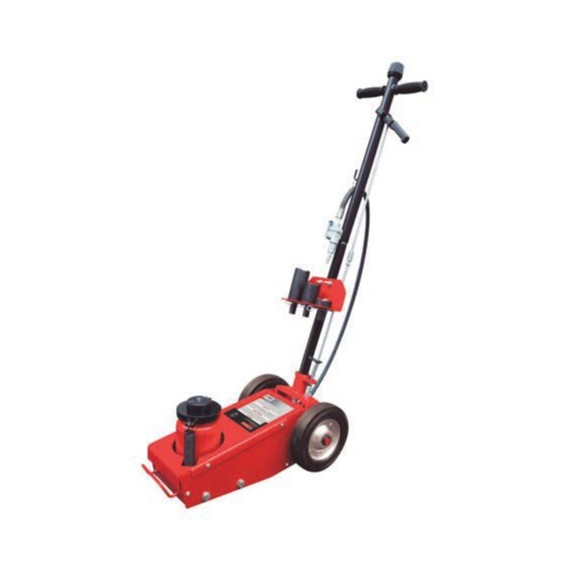

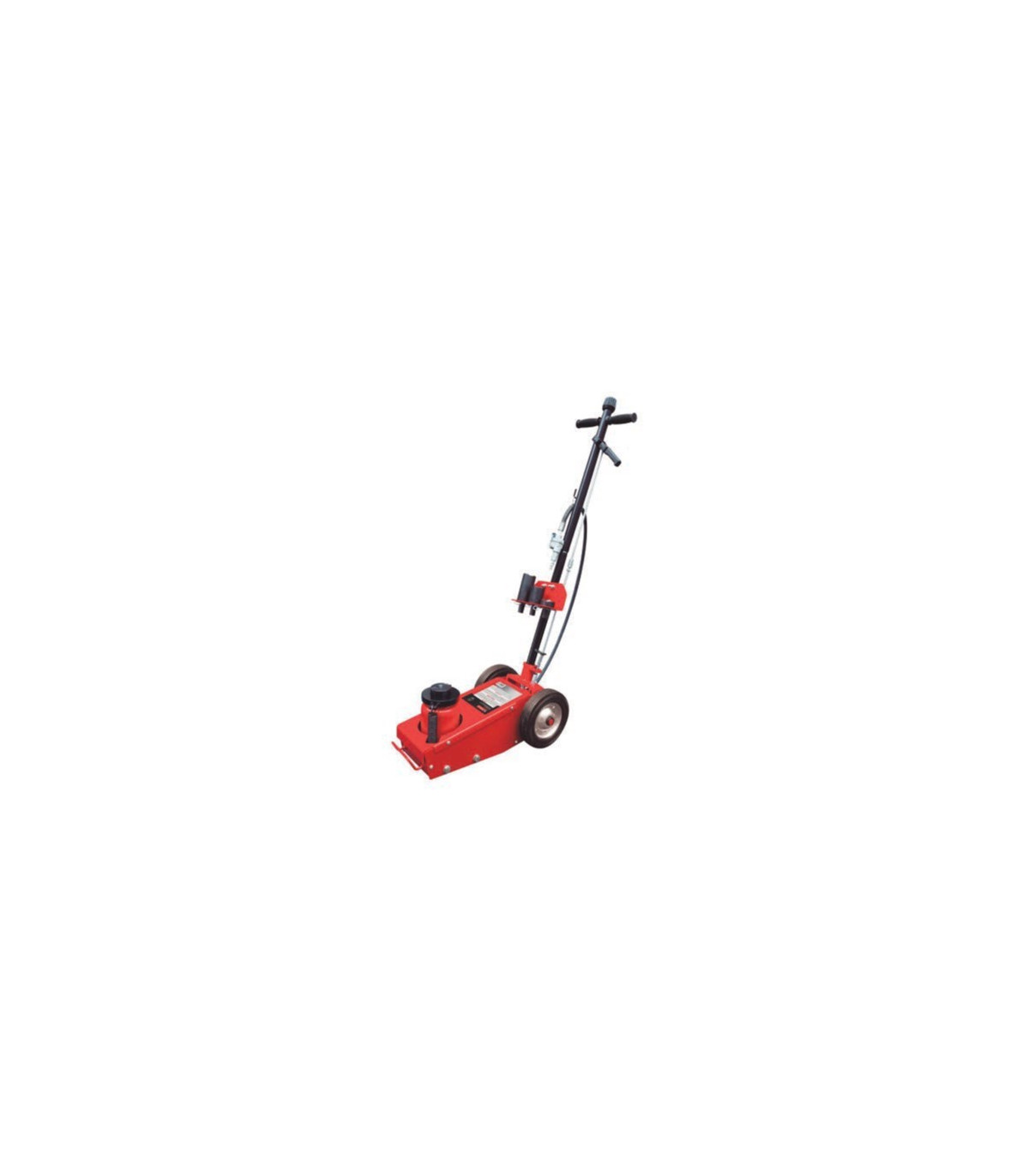

22-ton hydraulic trolley jack CAT822 METALWORKS

Hydraulic trolley jack 22 tons CAT822 METALWORKS with 3 extensions for a lifting height of up to 535 mm. Large wheels with rubber coating. Lifting capacity is achieved by connecting to a compressor.

The ultimate solution for lifting industrial vehicles. This 22-ton hydraulic jack combines the strength of the hydraulic system with the speed of compressed air, allowing for quick, safe, and effortless lifting of trucks and buses.

FEATURES

This jack is designed for heavy vehicle workshops. It connects to the compressed air network for fast and powerful lifting. The control of lifting and lowering is conveniently done from the ergonomic control lever, which features a 3-position lock. Its large rubber wheels facilitate maneuverability in the workshop. It includes several supplements to precisely adjust the contact height.

SPECIFICATIONS

• Load capacity 22 T.
  Min. height 210 mm
  Max. height 535 mm
  Piston stroke 115 mm
  Extendable 110 mm
  3 interchangeable heads 20, 60, 100 mm
  Working pressure 8 - 10 bars
  Chassis dimensions (l x w x h) 660 x 360 x 280 mm
  Net weight 43 kg

CE REGULATIONS

This product meets the essential safety and health requirements stipulated by European directives, ensuring safe and reliable operation under CE certification.

APPLICATIONS

• Lifting trucks, tractor heads, buses, and trailers.

• Essential in fleet workshops, transport companies, and industrial vehicle dealerships.

• Roadside assistance services for heavy vehicles.

• Maintenance of heavy public works and agricultural machinery.
