MH 3 T heavy load machine elevator cat UNICRAFT

Manual machine lift jack MH 3 T heavy load UNICRAFT. For safe lifting of heavy loads. With a short and compact structure.

The MH 3 T heavy load machine lift jack UNICRAFT is an industrial tool designed to lift and move heavy loads safely and efficiently. Its load capacity of 3 tons makes it an indispensable piece of equipment in a variety of sectors.

It is ideal for lifting industrial machinery, agricultural equipment, engines, and other heavy items for maintenance, repair, or relocation tasks.

FEATURES

Stable and welded steel construction for high tensions

Infinitely adjustable unwinding speed via a delicate drain plug

Small and compact construction

TECHNICAL DATA

Dimensions and weights

Approximate length: 250 mm

Approximate width/depth: 231 mm

Approximate height: 233 mm

Approximate weight: 21 kg

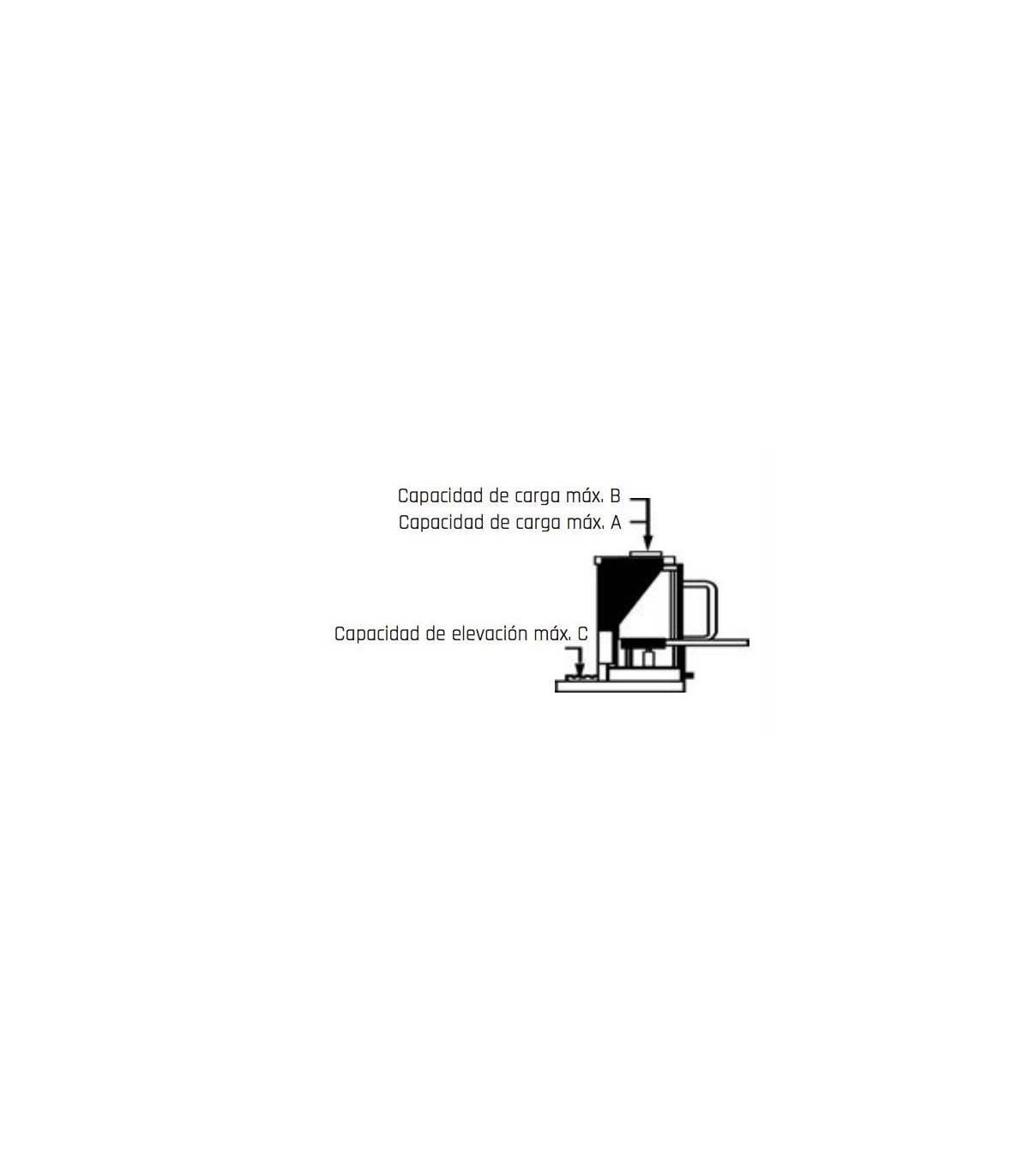

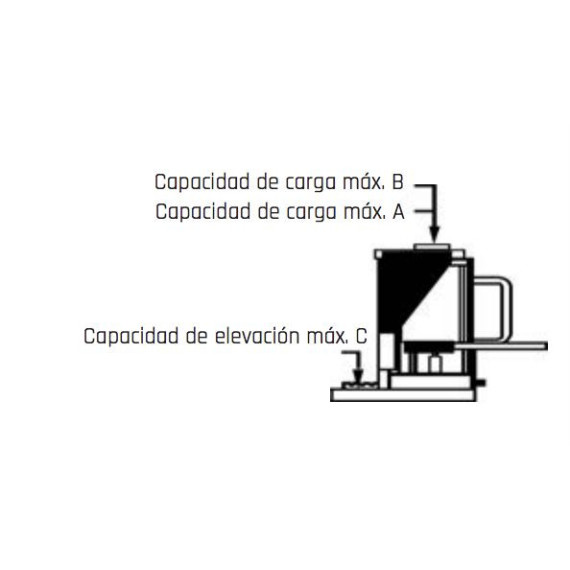

Lifting claw

Lifting capacity: 3 t

Rest height: 15 / 75 / 135 mm

Stroke: 140 mm

Lifting head

Lifting capacity: 3 t

Rest height: 233 mm

Stroke: 140 mm

Static support load

Support load: 3 t

Minimum support height: 233 mm

Maximum support height: 373 mm

VPE: 1

SUPPLY VOLUME

Unit of measurement: piece

Packing unit: 1

Height adjustable lifting claw

FOR WHAT TYPE OF WORK IS IT SUITABLE

The versatility of the MH 3 T machine lift jack makes it suitable for a wide range of industries, including:

Automotive industry: In mechanical workshops for lifting engines, transmissions, and other heavy components.

Agricultural industry: For working on agricultural machinery such as tractors, harvesters, and transport equipment.

Metallurgical industry: In the handling of heavy metal parts in manufacturing processes.

Construction: For lifting and positioning structural elements in construction sites.

Industrial maintenance: Generally, in any industry where lifting and moving heavy loads is required.
