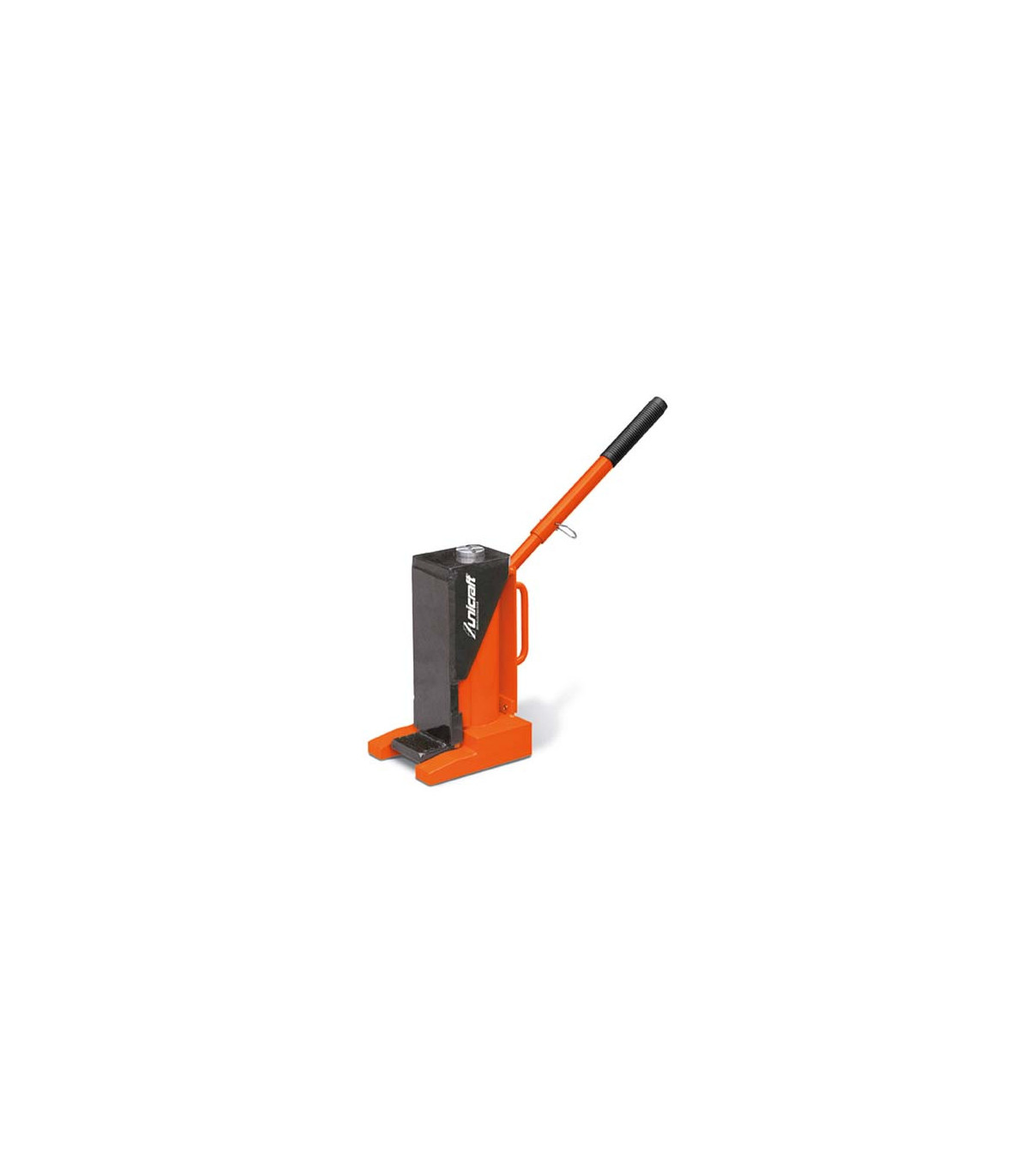

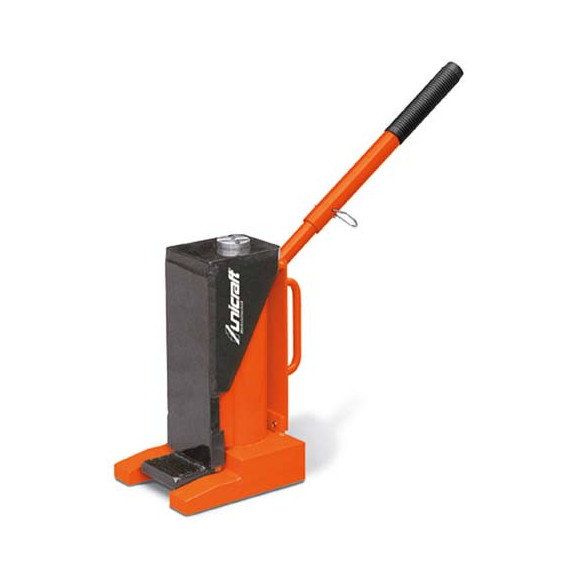

Manual machine lift cat MH 10 UNICRAFT

Manual machine lift jack MH 10 T heavy load UNICRAFT. For the safe lifting of heavy loads. With a short and compact structure.

The MH 10 T heavy load machine lift jack UNICRAFT is an industrial tool designed to lift and move heavy loads safely and efficiently. Its load capacity of 3 tons makes it an indispensable piece of equipment in a variety of sectors.

It is ideal for lifting industrial machinery, agricultural equipment, engines, and other heavy items for maintenance, repair, or relocation tasks.

FEATURES

Stable steel construction welded for high tensions

Infinitely adjustable release speed via a delicate drain plug

Small and compact construction

TECHNICAL DATA

Dimensions and weights

Approx. length: 160 mm

Approx. width/depth: 245 mm

Approx. height: 320 mm

Approx. weight: 25 kg

Lifting claw

Lifting capacity: 6 t

Rest height: 35 mm

Stroke: 80 mm

Static support load

Support load: 10 t

Min. support height: 320 mm

Max. support height: 400 mm

VPE: 1

SUPPLY VOLUME

Unit of measurement: piece

Packaging unit: 1

Height-adjustable lifting claw

FOR WHAT TYPE OF WORK IS IT SUITABLE

The versatility of the MH 10 T machine lift jack makes it suitable for a wide range of industries, including:

Automotive industry: In mechanical workshops for lifting engines, transmissions, and other heavy components.

Agricultural industry: For working on agricultural machinery such as tractors, harvesters, and transport equipment.

Metallurgical industry: In handling heavy metal parts in manufacturing processes.

Construction: For lifting and positioning structural elements on construction sites.

Industrial maintenance: In general, in any industry where heavy loads need to be lifted and moved.
