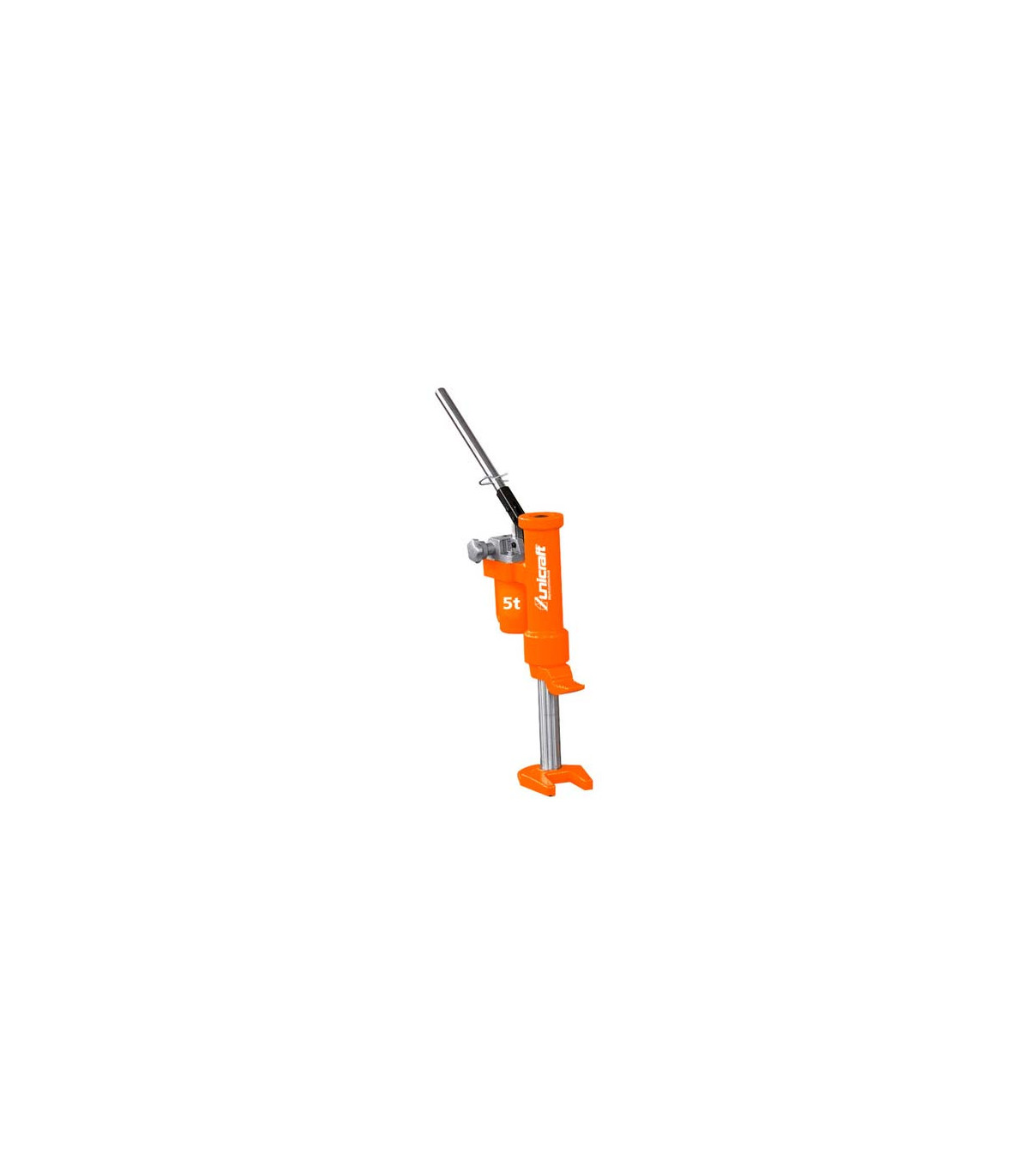

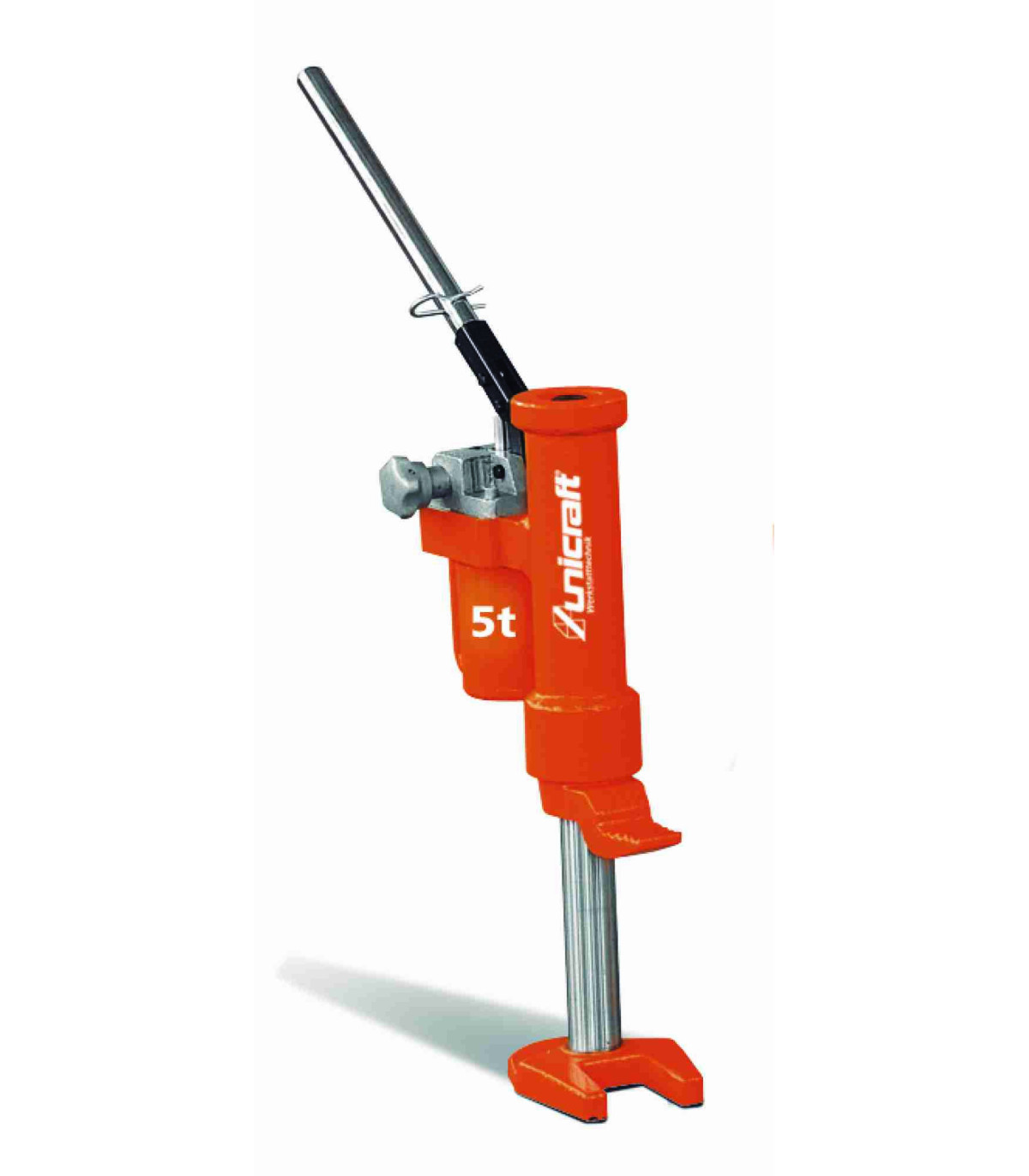

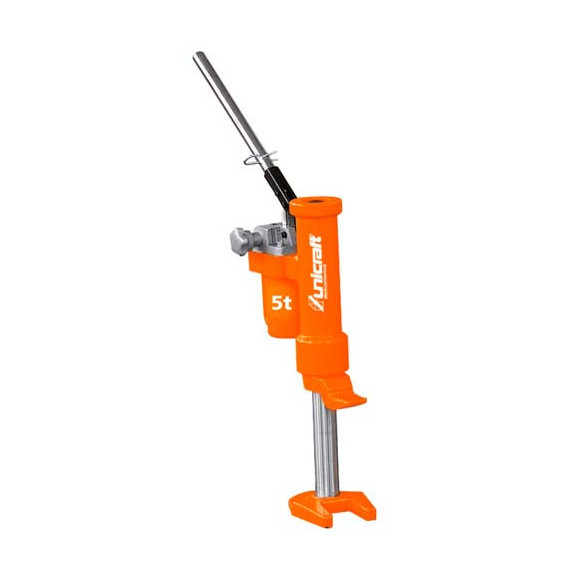

HMH 5 T hydraulic machine cat for heavy loads UNICRAFT

HMH 5 T hydraulic machine jack for heavy loads UNICRAFT with a robust welded steel structure for heavy loads. The HMH jacks are primarily designed to lift heavy machinery, industrial equipment, and other heavy objects. This allows for tasks such as:

Maintenance: Facilitates access to internal components of machinery for inspection, repair, or replacement.

Assembly and disassembly: Allows for the placement and removal of machinery parts in hard-to-reach areas.

Height adjustment: Used to level equipment and machinery, ensuring proper operation.

Internal transport: Facilitates the movement of heavy loads within industrial facilities.

FEATURES

For safely lifting heavy loads

Rotating pump unit

360° rotating claw or bottom plate (HMH 5 / HMH 10)

With chassis (HMH 25)

Removable pump lever

TECHNICAL DATA

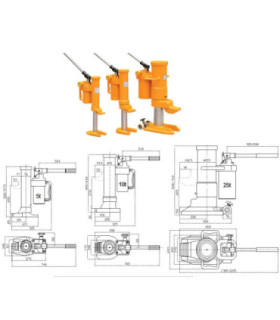

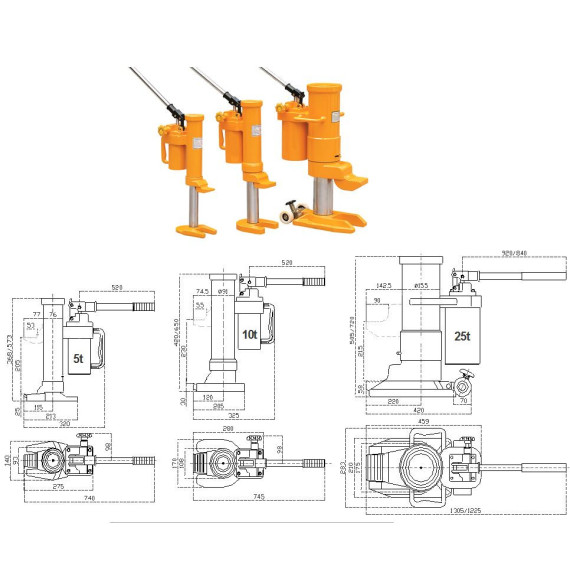

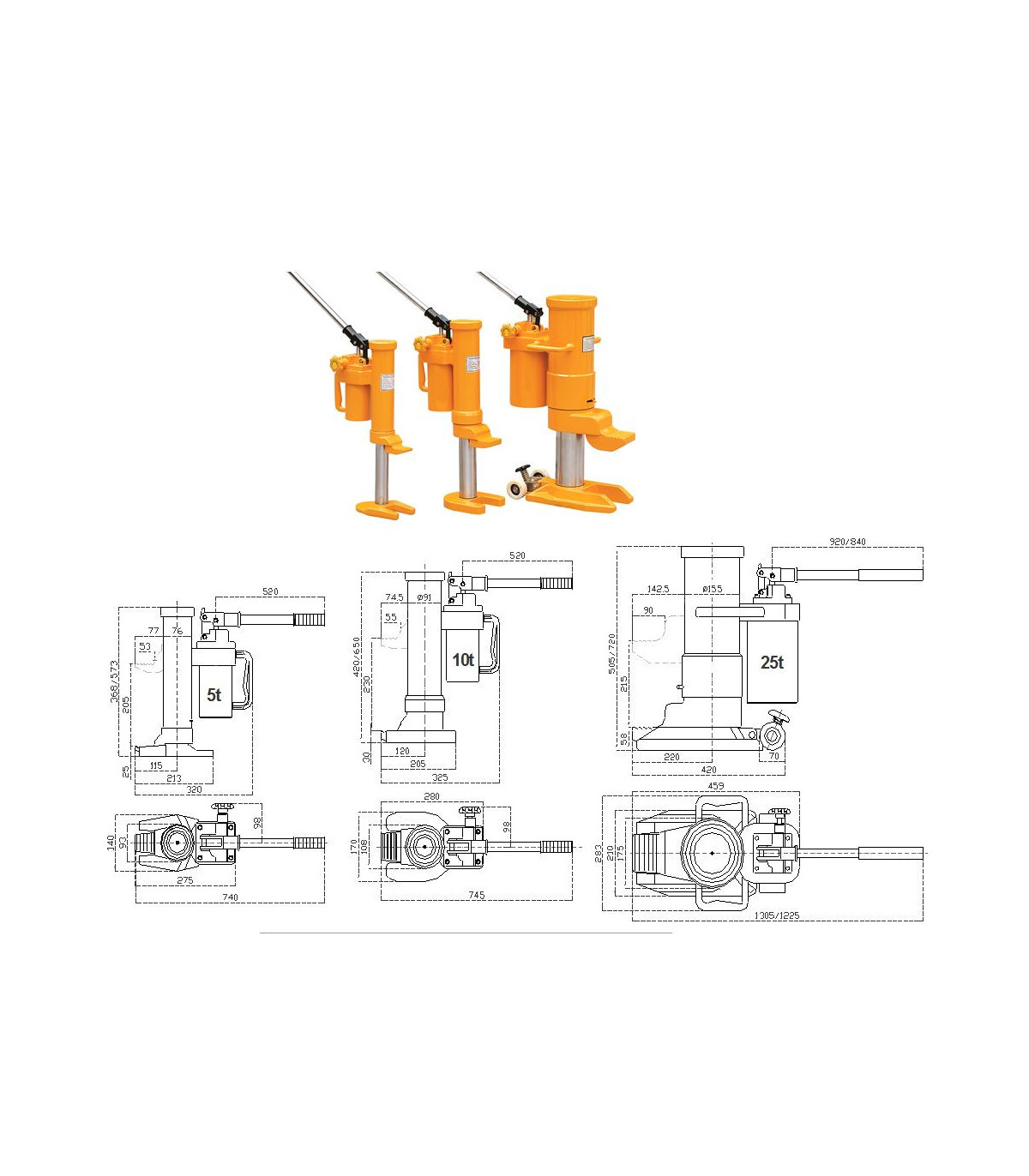

Dimensions and weights

Approximate length: 360 mm

Approximate width/depth: 190 mm

Approximate height: 430 mm

Approximate weight: 25 kg

Lifting claw

Lifting capacity: 5 t

Rest height: 25 mm

Hub: 205 mm

Lifting head

Lifting capacity: 5 t

Rest height: 368 mm

Hub: 205 mm

Technical data

Manual force at nominal load: 380 N

Temperature range: -20 – 50 °C

VPE: 1

SUPPLY VOLUME

Unit of measurement: piece

Packaging unit: 1

360° rotating claw or bottom plate

FOR WHAT TYPE OF WORK IS IT SUITABLE

The versatility of the Machine Lifting Jack makes it suitable for a wide range of industries, including:

Automotive industry: In mechanical workshops for lifting engines, transmissions, and other heavy components.

Agricultural industry: For working on agricultural machinery such as tractors, harvesters, and transport equipment.

Metallurgical industry: In the handling of heavy metal parts in manufacturing processes.

Construction: For lifting and positioning structural elements in construction sites.

Industrial maintenance: Generally, in any industry where lifting and moving heavy loads is required.

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
