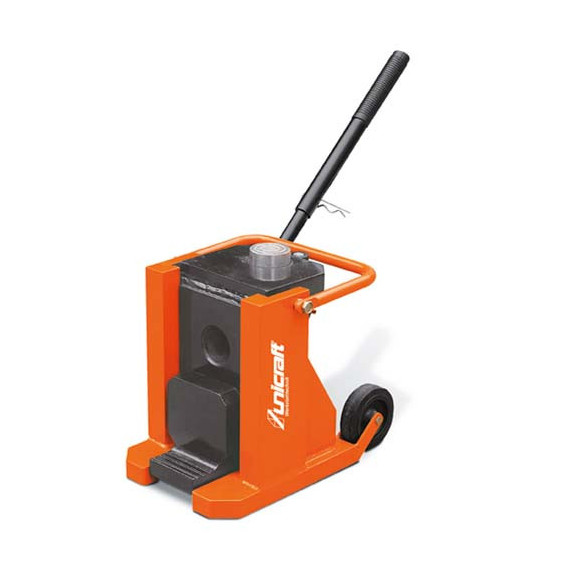

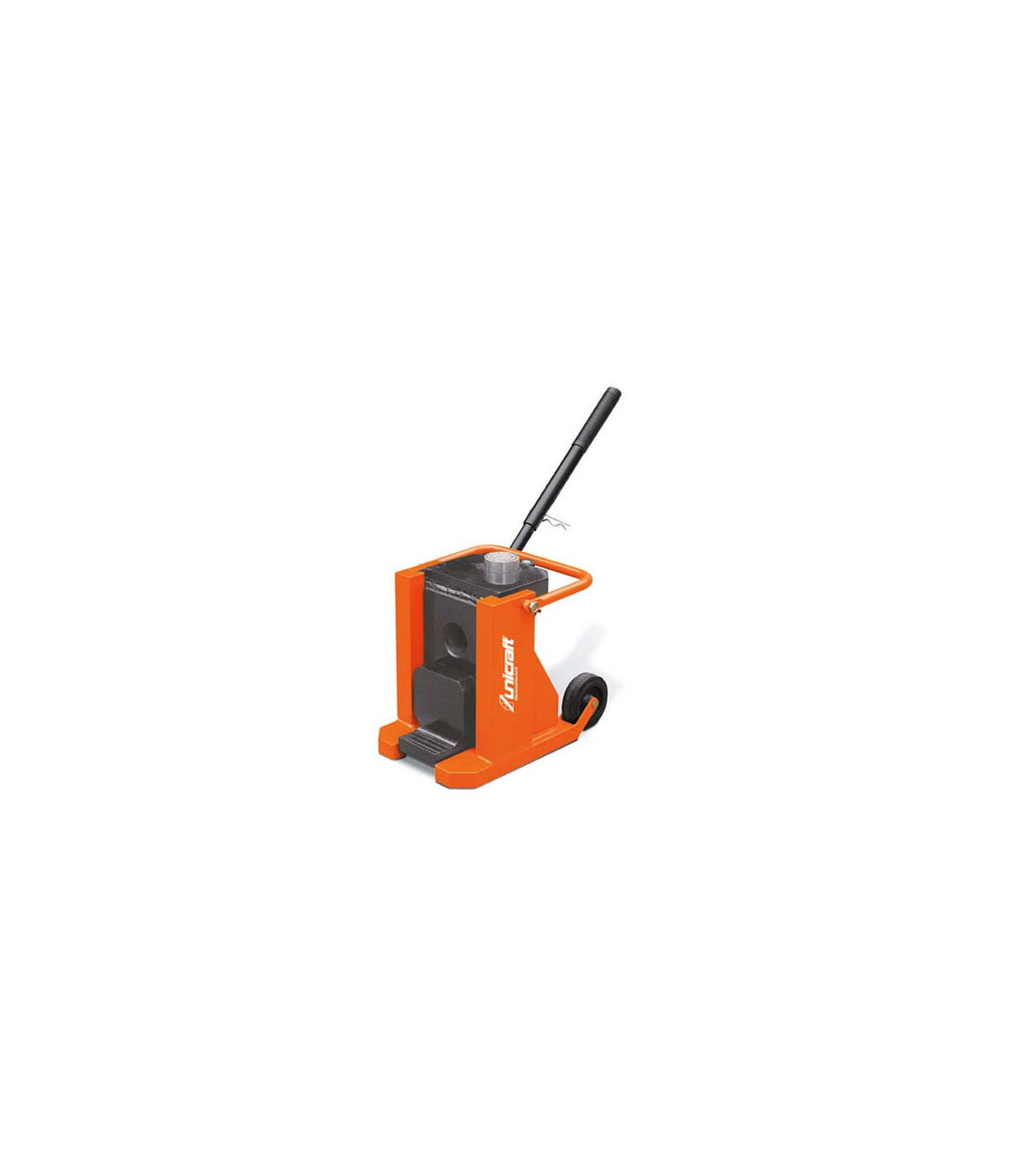

Manual machine lift cat MH 20 T UNICRAFT

Manual machine lift jack MH 20 T heavy load UNICRAFT. For safe lifting of heavy loads. With a short and compact structure.

The MH 20 T heavy load machine lift jack UNICRAFT is an industrial tool designed to safely and efficiently lift and move heavy loads. Its load capacity of 3 tons makes it an indispensable piece of equipment in a variety of sectors.

It is ideal for lifting industrial machinery, agricultural equipment, engines, and other heavy items for maintenance, repair, or transport tasks.

FEATURES

Stable steel construction, welded for high tension

Infinitely adjustable release speed via a delicate drain plug

Small and compact construction

TECHNICAL DATA

Dimensions and weights

Approximate length: 296 mm

Approximate width/depth: 372 mm

Approximate height: 325 mm

Approximate weight: 68 kg

Lifting claw

Lifting capacity: 12 t

Rest height: 325 mm

Lift: 140 mm

Lifting head

Lifting capacity: 15 t

Rest height: 325 mm

Lift: 140 mm

Static support load

Support load: 20 t

Minimum support height: 325 mm

Maximum support height: 465 mm

VPE: 1

SUPPLY VOLUME

Unit of measurement: piece

Packaging unit: 1

Height-adjustable lifting claw

FOR WHAT TYPE OF WORK IS IT SUITABLE

The versatility of the Machine Lift Jack makes it suitable for a wide range of industries, including:

Automotive industry: In mechanical workshops for lifting engines, transmissions, and other heavy components.

Agricultural industry: For working on agricultural machinery such as tractors, harvesters, and transport equipment.

Metallurgical industry: In the handling of heavy metal parts in manufacturing processes.

Construction: For lifting and positioning structural elements on construction sites.

Industrial maintenance: Generally, in any industry where lifting and moving heavy loads is required.
