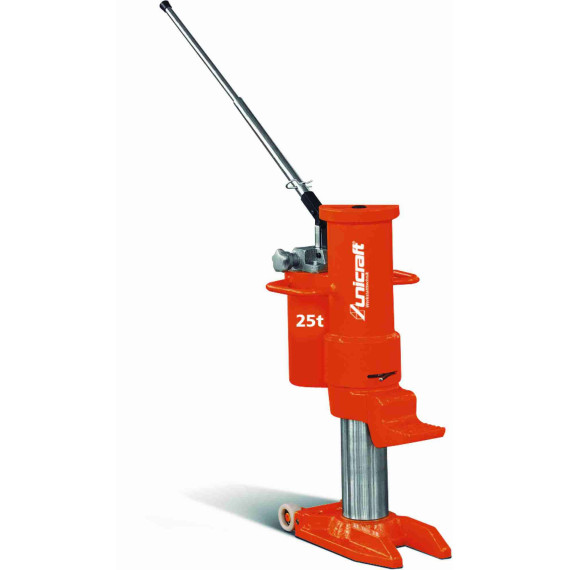

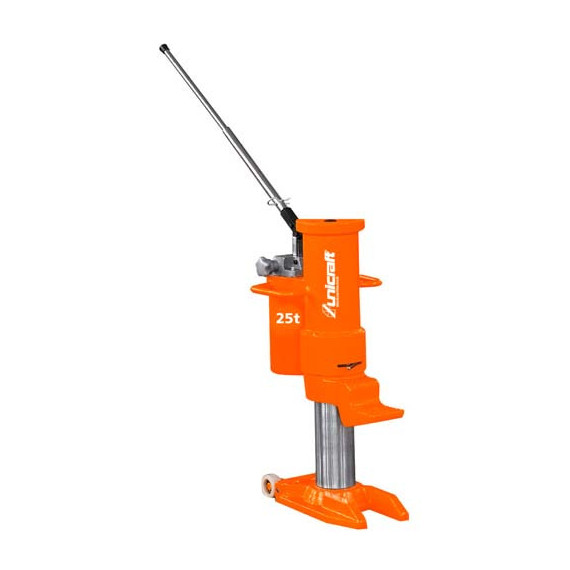

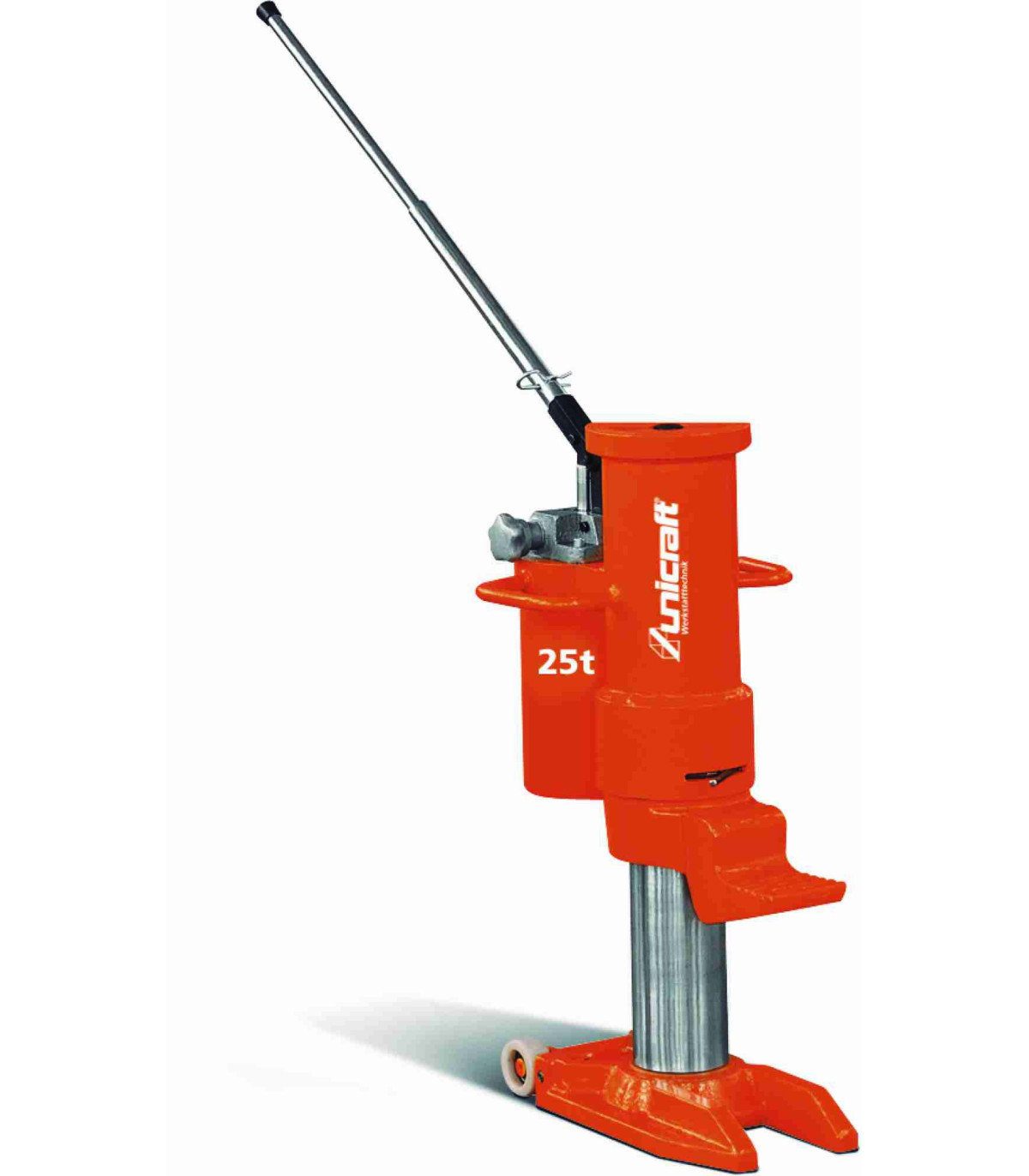

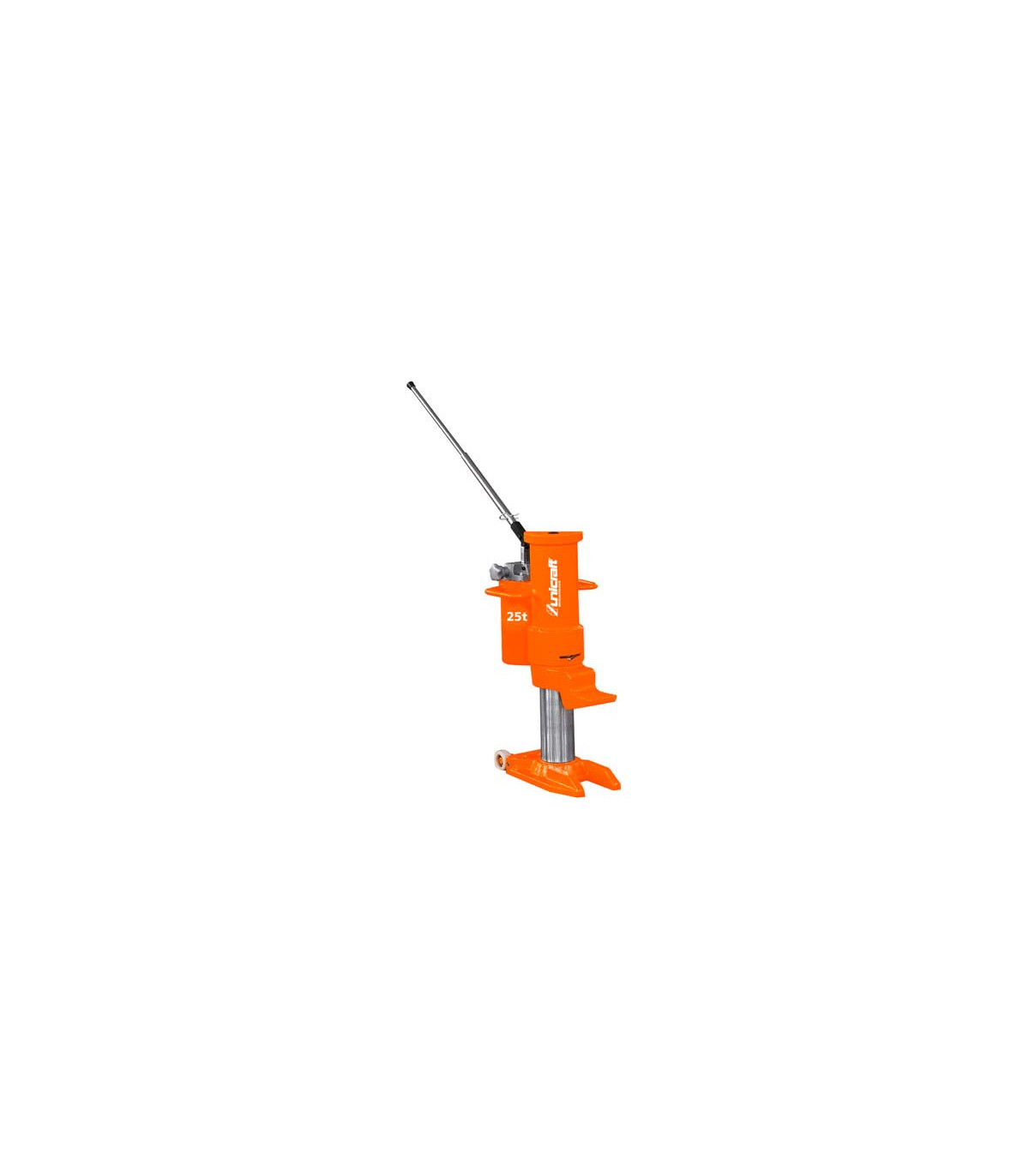

HMH 25 T machine cat with welded steel construction UNICRAFT

HMH 25 T hydraulic machine jack for heavy loads UNICRAFT with a robust welded steel structure for heavy loads. HMH jacks are primarily designed to lift heavy machinery, industrial equipment, and other heavy objects. This allows for tasks such as:

Maintenance: Facilitates access to internal components of machinery for inspection, repair, or replacement.

Assembly and disassembly: Allows for the placement and removal of machinery parts in hard-to-reach places.

Height adjustment: Used to level equipment and machinery, ensuring proper operation.

Internal transport: Facilitates the movement of heavy loads within industrial facilities.

FEATURES

For safely lifting heavy loads

Rotating pumping unit

360° rotating claw or Lower plate (HMH 5 / HMH 10)

With Chassis (HMH 25)

Removable pump lever

TECHNICAL DATA

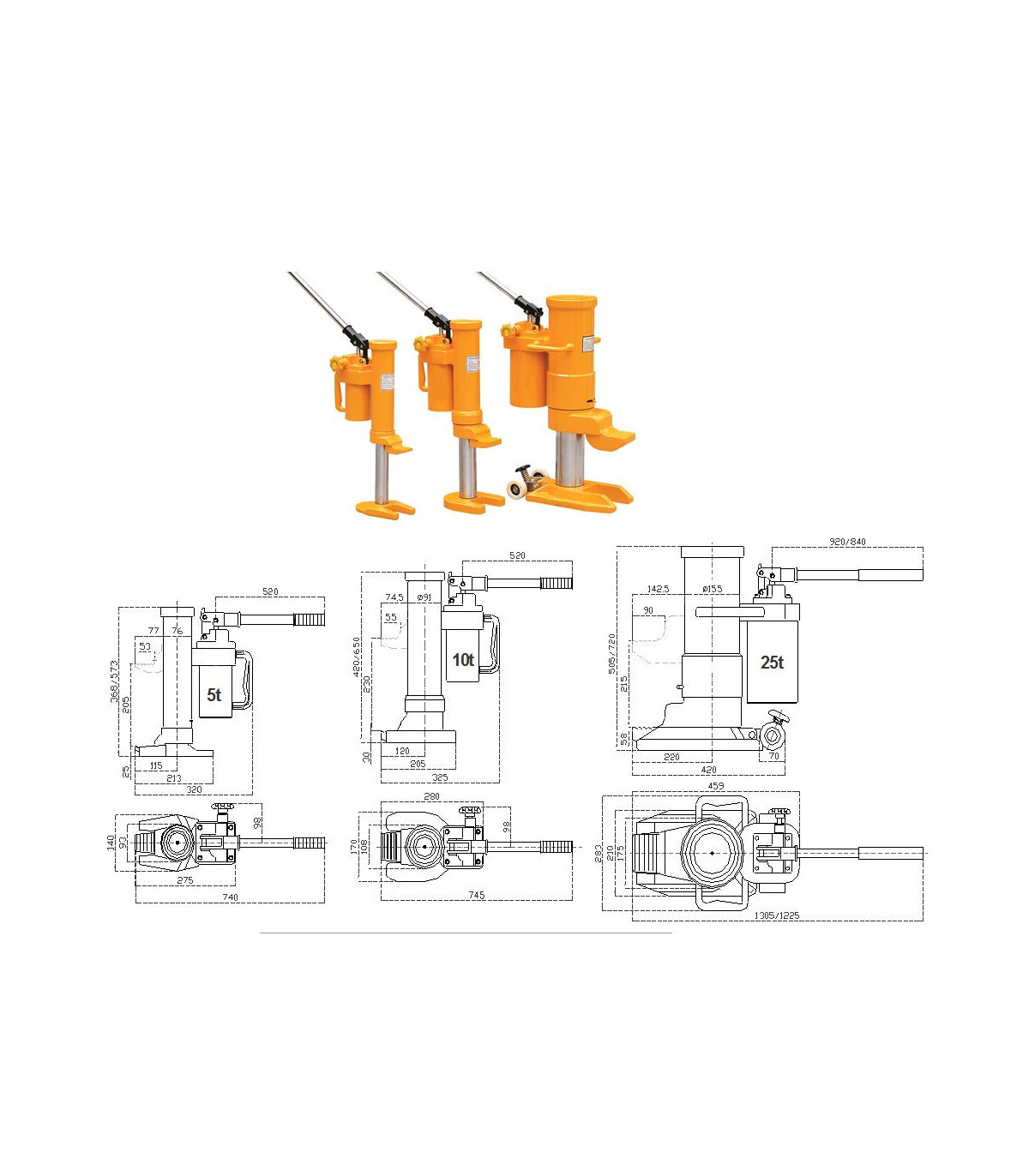

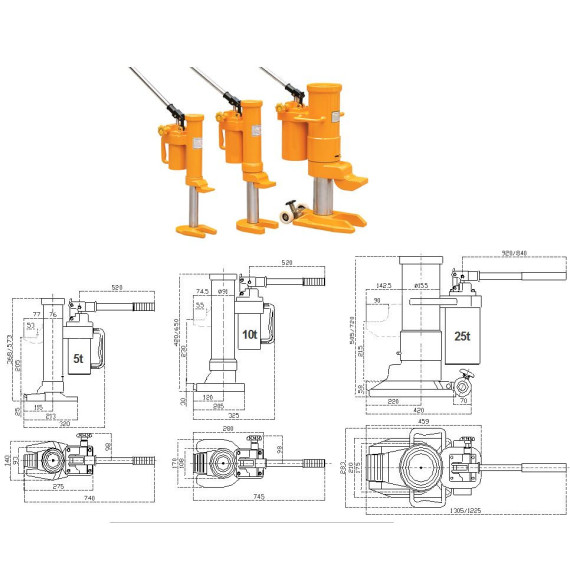

Dimensions and weights

Approx. length 530 mm

Approx. width/depth 350 mm

Approx. height 610 mm

Approx. weight 109 kg

Lifting claw

Lifting capacity 25 t

Rest height 58 mm

Hub 215 mm

Lifting head

Lifting capacity 25 t

Rest height 505 mm

Hub 215 mm

Technical data

Manual force at nominal load 400 N

Temperature range -20 – 50 °C

VPE 1

SUPPLY VOLUME

Unit of measurement: piece

Packaging unit: 1

360° rotating claw or Lower plate

FOR WHAT TYPE OF WORK IS IT SUITABLE

The versatility of the Machine Lifting Jack makes it suitable for a wide range of industries, including:

Automotive industry: In mechanical workshops for lifting engines, transmissions, and other heavy components.

Agricultural industry: For working on agricultural machinery such as tractors, harvesters, and transport equipment.

Metallurgical industry: In the handling of heavy metal parts in manufacturing processes.

Construction: For lifting and positioning structural elements in construction sites.

Industrial maintenance: Generally, in any industry where lifting and moving heavy loads is required.
