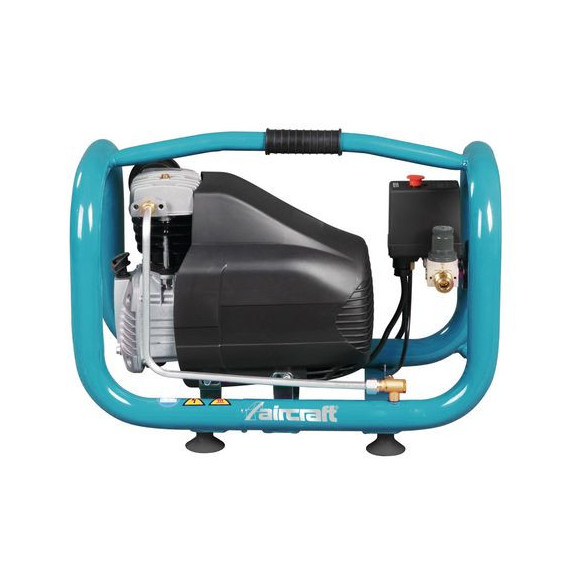

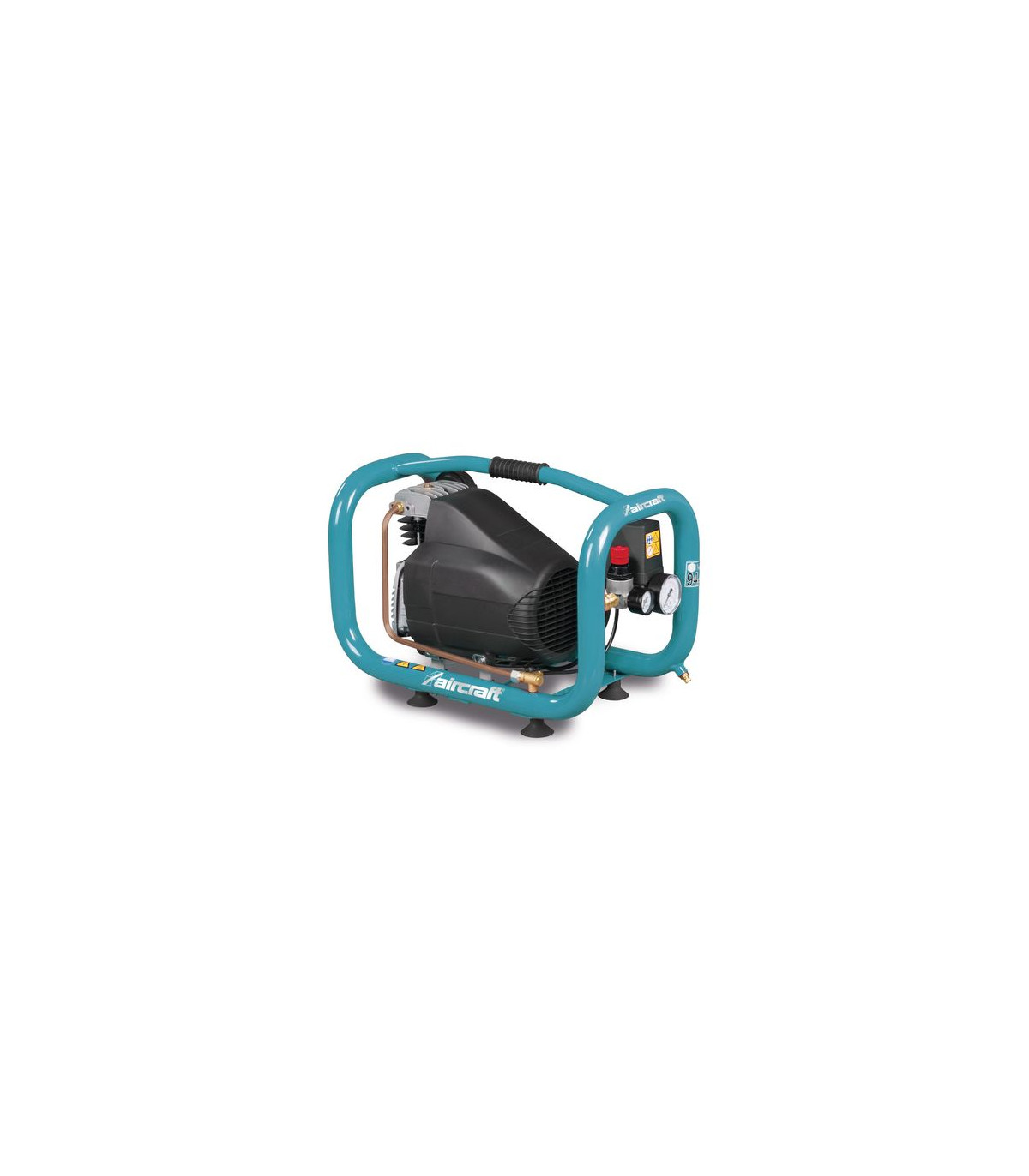

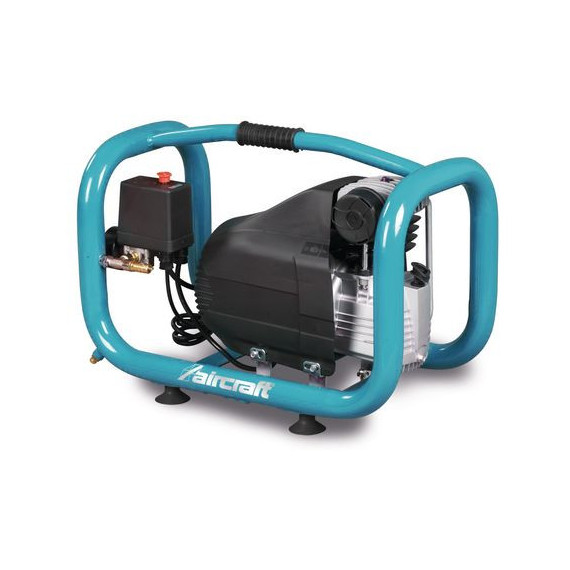

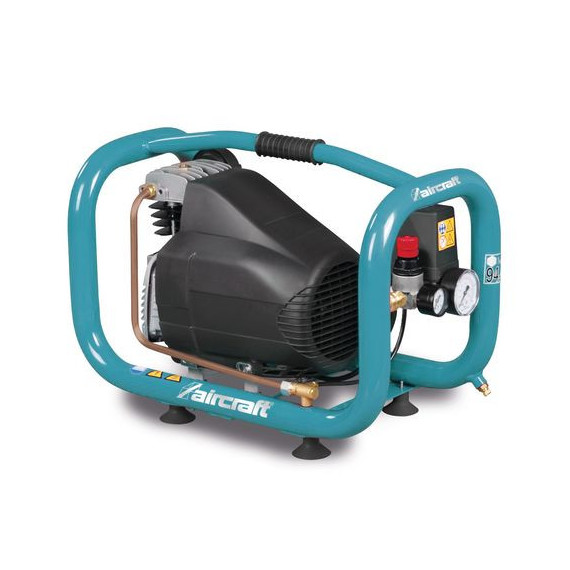

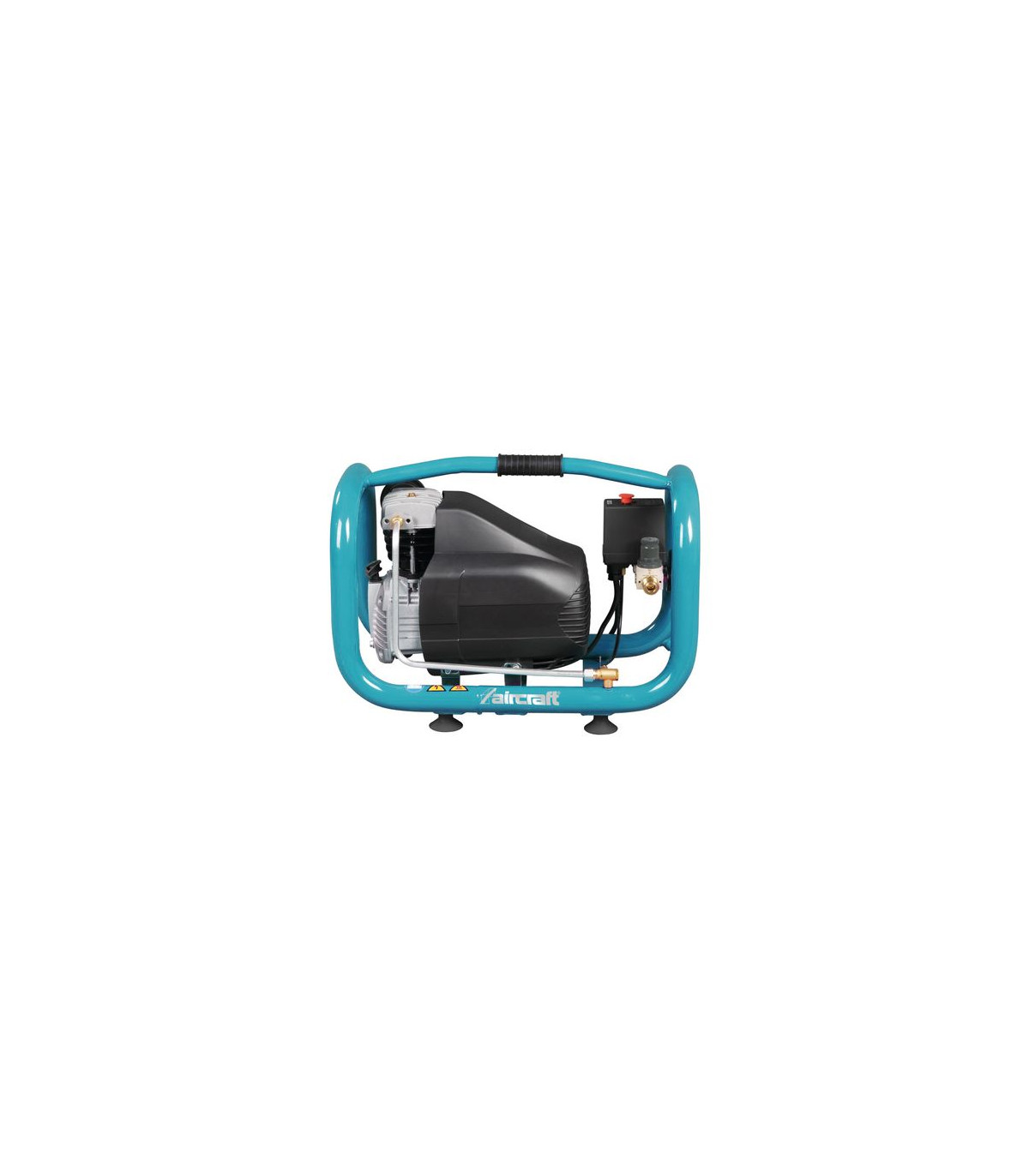

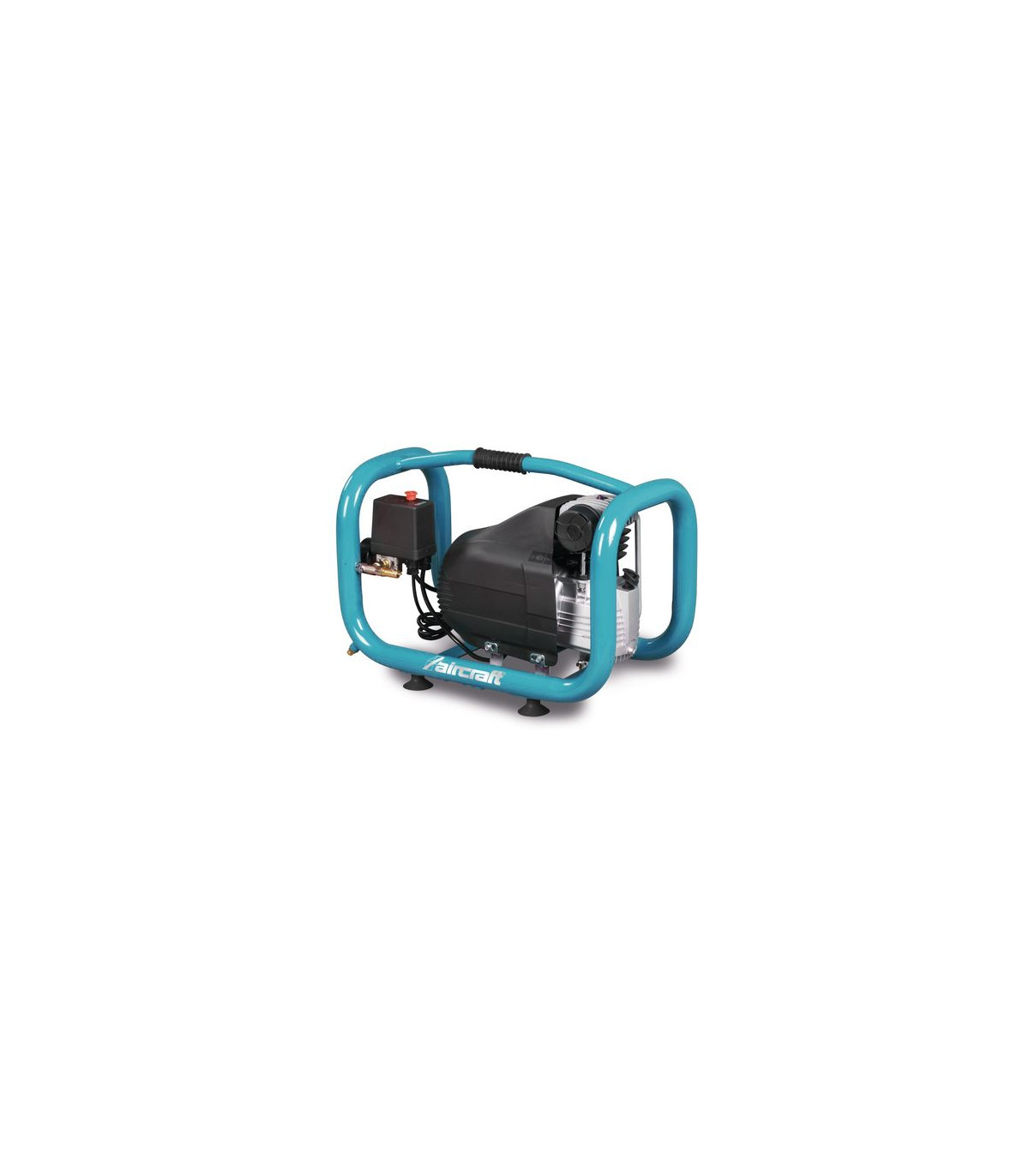

Airboy Kitt 90 AIRCRAFT piston compressor

The Airboy Kitt 90 AIRCRAFT piston compressor features a HOS air suction compression system with a capacity of 85 ltr./min and an effective air output of 49 ltr./min. Its maximum pressure is 15 bars, and the tank capacity is 2.4 ltr.

The motor power of the Airboy Kitt 90 AIRCRAFT piston compressor is 1 cylinder with a motor power of 0.8 HP / 230 V. Its net weight is 21 kg. Additionally, it is equipped with motor start relief and a motor protection switch, providing fully automatic on/off operation.

FEATURES

At low speed, vibrations are reduced, increasing the lifespan of the compressor components.

High-quality electric motors with high starting torque.

Equipped with motor start relief and a motor protection switch.

Fully automatic on/off operation.

The switches and accessories are optimally protected by the tubular frame.

Powder-coated compressed air tank with a ten-year warranty against rust.

Rubber transport handle to prevent slipping.

TECHNICAL SPECIFICATIONS

Compressed air tank

Maximum pressure 15 bar

Pressure vessel capacity 2.4 l

Compressor

Compressor system HOS

Approx. suction capacity 85 l/min

Approx. filling capacity 49 l/min

Filling capacity explained at a working pressure of 6 bar

Number of cylinders 1

Number of compressor stages 1

Dimensions and weight

Approx. length 510 millimeters

Approx. width/depth 270 millimeters

Approx. height 400 millimeters

Approx. weight 21 kg

Electrical data

Supply voltage 230 V

Network frequency 50 Hz

Noise emission

Sound power level Lw 85 dB(A)

Explanation of sound power level Lw Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG)

VPE 1

COMPONENTS/PACKAGING

Unit: pc(s).

Packaging unit: 1

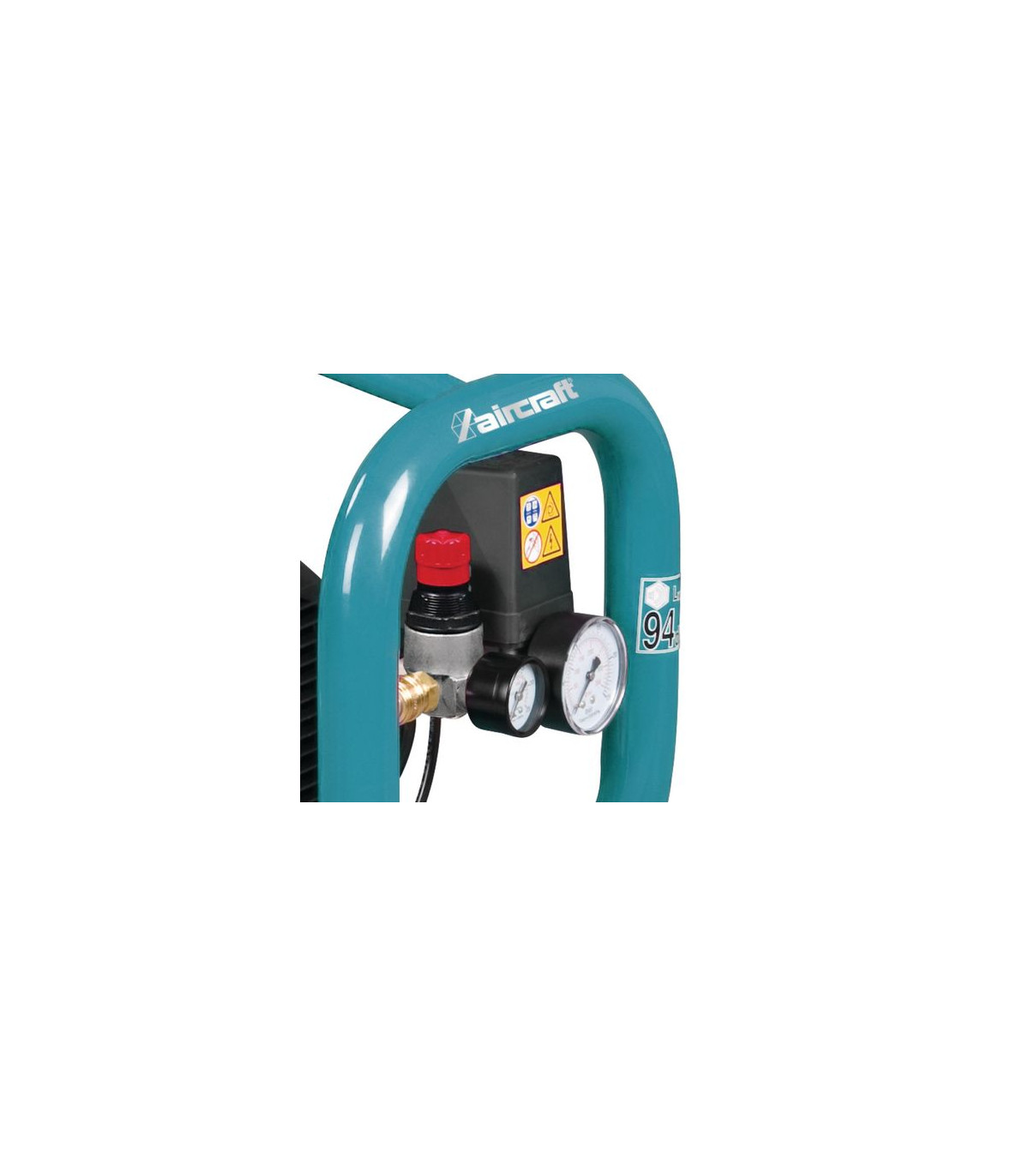

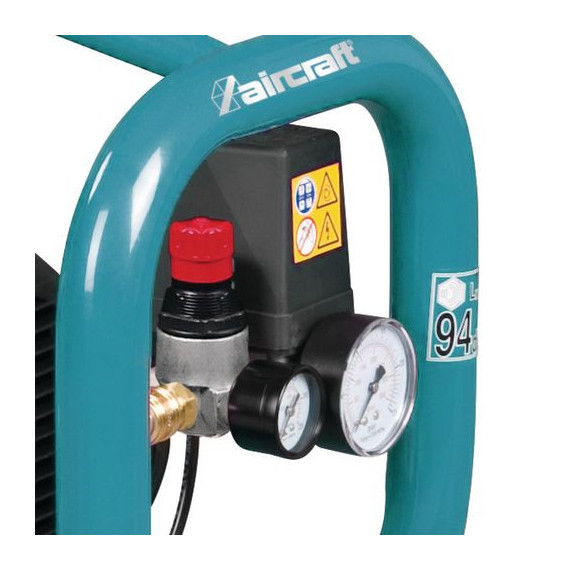

Pressure reducer

Automatic pressure switch

Pressure gauge for tank pressure

Pressure gauge for working pressure

High-quality one-hand quick coupling

Fully automatic on/off operation

Motor protection switch

Motor start relief

Powder-coated boiler

Rubber feet for vibration damping

Rubber handle to prevent slipping

EQUIPMENT

Pressure regulation Pressure regulator

Automatic pressure switch ✔

Drive transmission Direct coupling

Compressed air line material Aluminum

Compressed air output A high-quality one-hand quick coupling

Pressure vessel Powder coating

Compressor base Rubber feet for vibration damping

VIDEOS

CERTIFICATION

Stürmer Group Quality Management System certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
