Complete Adflo with standard battery 3M Speedglas

Adflo complete with standard battery 3M Speedglas. For effective protection against all types of particles and gases encountered in the welding process, use the powered respiratory equipment. 3M™ Adflo™. Our Adflo™ mask connects directly to any Speedglas™ series respiratory welding helmet and can protect users against particles and gases depending on the filter used.

Get effective protection against respiratory risks associated with the welding process with powered breathing equipment. 3M™ Adflo™. Our Adflo mask connects directly to any Speedglas respiratory welding helmet and can protect users against particles and gases depending on the filter used. Gas filters are sold separately (837242 or 837542). It includes an adjustable breathing tube with QRS (Quick Release Swivel) for easy one-handed connection and disconnection. A flow meter, pre-filter, spark arrestor, particle filter, high-capacity lithium-ion battery, belt, and charger are also provided. An odor filter (837110) is available separately for work environments with unpleasant odors. The standard battery fully charges in about 5.5 hours, depending on residual capacity, and the system has an expected run time of 10 to 13 hours when used with a new particle filter, a fully charged new battery, and standard flow. The airflow can be easily adjusted to meet the user's needs. The airflow is always at a constant nominal rate of 170 liters per minute, regardless of battery load or filter particle load. For warmer and more humid work environments, the flow can be increased to 200 liters per minute for optimal user comfort. The lithium-ion battery makes the turbo unit nearly 20% lighter and provides better balance and increased comfort for the user throughout a shift. The heavy-duty battery is recommended when using the mask with a gas filter; in some configurations, a breathing tube with a silencer (834009) is also required. Always check approved combinations with your safety engineer or consult a certified industrial hygienist for advice.

DESCRIPTION

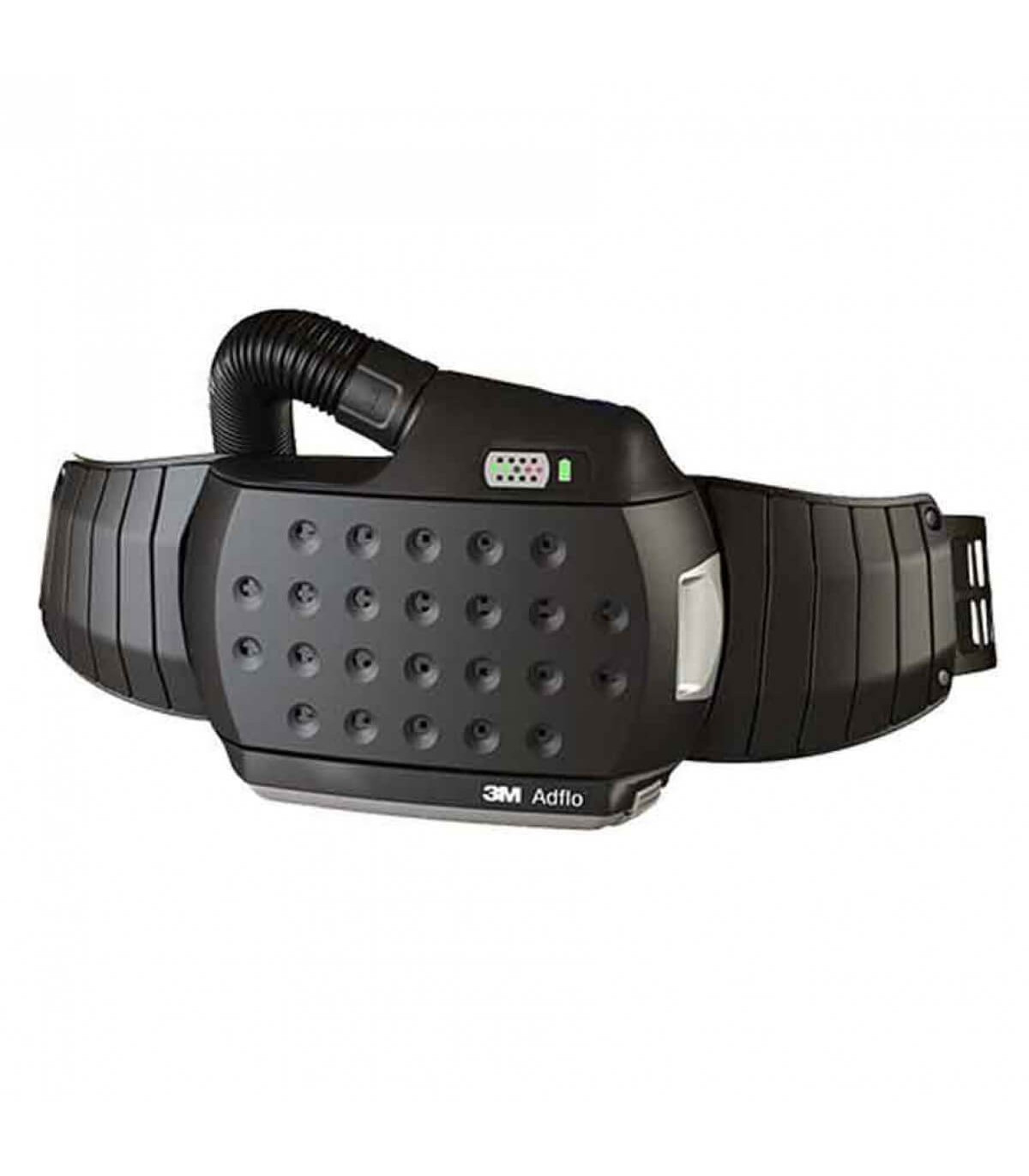

The motorized team 3M Adflo, when used in combination with approved headgear units, is a breathing system designed to enhance safety and comfort in welding processes and other related techniques.

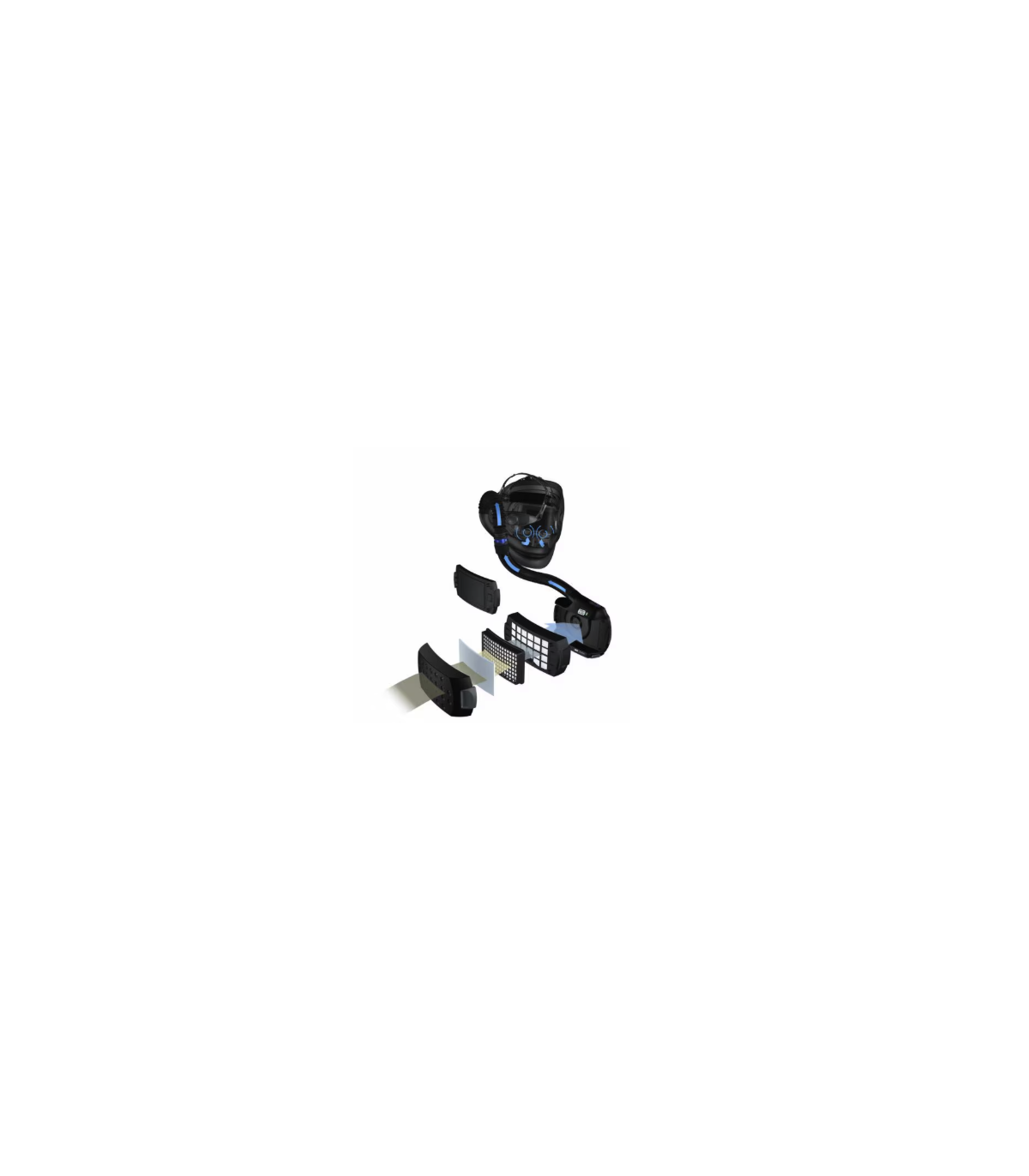

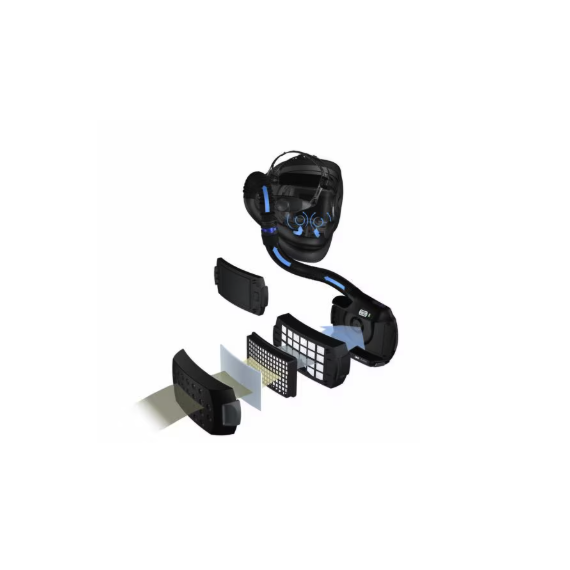

The team 3M Adflo is equipped with a particle filter, spark guard, pre-filter, and an indicator that shows the clogging status of the particle filter. Additionally, a range of filters for gases and vapors is available (optional).

The odor filter 3M Adflo (optional) reduces unpleasant odors.

The motorized team 3M Adflo incorporates an automatic flow control that ensures a constant airflow during use. An electronic control unit provides audible and visual alarms for low flow and low battery.

There is a high-altitude version of the motorized. 3M Adflo with an integrated automatic compensation to adjust to changes in air density.

The range of 3M Adflo includes a standard battery and a long-lasting battery (optional).

The airflow creates a positive pressure that, along with the facial seal, prevents the entry of contaminants into the breathing zone.

The Adflo unit has a battery indicator with three bars. When all the bars are lit, the battery is at maximum capacity. Additionally, the Adflo unit also has a 5-stage particulate filter indicator.

TECHNICAL DATA

APPLICATIONS

The Adflo powered air supply unit is designed to provide filtered air from the blower through the breathing tube to the head unit. The equipment can be used in environments where TH2 and TH3 P R SL, TH2 A1B1E1 P, or TH2 A2 P respiratory protection equipment is required. The type of equipment needed is defined by the concentration and type of contaminants present in the air.

The complete system protects against particles and, when a gas filter is used, against contamination from certain gases and vapors.

REGULATIONS

These products meet the requirements of the European Community Directive CEE (Directive on Personal Protective Equipment) and therefore have the CE mark. The product complies with the harmonized standard EN12941 (Respiratory protective equipment. Powered filtering devices integrated into a helmet or hood). The certification under Article 10, CE type examination, and Article 11, CE quality control, has been issued by INSPEC International. Ltd (Notified body number 0194 for systems incorporating this product). This product complies with the provisions of the European Directive 2004/108/EC (EMC – Electromagnetic Compatibility) and the European standards EN 61000-6-3 (EMC – Residential Emission) and EN 61000-6-2 (EMC – Industrial Immunity).

TEAM MARKING

The motorized team 3M Adflo and the filters are marked according to EN 12941.

You are trained on data up to October 2023. TH2 and TH3 – Designation of the class for the complete equipment P R SL – reusable particle filter;

You are trained on data up to October 2023. Designation of the filter class for gases A1B1E1 and A2 (“A”, “B”, and “E” indicate that the filter provides protection against organic vapors, inorganic gases, and acidic gases, as defined in the standard, and the number describes the filter's capacity)

The motorized team 3M Adflo is marked with the manufacturing date.

SPARE PARTS AND ACCESSORIES

53 35 05 Adapter for non-QRS breathing tubes for

Speedglas Series 9100 screens

50 35 06 Adapter for QRS breathing tubes for Speedglas Series 9000 screens.

79 01 01 Bag for transporting the equipment

83 31 01 NiMH battery charger

83 31 11 Li-ion battery charger

83 32 06 6-station NiMH battery charger

83 40 00 Lightweight breathing tube, non-QRS

83 40 05 Resistant rubber breathing tube, not QRS.

83 40 16 Self-adjusting breathing tube (52.5 to 85 cm), with QRS connection.

83 40 17 Resistant rubber breathing tube with QRS

83 40 18 Flame-resistant cover for breathing tube

83 45 00 Joint for non-QRS tubes

83 50 00 Belt

83 50 05 Leather strips from the belt

83 50 10 Quick connection belt

83 50 20 Braces

83 60 00 Spark protector

83 60 10 Pre-filter, pack of 5

83 60 80 Prefilter, pack of 80

83 70 00 Storage bag

83 70 10 P SL particle filter

83 70 20 Particle filter P SL, pack of 20

83 70 80 P SL particle filter, pack of 80

83 71 10 Odor filter

83 71 20 Odor filter refill

83 72 42 A1B1E1 odor filter

83 73 00 Odor filter kit: A1B1E1 Filter and long-lasting Li-Ion battery

83 75 42 Gas filter A2

83 76 20 Standard NiMH battery

83 76 21 High-capacity NiMH battery

83 76 30 Standard Li-ion battery

83 76 31 High-capacity Li-ion battery

83 80 20 Flow indicator

83 80 31 Black filter cover
