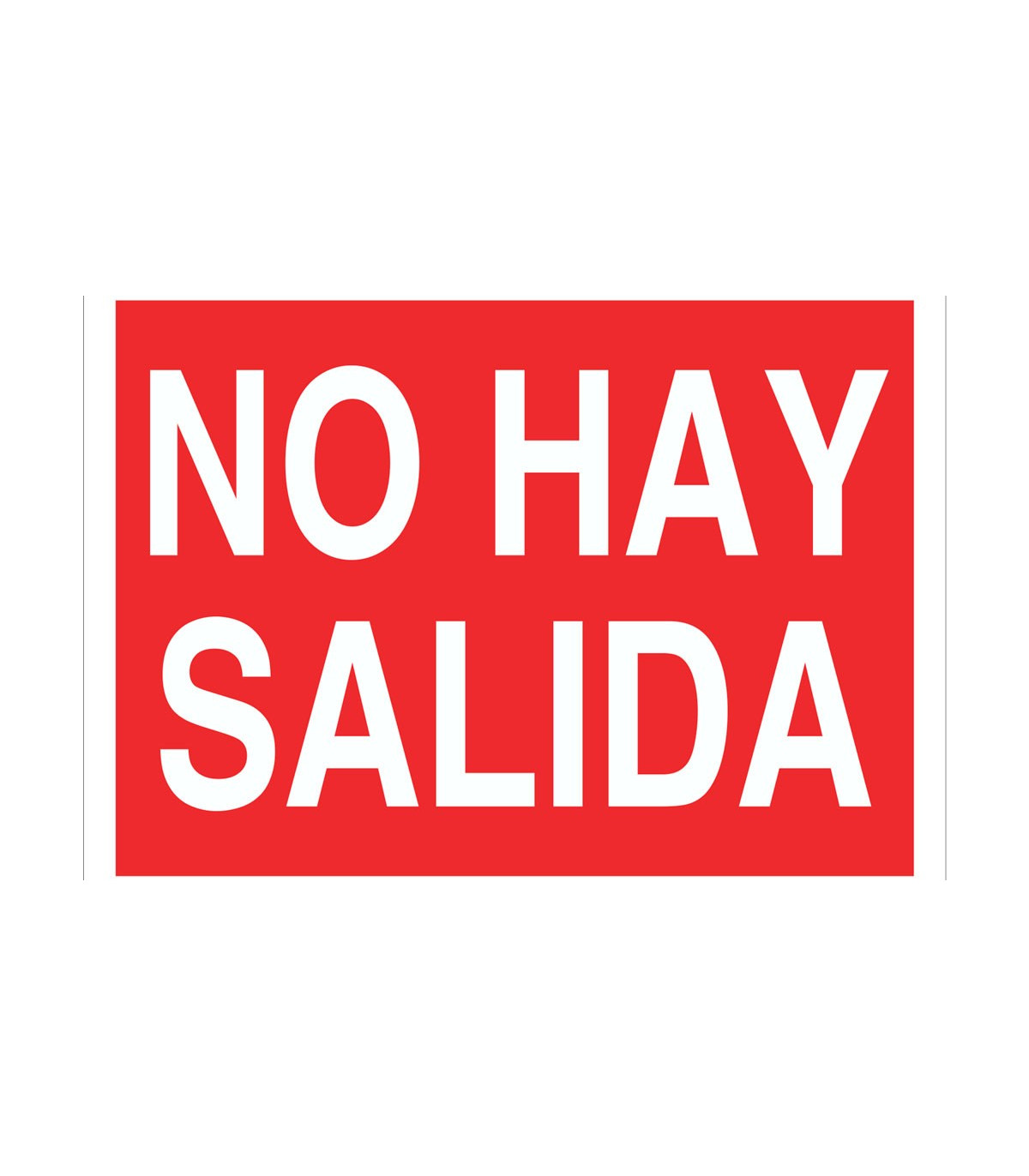

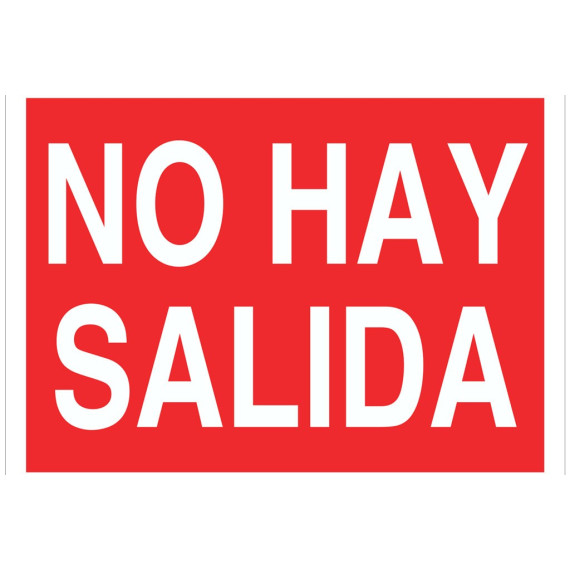

Luminous industrial sign No Exit (text only) COFAN

Emergency sign indicating the message "No exit," available in red luminescent sheet material. The text is white and proportionally sized for easy visibility. Choose from 4 different sizes according to the needs of your industry. The sign informs about the space limits for exit in specific locations such as buildings, shops, factories, and offices.

This type of signage is installed in various industries as a measure of alert and safety, serving to keep users and workers informed about emergency actions.

It is common to find this type of signage in a variety of industries, including the chemical industry, oil industry, construction industry, food industry, textile industry, and many others. It is important to have fire-fighting equipment in any place where there is a risk of fire.

Material:

Luminescent

148x105 mm

210x148 mm

297×210 mm

420x297 mm

PRODUCT IDENTIFICATION

According to UNE 23035/4:

• Manufacturer's name or brand
• Manufacturing date
• Denomination (class A or class B as applicable)

According to RIPCI 513:

• Manufacturer's name or brand

MINIMUM LUMINESCENCE VALUES AFTER SALT CHAMBER

All NMZ signage undergoes various internal and external light response tests that ensure compliance with the light intensity values outlined in UNE 23035.

CLASS A:

CLASS B:

FEATURES

SUPPORT MATERIALS PVC

According to UNE 53127:

• White PVC 1mm for class A and transparent PVC 0.7mm for class B
• White lacquered aluminum 0.6mm thick.
• Stability with T° < 55º.
• Negligible water absorption (0.04 ± 0.01)%.
• Self-extinguishing.
• No appreciable lead and phosphorus content (less than 0.01%)
• Non-toxic.

PICTOGRAMS

According to standards:

• UNE EN ISO 7010
• UNE 23033/1

TEXTS

• According to UNE 23033/1

PHOTOLUMINESCENT PRODUCT

• Composed of pigments.
• Unlimited photo-luminescent charge and discharge cycles

COLOR

Shades according to standard:

• UNE EN ISO 7010
• UNE 23033/1
• High adhesion and resistance ink.
• Allows for great flexibility in the final product.
• Non-flammable. Non-toxic

FINAL THICKNESS

Class A

• PVC 1.2 mm (±10%).
• ALUMINUM 0.8 mm (±10%).

Class B

• PVC 0.8 mm (±10%).
• ALUMINUM 0.7 mm (±10%).

REFERENCE

• Printed on the sign

DIMENSIONS

• According to UNE 23033/1

COLOR PERCENTAGES

• According to UNE 23033-1

MAXIMUM VIEWING DISTANCE

• Printed on the sign.

To calculate the necessary dimensions of a sign, the following formula will be applied, up to a maximum distance of 50 m:

S≥ L2 /2000

“S” represents the surface area of the sign in square meters, and “L” is the distance in meters from which the sign can be perceived.

APPLICATIONS

Shops

Factories

Oil industry

Construction industry

Food industry

Textile industry

REGULATIONS

The UNE 23035-4 regulation from December 2003 requires signs to meet certain qualities of light intensity and resistance to pigment attenuation. Both the inks and the photoluminescent PVC used in the production of our signs fully comply with this regulation. Since safety signage can help save lives and is mandatory, use the best possible signage. Usage Recommendations: Minimum sizes to be used based on meters.

STORAGE, CLEANING, AND MAINTENANCE

The working temperature should not exceed 45º C. Higher temperatures may deform the support material.

The optimal storage temperature should be between 15º C and 25º C; with a humidity of 10/50%.

Cleaning methods; avoid applying abrasive products. It is recommended to clean with water and neutral detergents.

The technical building code – Basic document on fire safety requires that photoluminescent signage must comply with the UNE 23035 standard.

To maintain the functionality for which the signaling systems have been designed, SEKURECO recommends keeping the signs free of dust, dirt, or any residue or object that may hinder their visibility and identification.

For cleaning, it is advisable to use soapy solutions preferably, avoiding the use of solvents or abrasive products that may damage the surface of the sign.

Photoluminescent signs should be positioned in such a way that they receive energy from a natural or artificial light source to ensure their proper functioning.

According to RD 513/2017 (TABLE III), luminescent signaling systems must undergo an annual inspection/review conducted by specialized personnel from the manufacturer, a maintenance company, or by the user or owner of the installation.

Once the useful life period of the signs that make up the signaling system has elapsed, the inspection of these elements will be carried out following the guidelines outlined in RD 513/2017 and UNE 23035-2.

SIGN INSTALLATION

Check our blog to learn how to install a sign or poster: https://www.sekureco.eu/blog/76_consejos-de-instalacion-de-senales-de-seguridad.html

The RECOMMENDED INSTALLATION HEIGHT ranges from 2 to 2.50 meters, always maintaining a separation distance of 0.30 meters from the ceiling.

Photoluminescent signs should be positioned in such a way that they receive energy from a natural or artificial light source to ensure their proper functioning.

The FIXING of the signaling element must be done on a firm and clean surface.

The sign can be secured using MECHANICAL ELEMENTS (screws, rivets, etc...) or ADHESIVES (mounting adhesive, glues, silicones…) carefully, avoiding soiling the visible surface or deforming it.

EVACUATION signage should be installed in such a way that from any point likely to be occupied in the premises, an evacuation can be initiated, so it is recommended to install directional signs at all routes, intersections, stairs, etc. that serve as a pathway.

Signage on DOORS will be placed above the door frame with the appropriate label (“EXIT,” “EMERGENCY EXIT,” “NO EXIT,” …).

Signage for FIRE PROTECTION, rescue, and/or assistance means will be carried out on the same elements to be signaled whenever possible.
