Emergency signal with only pictogram Fire extinguisher COFAN

Emergency signal with only pictogram Fire extinguisher COFAN. Safety and extinguishing sign made on PVC sheet or adhesive (sticker) with a layer of photoluminescent pigment (after absorbing light, the product emits it in the dark, so it does not need any electrical source and the product can be charged an indefinite number of times).

This type of signs are installed in different types of industries as a measure of alert and safety, fulfilling the function of keeping users and workers informed about rescue actions in case of emergency. In most industries, the safety extinguisher is mandatory, as well as its correct signage and instructions for use.

It is common to find this sign in schools, hospitals, and factories, as well as in shopping centers, theaters, and common use spaces.

PRODUCT IDENTIFICATION

According to UNE 23035/4:

• Name or brand of the manufacturer
• Manufacturing date
• Denomination (class A or class B as applicable)

According to RIPCI 513:

• Name or brand of the manufacturer

MINIMUM LUMINESCENCE VALUES AFTER SALT CHAMBER

CLASS A:

Placement in public gathering places and/or artificial light

CLASS B:

Other locations

PVC SUPPORT MATERIAL CHARACTERISTICS

According to UNE 53127:

• White PVC 1mm for class A and transparent PVC 0.7mm for class B
• White lacquered aluminum 0.6mm thick.
• Stability with Tª < 55º.
• Negligible water absorption (0.04 ± 0.01)%.
• Self-extinguishing.
• No appreciable lead and phosphorus content (less than 0.01%)
• Non-toxic.

PICTOGRAMS

According to standards:

• UNE EN ISO 7010
• UNE 23033/1

TEXTS

• According to UNE 23033/1

PHOTOLUMINESCENT PRODUCT

• Compound based on pigments.
• Unlimited photoluminescent charge and discharge cycles

COLOR

Shades according to standard:

• UNE EN ISO 7010
• UNE 23033/1
• High adhesion and resistance ink.
• Allows great flexibility in the final product.
• Non-flammable. Non-toxic

FINAL THICKNESS

Class A

• PVC 1.2 mm (±10%).
• ALUMINUM 0.8 mm (±10%).

Class B

• PVC 0.8 mm (±10%).
• ALUMINUM 0.7 mm (±10%).

REFERENCE

• Printed on the sign

DIMENSIONS

• According to UNE 23033/1

COLOR PERCENTAGES

• According to UNE 23033-1

MAXIMUM VIEWING DISTANCE

• Printed on the sign.

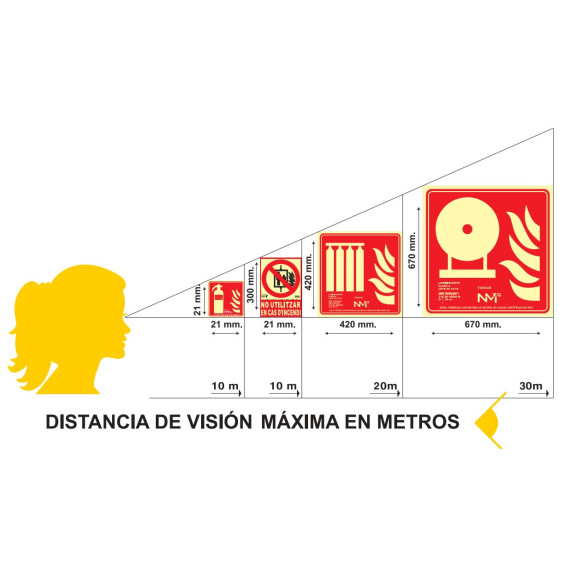

To calculate the necessary dimensions of a sign, the formula will be applied, up to a maximum distance of 50 m:

S≥ L2 /2000

“S” represents the surface area of the sign in square meters, and “L” the distance in meters from which the sign can be perceived.

MEASURES

ADHESIVE (STICKER)

• SO03AD105105..............105x105 mm
• SO03AD148148..............148x148 mm

PVC

• SO03LU105105..............105x105 mm
• SO03LU148148..............148x148 mm
• SO03LU210210..............210x210 mm
• SO03LU297297..............297x297 mm

NORMATIVES

- UNE 23033/1:2019 (Extinction)

- UNE 23033/2:2019 (Installations)

- UNE 23034/1998 (Evacuation)

- UNE 23035-1/2003

- UNE 23035-4/2003

- UNE 53127/2002

- UNE EN ISO 7010: 2012

- RD 314/2006 (CTE)

- RIPCI 2017 (Extinction)

STORAGE, CLEANING, AND CONSERVATION

The working temperature should not exceed 45º C. Higher temperatures may deform the support material.

The optimal storage temperature will be between 15º C and 25º C; and with a humidity of 10/50%.

Cleaning methods; avoid applying abrasive products. It is recommended to clean them with water and neutral detergents.
